SureClose ConcealFit for Gates
SureClose ConcealFit from D&D Technologies is a concealed hydraulic hinge-closer system for gates up to 220 lb. With no exposed parts, gate gaps from 0.079", four-way positional adjustment and adjustable closing speed, latching speed and backcheck, it gives a secure and quiet close.
Key features
- Fully concealed mechanism with no climbing foothold
- Gate gap from 0.079"
- Adjustable closing speed, latching speed and backcheck
- Four positional adjustments: lateral, vertical, depth and inclination
- Tested to over 500,000 cycles, 20-minute UL10C and cUL10C fire rating
- For gates up to 220 lb

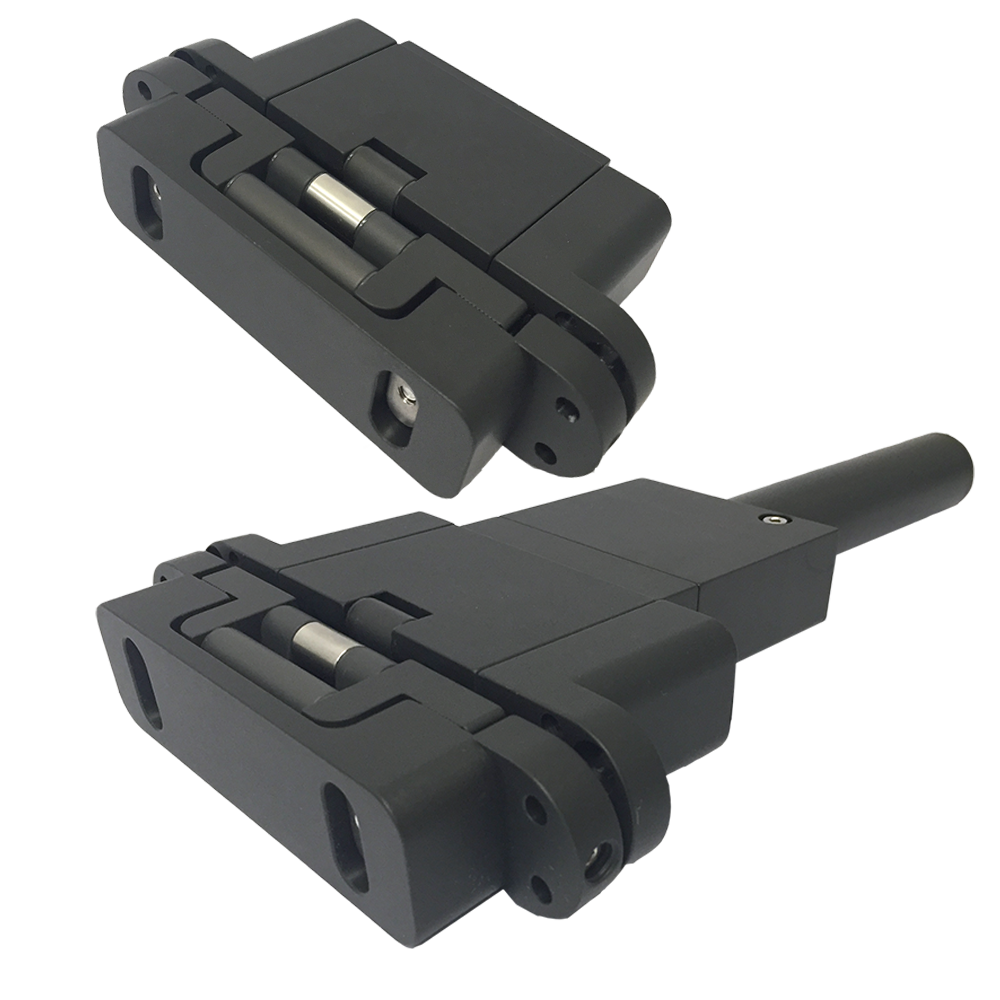

SureClose ConcealFit: a concealed hydraulic hinge-closer with nothing to climb on
SureClose ConcealFit is a hydraulic gate closer and hinge system from D&D Technologies in which the mechanism is fully concealed. With no exposed parts, it offers no foothold for climbing, and the gate gap can be as small as 0.079". It is rated for gates of up to 220 lb.
Operation
Closing speed, latching speed and backcheck are all adjustable, for a secure, safe and quiet close from up to 125 degrees. D&D states that it has been independently tested to over 500,000 open and close cycles, carries a 20-minute UL10C and cUL10C fire rating and is suitable for ADA use.
Installation
The hinge has four positional adjustments: lateral, vertical, depth and inclination. It fixes by screw-on or weld-on, and aluminum and steel gates need a weld box. A gate stop is required so the gate cannot open beyond 125 degrees, because forcing it further can damage the closer and void the warranty.
Options
Choose the SureClose ConcealFit kit, or the plain door hinge without closer.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On, Weld-On |
| Warranty | Limited lifetime |
| Product line | SureClose |
| Type | Hinge-Closer |
| Function | Self-Closing, Square-to-Square |
| Max gate weight | 220 LB (220 lb) |
| Max self-closing gate weight | 220 lb (220 lb), Non Self- Closing |
| Self-closing from | 125° - 0° |
| Model | Plain Door Hinge |
Article numbers
- 77108523Model: SureClose ConcealFit KIT$928.00
- 78108513Model: Plain Door Hinge$310.00Chosen
Frequently asked questions
Do I need a gate stop?
Yes. A gate stop is required to stop the gate opening beyond 125 degrees. Forcing the gate further can damage the closer and void the warranty.
Can it be fitted to aluminum or steel gates?
Yes, but aluminum and steel gates require a weld box.
How heavy a gate can it take?
The system is rated for gates of up to 220 lb.
What can be adjusted?
Closing speed, latching speed and backcheck, plus four positional adjustments: lateral, vertical, depth and inclination.
