SureClose® FLUSH MOUNT Hinges & Hinge Closer
SureClose Flush Mount hinges and hinge-closers from D&D Technologies are flush-mounted hydraulic gate hinges for aluminum gates with a 1/2" hinge gap. The hinge-closers are rated for gates up to 265 lb, with adjustable force and speed, and non self-closing hinges complete the set.
Key features
- Powerful hidden hydraulics with adjustable force and speed
- Rated up to 265 lb, depending on configuration
- Hinge gap of 1/2"
- Screw-on, weld-on and Final Snap hinge-closers
- Non self-closing hinges, screw-on or steel weld-on
- Post mounting brackets sold separately

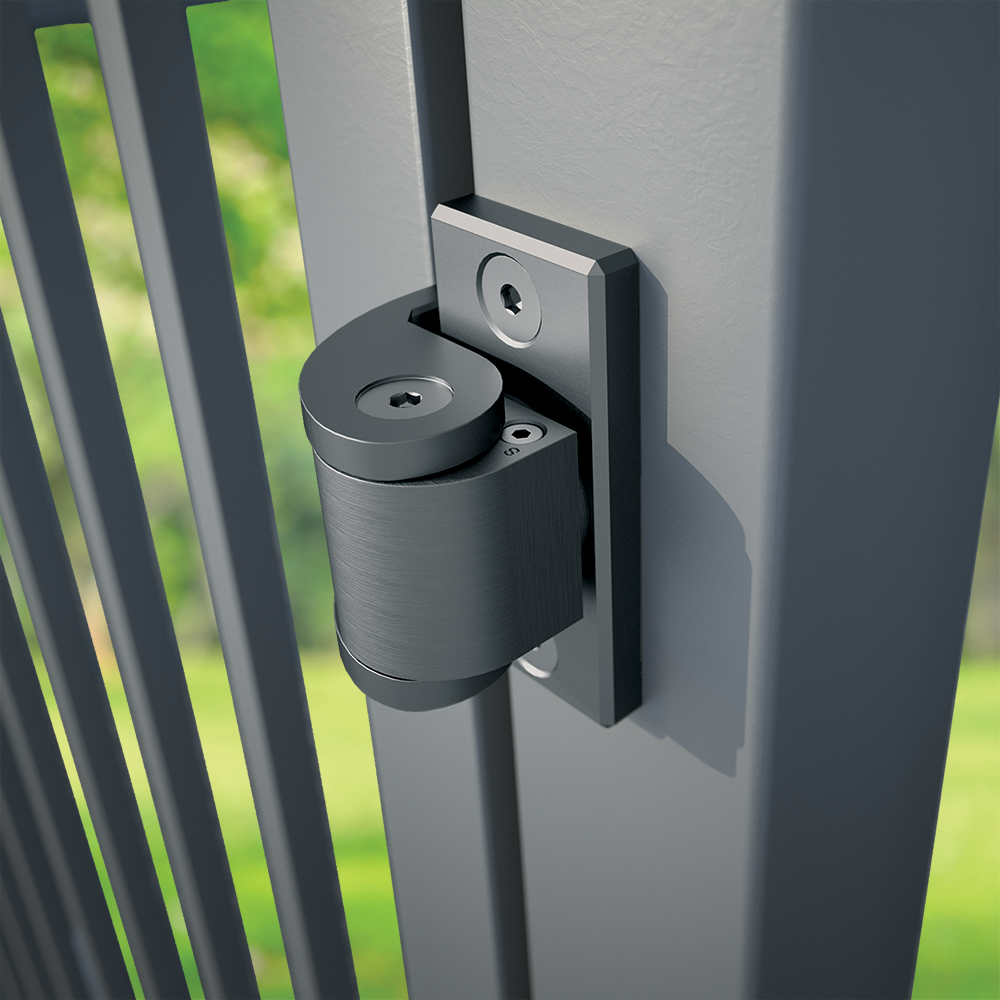

SureClose Flush Mount Hinges and Hinge Closer: hidden hydraulics for aluminum gates
The SureClose Flush Mount is a flush-mounted, hydraulic gate hinge system from D&D Technologies with powerful, hidden hydraulics. This page covers the hinge-closers and the non self-closing hinges that go with them. They are specified for front, side, pedestrian, pet, pool, privacy, security and commercial gates.
Operation
The hinge-closers close the gate under control, which prevents gate slam noise and damage. Force and speed are both adjustable, and the closers are maintenance free. Final Snap models add a snap-close action at the end of the swing.
Sizes and fit

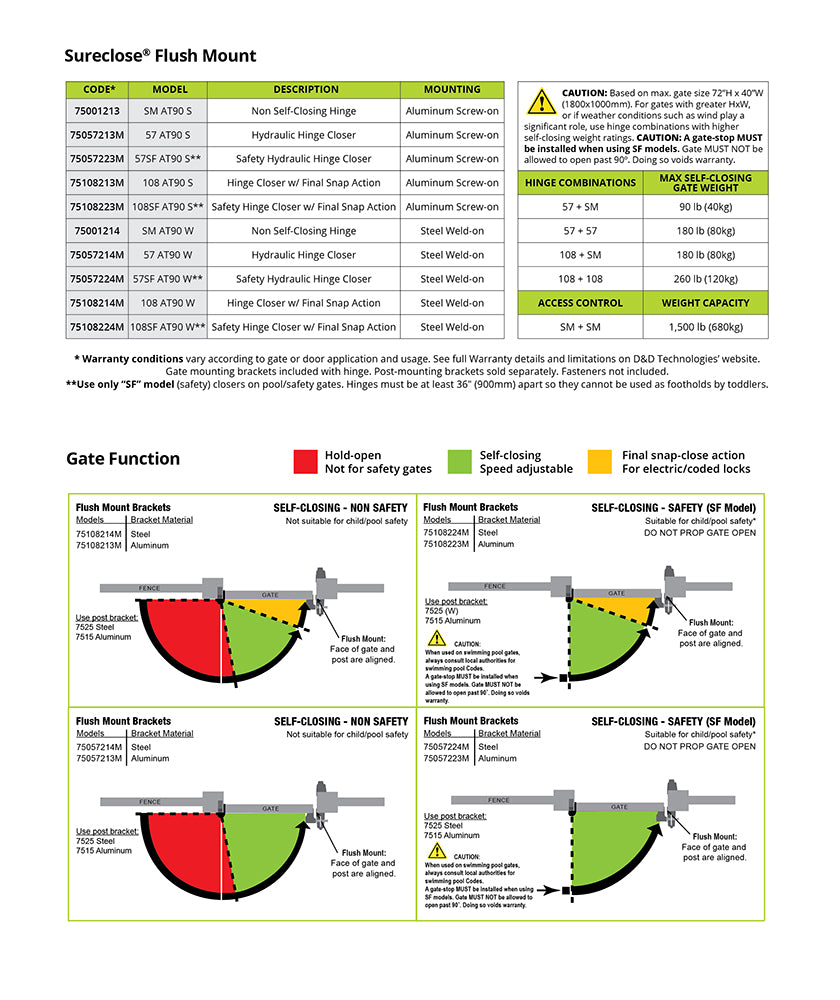

They are made for aluminum gates with a hinge gap of 1/2". D&D rates the hinge-closers for gates of up to 176 lb or up to 265 lb depending on the configuration, as set out in its load chart. The specification lists posts from 1-15/16" or 3" upwards.
Materials and fitting
The aluminum components have a 50 micron anodized finish for high corrosion resistance. Hinge-closers come as screw-on or weld-on, and the plain hinge as screw-on or steel weld-on. Weld-on models need no grinding before welding. Post mounting brackets are sold separately.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Bolt-On, Screw-On, Weld-On |
| Warranty | Limited lifetime |
| Product line | SureClose |
| Type | Hinge-Closer |
| Function | Self-Closing, Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Pool Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Hinge gap | 1/2" |
| Min post size | 2"+, 3"+ |
| Max self-closing gate weight | 260 lb (265 lb), Up to 180 lb (176 lb), Up to 260 lb (265 lb), Non Self- Closing |
| Self-closing from | 83° |
| Sold as | Each |
| Model | Non Self-Closing Hinge Steel Weld-on |
Article numbers

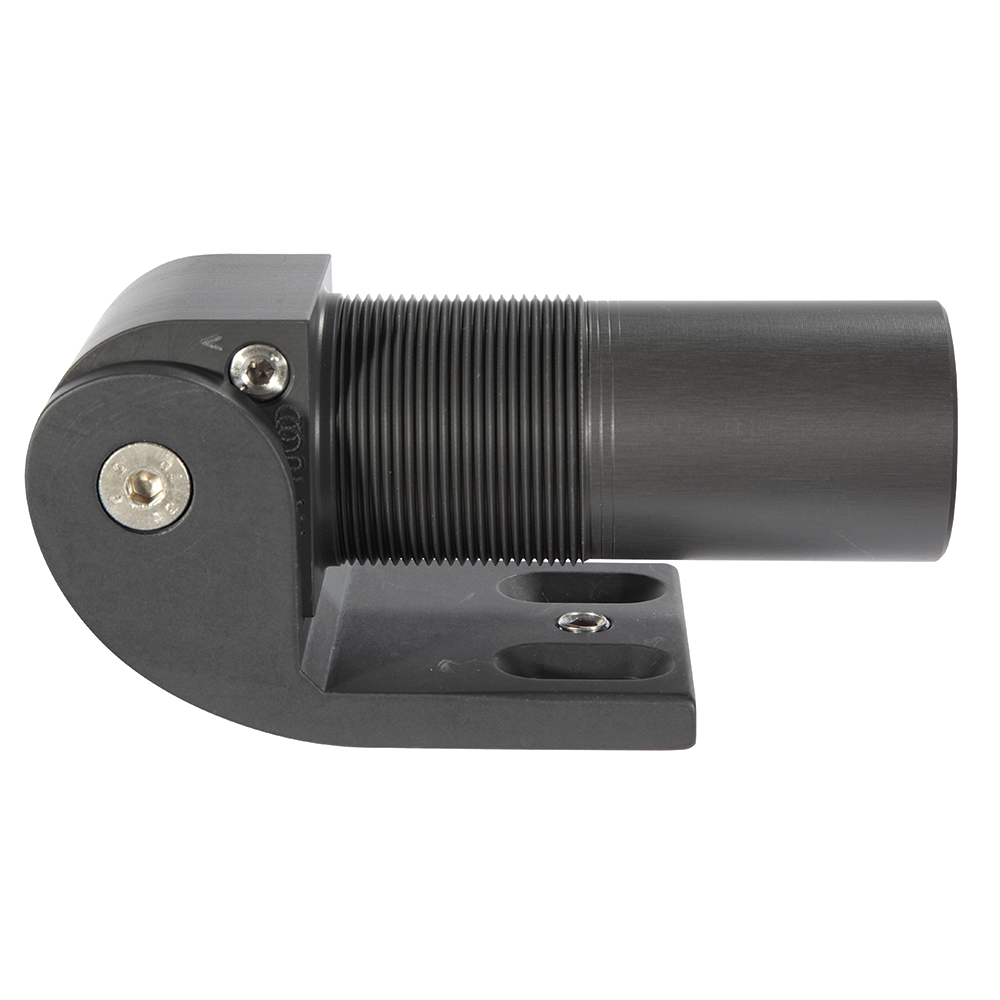

- 75108213MModel: Hinge-Closer Final Snap Screw-On$361.00
- 75001213Model: Non Self-Closing Hinge Screw-on$121.00
- 75001214Model: Non Self-Closing Hinge Steel Weld-on$118.00Chosen

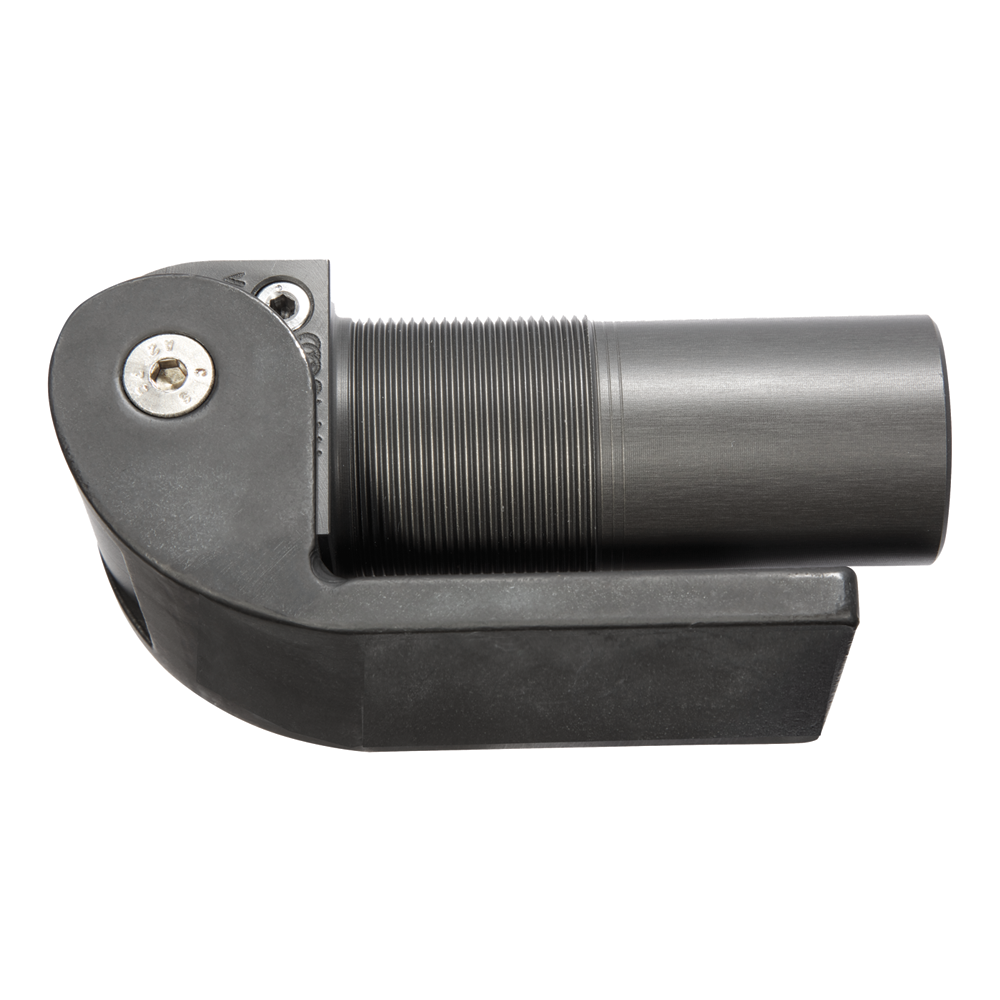

- 75108214MModel: Hinge-Closer Final Snap Weld-On$361.00
- 75057213MModel: Hinge-Closer Screw-On$283.00
- 75057214MModel: Hinge-Closer Weld-On$283.00
Frequently asked questions
What is the difference between a hinge and a hinge-closer?
A hinge-closer has the hydraulic closer built in and closes the gate by itself. The non self-closing hinge has no closer.
How heavy a gate can it close?
D&D rates the hinge-closers for gates of up to 176 lb or up to 265 lb, depending on the configuration in its load chart.
Do I need anything else to install it?
Yes. Post mounting brackets are sold separately.
