SureClose® READYFIT 108
SureClose READYFIT 108 is an externally mounted hydraulic hinge-closer from D&D Technologies for aluminum gates, with a matching plain hinge. It gives a controlled, quiet close with a final snap action, takes gate gaps of 12 to 1-3/8" and comes screw-on or weld-on with fasteners included.
Key features
- Controlled, quiet close with final snap action

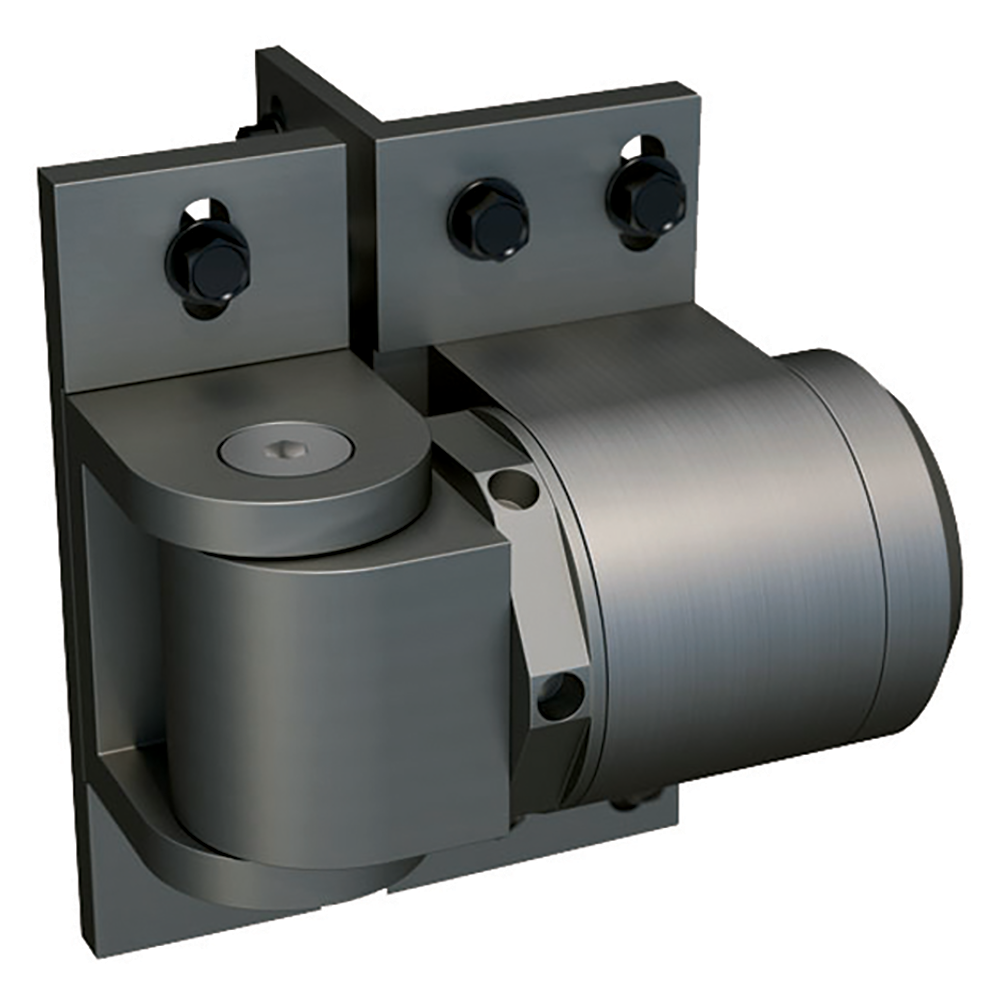

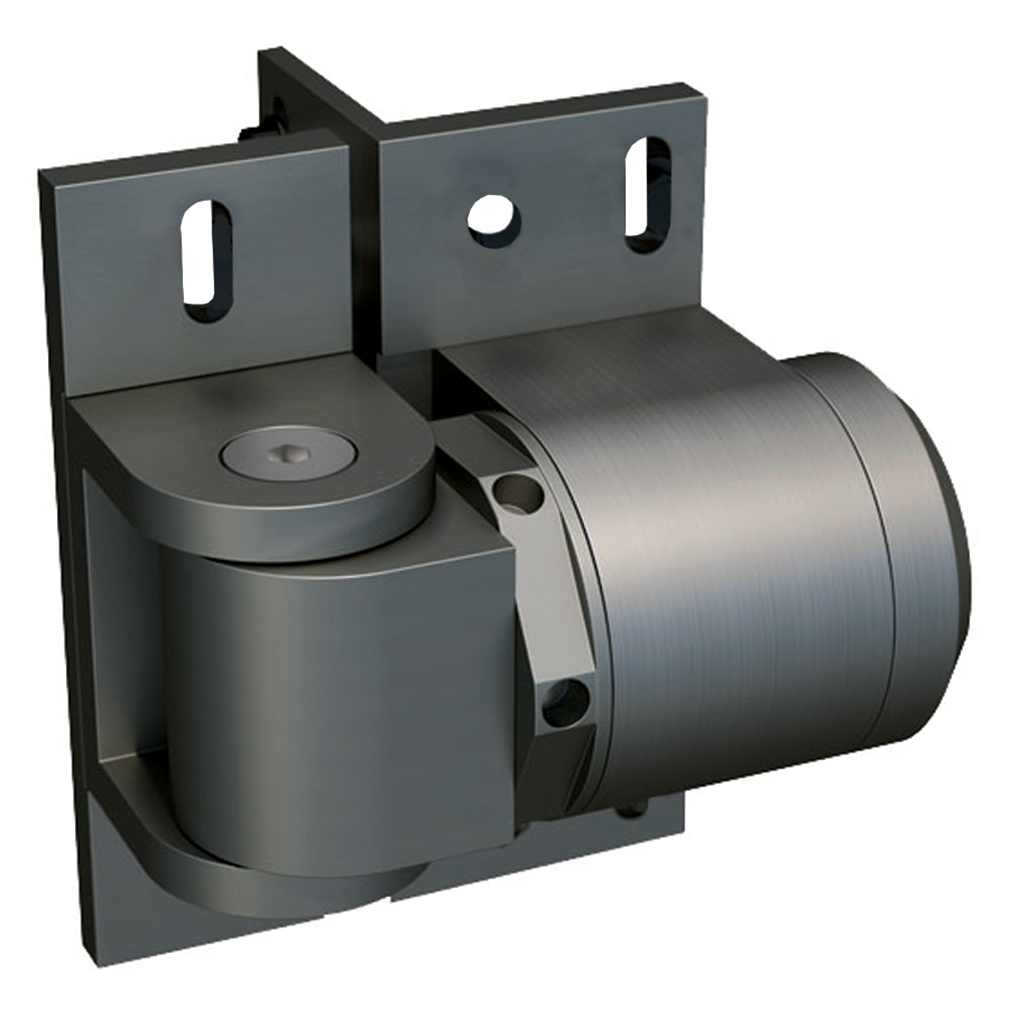

- Hinge-closer and matching plain hinge
- Gate gap from 1/2" to 1-3/8", posts from 1-15/16"
- Emergency override feature
- Alignment legs for double face-fixing strength
- Screw-on or weld-on, fasteners included

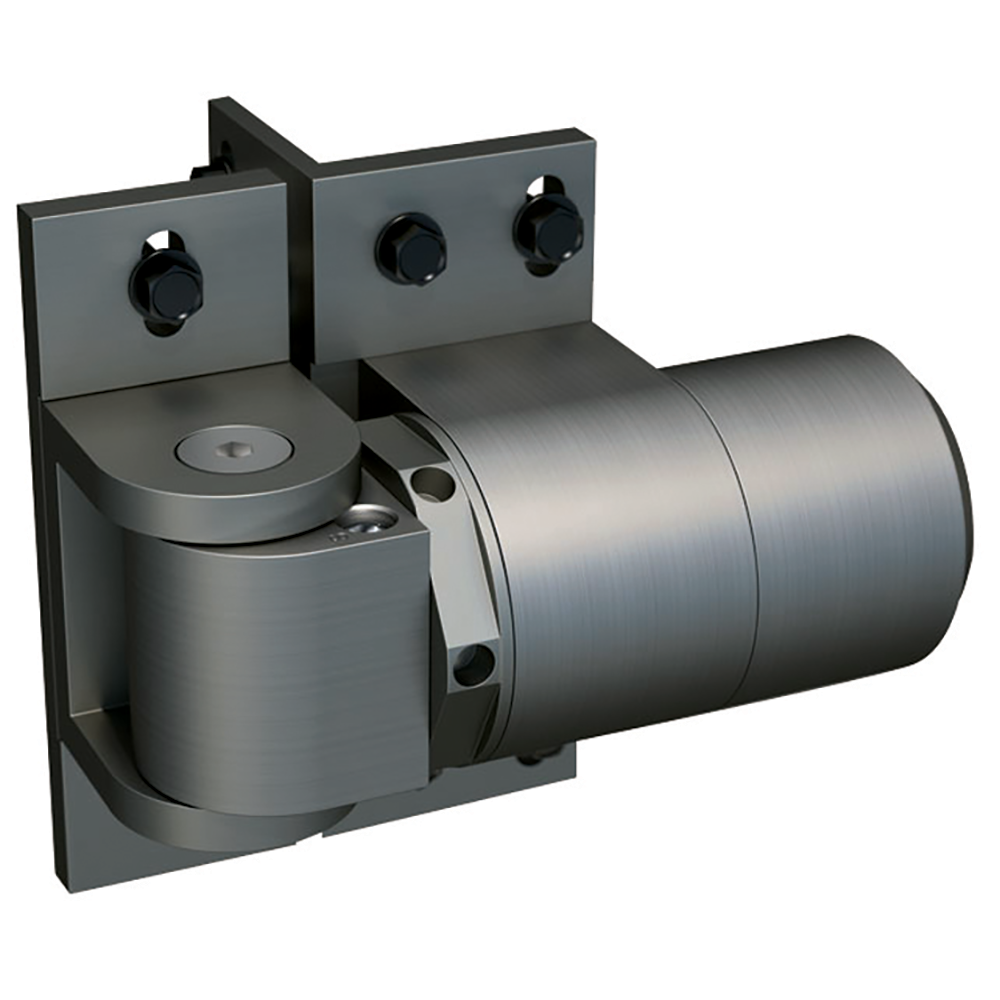

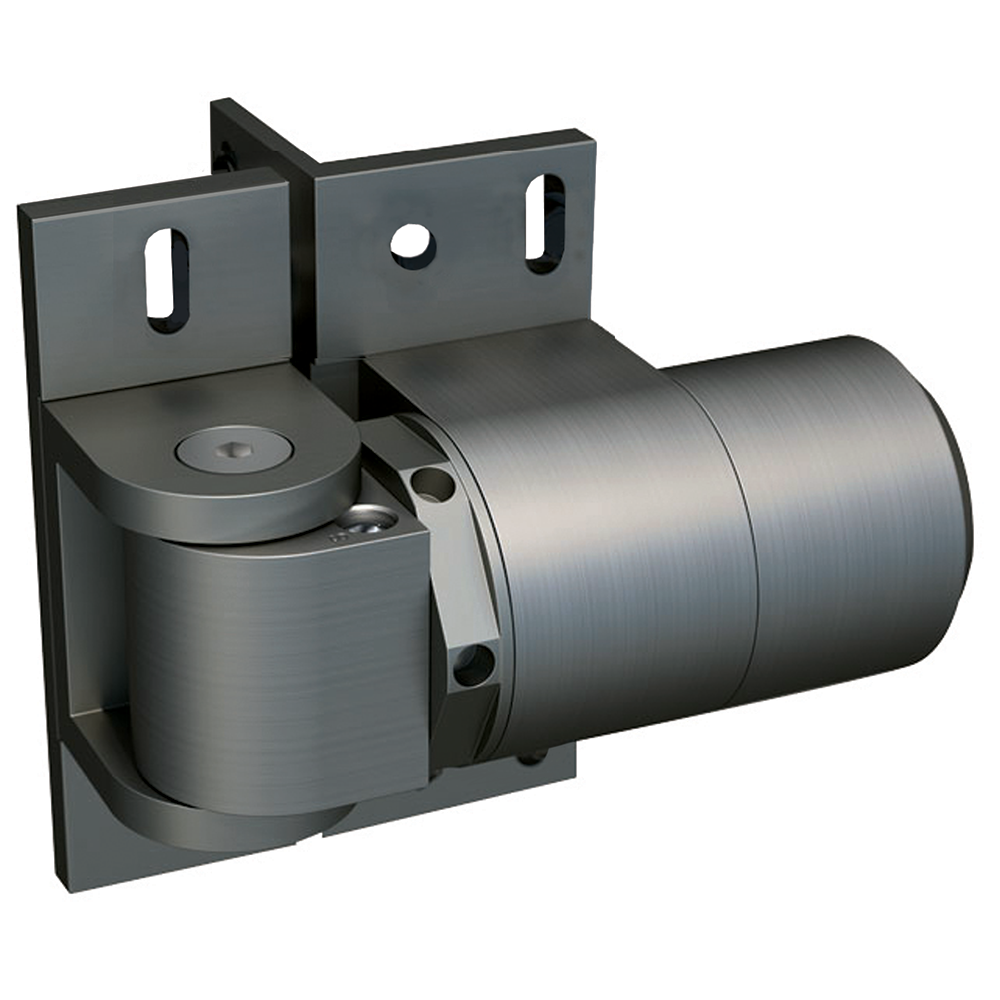

SureClose READYFIT 108: an externally mounted hinge-closer with a controlled, quiet close
The READYFIT 108 is an externally mounted, hydraulic self-closing hinge-closer from D&D Technologies. This page offers the hinge-closer and the matching plain hinge, each as screw-on or weld-on. Models with a safety feature are available separately for safety gates.
Operation
The hinge-closer gives a controlled, quiet close with the final snap-close action of all 108 models. An emergency override feature adds safety and longevity.
Sizes and fit
It is made for aluminum gates and takes a gate gap from 1/2" to 1-3/8", on posts from 1-15/16". D&D rates the system for gates of up to 265 lb. It is specified for front, side, pedestrian, pet, privacy, security and commercial gates.
Installation
Several mounting options are available and fasteners are included. Alignment legs give double face-fixing strength, and the hinge adjusts horizontally and vertically after hanging.

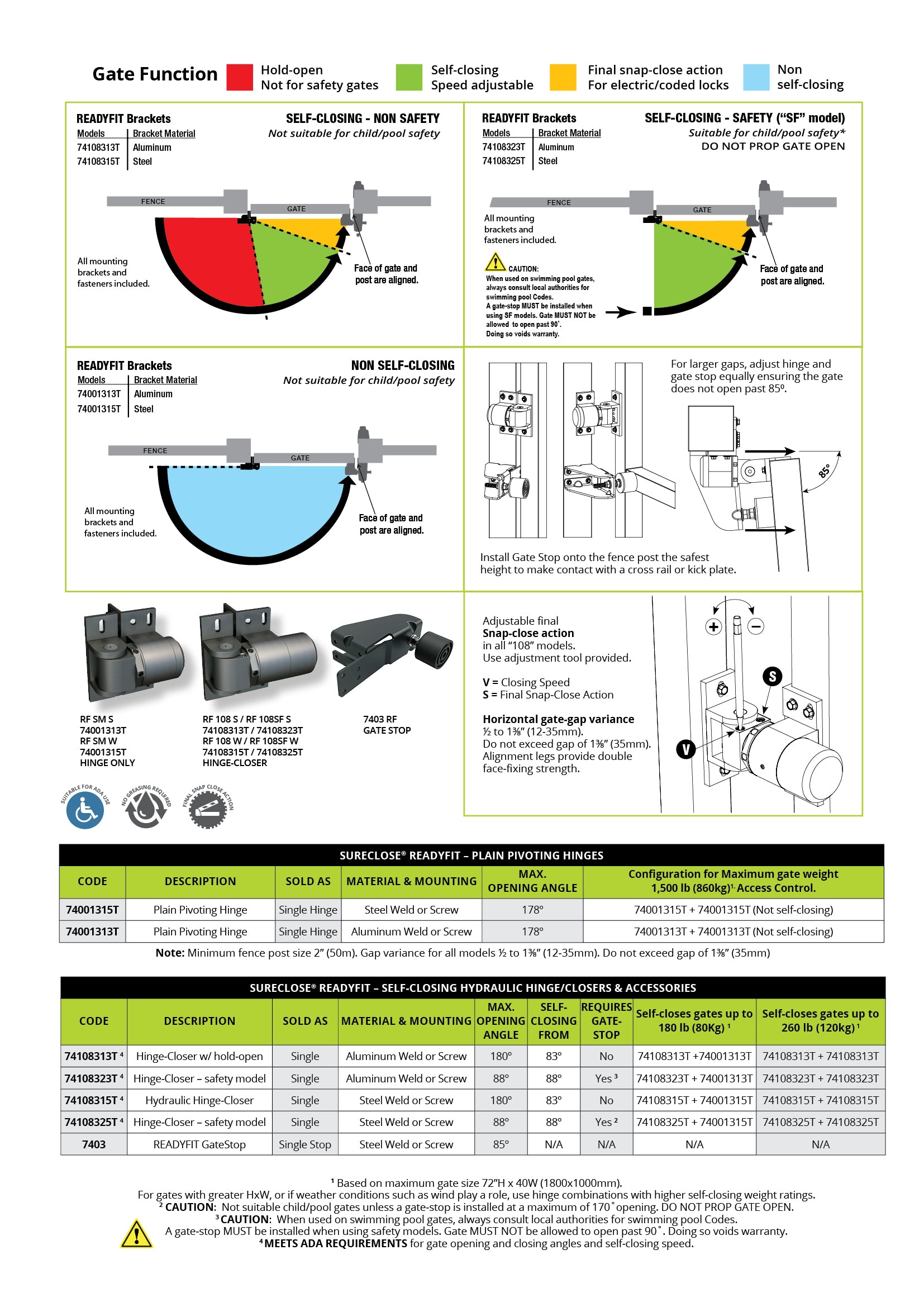

Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On, Weld-On |
| Weight | 2.1 lb |
| Warranty | Limited lifetime |
| Product line | SureClose |
| Type | Hinge-Closer |
| Function | Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Hinge gap | 1/2" - 1-3/8" |
| Min post size | 2"+ |
| Horizontal adjustment | Yes |
| Vertical adjustment | Yes |
| Max self-closing gate weight | 260 lb (265 lb), Non Self-Closing |
| Self-closing from | 83° |
| Sold as | Each |
| Mount type | Screw-on |
| Model | Hinge |
Article numbers
- 74001313TMount type: Screw-on / Model: Hinge$219.00Chosen
- 74108313TMount type: Screw-on / Model: Hinge-Closer$440.00
- 74001315TMount type: Weld-on / Model: Hinge$264.00
- 74108315TMount type: Weld-on / Model: Hinge-Closer$504.00
Frequently asked questions
What is the difference between the hinge and the hinge-closer?
The hinge-closer has the hydraulic closer built in and closes the gate by itself. The plain hinge has no closer and is used as the second hinge.
Is this the version for pool gates?
No. For safety gates, D&D makes the READYFIT 108 with Safety Feature.
Are fasteners included?
Yes. Fasteners are included.
