TruClose® MINI MULTI-ADJUST™ Regular
TruClose MINI MULTI-ADJUST Regular is a highly adjustable self-closing hinge from D&D Technologies for gates up to 55 lb. It adjusts vertically, horizontally and for tension, fits gate gaps from 7/8" to 1-1/2" or 7/8" to 1-15/16", and comes in black or white.
Key features
- Three-way adjustment: vertical, horizontal and tension
- Up to 3/4" of adjustment
- Self-closes gates up to 55 lb
- Gate gaps from 22 to 1-1/2" or 22 to 1-15/16"
- Engineered polymer with internal stainless steel spring
- Black or white, fasteners included

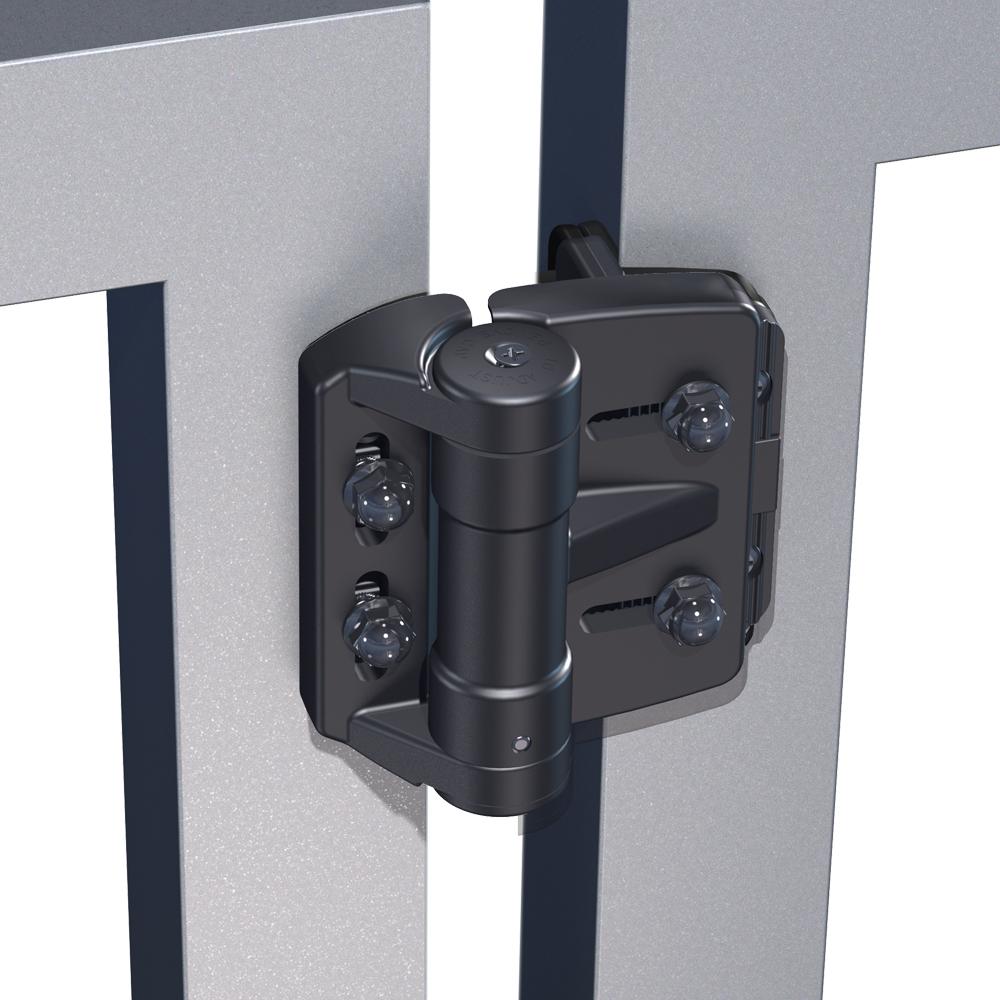

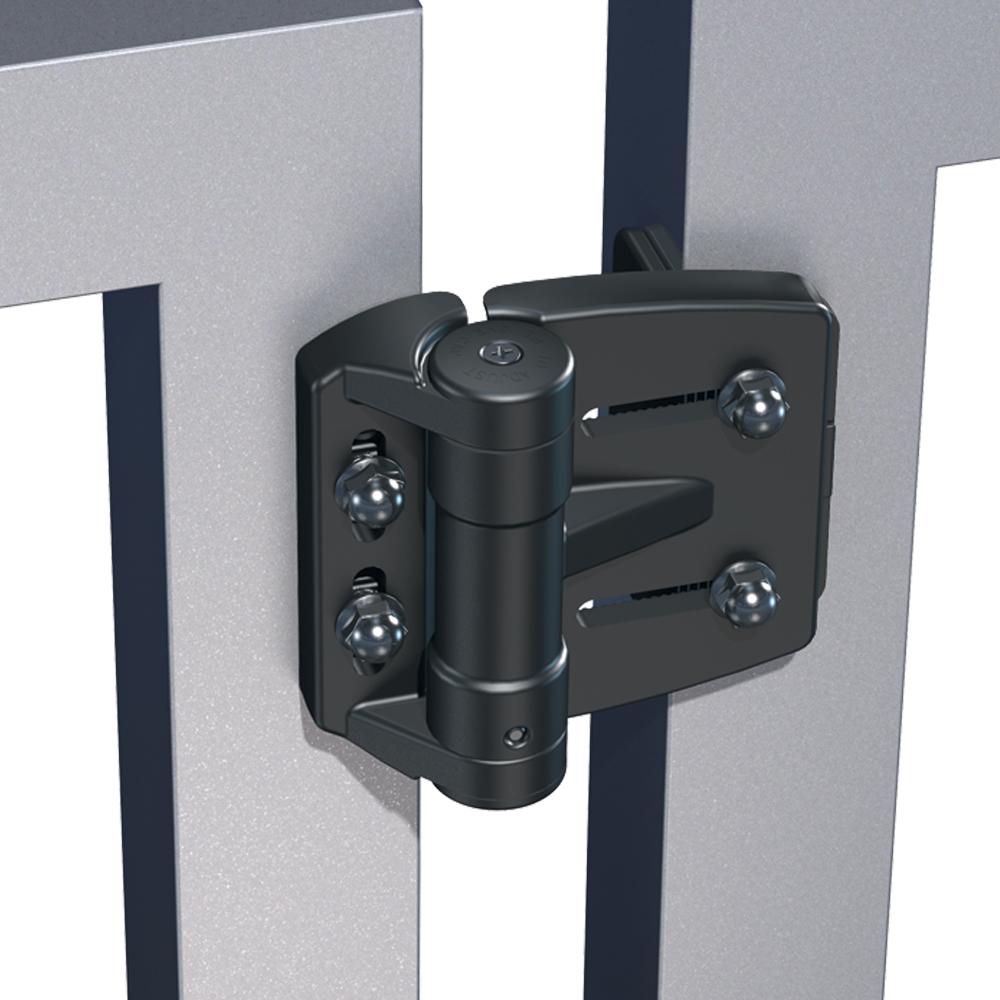

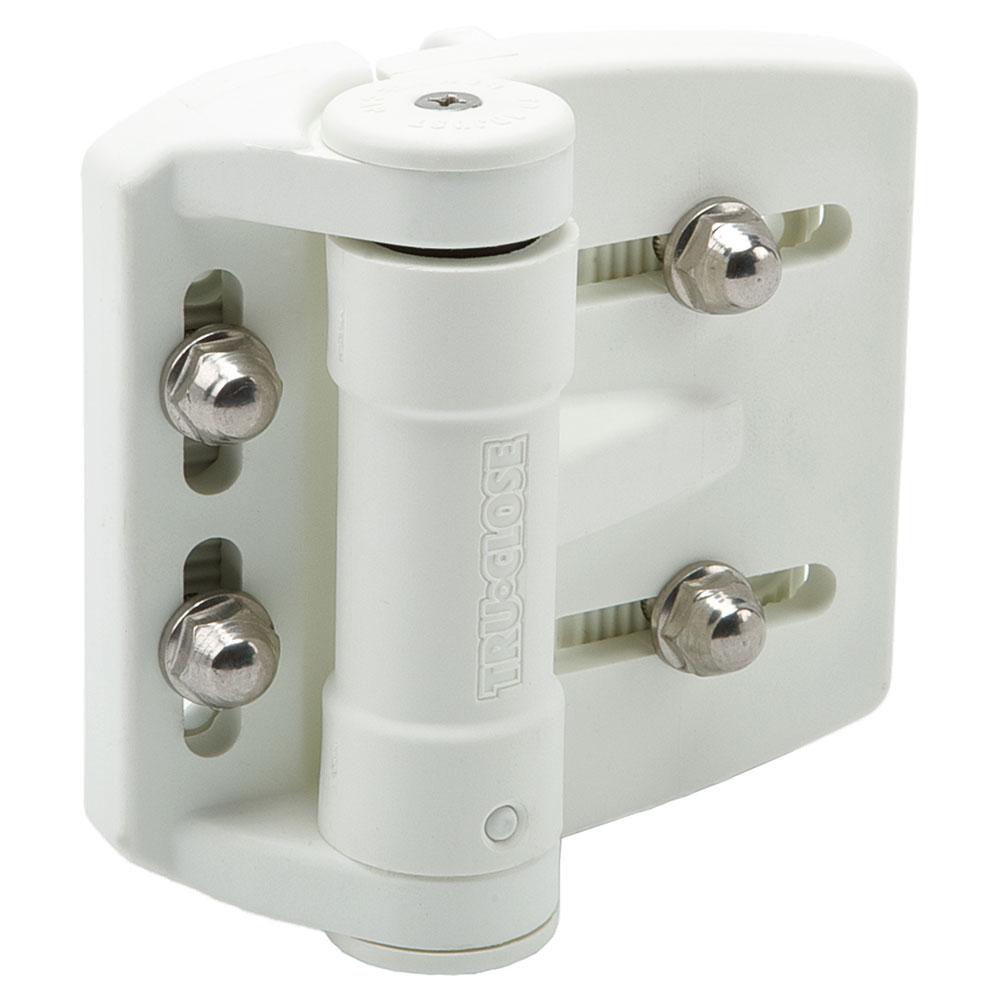

TruClose MINI MULTI-ADJUST Regular: a three-way adjustable self-closing hinge
The TruClose MINI MULTI-ADJUST Regular from D&D Technologies is a highly adjustable, self-closing hinge. The feature list names wood and vinyl gates and the specification adds aluminum; it closes gates of up to 55 lb. It is specified for front, side, pedestrian, pet, privacy, security and commercial gates.
Adjustment
Three-way adjustment covers vertical, horizontal and tension, with up to 3/4" of adjustment, and alignment legs with adjustment slots make it easy to line up.
Materials
The hinge is made from a strong engineered polymer with an internal stainless steel spring and components. It is UV-stabilised and self-lubricating, and will not rust, bind, sag or stain.
Sizes and options
Two models cover gate gaps from 7/8" to 1-1/2" and from 7/8" to 1-15/16". The 22 to 1-15/16" model comes in black or white, and the 22 to 1-1/2" model in black. Fasteners are included, and the hinges are sold as a pair.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On |
| Fixings included | Yes |
| Weight | 1.2 lb |
| Warranty | Limited lifetime |
| Product line | TruClose |
| Type | Hinge |
| Function | Self-Closing, Square-to-Square |
| Gate material | Aluminum, Vinyl/PVC, Wood |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Max self-closing gate weight | 55 lb (55 lb) |
| Sold as | Pair |
| Color | Black |
| Gate gap | 7/8" to 1-1/2" |
Article numbers
- TCAMA2Color: Black / Gate gap: 7/8" to 1-15/16"$61.00
- TCAMA1Color: Black / Gate gap: 7/8" to 1-1/2"$60.00Chosen
- TCAMA2WTColor: White / Gate gap: 7/8" to 1-15/16"$66.00
Frequently asked questions
Which gate gap do I need?
Measure the gap between gate and post. One model covers 7/8" to 1-1/2" and the other 7/8" to 1-15/16".
What can be adjusted after fitting?
The hinge adjusts vertically, horizontally and for closing tension, with up to 3/4" of adjustment.
How heavy a gate can it close?
It self-closes gates of up to 55 lb.
