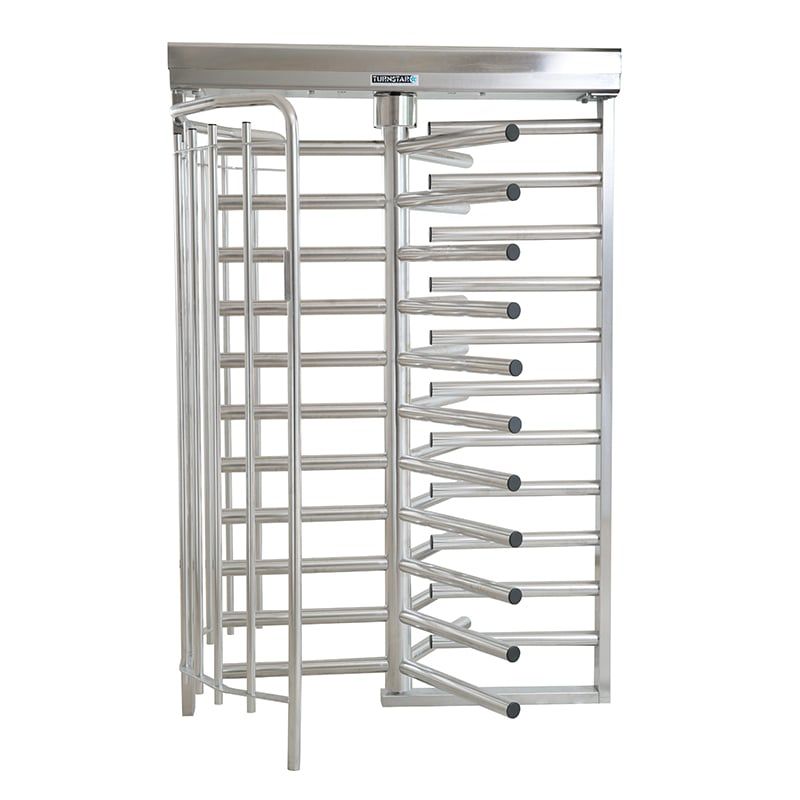

Turnstar Titan | Full-Height Turnstile | Single, 3 Arm, Stainless
Single full-height turnstile in brushed stainless steel with a three-arm rotor and card holder, for secure pedestrian entrances in corrosive or demanding settings.
Key features
- Single turnstile, 3-arm rotor (120 degrees per passage)
- Brushed stainless steel finish
- Overall size 55-1/8" wide x 83-5/8" high
- Recommended minimum opening 56-1/4" wide x 88-5/8" high
- Card holder included for mounting an access control reader
- Fail-secure as standard, fail-safe on request, key override both ways
- 10 years mechanical and 1 year electrical guarantee
A corrosion-resistant full-height entrance that admits one person per rotation
This Titan closes off a pedestrian entrance from floor to head height and passes one person for every authorised turn of its three-arm rotor. The brushed stainless steel build suits coastal, wet or chemically aggressive locations as well as sites where appearance matters. Typical uses include mines, factories, warehouses, colleges, building sites and stadiums.
The modular frame bolts together and its parts fit through a standard door. Rotation is governed by a Rotalok electromechanical lock with Anti-Trap protection, so the rotor never locks mid-turn during a power cut. A normally open dry contact links it to any access control or time and attendance system, and a card holder for the reader comes with the turnstile.
Options
- Battery backup with two 12 V 7 Ah batteries
- Solar panel with charge controller and batteries
- Flat roof canopy with anti-climb protection and light
- Fail-safe or fail-secure setting per direction
- Free rotation on a fire alarm signal
- Biometric or fingerprint reader mounting brackets
- Single or double pushbutton in a plastic housing
- LCD transaction counter with reset key switch
Specifications
| Brand | Turnstar |
| Manufacturer | Turnstar |
| Finish | Brushed stainless steel (grade 304, or 316 for highly corrosive sites) |
| Width | 4' (47-1/4") |
| Height | 2'8" (31-1/2") |
| Length | 8'2" (98-3/8") |
| Power | 220 V AC (110 V AC on request), 50/60 Hz; 24 V DC solenoids and logic |
| Lock type | Rotalok electromechanical rotation lock, fail-secure as standard |
| Weight | 353 lb |
| Warranty | 10 years mechanical, 1 year electrical |
| Product line | Titan |
| Type | Full-height industrial turnstile, single, 3 arm |
| Power consumption | 0.25 W standby in fail-secure mode, 50 W in fail-safe mode |
| Color | Stainless steel |
| Details | |
|---|---|
| Integration | Normally open dry contact for entry and exit, rotation complete output |
| Dimensions | 55-1/8" wide x 83-5/8" high; recommended opening 56-1/4" x 88-5/8"; Diameter: Rotor 47-1/4" |
