ZND Bar Barrier | Heavy Duty
A hot-dip galvanized steel bar barrier, 7.5 ft wide and 3.75 ft high, made for crowd lines that get moved, loaded and set again many times.
Key features
- 7.5 ft wide by 3.75 ft high
- Hot-dip galvanized steel
- 1.5 in tube frame
- Vertical bar infill on a 4.4 in pitch
- Hook and loop style connection resists unauthorized removal
- 38.6 lbs per barrier
The heavy duty bar barrier is the version to pick when barriers live on a truck and go out every week. Hot-dip galvanizing protects the steel inside and out, which matters on outdoor jobs and in rental fleets where coatings get knocked around.
Built for repeated deployment
Each unit is 7.5 ft wide and 3.75 ft high and weighs 38.6 lbs. The infill is vertical bars 0.47 in thick on a 4.4 in pitch inside a 1.5 in tube frame.
Secure barrier lines

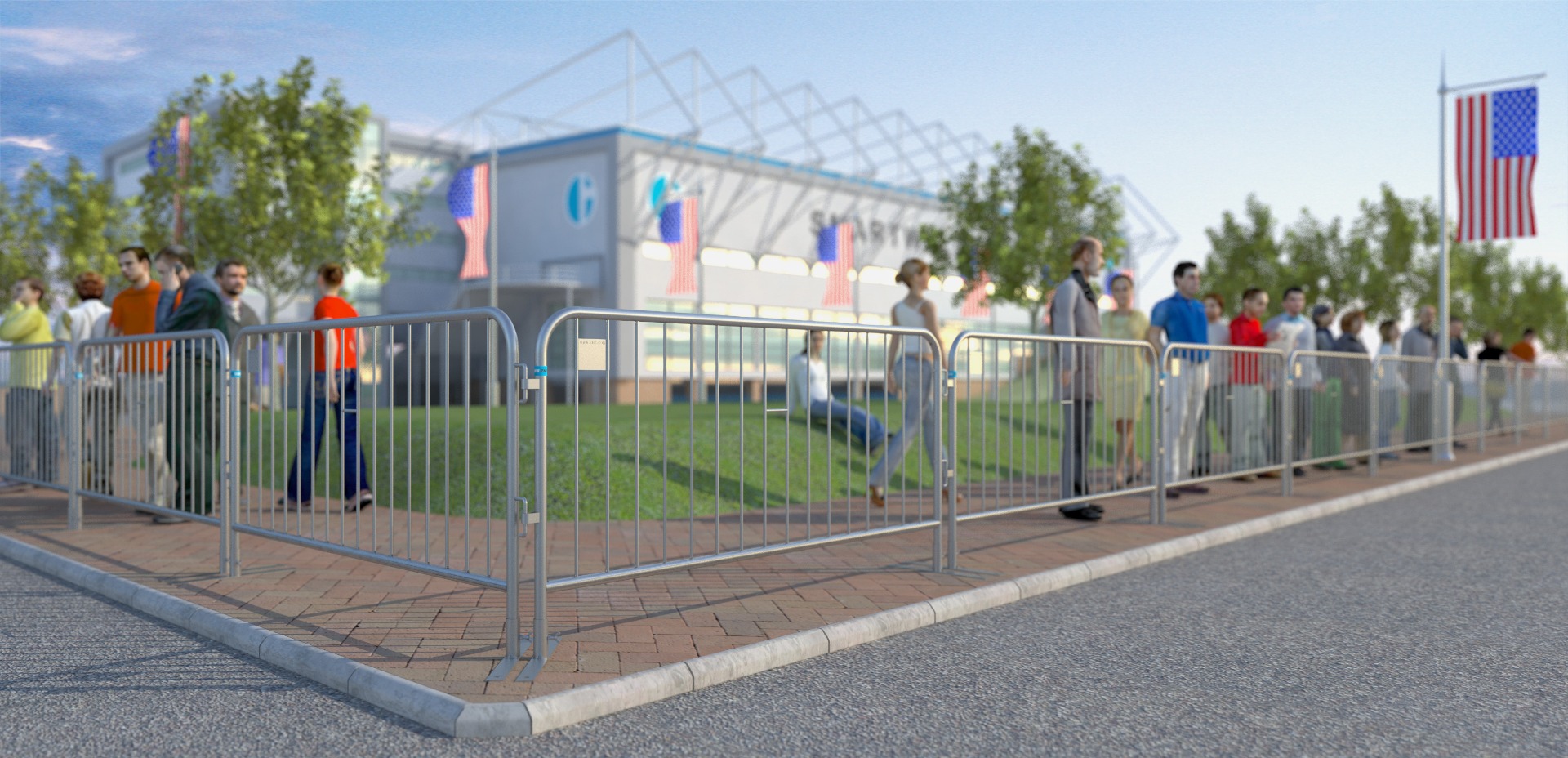

Each barrier links to the next with a hook and loop style connection that resists unauthorized removal, so a line stays closed once it is set. Use it for queues, event perimeters, sidewalk closures and utility work zones.
Specifications
| Brand | ZND Fence |
| Material | Steel |
| Finish | Hot-dip galvanized |
| Height | 3'6" (43") |
| Fixing method | Hook and loop style connection between barriers |
| Weight | 39 lb |
| Product line | ZND pedestrian barriers, heavy duty |
| Function | Crowd control and pedestrian guidance |
| Suitable for | Events, public safety lines, infrastructure work and work zones |
| Sold as | Each |
| Details | |
|---|---|
| Panel | Vertical bars 0.47 in diameter, 4.4 in pitch |
| Frame | 1.5 in tube frame |
Frequently asked questions
How is the heavy duty version different from the lightweight bar barrier?
Both share the same 7.5 by 3.75 ft size and bar infill. The heavy duty barrier is hot-dip galvanized and weighs 38.6 lbs, while the lightweight version is pre-galvanized and weighs 19.2 lbs, so the heavy duty unit holds up better to frequent handling and outdoor exposure.
How do the barriers connect?
They use a hook and loop style connection that links one barrier to the next and resists being lifted apart by passersby.
