AES | e-Loop Commercial Wireless Vehicle Detector with eTrans100 Transceiver

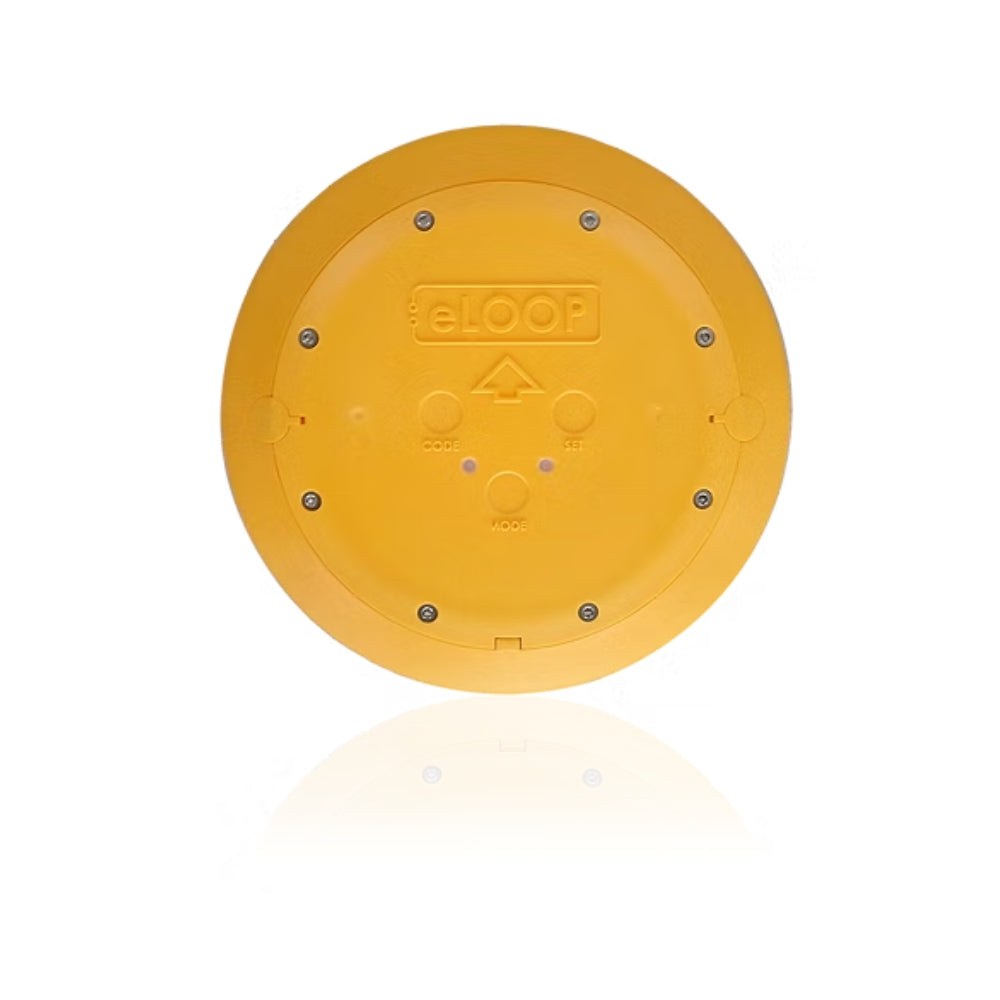

The AES e-Loop Commercial (part EL00C-RAD-KT) is a wireless vehicle detector that replaces a trenched induction loop, supplied with the eTrans 100 transceiver that wires into the gate operator. The Commercial is built for busy entrances, industrial access points and shared access roads. Radio is 128-bit encrypted and battery life is up to 10 years in exit mode.
Key features
- No trenching, no saw cut, no loop cable
- Commissioned from the e-Loop smartphone app
- Over-the-air firmware updates
- 128-bit encrypted communication with replay attack protection
- Up to 10 years battery life in exit mode
- Supplied with the eTrans 100 transceiver
AES e-Loop Commercial with eTrans 100: vehicle detection without a ground loop
How it works
e-Loop detects a vehicle without an induction loop in the ground, which removes the trenching, the saw cut and the cable run from the job. The detector sits at the gate and sends its signal over an encrypted 433.39 MHz link to an eTrans transceiver wired into the gate operator, so installation time and disruption both drop sharply.
Choosing the Commercial
The Commercial is built for busy entrances, industrial access points and shared access roads. Across the range, the Mini suits residential driveways and small commercial sites; the In-Ground sits below the road surface for a flush, hidden finish; the Post Mount fixes to a gate post or wall where the road surface cannot be disturbed. The commercial models add a presence mode using radar.

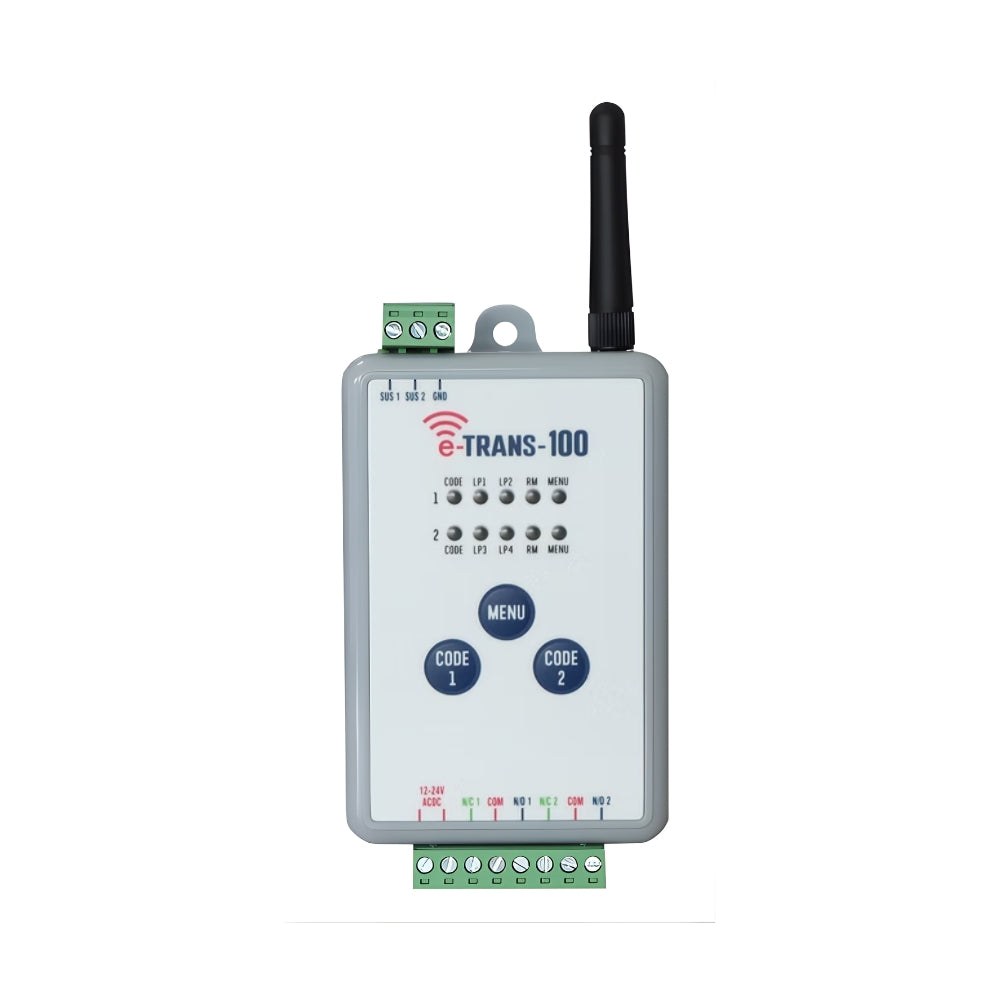

The eTrans 100 transceiver
This kit pairs the detector with an eTrans 100. The eTrans range is the wired end of the system: it receives from e-Loop detectors, e-Keypads, remotes and triggers, and closes a relay on the gate operator. The eTrans 100 gives the normally-open relay of the eTrans 50 plus a second relay with normally-closed contacts.
Commissioning and support
Commissioning is done from the e-Loop smartphone app, and firmware is updated over the air. The data sheets, installation instructions, LED display guide and test mode guide are on this page. Ordered under AES part number EL00C-RAD-KT. Fenceweb is an authorised AES Global reseller for the United States, and our team can confirm compatibility with an existing operator before you order.
Specifications
| Brand | AES Global |
| Warranty | 2 years, manufacturer |
| Product line | AES e-Loop |
| Type | Commercial |
| Frequency | 433.39 MHz |
| Encryption | 128-bit, with replay attack protection |
| Battery life | Up to 10 years in exit mode |
| Details | |
|---|---|
| Commissioning | e-Loop smartphone app |
| Supplied transceiver | eTrans100 |
Frequently asked questions
Do I need to cut a loop into the drive?
No. e-Loop detects a vehicle without an induction loop in the ground, so there is no trenching, saw cut or loop cable. The detector signals an eTrans transceiver wired into the gate operator.
How long does the battery last?
AES states up to 10 years of battery life in exit mode.
What does the eTrans transceiver in this kit do?
It is wired into the gate operator, receives the detector's signal and closes a relay on the operator. The eTrans 100 gives the normally-open relay of the eTrans 50 plus a second relay with normally-closed contacts.
How is the detector set up?
It is commissioned from the e-Loop smartphone app, and its firmware is updated over the air.
