AES | eTrans 50 Remote Kit with 4 Transmitters
AES remote kit built around the eTrans 50 wireless transceiver and supplied with four remote transmitters. The eTrans 50 receives over an encrypted 433.39 MHz link and closes its normally-open relay on the gate operator, so each remote can open the gate.
Key features
- eTrans 50 transceiver with one normally-open relay

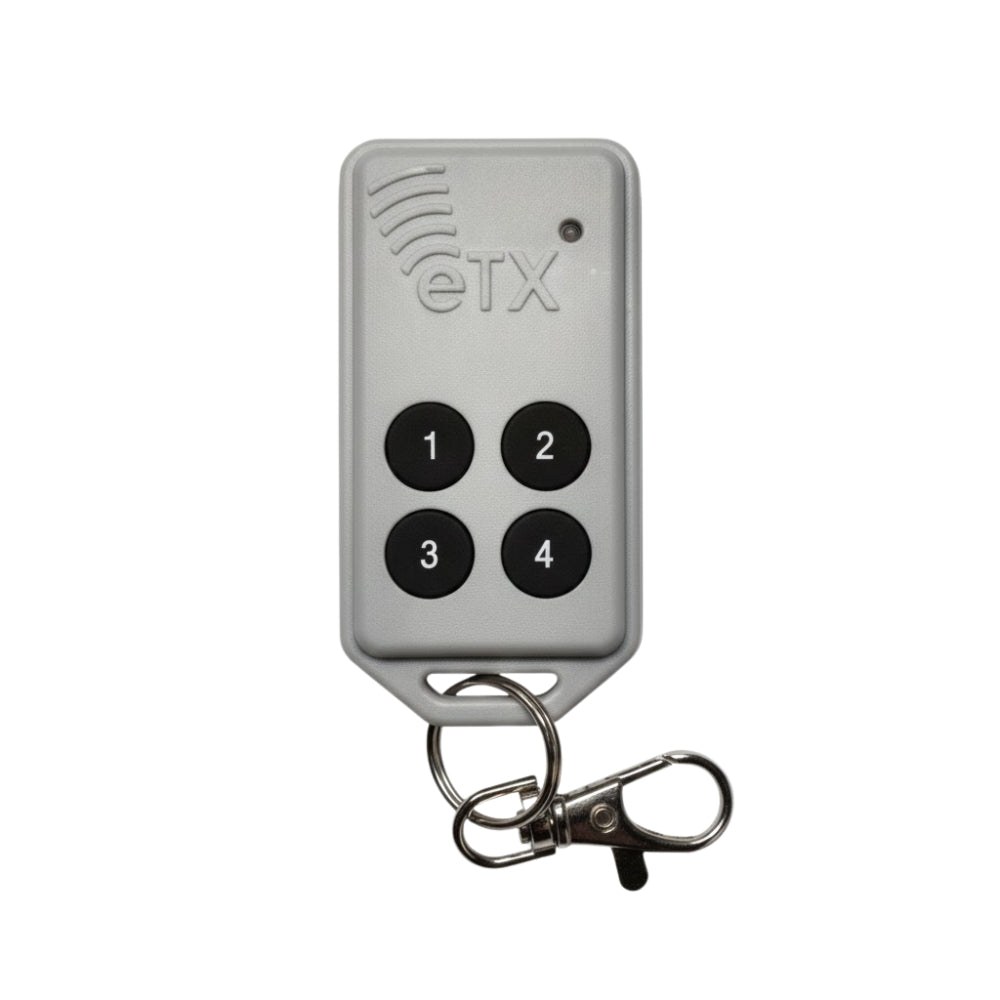

- Four remote transmitters included
- Encrypted 433.39 MHz link
- LED indicators on the transceiver
- Also receives from e-Loop detectors, e-Keypads and triggers
AES eTrans 50 remote kit: receiver and four remotes in one order
This kit puts the eTrans 50 wireless transceiver and four remote transmitters in one order. The eTrans 50 is the wired end of the AES wireless system: it connects to the gate operator's control board and closes a relay when a paired device sends a command.
Operation
The remotes and the transceiver talk over an encrypted 433.39 MHz link. The eTrans 50 has one normally-open relay output and LED indicators that show its state at the control board.
Expanding the system
The same eTrans 50 also receives from e-Loop vehicle detectors, e-Keypads and wireless triggers, so the kit can grow with the site. Where two relays or a display are needed, the eTrans 100 and eTrans 200 are the larger models in the range.
Ordering and support
Ordered under AES part number ETRANS50-TX-KIT. Fenceweb is an authorised AES Global reseller for the United States, so what ships is the original part with the manufacturer's warranty behind it. Our team can confirm compatibility with an existing panel or operator before you order.
Specifications
| Brand | AES Global |
| Warranty | 2 years, manufacturer |
| Product line | AES eTrans |
| Frequency | 433.39 MHz |
What's in the box
- eTrans 50 wireless transceiver
- 4 remote transmitters
Frequently asked questions
What is in the kit?
An eTrans 50 wireless transceiver and four remote transmitters.
What can an eTrans transceiver receive from?
e-Loop detectors, e-Keypads, remote transmitters and wireless triggers from the AES range, over an encrypted 433.39 MHz link.
Will it work with my gate operator?
The eTrans closes a relay on the operator's control board. Send us the operator or panel details and our team will confirm compatibility before you order.
What warranty does it carry?
A 2-year manufacturer's warranty. Fenceweb is an authorised AES Global reseller for the United States, so what ships is the original AES part.
