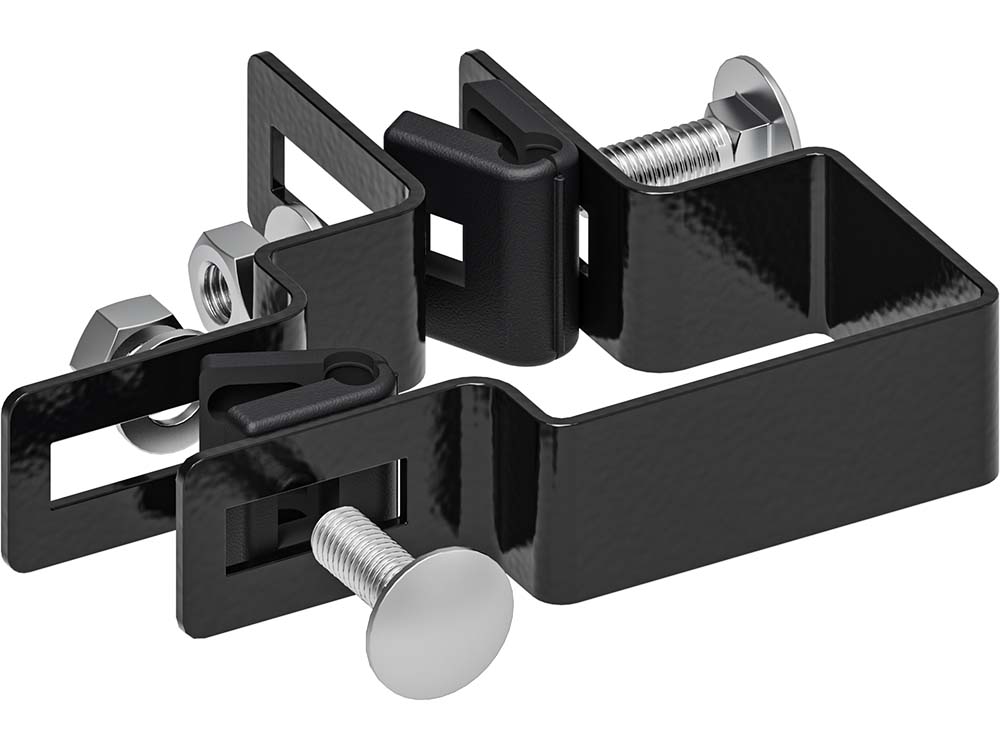

Fence bracket | Deluxe | 2-3/8" x 1-9/16" | ⌀ 0.236"
Deluxe fence brackets for 60 x 40 mm posts on 8/6/8 double wire fencing, in intermediate, end and corner versions. Galvanised and powder coated in four colours, or hot-dip galvanised, for a refined fixing that matches the fence.
Key features
- For 0/4/0 GA double wire fence panels
- Fits 60 x 40 mm posts
- Intermediate, end and corner versions
- Galvanized and powder coated in four colors
- Hot-dip galvanized option
Deluxe brackets for 8/6/8 double wire fence on 60 x 40 mm posts
The Deluxe bracket fixes 8/6/8 double wire panels to 60 x 40 mm posts. It comes in three versions, so every position in the fence line has the right bracket: intermediate brackets between two panels, end brackets at the end of a run and corner brackets where the fence changes direction.
Materials and finish

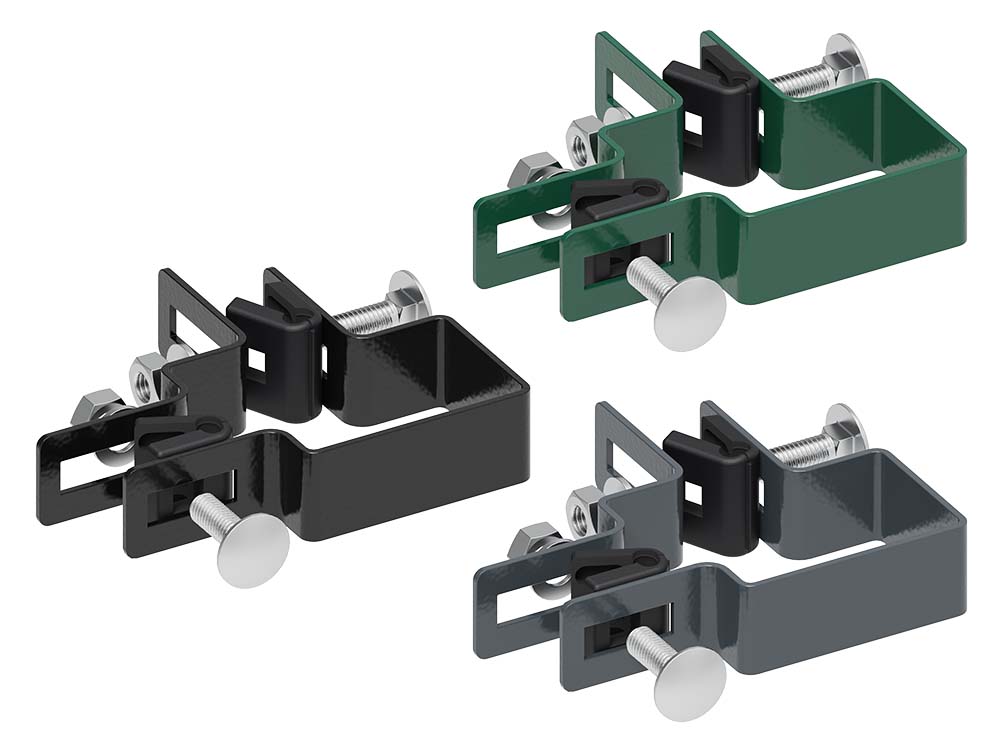

The brackets are galvanized and then powder coated in moss green RAL 6005, fir green RAL 6009, anthracite gray RAL 7016 or black RAL 9005. A hot-dip galvanized version is also available. Pick the color of your posts for a uniform look.
Choosing the right type
- Intermediate bracket: joins two panels on one post
- End bracket: fixes the last panel at the end of a run
- Corner bracket: fixes panels where the fence turns a corner
Sizes and fit
These brackets are sized for 60 x 40 mm posts and 8/6/8 double wire panels. For 60 x 60 mm posts, use the matching Deluxe bracket made for that post section.
Specifications
| Brand | Fenceweb |
| Width | 1-5/8" |
| Height | 31/32" |
| Length | 2-3/8" |
| Weight | 0.6 lb |
| Color | RAL9005 |
| Bracket type | Corner bracket |
Article numbers
- 051278Color: Hot-dip galvanised / Bracket type: Intermediate bracket$3.75
- 051287Color: RAL9005 / Bracket type: End bracket$3.75
- 051277Color: RAL9005 / Bracket type: Corner bracket$3.75Chosen
- 051282Color: RAL9005 / Bracket type: Intermediate bracket$3.75
- 051283Color: Hot-dip galvanised / Bracket type: End bracket$3.75
- 051272Color: Hot-dip galvanised / Bracket type: Corner bracket$3.75
Related products
Frequently asked questions
Which bracket type do I need?
Use intermediate brackets between two panels, end brackets at the end of a run and corner brackets where the fence changes direction.
Which panels and posts do these brackets fit?
8/6/8 double wire panels on 60 x 40 mm posts.
What finishes are available?
Galvanized and powder coated in RAL 6005, RAL 6009, RAL 7016 or RAL 9005, or hot-dip galvanized.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
Does Fenceweb provide installation services or recommendations?
Fenceweb supplies products rather than installation, but our specialists are happy to recommend the right materials for your project and can connect you with experienced fencing contractors in our partner network.
