Double gate | Double wire | 16' wide

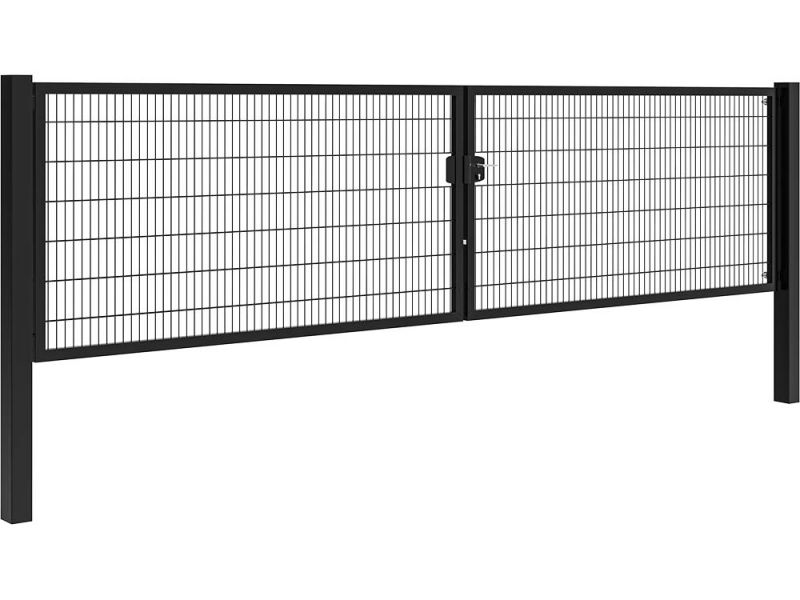

Professional double leaf gate with 8/6/8 double wire infill, 6000 mm wide with a clear opening of 5875 mm. Supplied complete with two 80 x 80 mm posts, aluminium lock case and keep, and post caps. Hot-dip galvanised and powder coated to match 8/6/8 double wire fencing.
Key features
- Double leaf gate, 19'8" wide, 19'4" clear opening
- 0/4/0 GA double wire infill, machine welded
- 3-1/8" x 3-1/8" posts with 14 GA wall
- Hinges outside the post for a 180° swing
- Aluminum lock case and keep
- Hot-dip galvanized and powder coated
Professional double leaf gate for 0/4/0 GA double wire fencing
This double leaf gate is built to match 0/4/0 GA double wire fencing. The infill has 0.315" horizontal and 4 GA vertical wires, machine welded for strength. The leaf frames are 2-3/8" x 1-9/16", and the gate posts are 3-1/8" x 3-1/8" steel with a 14 GA wall, 2'8" longer than the leaf height so they can be set deep.
Materials and finish

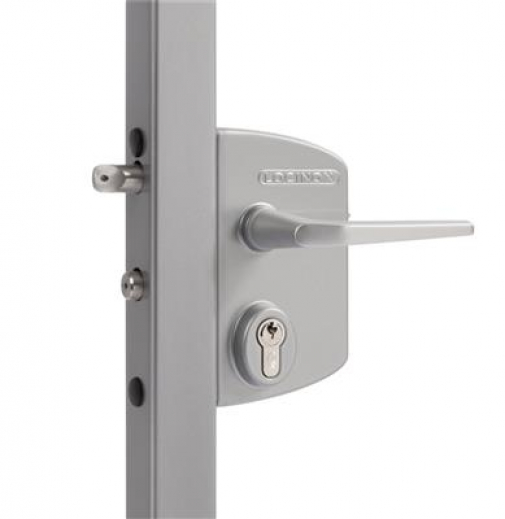

The gate is hot-dip galvanized and then powder coated. The lock case and keep are aluminum, which keeps the risk of corrosion very low. Both leaves have a lock recess, so you decide on site which leaf takes the lock; the other recess is closed with the supplied blank box.
Sizes and fit
- Overall width: 6000 mm
- Clear opening: 5875 mm
- Infill: 8/6/8 double wire
- Leaf frame: 60 x 40 mm
- Posts: 80 x 80 mm, 2 mm wall, 800 mm longer than the leaf
- Hinges mounted on the outside of the post for a 180° swing
Installation
For maximum rigidity, set the posts in quick-setting concrete. The gate can also be mounted on base plates with self-drilling screws; ground anchors for base plates are not supplied. The full width including hinges and posts is shown in the installation manual.
Specifications
| Brand | Van Merksteijn Fences |
| Height | 4' |
What's in the box
- 2 gate posts with post caps
- 2 gate leaves with 0/4/0 GA double wire infill
- Aluminum lock case
- Steel blank box for the second lock recess
- Aluminum keep
Article numbers
- 004540Height: 4'$2,300.00Chosen
- 029378Height: 8'$2,900.00
- 004549Height: 6'$2,600.00
Frequently asked questions
What is the clear opening of this gate?
19'4" for the 19'8" wide gate.
How does the Professional gate differ from the Premium gate?
The Professional has 8/6/8 infill instead of 6/5/6, an aluminium lock case and keep instead of polyamide, a 60 x 40 mm leaf frame instead of 40 x 40 mm, hinges outside the post for a 180° swing instead of 90°, and it is hot-dip galvanised rather than Sendzimir galvanised.
Can I mount the gate on a concrete slab?
Yes, on base plates fixed with self-drilling screws. Ground anchors for the base plates are not supplied.
Which leaf takes the lock?
You choose on site. Both leaves have a lock recess, and the unused one is closed with the supplied blank box.
