Swing gate | Double wire
Single leaf garden gate Professional with an 8/6/8 twin wire infill, supplied complete with two 60 x 60 mm gate posts, aluminium lock case and keep, and caps. Hot-dip galvanised and powder coated, with hinges that let the leaf swing 180°. Widths 1250 and 1500 mm.
Key features
- 8/6/8 twin wire infill in a 60 x 40 mm frame
- Two 2-3/8" x 2-3/8" gate posts, 14 GA wall
- Aluminum lock case and keep
- Hot-dip galvanized and powder coated
- Hinges outside the post for a 180° swing
- Widths 4'2" and 5'

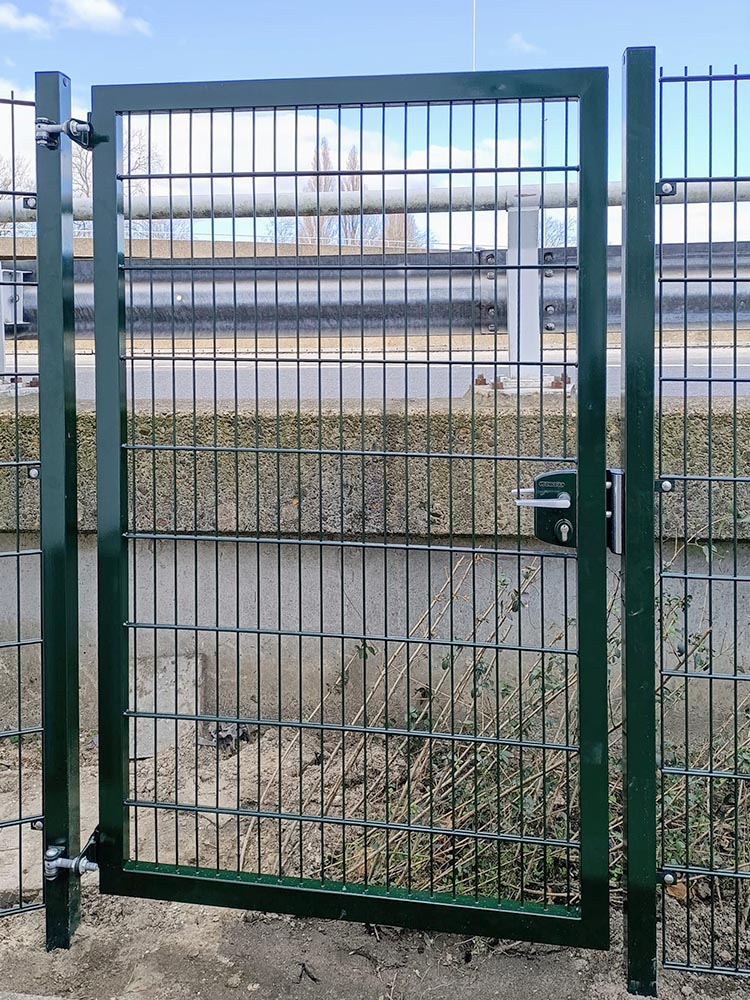

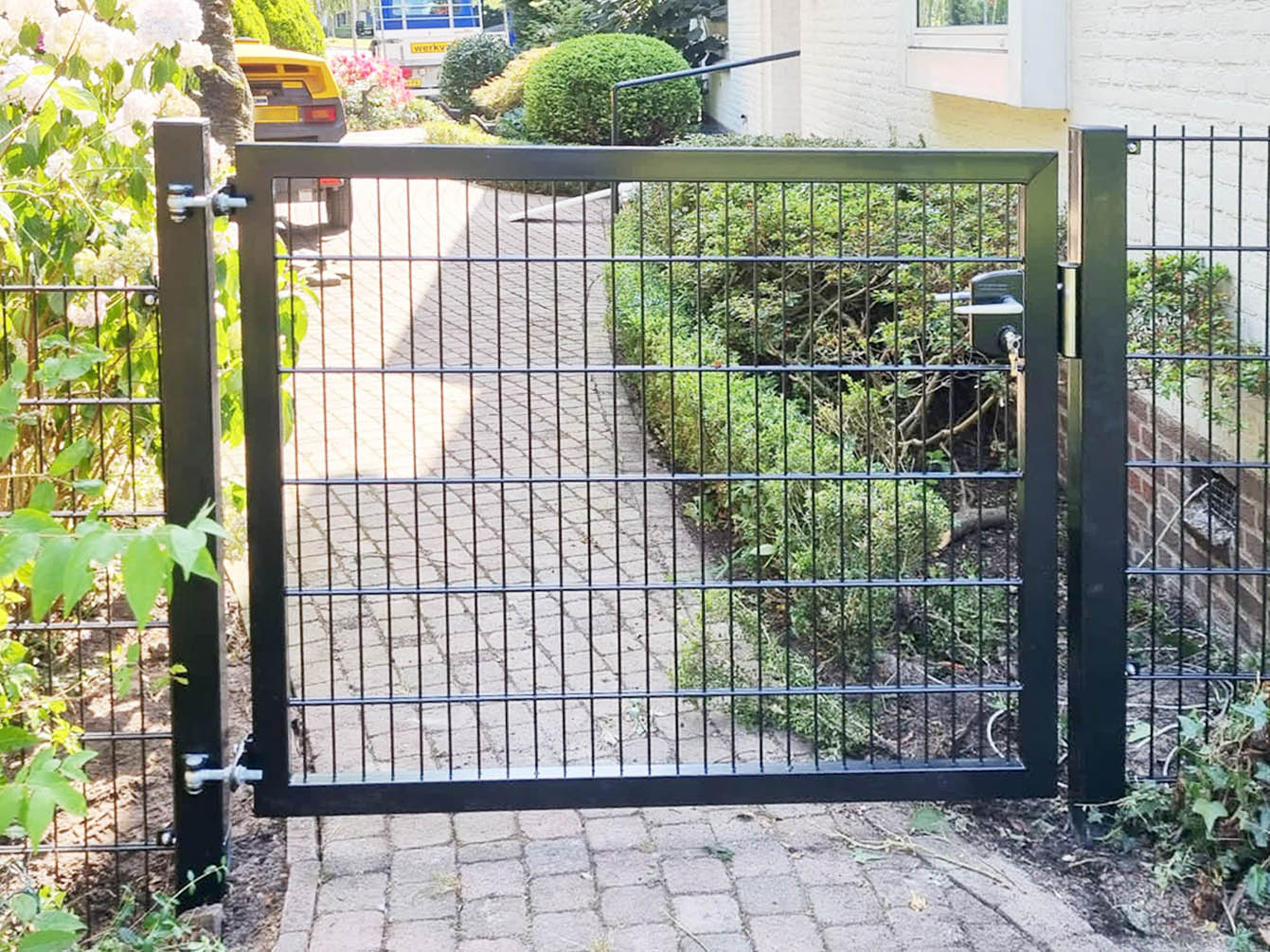

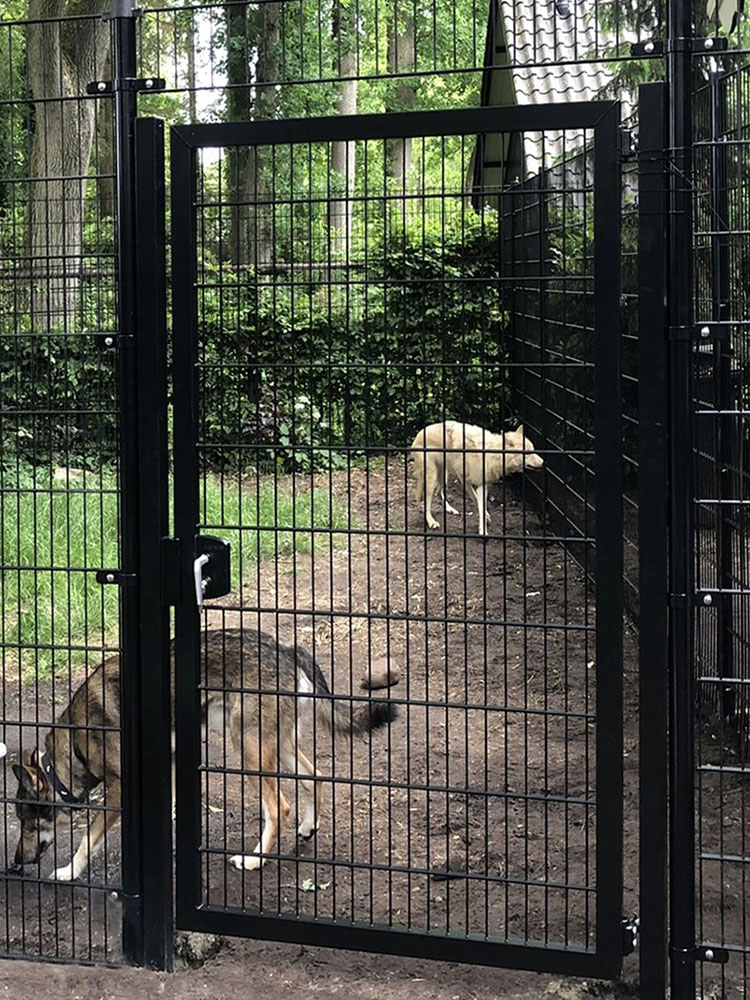

Single gate Professional: a heavy-duty entrance for twin wire fencing
The single gate Professional matches twin wire mesh fencing, in particular the heavy 8/6/8 panel, and also suits 6/5/6 fencing. The leaf is filled with twin wire mesh of 8 mm horizontal and 6 mm vertical wires, welded together, in a 60 x 40 mm frame.
Materials and finish

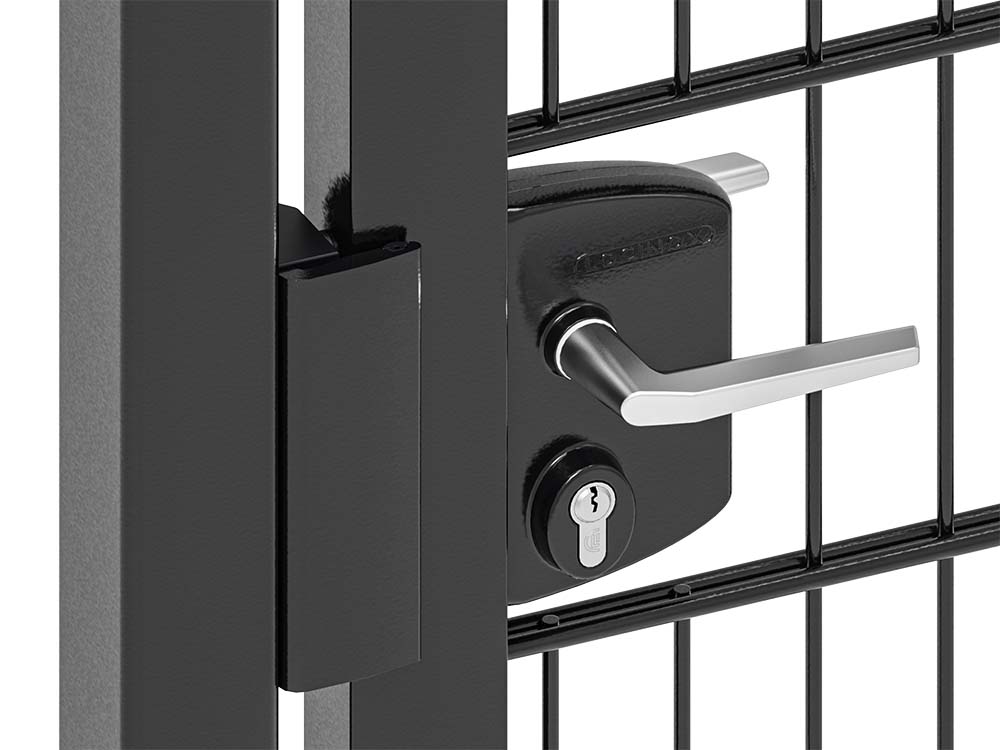

The gate is hot-dip galvanized and then powder coated. Combined with the aluminum lock case and keep, this keeps the risk of rust very low and protects the gate in all weather.
Sizes and fit
The gate posts are 2-3/8" x 2-3/8" steel with a 14 GA wall and are 2'8" longer than the leaf. On the 4'2" version the leaf is 3'10" wide, the clear opening between the posts is 3'10" after allowing for the keep, and the overall width including posts is 4'6".
Installation and options
Set the posts in concrete or quick-setting concrete for the best rigidity, or mount them on gate base plates fixed with self-tapping screws; ground fixings for base plates are not supplied. The hinges sit on the outside of the post, so the leaf can open through 180°. A child lock is available as an option, and privacy strips with clips can be woven into the infill.
Specifications
| Brand | Fenceweb |
| Width | 4'2" (47-1/4") |
| Height | 3-1/8" |
| Length | 4'2" (49-1/4") |
| Weight | 110 lb |
What's in the box
- 2 gate posts, 60 x 60 mm
- 1 gate leaf with 0/4/0 GA twin wire infill
- 1 aluminum lock case
- 1 aluminum keep
- Post caps
Article numbers
- ELP 125cmWidth: 4'2"Price on requestChosen
- ELP 150cmWidth: 5'Price on request
Related products
Frequently asked questions
What is the difference between Professional and Premium?
Professional has an 8/6/8 infill instead of 6/5/6, an aluminium lock case and keep instead of polyamide, a 60 x 40 mm frame instead of 40 x 40 mm, hinges outside the post for a 180° swing instead of 90°, and hot-dip galvanising instead of Sendzimir galvanising.
How wide is the clear opening of the 4'2" gate?
3'10" between the posts, after allowing for the keep. The leaf is 3'10" and the overall width including posts is 4'6".
Can the gate be mounted on a hard surface?
Yes, on gate base plates fixed with self-tapping screws. Ground fixings for the base plates are not supplied.
Does it fit my 4/6/4 GA fence?
Yes. It is designed for 0/4/0 GA twin wire fencing and also suits 4/6/4 GA twin wire fencing.
