Locinox Suby | Internal drop bolt
Locinox Suby internal aluminum drop bolt for double-wing gates. It sits inside the gate profile, out of sight, and is operated at a convenient height. With the handle fitted between the gate leaves it becomes self-locking. Available in RAL 6005, RAL 6009, RAL 9005 and silver.
Key features
- Internal drop bolt, hidden in the gate profile
- Aluminum with polyamide-coated steel handle
- Operated at waist height
- Self-locking with the handle between the leaves
- Internal push spring for full closure
- Fixed with two screws

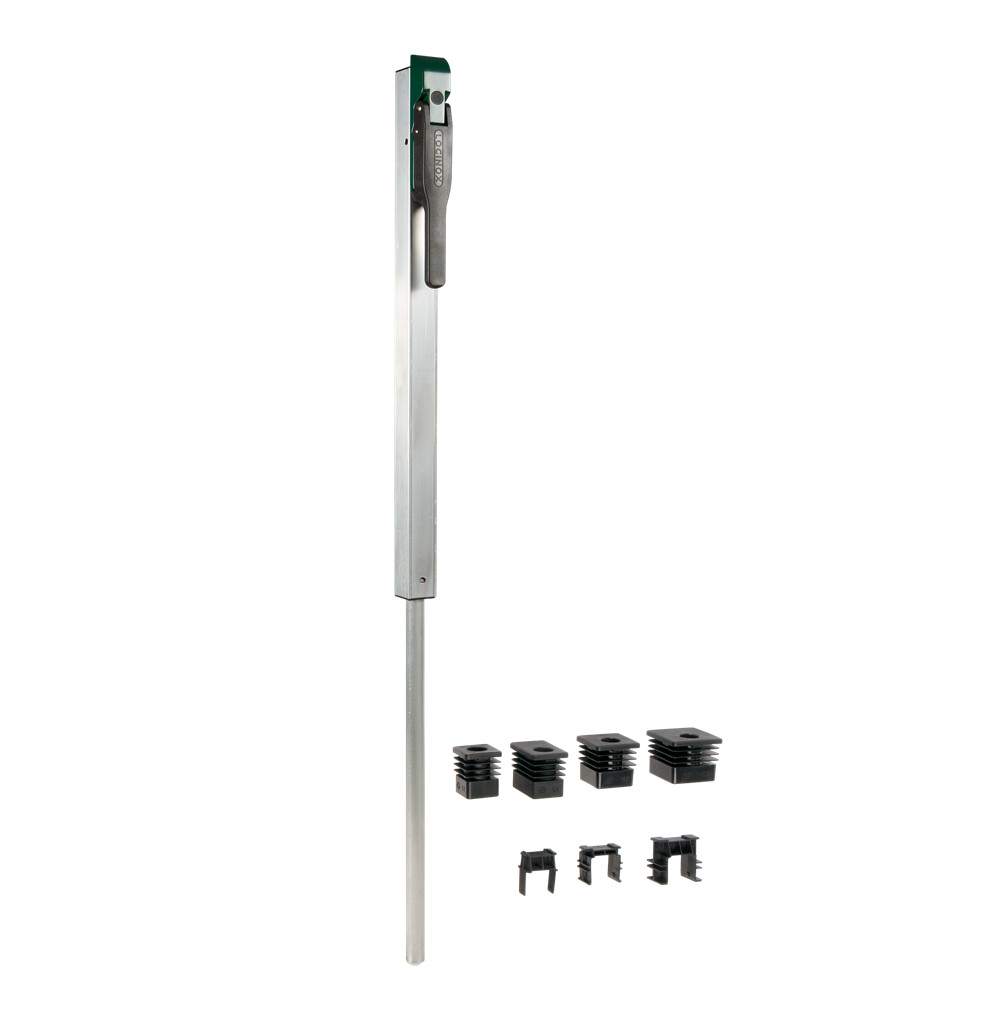

Locinox Suby internal drop bolt for double gates
Suby is a drop bolt that is built into the gate profile instead of being mounted on its surface. On a double-wing gate it holds the passive leaf in place, and because it disappears from view it is an aesthetic solution for decorative and residential gates.
Operation

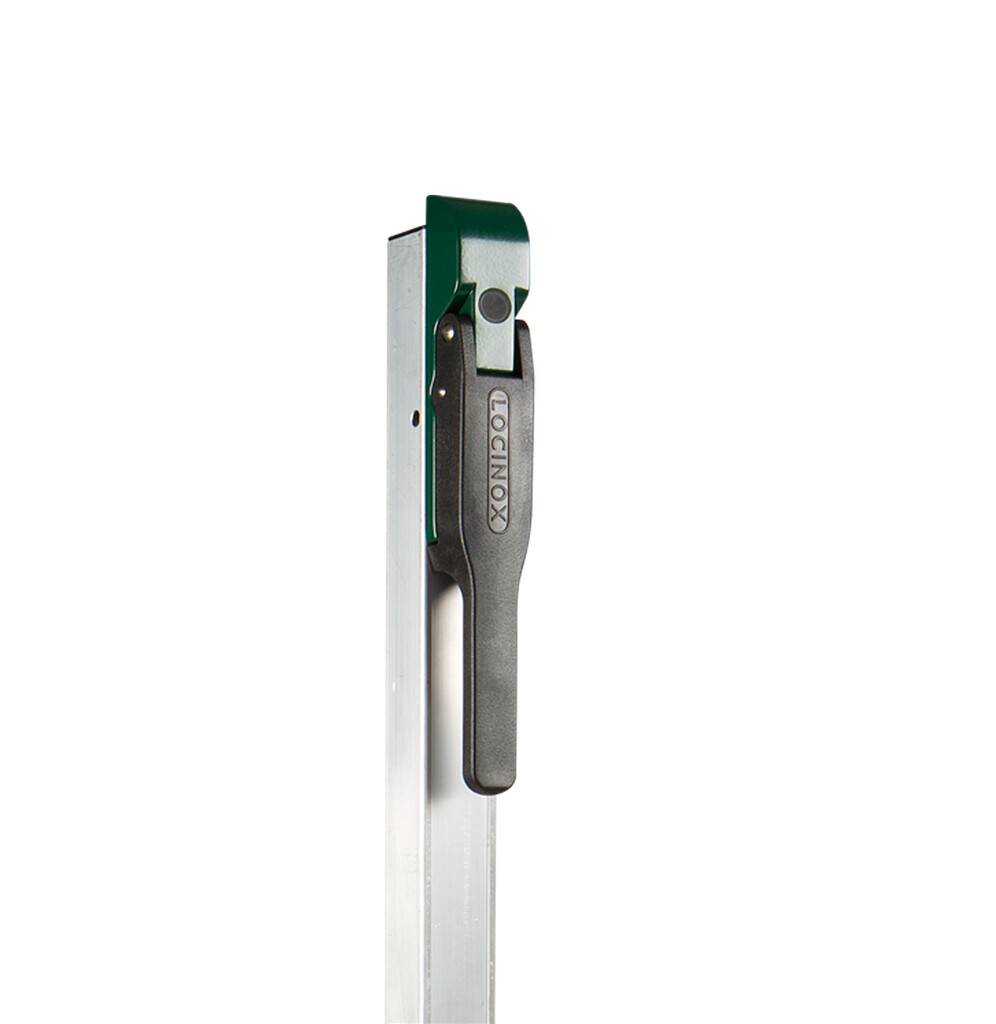

The drop bolt is operated at a convenient waist height, so there is no need to bend down. If the handle is installed between the gate leaves, the drop bolt becomes self-locking. An internal push spring makes sure it closes fully, even if the ground stop holds some dirt, and prevents overpressure.
Materials and finish
The drop bolt is made of aluminum. The steel handle has a black polyamide coating that combines robustness, comfortable use and protection against corrosion. Choose green RAL 6005, green RAL 6009, black RAL 9005 or silver.
Installation
Mounting is fast and easy with two screws. Suby fits inside square gate profiles, so check the profile size and wall thickness of your gate before ordering.
Specifications
| Brand | Locinox |
| Width | 2-3/8" |
| Height | 3-1/2" |
| Length | 4' (47-1/4") |
| Weight | 4.5 lb |
| EAN | 5414768007464 |
| Color | RAL9005 |
Article numbers
- P00007773-9005Color: RAL9005$147.63Chosen
- P00007773-SILVColor: Silver$147.63
Frequently asked questions
Can I see the drop bolt on the gate?
No. It sits inside the gate profile and disappears from view.
Is it self-locking?
Yes, when the handle is installed between the gate leaves.
Which colors are available?
Green RAL 6005, green RAL 6009, black RAL 9005 and silver.
