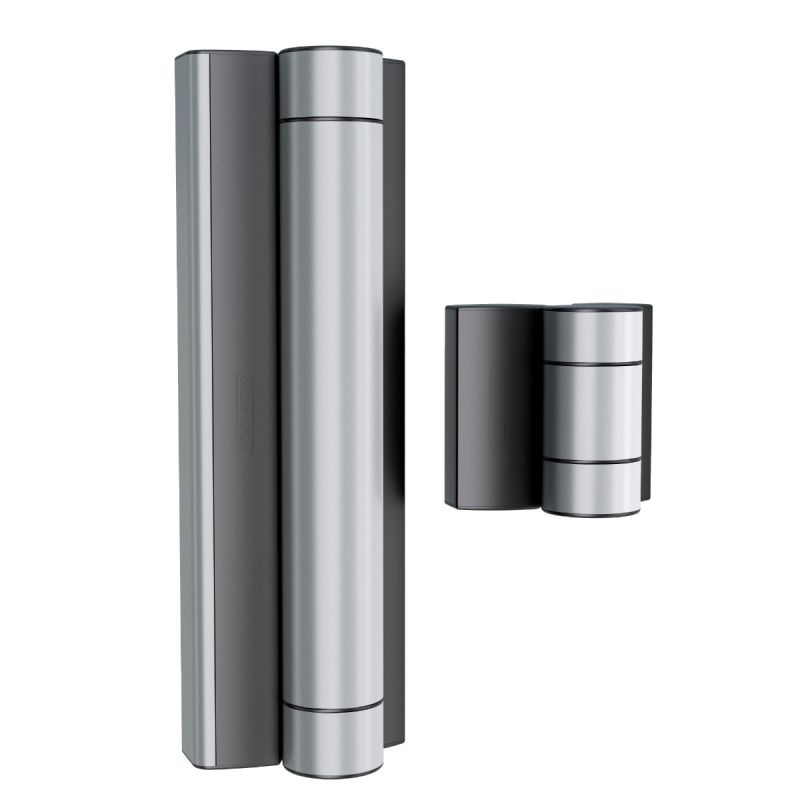

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.
- Motorized gate closer with integrated electronics
- 100 Nm torque
- Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
- Steel gear box
- Anodized aluminium cover
- Fast and easy fixation with Quick-Fix bolts
- Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
- Input main power supply: 110V AC to 240V AC
- Motor voltage: 24V DC
- External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use - to be combined with a lock
- 6-1/2ft cable between motor and connection module
- Compact and vandal-proof design
- Configuration via app
- Tested up to 500 000 cycles
- EN 16005 Compliant
