Locinox Keydrop | Drop bolt | Lockable
Locinox Keydrop lockable drop bolt for double gates. It locks the drop bolt with a key in the open or closed position and is interchangeable with the standard VSA and VSF drop bolts, using the same drilling pattern. Surface mounted with Quick-Fix, in four colors.
Key features
- Drop bolt lockable with a cylinder
- Locks in open or closed position
- Interchangeable with VSA and VSF drop bolts
- Same drilling pattern as VSA and VSF
- Height adjustable in three positions
- Quick-Fix mounting, four colors

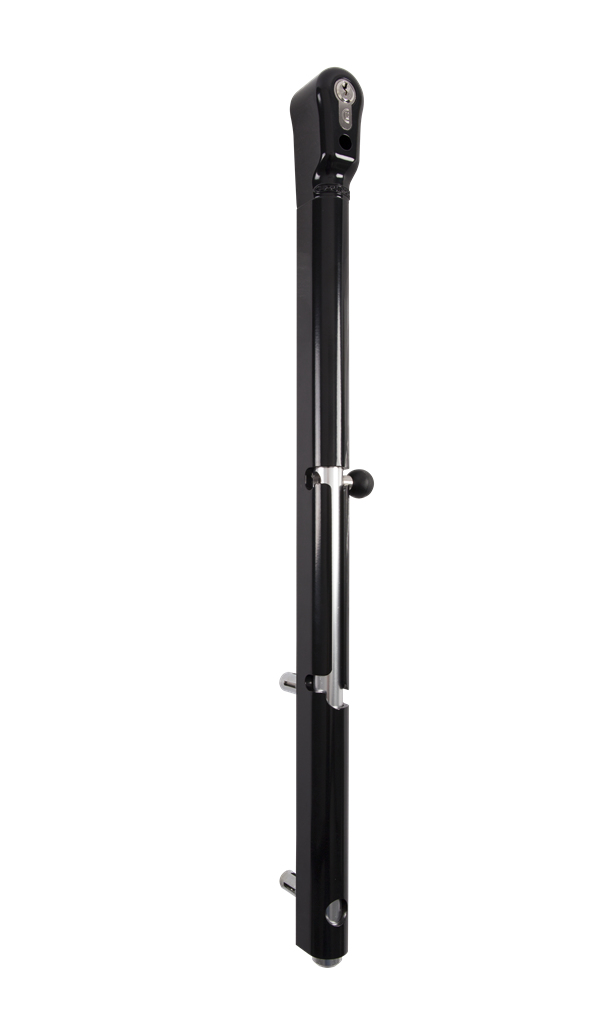

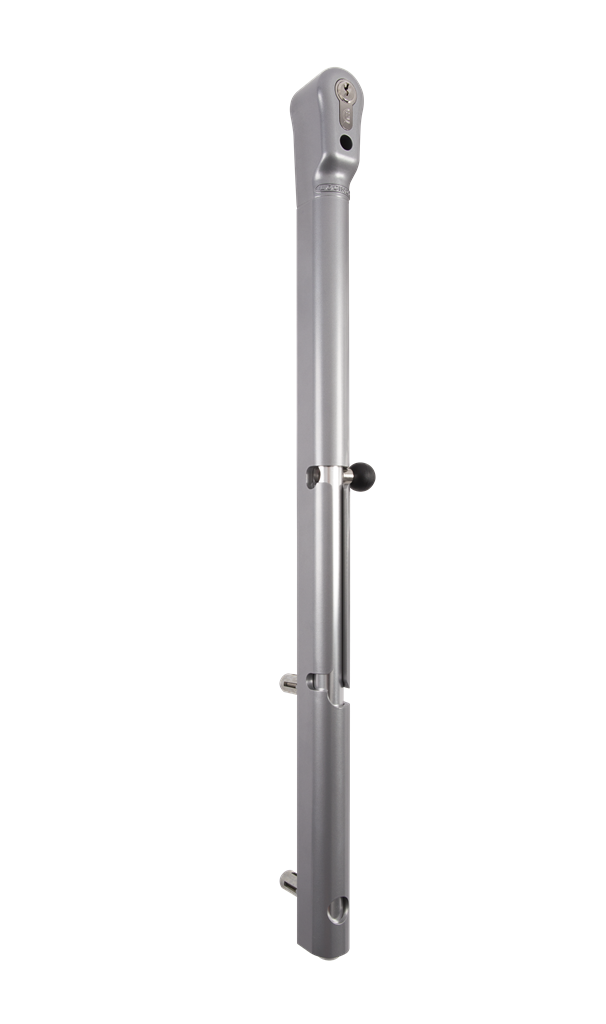

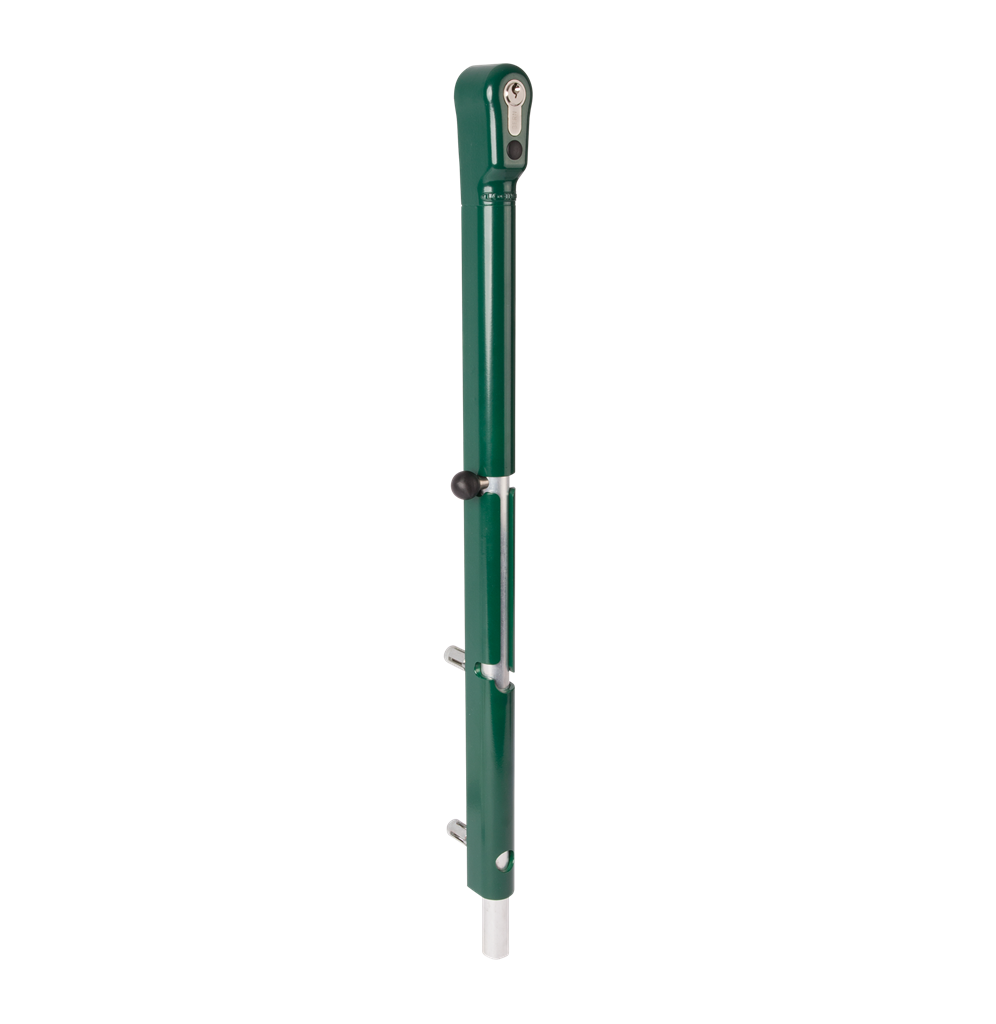

Locinox Keydrop lockable drop bolt
Keydrop is a surface-mounted drop bolt with a built-in cylinder, so the drop bolt itself can be locked. That lets you secure the passive leaf of a double gate in the closed position, or hold the gate in the open position, without it being lifted by passers-by.
Operation
The drop bolt can be locked in open or closed position. Its height can be adjusted in three positions to suit the gap between gate and ground. The cylinder can be keyed to match the gate lock on the facing leaf, so one key serves both.
Compatibility
Keydrop is interchangeable with the standard Locinox VSA and VSF drop bolts and uses the same drilling pattern, so it can replace an existing drop bolt without new holes. It pairs with the Locinox OGS ground stop. The minimum gate profile is not yet confirmed, so ask Fenceweb before you order.
Materials and installation
The drop bolt is aluminum and is installed with Locinox Quick-Fix mounting hardware. Choose green RAL 6005, anthracite gray RAL 7016, black RAL 9005 or silver.
Specifications
| Brand | Locinox |
| Width | 1-5/8" |
| Height | 1-5/8" |
| Length | 1'10" (22-7/8") |
| Weight | 3.2 lb |
| EAN | 5414768011928 |
| Color | RAL9005 |
Article numbers
- P00006405-9005Color: RAL9005$73.83Chosen
- P00006405-SILVColor: Silver$73.83
Frequently asked questions
Can I replace my VSA or VSF drop bolt with a Keydrop?
Yes. Keydrop is interchangeable and uses the same drilling pattern.
Can it use the same key as my gate lock?
The cylinder can be keyed to match the gate lock on the facing leaf.
Which colors are available?
RAL 6005, RAL 7016, RAL 9005 and silver.
