Shut It® Baby BadAss™ Powder Coated Bolt-On
The Shut It Baby BadAss Powder Coated Bolt-On from D&D Technologies is a bolt-on gate hinge for lighter gates where welding is not an option. Matte black powder coat, a sealed maintenance-free bearing and a 309 lb maximum gate weight per pair make it a neat choice for pedestrian and garden gates.
Key features
- Bolt-on brackets for through bolting, no welding
- UV-rated matte black powder coat
- Black zinc plated nuts, bolts and washers
- Sealed, maintenance-free bearing
- Load rating 270 kg per gate, maximum gate weight 140 kg
- Gate gap 76 to 3-1/2"

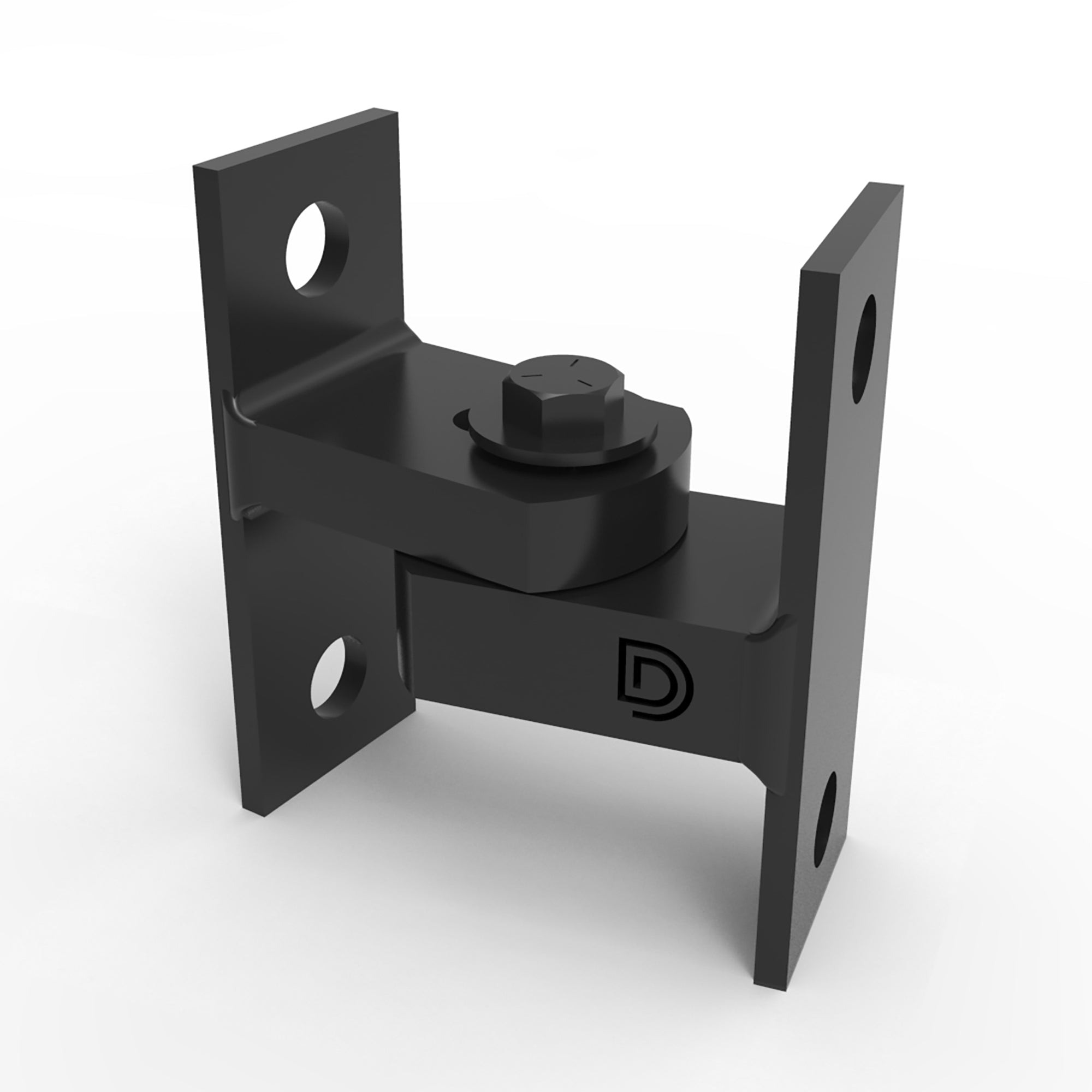

Shut It Baby BadAss Powder Coated Bolt-On: a black bolt-on hinge for lighter gates

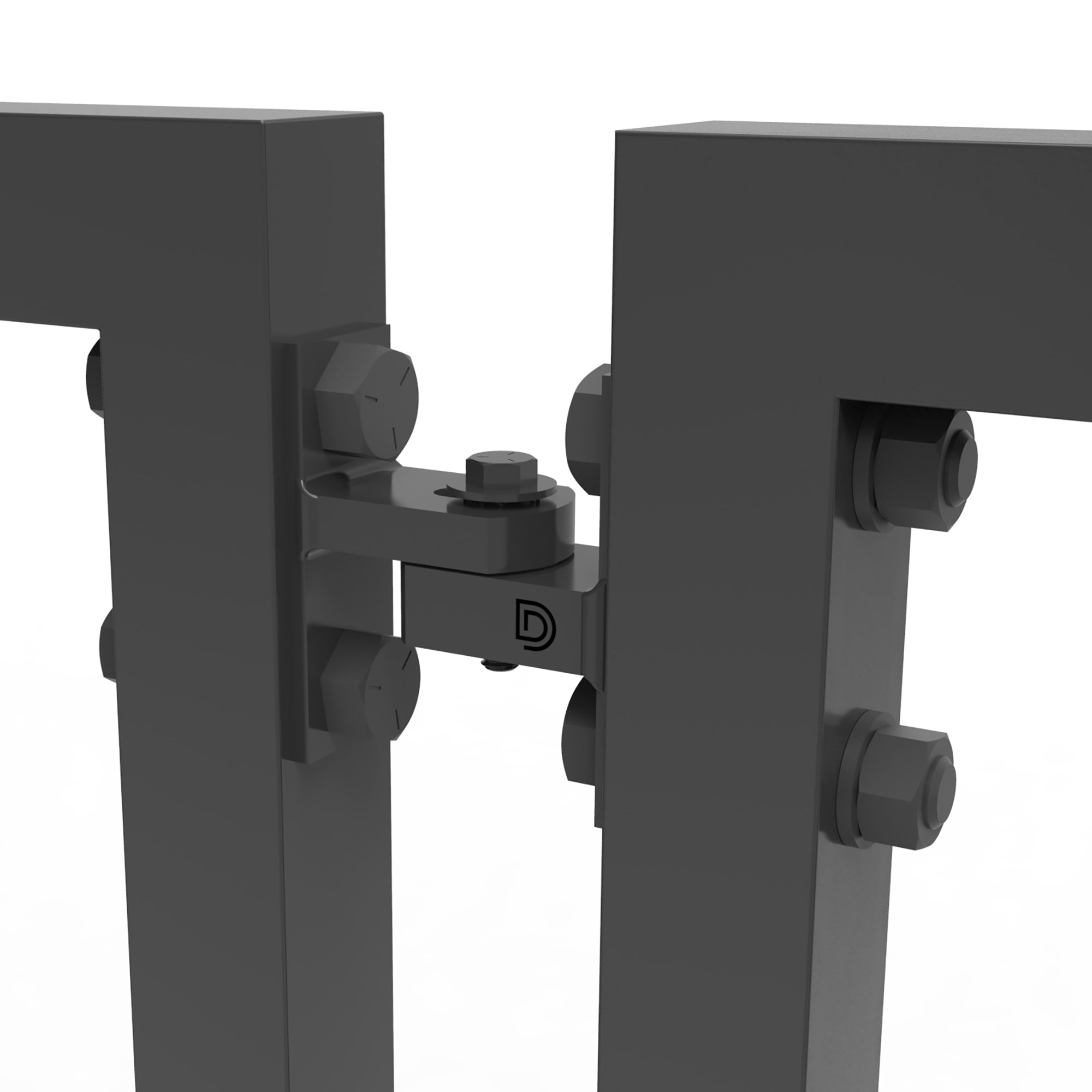

The Baby BadAss is the lighter duty member of D&D Technologies' Shut It BadAss hinge family. This bolt-on version uses flat brackets for through bolting, so it can be fitted where welding the hinges to the gate and post is not an option.
Materials and finish
The steel components are individually powder coated for full coverage, in a long-lasting, UV-rated matte black finish. The nuts, bolts and washers are black zinc plated to match the color and protect against corrosion.
Operation
A sealed bearing needs no greasing and no maintenance. Horizontal adjustment lets you set the gate precisely during installation. The hinge is not self-closing.
Sizes and fit
D&D rates the hinges for a load of 270 kg per gate and a maximum gate weight of 140 kg. The gate gap is 76 to 89 mm. They are specified for pedestrian, pet, privacy, security and commercial gates. Bolts for your gate and post are ordered separately.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Finish | Black Powder Coat |
| Fixing method | Bolt-On |
| Weight | 2.0 lb |
| Warranty | Limited lifetime |
| Product line | Shut It BadAss |
| Type | Hinge |
| Function | Non Self-Closing, Square-to-Square |
| Suitable for | Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 300 lb |
| Sealed bearings | 1 |
| Gate gap variance | 3.0 - 3.5" |
| Max gate load | 600 lb |
| Yoke material | Steel |
| Body material | Steel |
| Sold as | Each |
Frequently asked questions
How heavy a gate can it carry?
D&D gives a maximum gate weight of 140 kg and a load rating of 270 kg per gate.
Do I need to weld it?
No. It has flat bolt-on brackets for through bolting to the gate and post.
Does it need greasing?
No. The sealed bearing needs no greasing or maintenance.
