ShutIT Baby Bolt-On BadAss

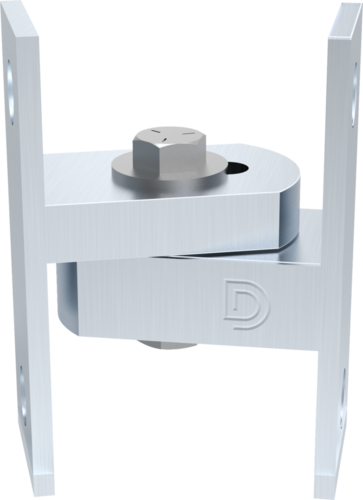

The Shut It Baby Bolt-On BadAss from D&D Technologies is a zinc plated bolt-on gate hinge for smaller gates where welding is not an option. CNC machined, with a sealed maintenance-free bearing, an adjustable barrel and flat brackets for through bolting.
Key features
- Bolt-on brackets for through bolting, no welding
- Sealed, maintenance-free bearing
- Adjustable barrel for precise installation
- Zinc plated
- Load rating 270 kg per gate
- Gate gap 76 to 3-1/2"
Shut It Baby Bolt-On BadAss: a bolt-on hinge for smaller gates
Like the Baby BadAss, this hinge is CNC machined to tight tolerances. Unlike the Baby BadAss, it was designed for smaller gates where welding the hinges to the gate and the end post is not an option.
Materials and operation
The hinge is zinc plated. A high temperature sealed bearing needs no greasing and no maintenance and is safe to powder coat with the hinges installed. The adjustable barrel and horizontal adjustment let you set the gate precisely, for near frictionless movement.
Sizes and fit
D&D rates the hinges at a load of 270 kg per gate. The gate gap is 76 to 89 mm, and the hinge suits square gate frames on square posts of 38 mm and up. It is specified for pedestrian, pet, privacy, security and commercial gates.
Installation
Flat bolt-on brackets allow through bolting to the gate and post. Bolts are ordered separately to suit your gate and post. The hinge is not self-closing.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
Frequently asked questions
Do I need to weld it?
No. The flat brackets are made for through bolting to the gate and post.
What is the maximum gate weight?
D&D gives a load rating of 270 kg per gate. For a heavy gate, please ask us to confirm the maximum gate weight before you order.
Does it need greasing?
No. The sealed bearing needs no greasing or maintenance.
