Gatemaster | Hydraulic gas-spring closer | brackets to weld on

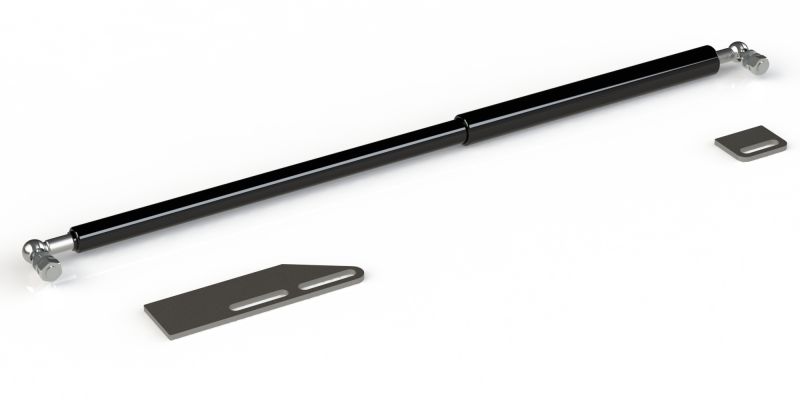

The reliable, long-lasting GSB gate closer is ideal for closing gates up to 176 lbs. Simply weld or screw the brackets to the gate and post and fit the closer to the brackets. The screw-fixed version (GSBW) needs screws; we recommend 1/4" screws (not included).
Key features
- Adaptable - The closer comes with either weld on or screw fixed brackets for fitting to a range of different gate types
- Proven Reliability - A proven gate closer trusted to deliver consistent closing performance year after year
- Adjustable force - No need to release gas, the closer can be moved along the brackets to increase or decrease the force. This means the strength of the close can be adjusted
The reliable, long-lasting GSB gate closer is ideal for closing gates up to 176 lbs. Simply weld or screw the brackets to the gate and post and fit the closer to the brackets. The screw-fixed version (GSBW) needs screws; we recommend 1/4" screws (not included).
- Easy to fit - Adjustable brackets also mean there is no need to compress the strut when fitting to a gate
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 2.2 lb |
Installation
- 1Fix the brackets supplied in position relative to the center of the hinge, as shown. Warning: never weld the brackets with the closer fitted - it can damage the seals.
- 2Close the gate and secure the strut to the slotted bracket and the long bracket with the shake-proof washers and nuts supplied, positioning the washers as shown. Move the strut along the long bracket to increase or decrease the force on the gate.
- 3Important: if the gate can open more than 90°, the strut can be damaged. We recommend fitting a stop to prevent this.
Maintenance
Never lubricate or damage the piston rod - it shortens the life of the seals. Lubricate the ball joints periodically with a light oil and wipe the strut clean with a damp cloth.
