Locinox Luky | Gate Lock | Surface Mounted | US Mortise Cylinder

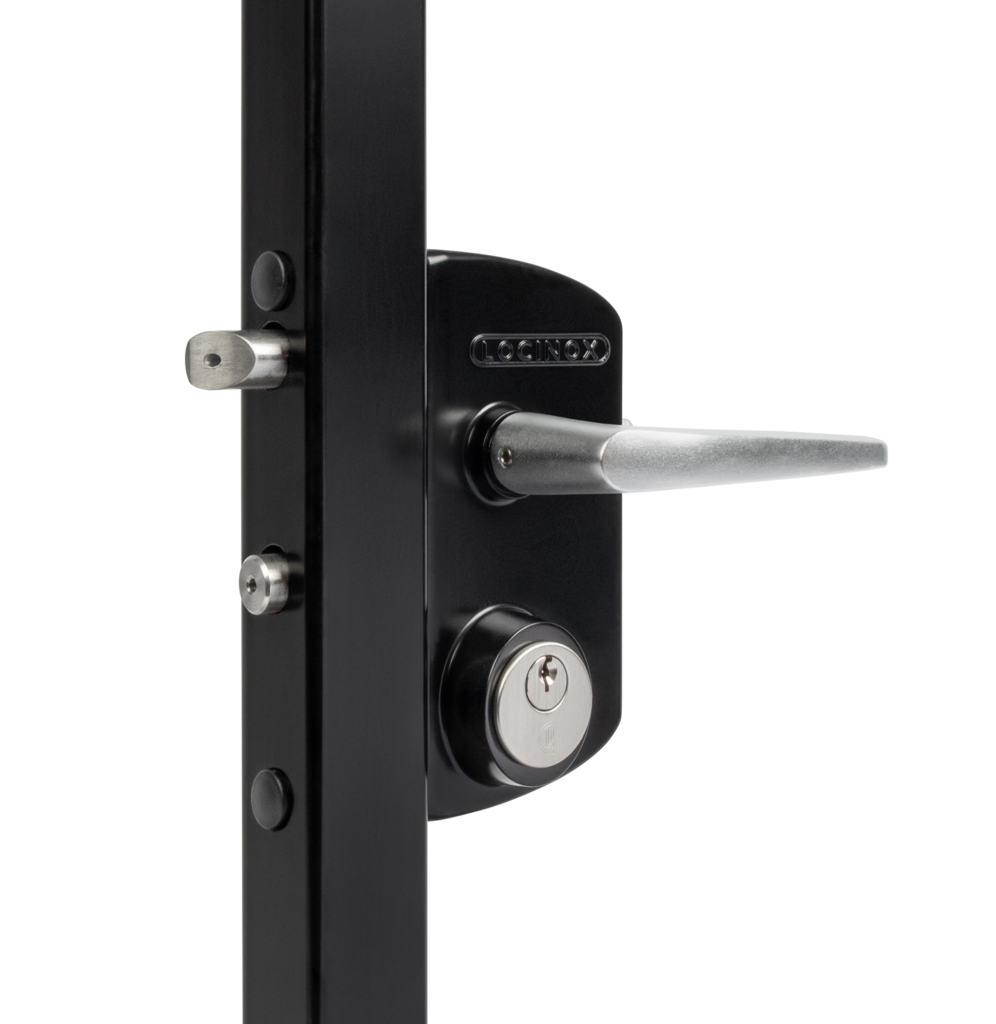

Locinox surface mounted gate lock made for a standard US mortise cylinder, with an aluminum housing and stainless steel mechanism. Supplied 5-pin keyed alike or keyed to differ (drilled 6-pin). The bolts adjust 3/8" and the stainless steel deadbolt throws 7/8".
Only this value fits the rest of your configuration, so it is set for you.
Only this value fits the rest of your configuration, so it is set for you.
Key features
- Takes a standard US mortise cylinder
- 5-pin keyed alike or keyed to differ (drilled 6-pin)
- Stainless steel deadbolt, 7/8" throw
- 3/8" continuous bolt adjustment
- Square profiles from 10 to 2-3/4"
- Black RAL 9005 or silver
Surface mounted gate lock for a standard US mortise cylinder
This Locinox gate lock is developed specifically to take a standard mortise cylinder, the cylinder type common in the United States. That lets you key the gate to the same system as other locks on a site that uses mortise cylinders.
Security
A stainless steel deadbolt with a 7/8" throw locks the gate. Latch and deadbolt adjust continuously over 3/8", so the locking mechanism lines up correctly with the keep.
Keying options
The lock comes with a 5-pin cylinder keyed alike, or keyed to differ with a cylinder drilled for 6 pins. It is also available without a cylinder, so you can fit your own mortise cylinder.
Sizes and fit
Choose the version for your square profile: 10 to 20, 20 to 30, 30 to 40, 40 to 50, 50 to 60 or 60 to 2-3/4". The housing is aluminum and the mechanism stainless steel, in black RAL 9005 or silver. Handle options are the 3006B black anodized aluminum pair and the 3006M aluminum pair. Locinox recommends the Drill-Fix drilling jig for fast and precise installation.
Specifications
| Brand | Locinox |
| Weight | 3.7 lb |
| Color | Silver |
| Profile type | Square |
| Profile dimension | 1-9/16" to 1-15/16" |
| Handle | 3006M - Aluminium handle pair |
| Keying | Keyed alike |
Article numbers
- P00015203-SILVColor: Silver / Profile type: SquarePrice on request
- P00015205-9005Color: RAL9005 / Profile type: SquarePrice on request
- P00015205-SILVColor: Silver / Profile type: Square$132.00Chosen
- P00015206-9005Color: RAL9005 / Profile type: SquarePrice on request
- P00015207-9005Color: RAL9005 / Profile type: SquarePrice on request
Frequently asked questions
Which cylinder does the lock take?
A standard US mortise cylinder. Its size is not yet confirmed; ask Fenceweb before you order.
Can I order it without a cylinder?
Yes, a version without cylinder is available.
Which profile sizes does it fit?
Square profiles in six ranges from 10 to 13/16" up to 60 to 2-3/4".
