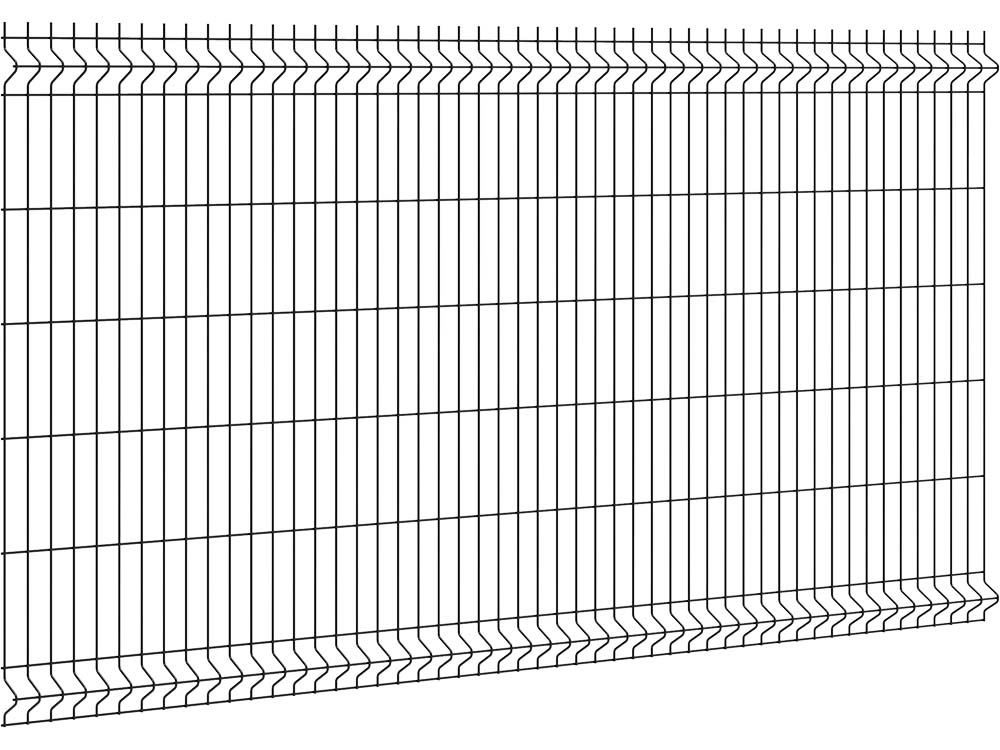

V-Fence | 6/6 GA | Mesh 2" x 8" | Width 8'2"

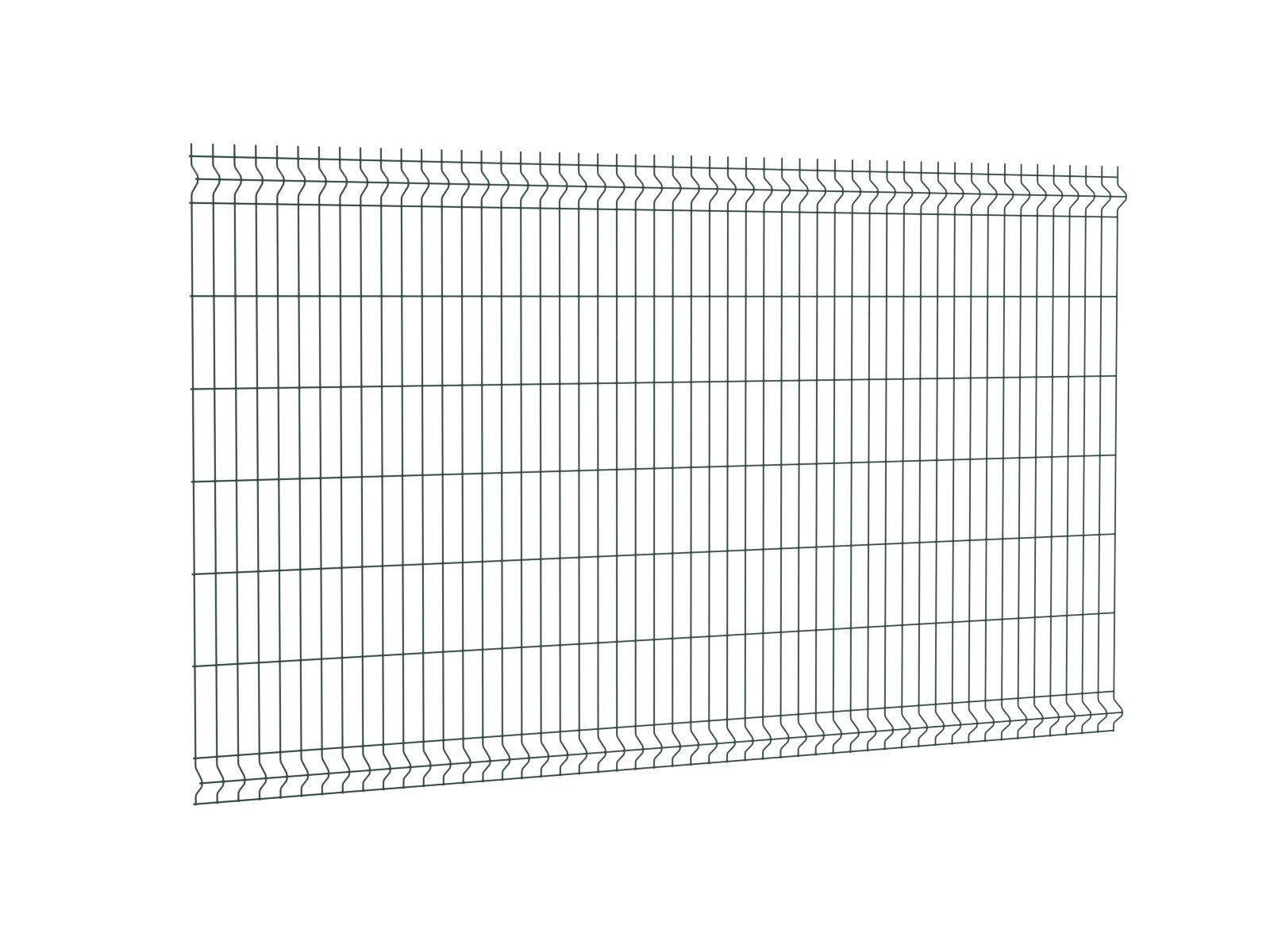

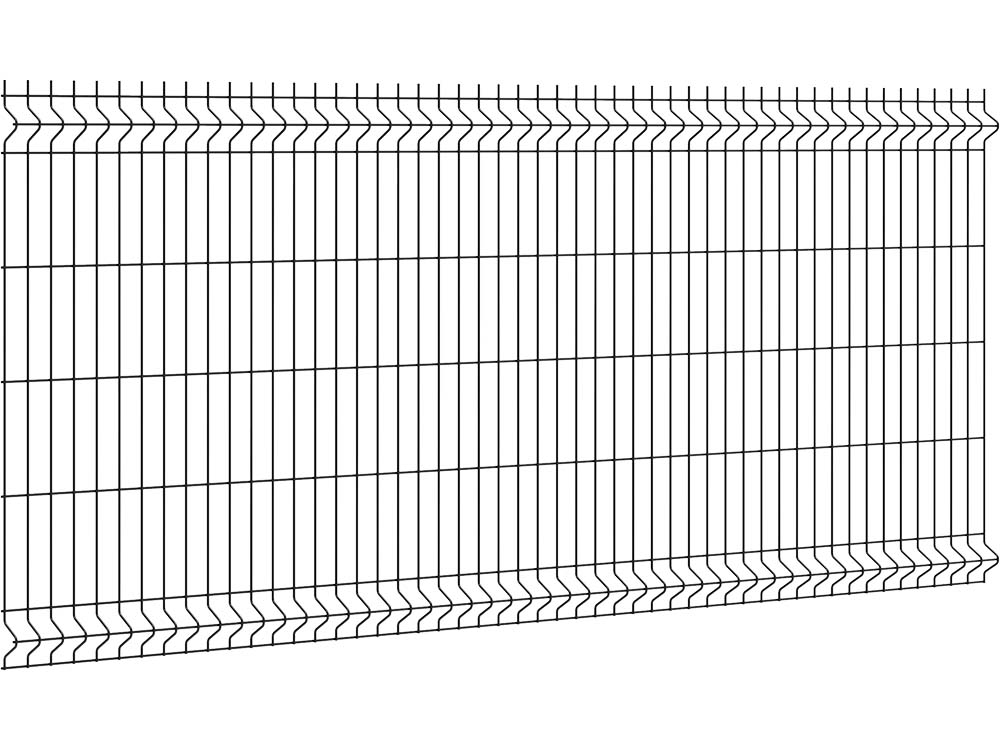

Single wire V mesh panel, 8'2" wide with a 2" x 8" mesh and 6 GA wires. A V-shaped bend gives the panel extra stiffness, making it a light, affordable alternative to twin wire fencing and chain-link. Ten heights from 830 to 8', hot-dip galvanized or in four RAL colors.
Key features
- 6 GA wires, welded at every crossing
- V-shaped bend for extra stiffness
- 2" x 8" mesh, 8'2" wide
- Ten heights from 830 to 8'
- Hot-dip galvanized or galvanized and coated in four RAL colors
- Mounts on 60 x 40 mm posts
V mesh panel 6/6 GA: light, stiff and affordable

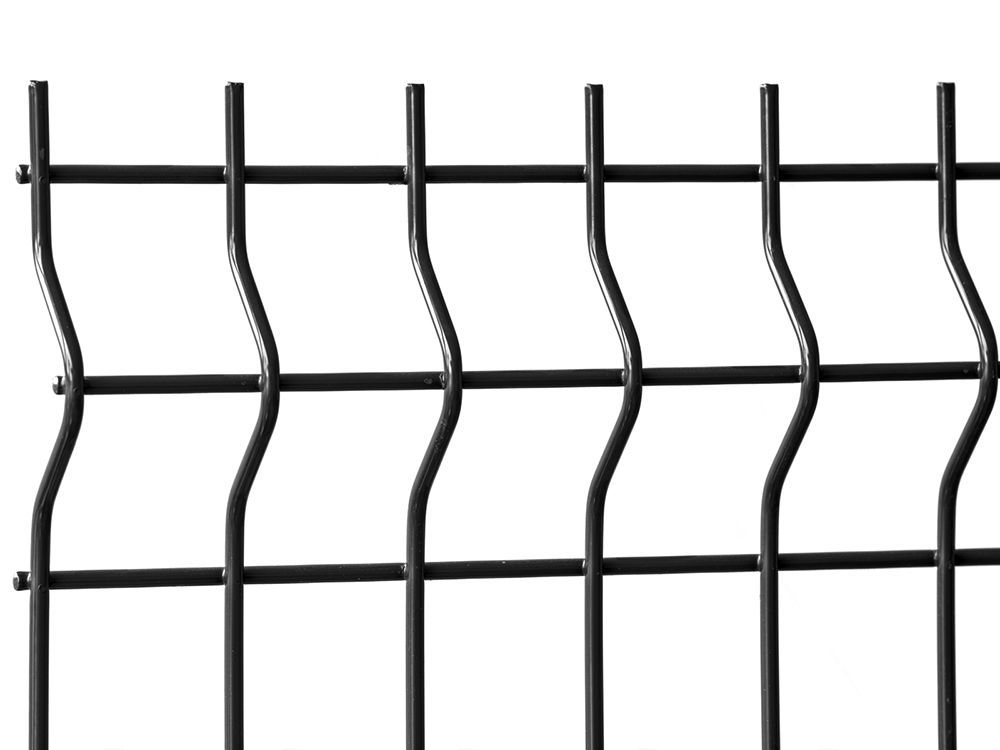

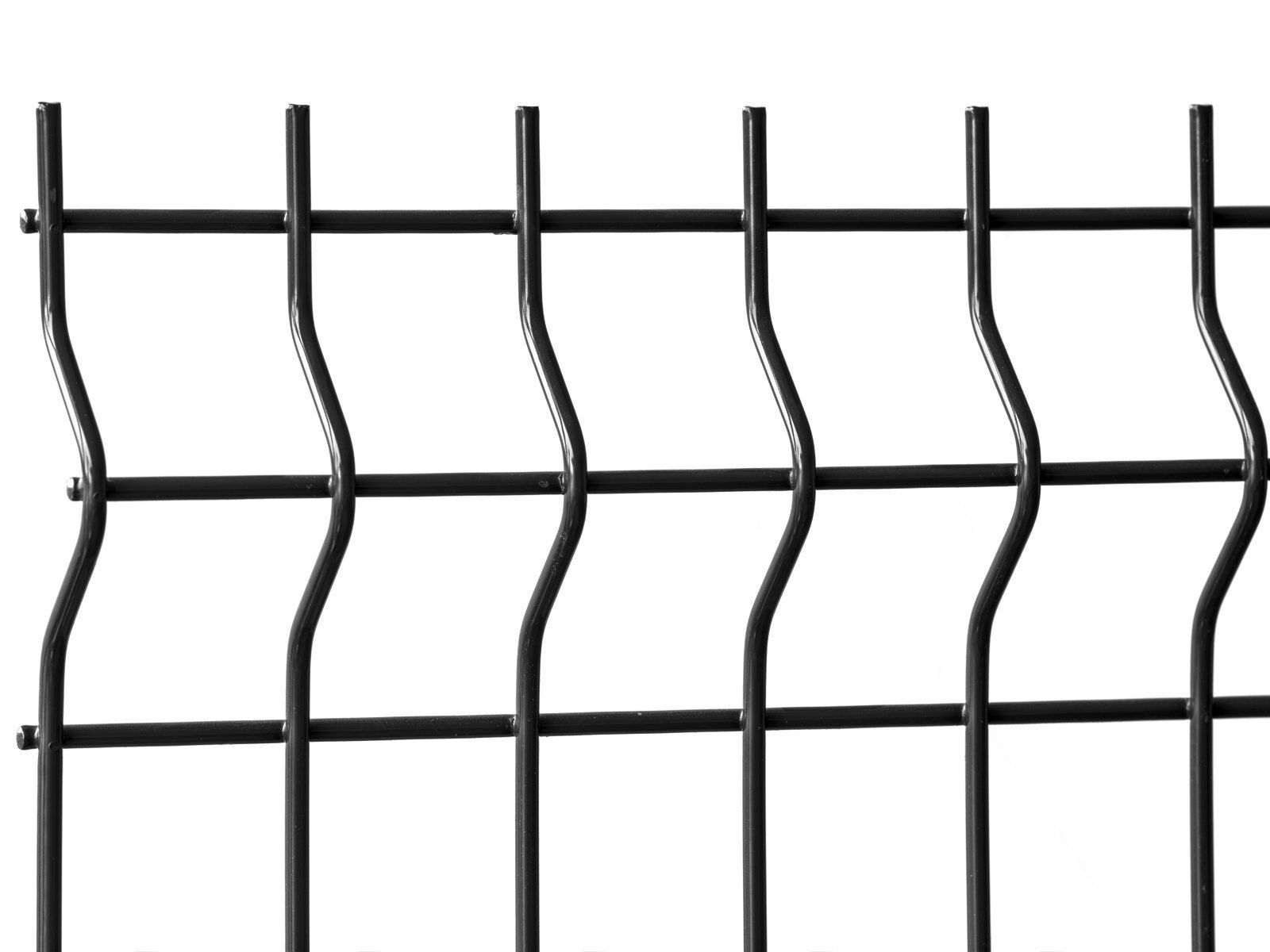

The V mesh panel is the lighter, more affordable alternative to twin wire mesh. Each panel uses one vertical and one horizontal steel wire, both 0.197", welded at every crossing. A V-shaped reinforcing bend across the panel gives it the stiffness a single wire panel would otherwise lack.
Specifications
- Wires: 6 GA vertical and 0.197" horizontal
- Mesh: 2" x 8"
- Panel width: 8'2"
- Heights: 2'8", 3'4", 4', 4'8", 5', 5'8", 6'4", 6'8", 7'8" and 8'
- Finishes: hot-dip galvanized, moss green RAL 6005, fir green RAL 6009, anthracite gray RAL 7016 and black RAL 9005
Typical uses

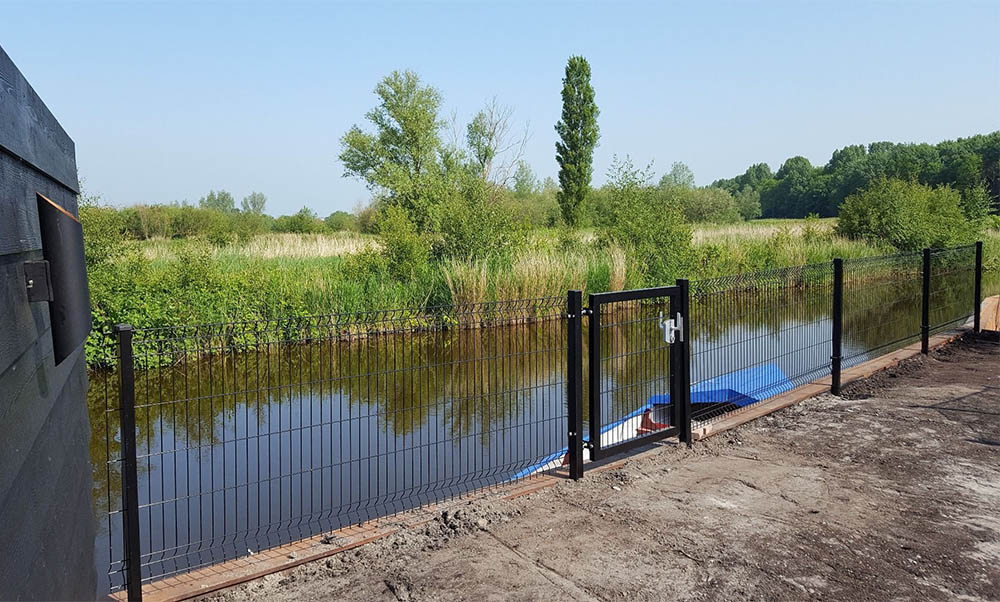

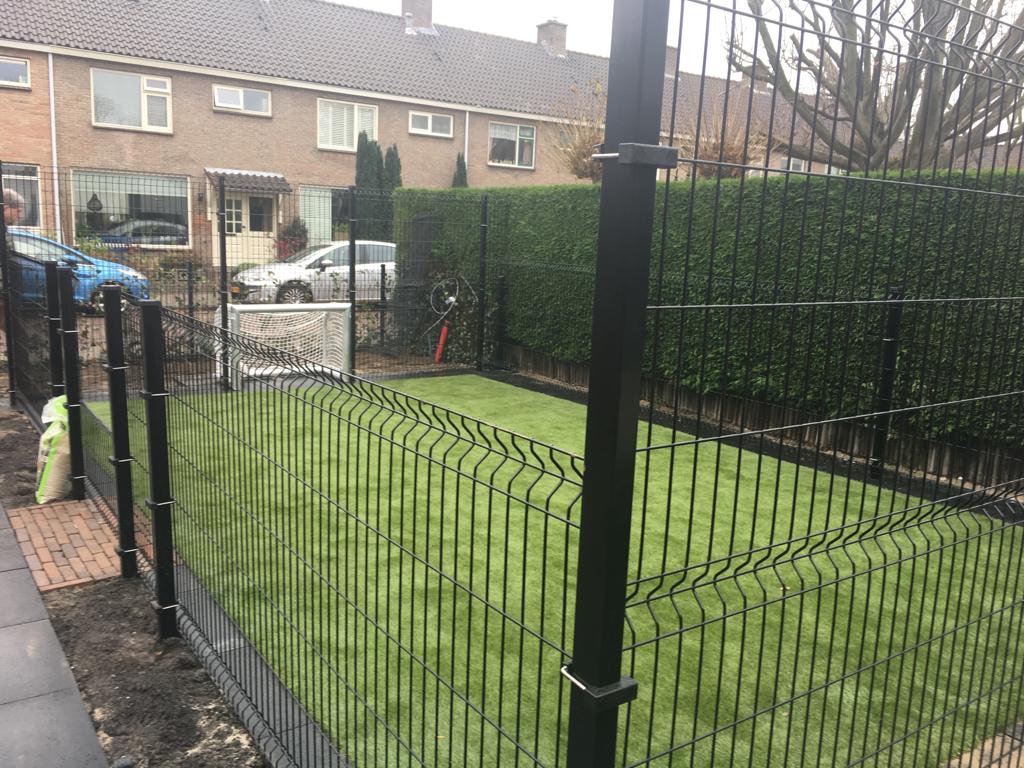

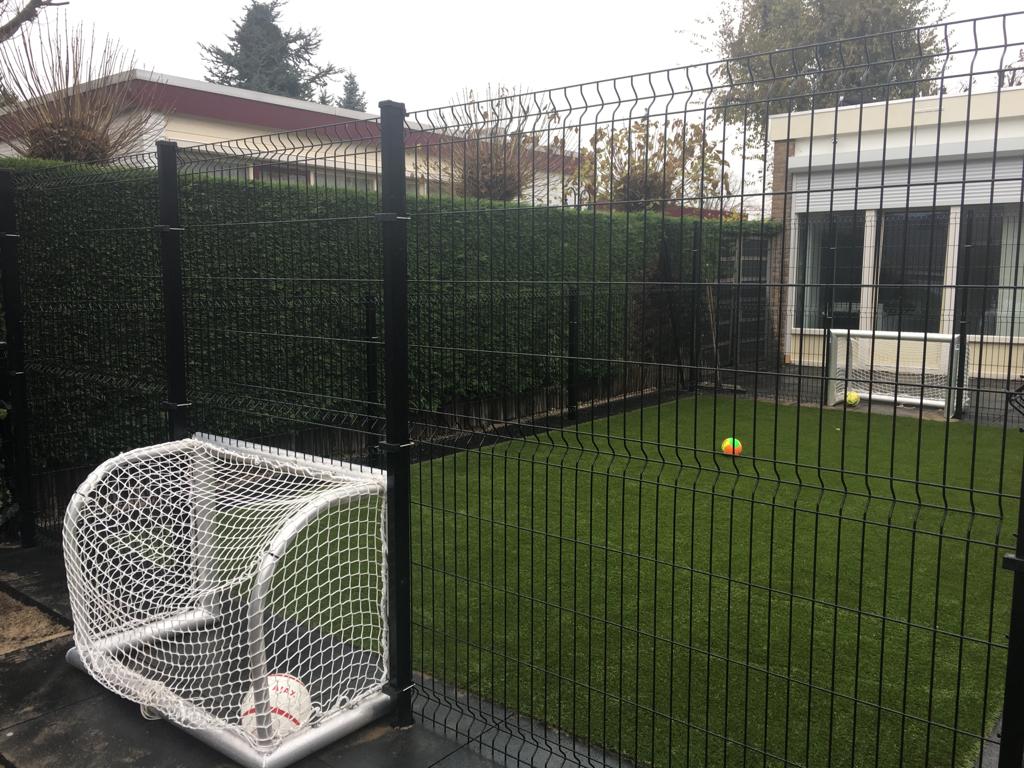

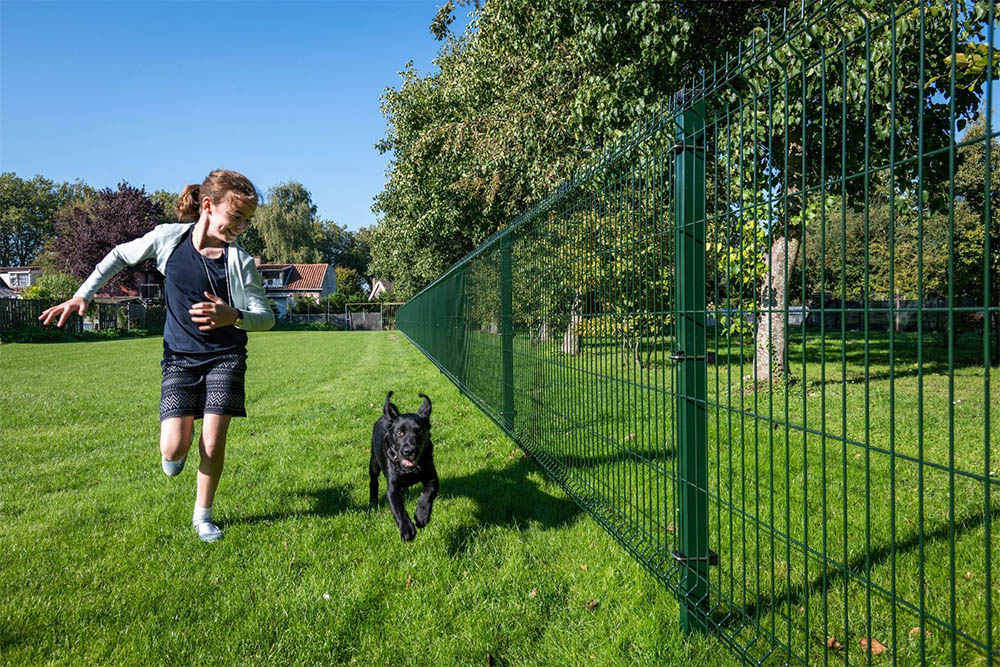

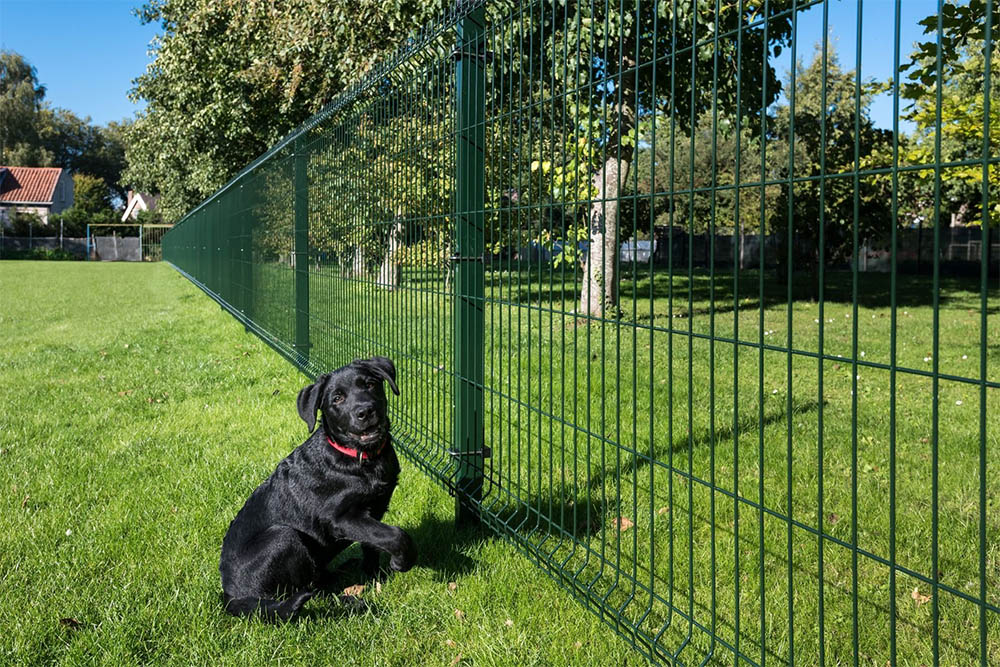

Garden and property boundaries, schools and playgrounds, car parks, business premises and large projects where price, safety and quick installation have to balance. The tight mesh is hard to climb, the wire ends protrude at the top as standard, and the open pattern keeps the view through the fence.
Installation

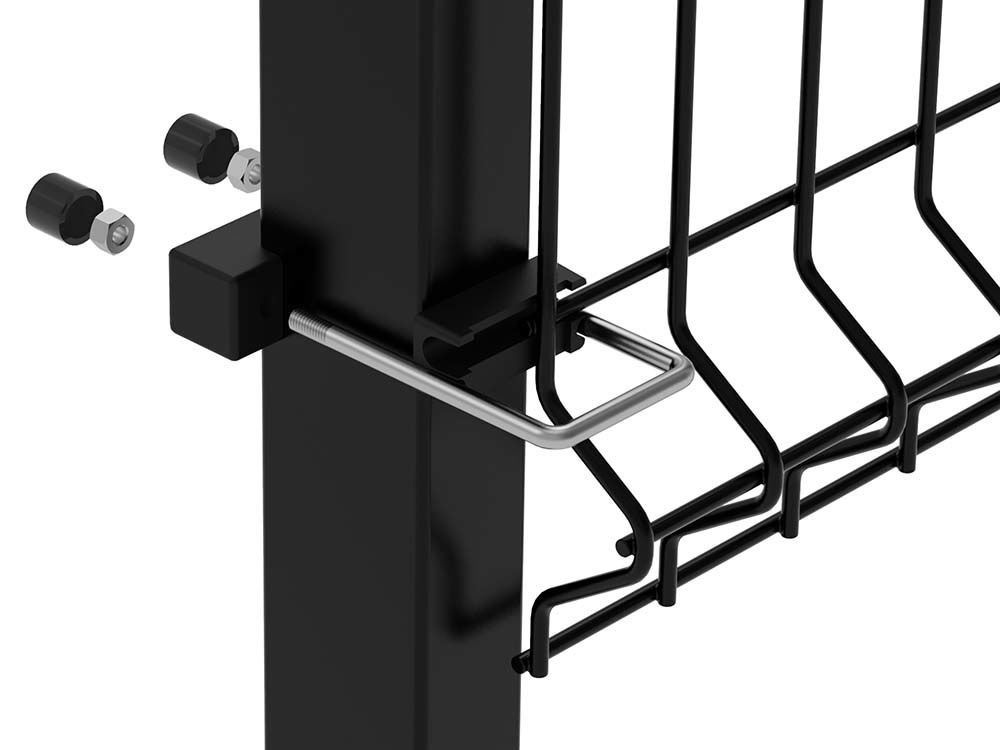

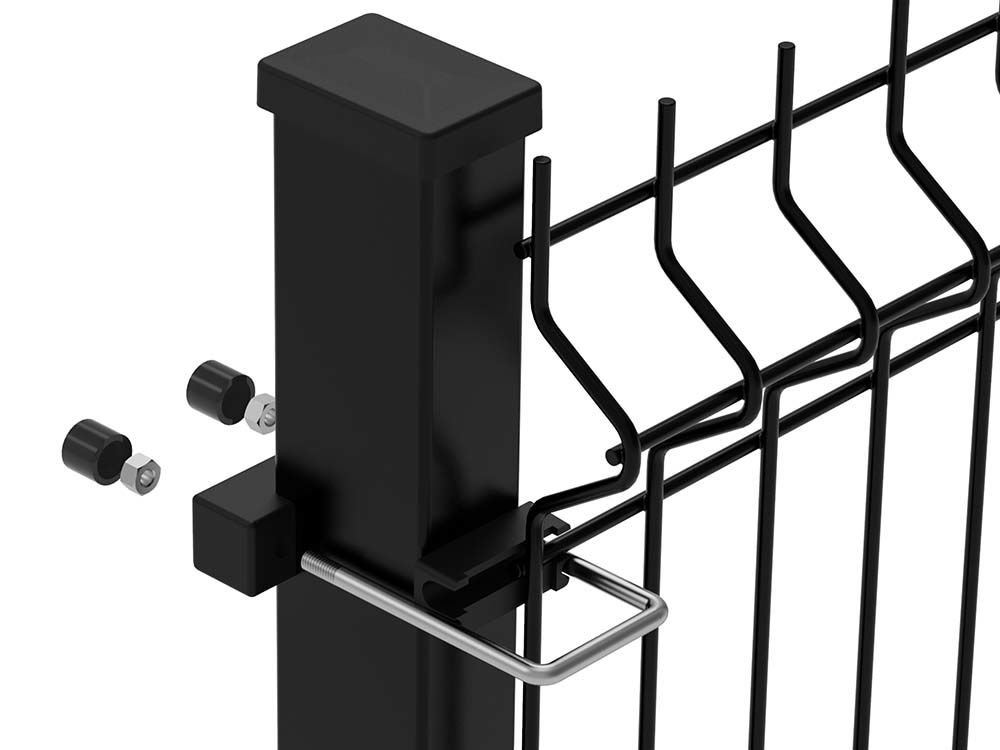

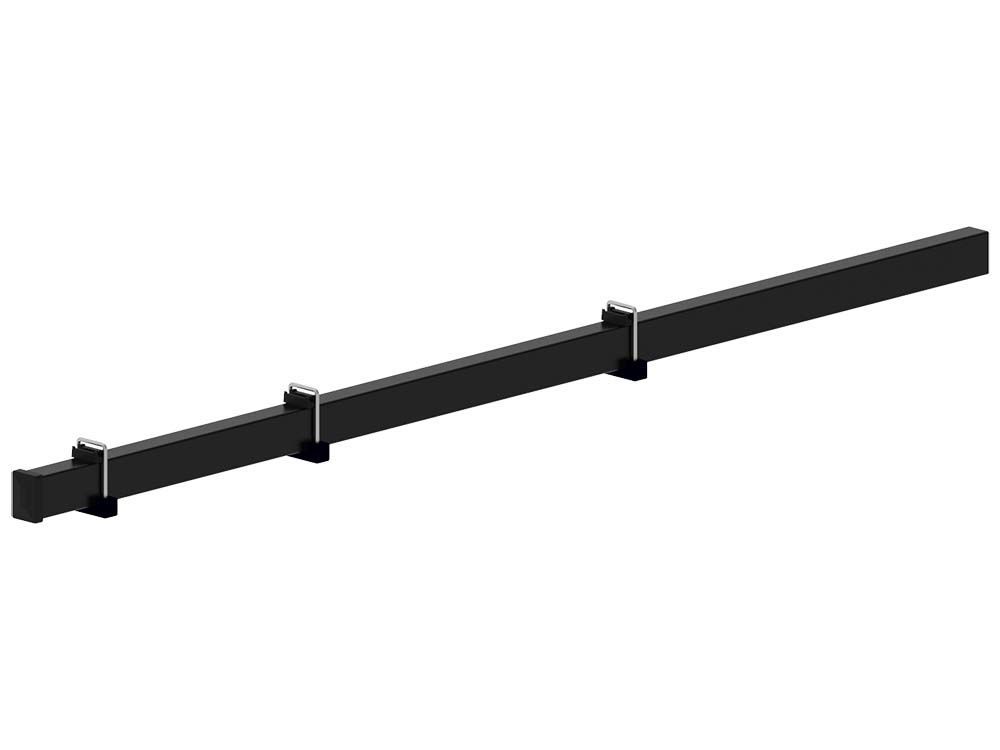

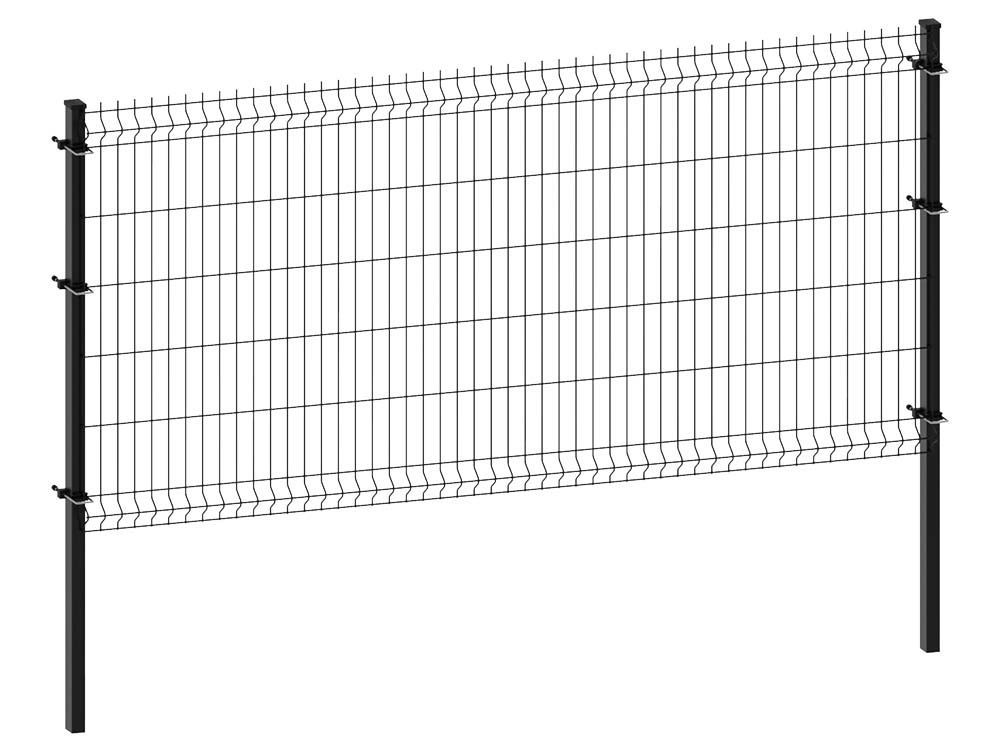

The panel mounts on 60 x 40 mm fence posts. Set the posts at least 600 mm deep in quick-setting concrete or concrete mortar. For a complete fence you need posts, fixing brackets and plastic post caps, available separately or as a set. Other heights and widths are possible on request for larger quantities.
Specifications
| Brand | Fenceweb |
| Width | 8'2" (98-3/4") |
| Height | 4' (48-3/8") |
| Length | 1-1/8" |
| Weight | 33 lb |
| Color | RAL9005 |
Article numbers
- ENKELSTAAFMAT-55-1230-HDGColor: Hot-dip galvanised / Height: 4'Price on request
- ENKELSTAAFMAT-55-1730-HDGColor: Hot-dip galvanised / Height: 6'Price on request
- 001229Color: RAL9005 / Height: 4'$65.00Chosen
- 001233Color: RAL9005 / Height: 6'$75.00
- ENKELSTAAFMAT-55-2430-HDGColor: Hot-dip galvanised / Height: 8'Price on request
- 001342Color: RAL9005 / Height: 8'$85.00
Related products
Frequently asked questions
What is the difference with a twin wire panel?
A V mesh panel uses single 6 GA wires with a V-shaped bend for stiffness, so it is lighter and more affordable than a twin wire panel.
Which posts do I need?
60 x 40 mm fence posts, set at least 600 mm deep in concrete.
Are posts and brackets included?
No. Posts, fixing brackets and post caps are available separately or as a complete set.
Can I get other sizes?
Other heights and widths are possible on request for larger quantities.
