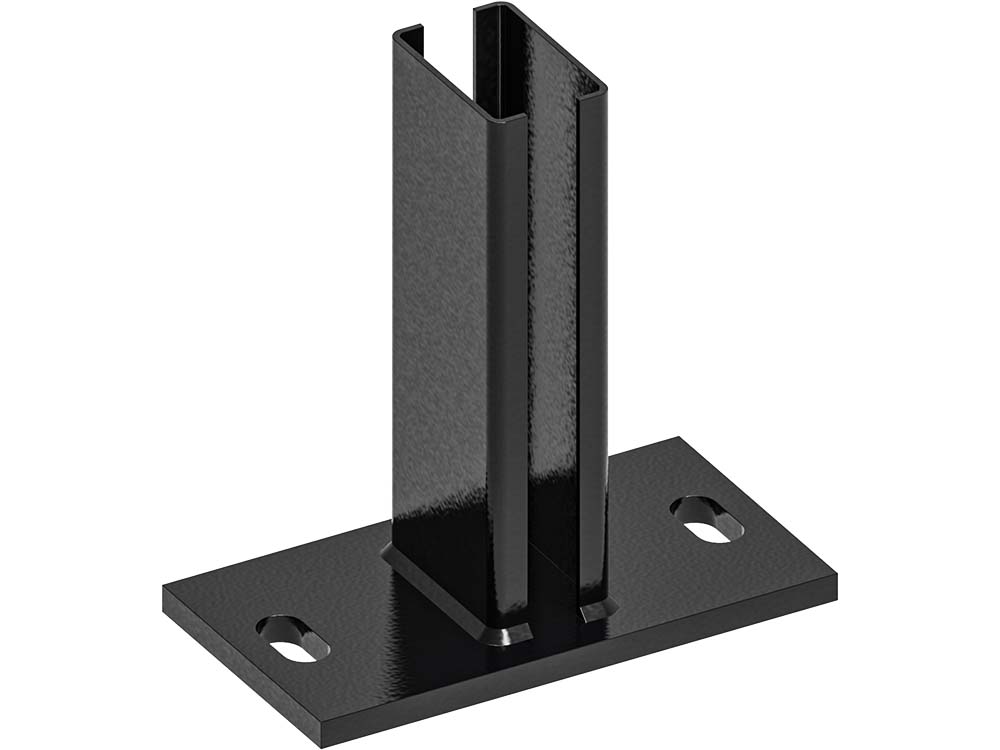

Fence post baseplate | 2-3/8" x 1-9/16" | Short
Straight base plate for 2-3/8" x 1-9/16" fence posts, used to set a twin wire or V mesh fence on concrete, paving or a wall. The post slides over the plate, which is bolted down through two holes, leaving only its sides visible. Available hot-dip galvanized or in four RAL colors.
Key features
- Straight base plate for 60 x 40 mm posts
- For concrete, paving and walls
- Post slides over the plate
- Two holes for ground or wall fixing

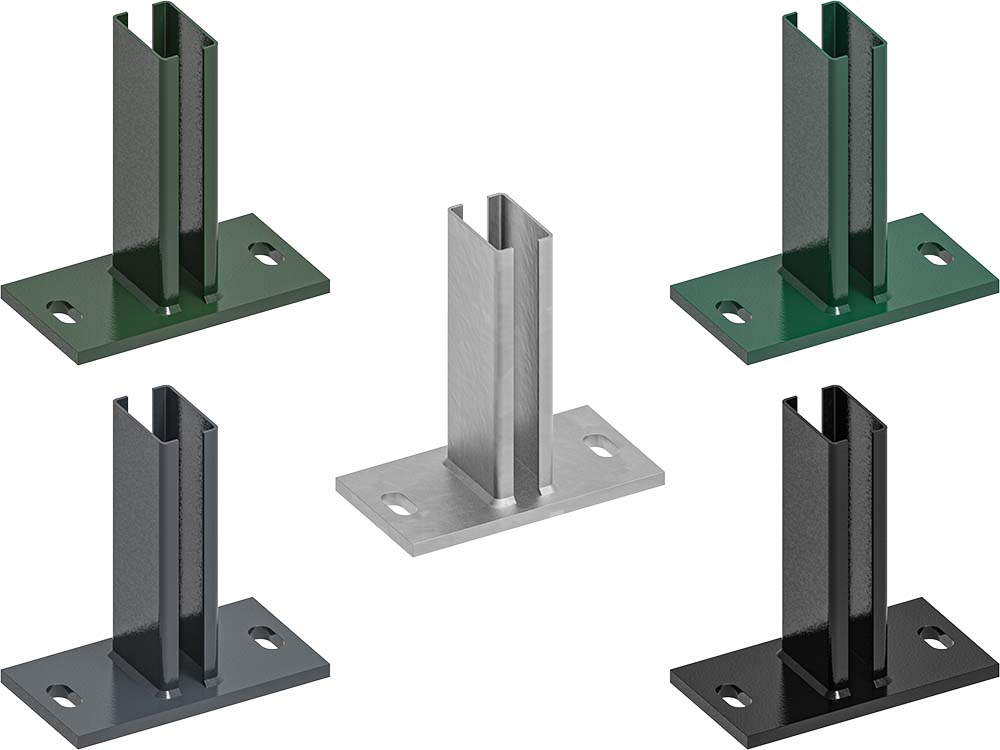

- Hot-dip galvanized or RAL 6005, 6009, 7016, 9005
Base plate for mounting 60 x 40 mm posts on hard surfaces
Where posts cannot go into the ground, for example on concrete, paving or a wall, a base plate lets you build the fence anyway. This straight base plate fits 60 x 40 mm posts and suits twin wire and V mesh fencing. An L-shaped base plate is available for fixing against a low wall.
Installation
Fix the base plate to the ground or wall through its two holes. Slide the post over the plate so the plate is almost hidden; only its two sides stay visible. Secure the post to the plate with self-tapping screws, two per base plate.
Post length
Posts are sold about 2' longer than the fence height for setting in the ground. When you use base plates, shorten the posts yourself to the fence height before fitting.
Not included
- Fixings for the ground or wall: choose anchors to suit the surface
- Self-tapping screws: two per base plate
- Posts 60 x 40 mm
Specifications
| Brand | Fenceweb |
| Width | 1-5/8" |
| Height | 15/16" |
| Length | 2-3/8" |
| Weight | 2.2 lb |
| Color | RAL9005 |
Article numbers
- 049305Color: Hot-dip galvanised$15.66
- 049310Color: RAL9005$15.66Chosen
Related products
Frequently asked questions
Which posts does this base plate fit?
Rectangular 60 x 40 mm fence posts.
Are the ground fixings included?
No. Fixings for the ground or wall are not supplied; choose anchors to suit the surface.
Do I need to shorten the posts?
Yes. Posts are sold about 2' longer than the fence height for setting in the ground; shorten them to the fence height when using base plates.
How is the post secured to the plate?
With two self-tapping screws per base plate.
