Drilling jig
Locinox drilling jig for preparing gate posts and strike posts for swing gate locks and their keeps. It adjusts to 1-9/16", 1-15/16" and 2-3/8" profiles and guarantees that the Locinox lock and keep sit precisely in the center of the post.
Key features
- Prepares posts for swing gate locks and keeps
- Adjustable for 1-9/16", 1-15/16" and 2-3/8" profiles
- Centers the Locinox lock and keep on the post
- For gate posts and strike posts
- Locinox article code 3970LA
Drilling jig for Locinox locks and keeps in the center of the post

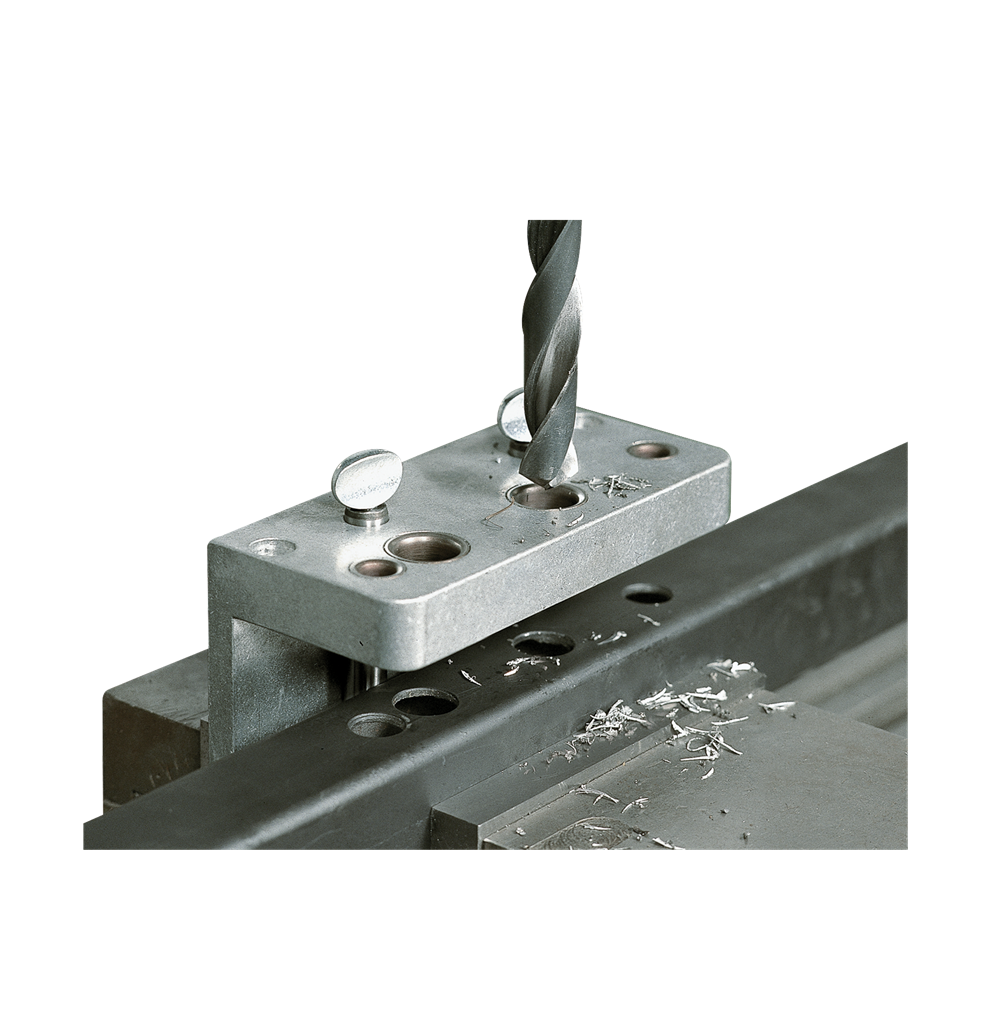

This Locinox drilling jig prepares the gate post and the strike post for a swing gate lock and its keep. It is clamped onto the profile and guides the drill, so every hole lands exactly where it should. The result is a lock and keep that line up in the center of the post.
Sizes and fit
The jig can be adjusted for profiles of 1-9/16", 1-15/16" and 2-3/8", the common sizes for gate frames and posts. One jig therefore covers most swing gates, and you set it to the profile you are working on.
Typical uses
The jig is made for installers who fit Locinox locks regularly. Drilling by eye leads to holes that are slightly off center, which makes the bolt rub against the keep or the lock hard to operate. With the jig, every installation comes out the same, which saves time on site and avoids having to correct holes afterwards.
Specifications
| Brand | Locinox |
| Width | 6-7/8" |
| Height | 3-3/4" |
| Length | 8-1/8" |
| Weight | 3.2 lb |
| EAN | 5414768013182 |
Frequently asked questions
Which profile sizes does the jig fit?
It adjusts to profiles of 1-9/16", 1-15/16" and 2-3/8".
What is the jig used for?
To drill the gate post and strike post for a Locinox swing gate lock and its keep, in the center of the post.
