Gatemaster | Superlock Code Gate Lock | Quick Exit

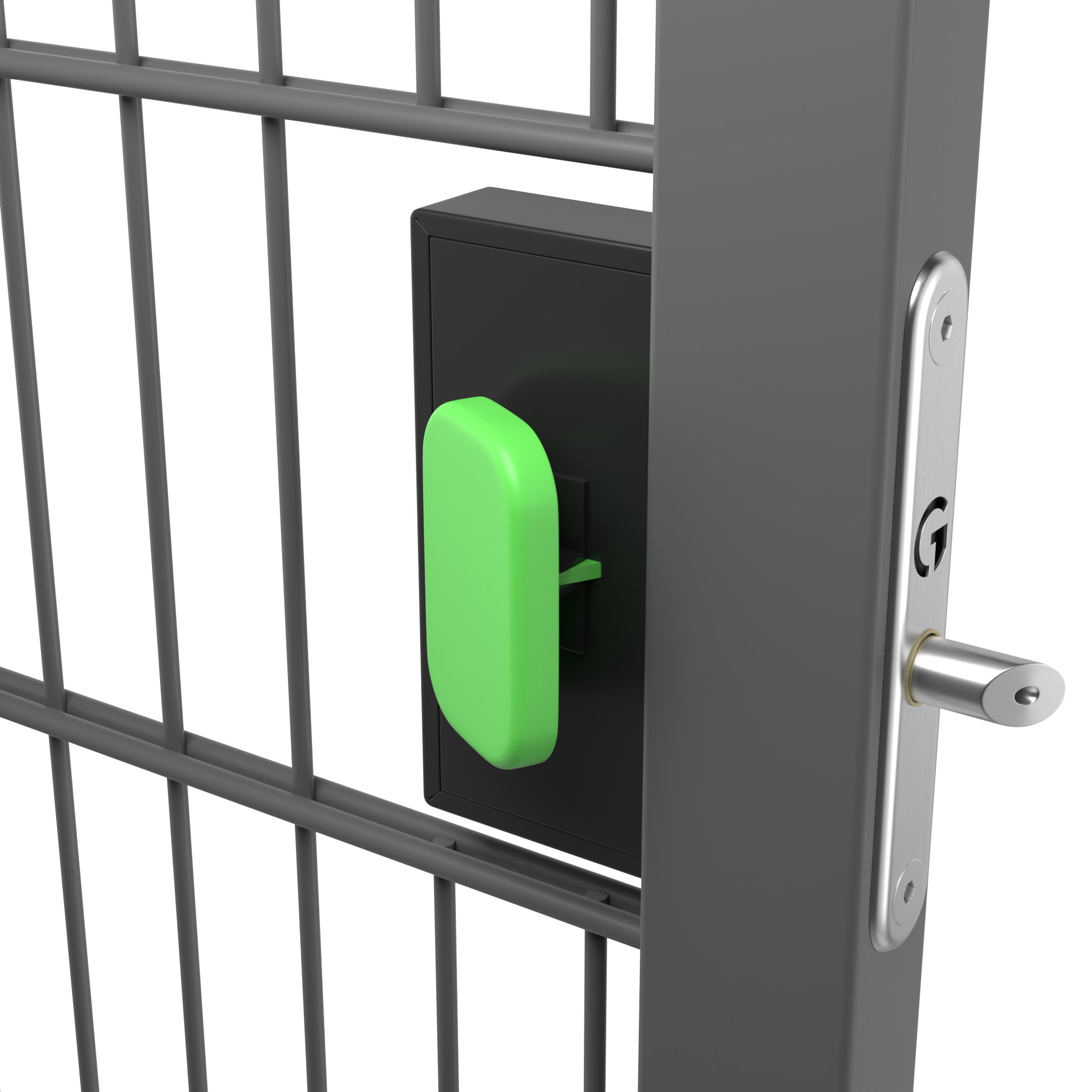

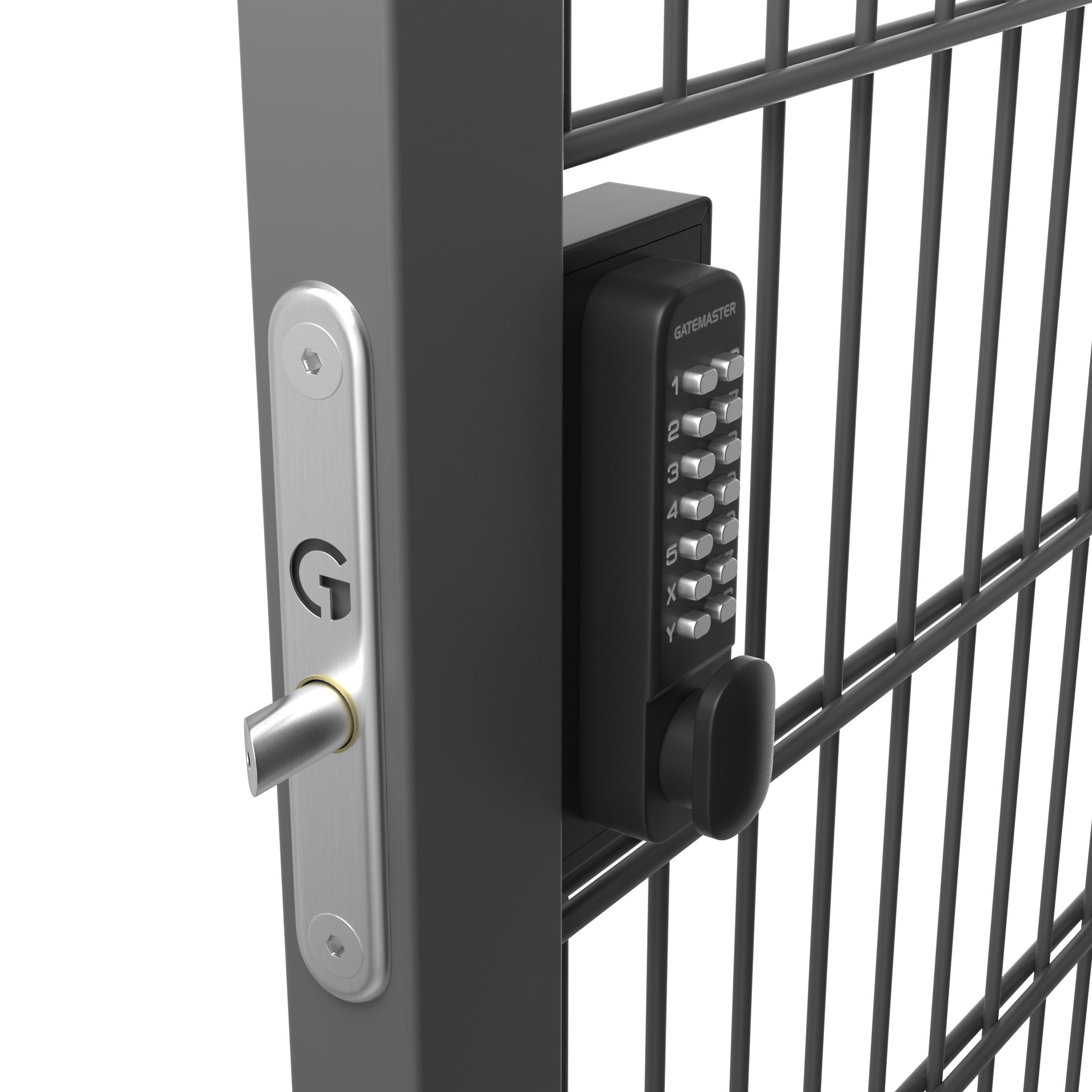

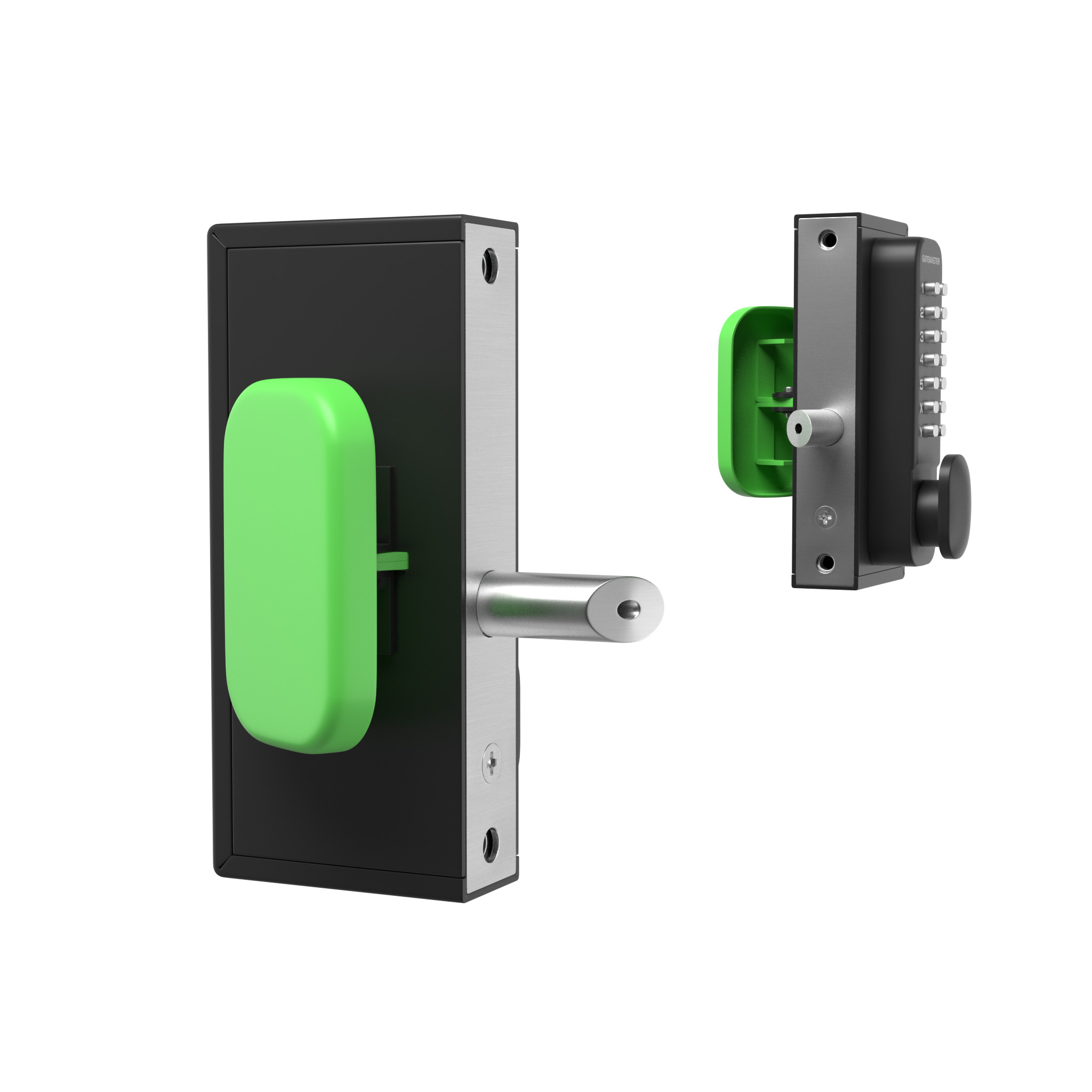

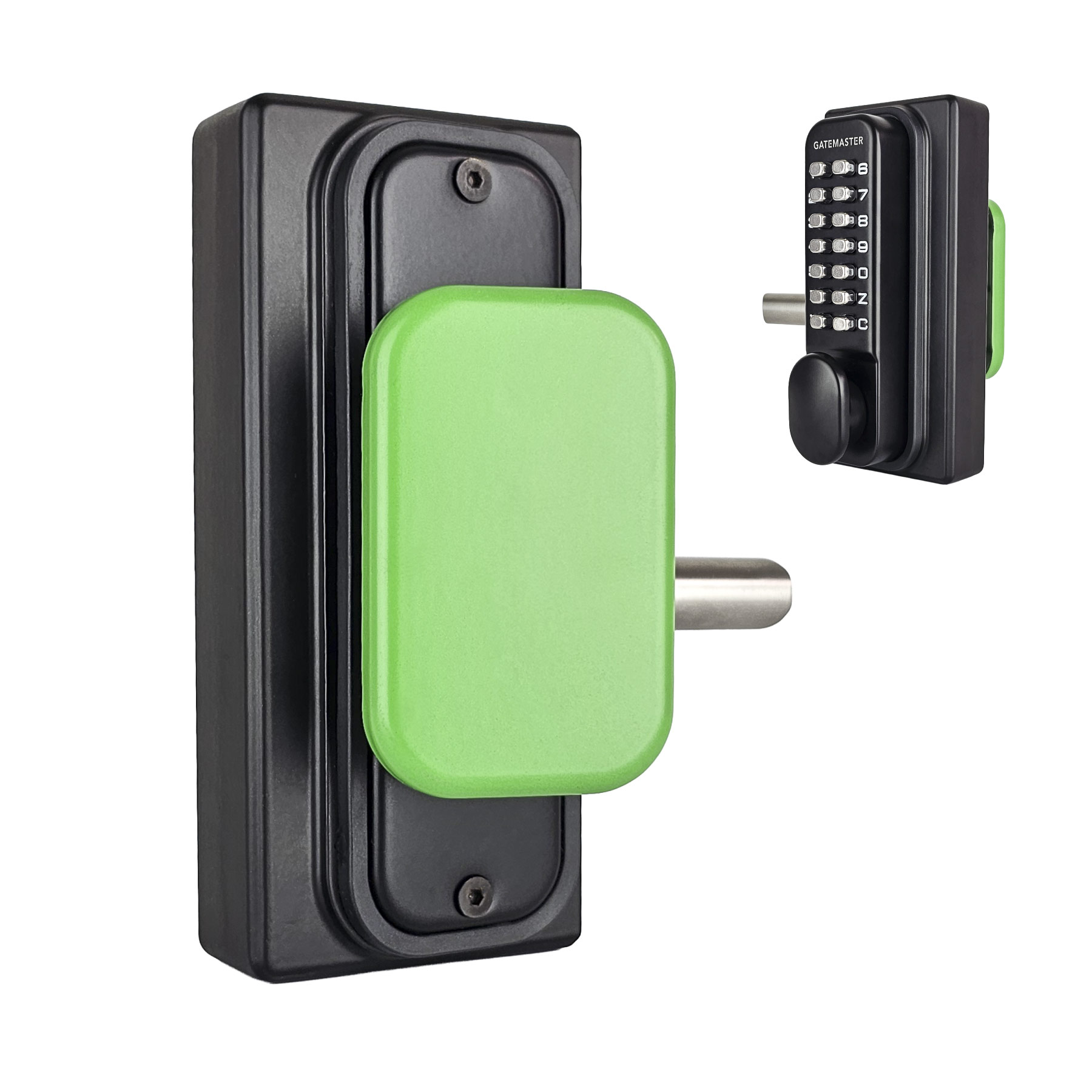

Require a gate lock that facilitates a quick exit from a gate? The Superlock Quick-Exit has a green push pad to allow for easy exit, this version of the lock comes with a Digital keypad entry, a key entry version is also available.
Key features

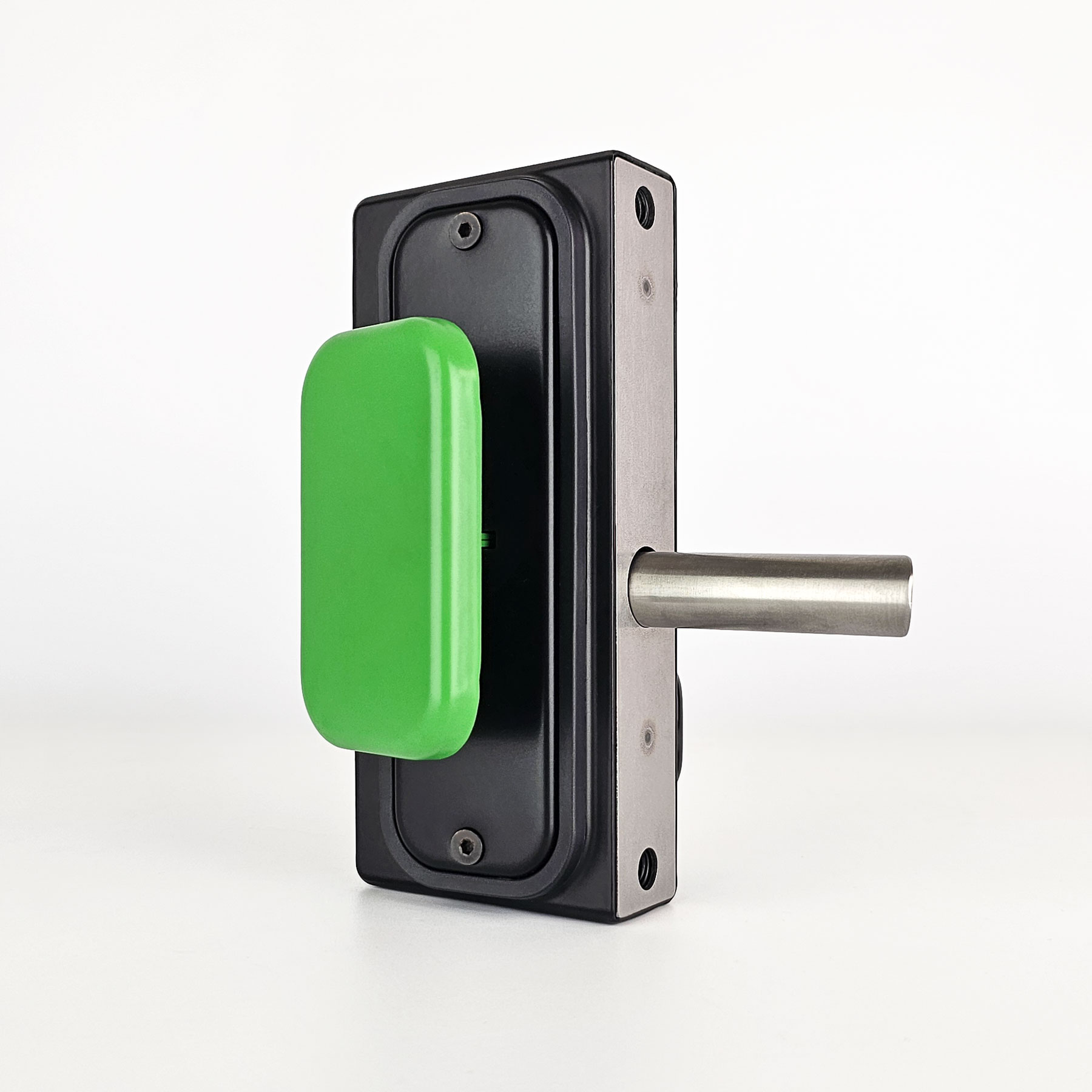

- Quick-exit green push pad allows for easy exit
Require a gate lock that facilitates a quick exit from a gate? The Superlock Quick-Exit has a green push pad to allow for easy exit, this version of the lock comes with a Digital keypad entry, a key entry version is also available.
You can change the code on this combination lock with the code-changing pack that ships in the box.
This gate lock is compatible with our Superlock Gapless Keep, Superlock Interlocking Keep & Superlock Secure Keep for extra security.
- Stainless steel latchbolt that latches 3/4"

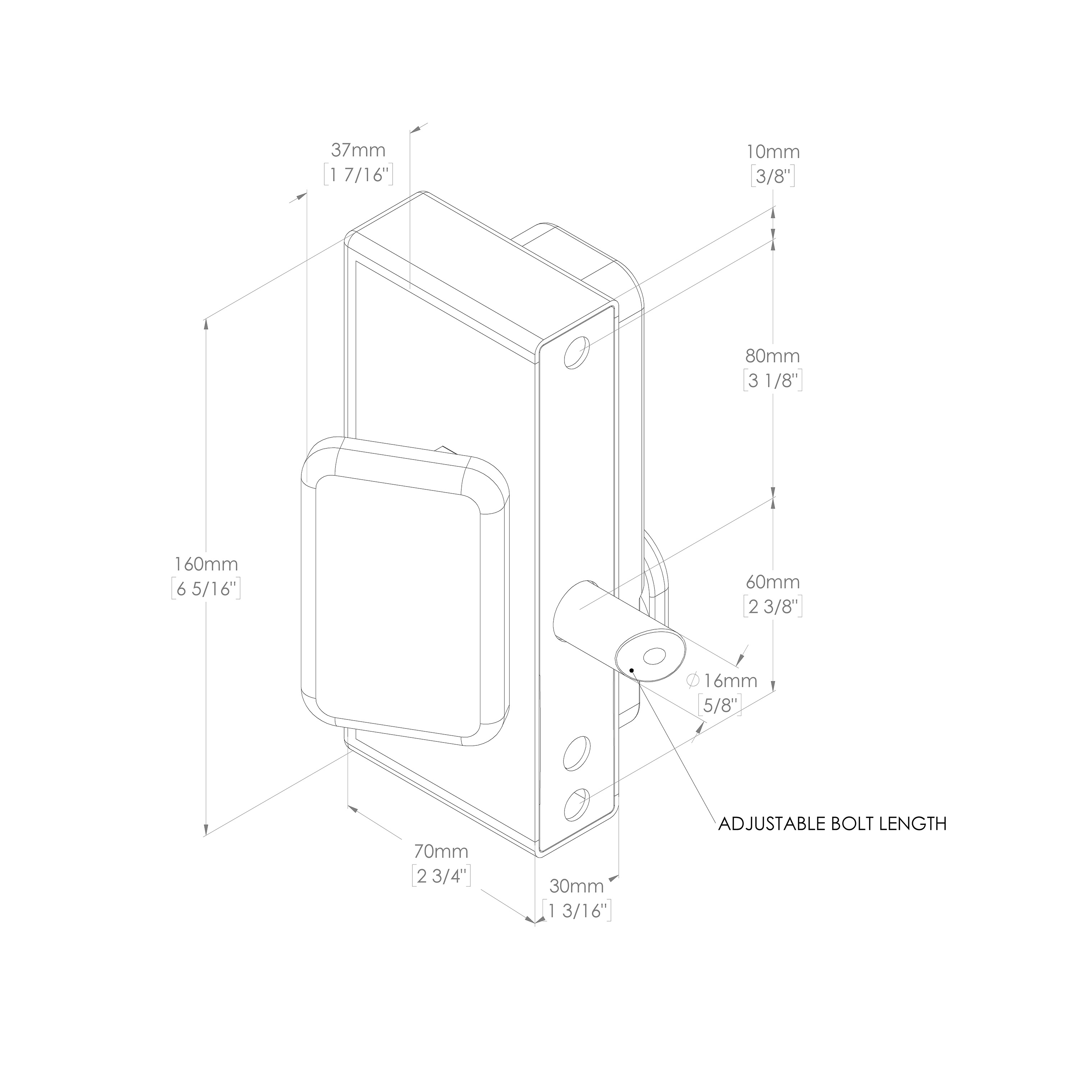

- Adaptable - Slim 2 3/4" case means this lock can suit a variety of different gate styles

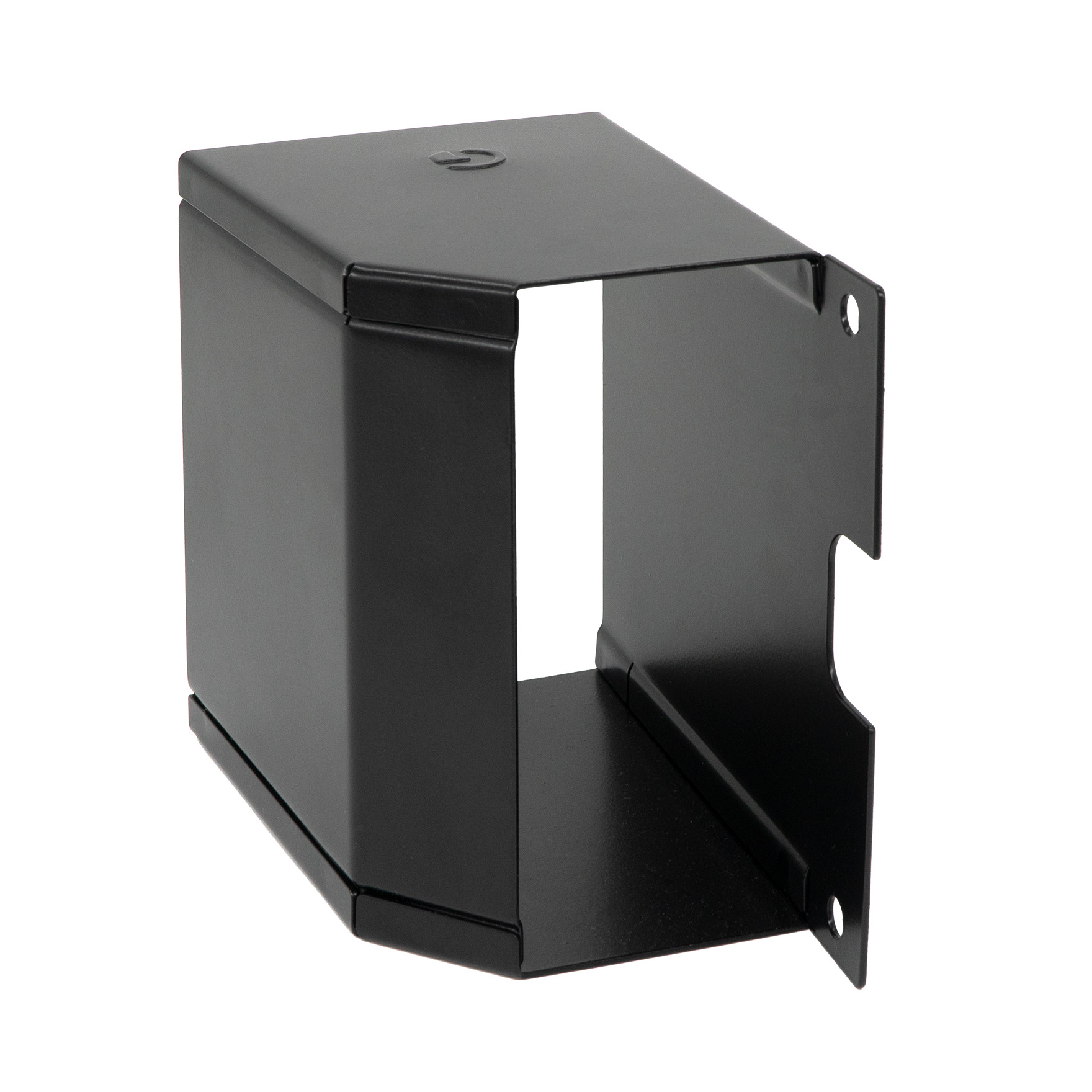

- A shroud is also available to restrict access to the pad from outside the gate
- Also available in a green casing
Change codes in seconds with RapidReset
Check out our newest RapidReset lock for faster code changing solutions
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Hand | Left |
| Frame width | 3/8" to 1-3/16" |
What's in the box
- 0.098" hex key + 0.118" hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- Code changing pack
Article numbers
- BQDG4060LHand: Left / Frame width: 1-9/16" to 2-3/8"$239.95
- BQDG1030RHand: Right / Frame width: 3/8" to 1-3/16"$239.95
- BQDG4060RHand: Right / Frame width: 1-9/16" to 2-3/8"$239.95
- BQDG1030LHand: Left / Frame width: 3/8" to 1-3/16"$239.95Chosen
Installation
- 1Drill 2 x 9 mm holes at 140 mm centres for the fixing bolts supplied.
- 2Drill an 11/16" clearance hole for the latchbolt, 2-3/8" above the bottom fixing hole.
- 3Hold the lock against the back of the box section and screw the latchbolt on through the 11/16" hole.
- 4Lock the latchbolt by inserting the hex key supplied into the end of the latchbolt.
- 5Fix the lock in place with the stainless steel bolt support plate and the countersunk screws supplied, and check that the latchbolt still moves freely.
- 6Fix the strike plate to the gate post, either by welding or with screws.
Maintenance
Every 3 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the code myself?
Yes, and you do not need a locksmith. Take the keypad off the lock, open it up and reposition the code pins for the digits you want; the printed instructions in the box walk through it step by step. Set a code you will remember, then test it a few times with the gate open before you close it.
Does this code lock need power or batteries?
No. The keypad is fully mechanical, so there is no wiring, no batteries and nothing to replace. That is what makes it suitable for gates at the far end of a site, allotments, bin stores and anywhere a cable run would be impractical - and it keeps working in a power cut.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock bolts onto. Versions are made for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are BQDG1030L, BQDG1030R, BQDG4060L and BQDG4060R.
Still have questions? Call us at 214 878 1900
