Gatemaster | SelectPro Code Gate Lock | Surface Mounted | Quick-Exit

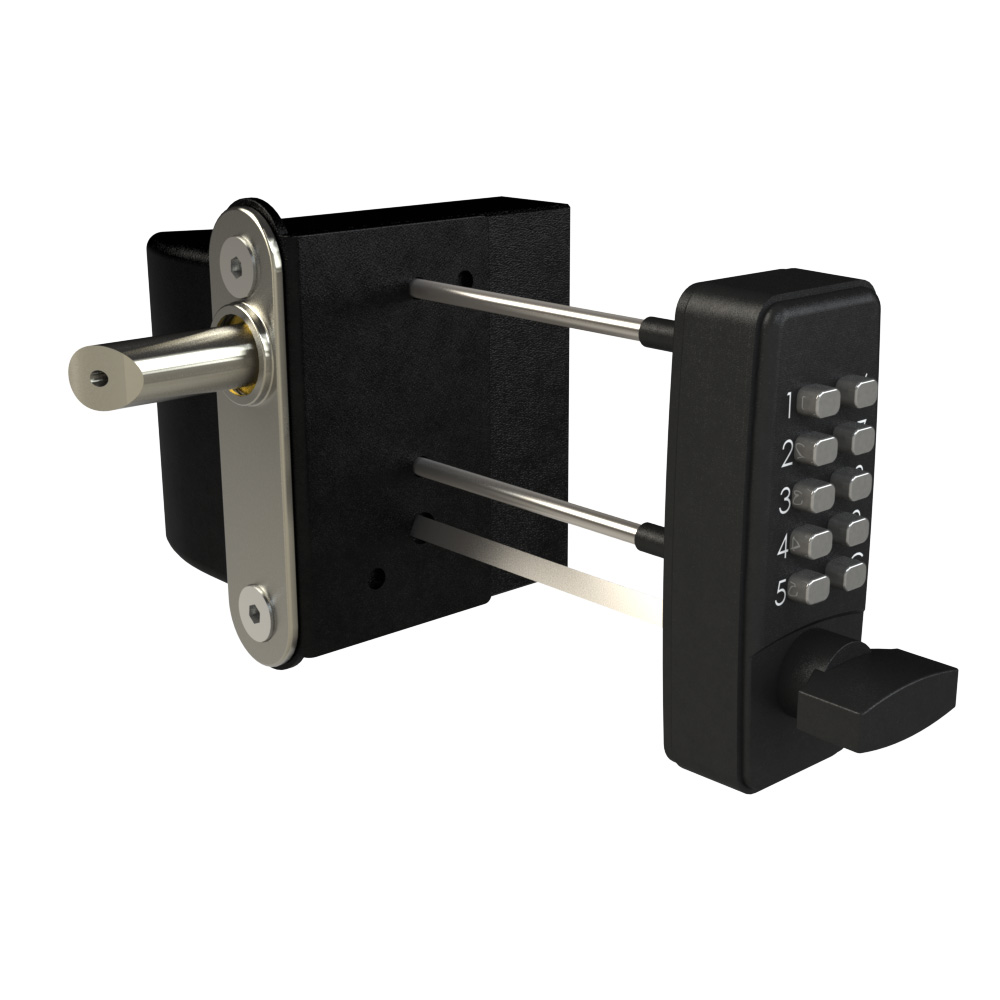

The SBQEDGLW is a surface-mounted code gate lock with a quick-exit push pad on the inside and a digital keypad on the other. With the simple surface-fixed installation, it is perfect for both wooden and metal gates and is useful for locations where an easy exit is necessary. The lock has a 10-pin keypad for easy keyless access.
Key features
- Surface-mounted fixing for easy installation on wooden gates
If you aren't sure if your gate is left- or right-handed, we have made a handy guide to help.

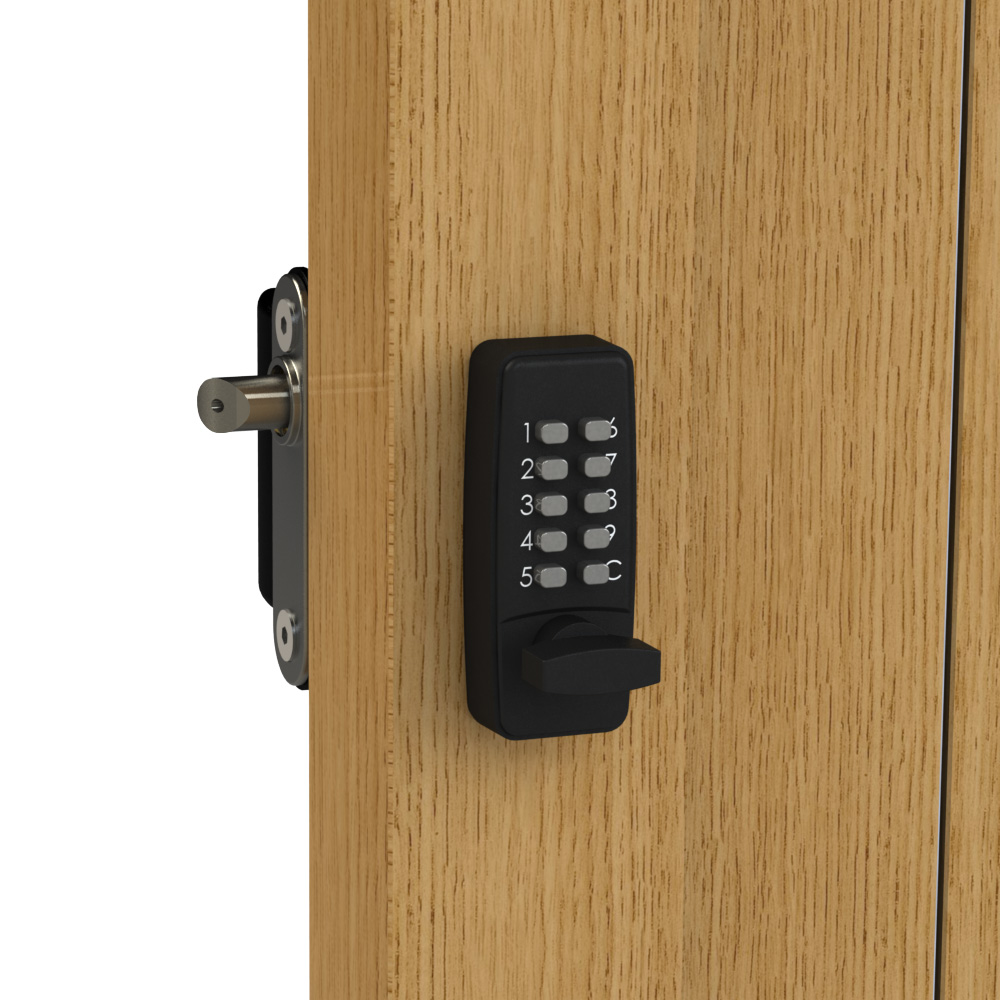

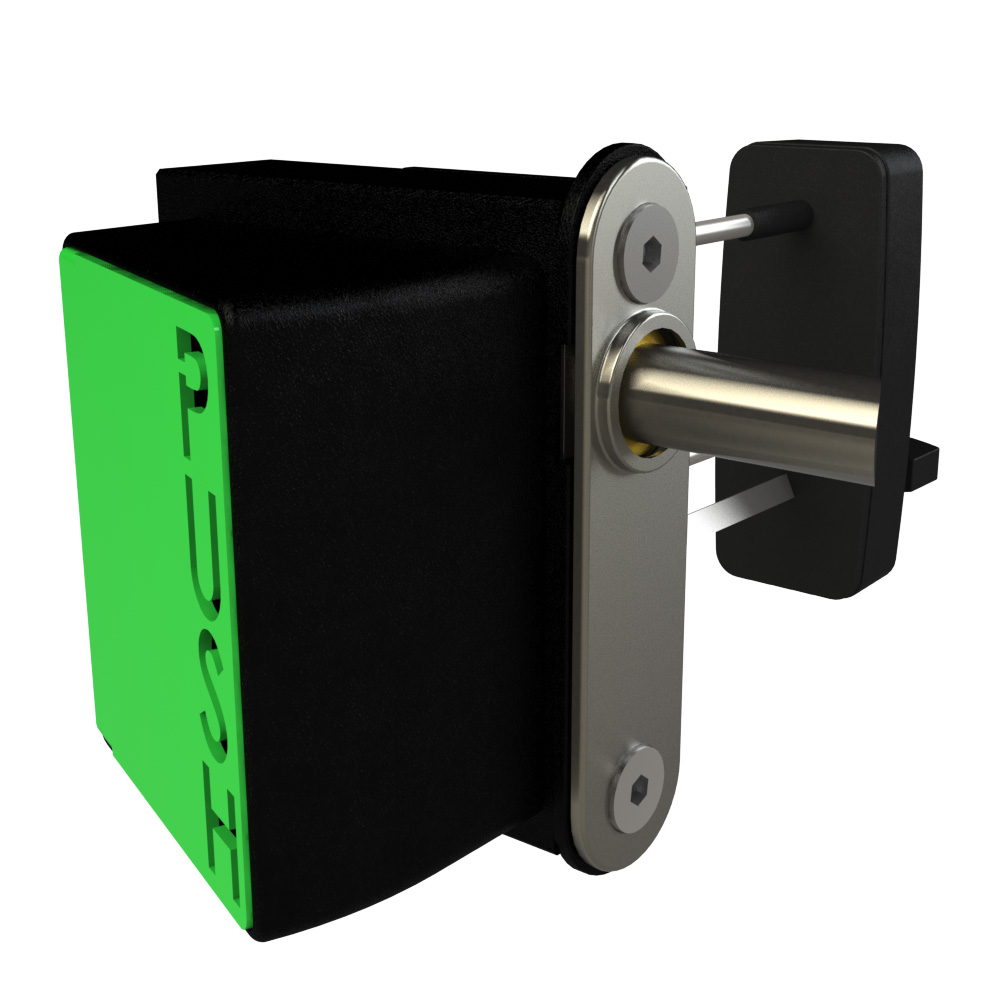

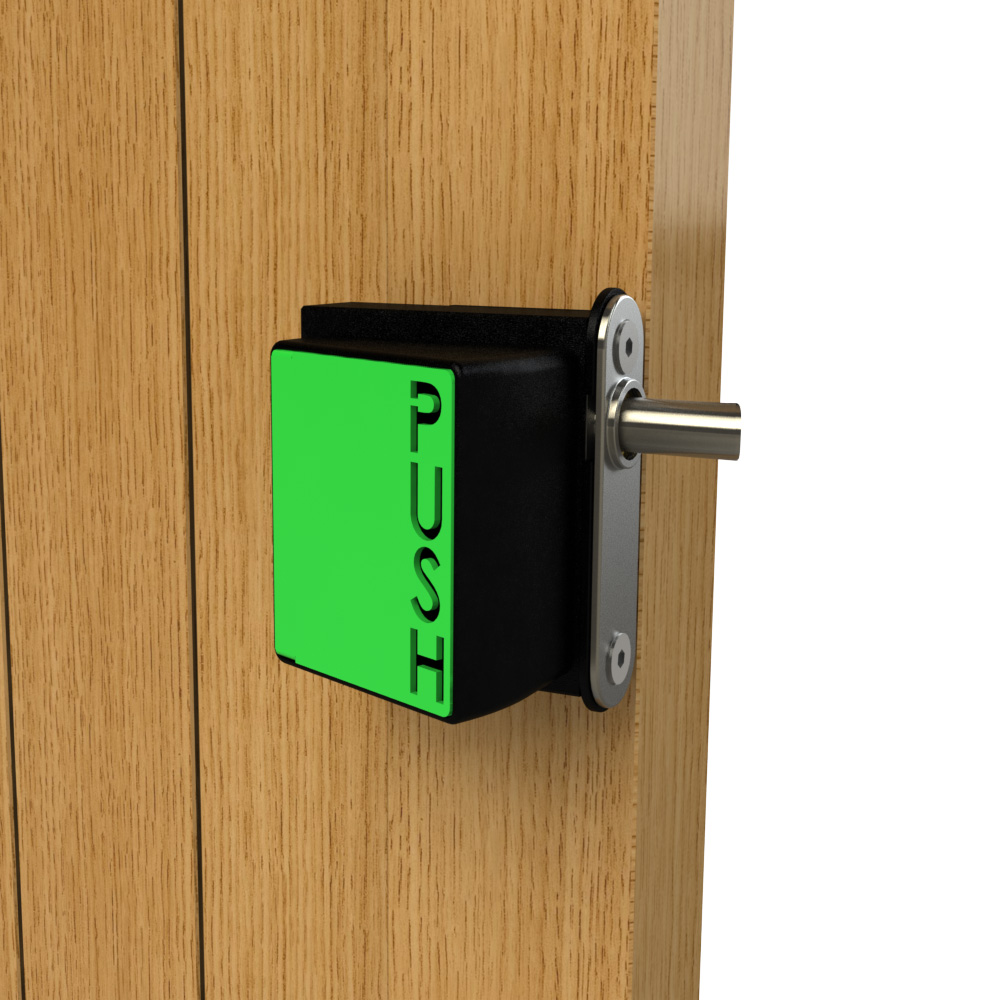

- A corrosion resistant lock with a digital keypad to outside and a push exit pad to inside, suitable for wooden and metal gates.
- Surface fitted - simply drill 3 holes through the gate and screw the lock on.
- Auto-latching - close the gate and the latch bolt latches into the gate frame. To open the gate - enter the code and turn the handle.

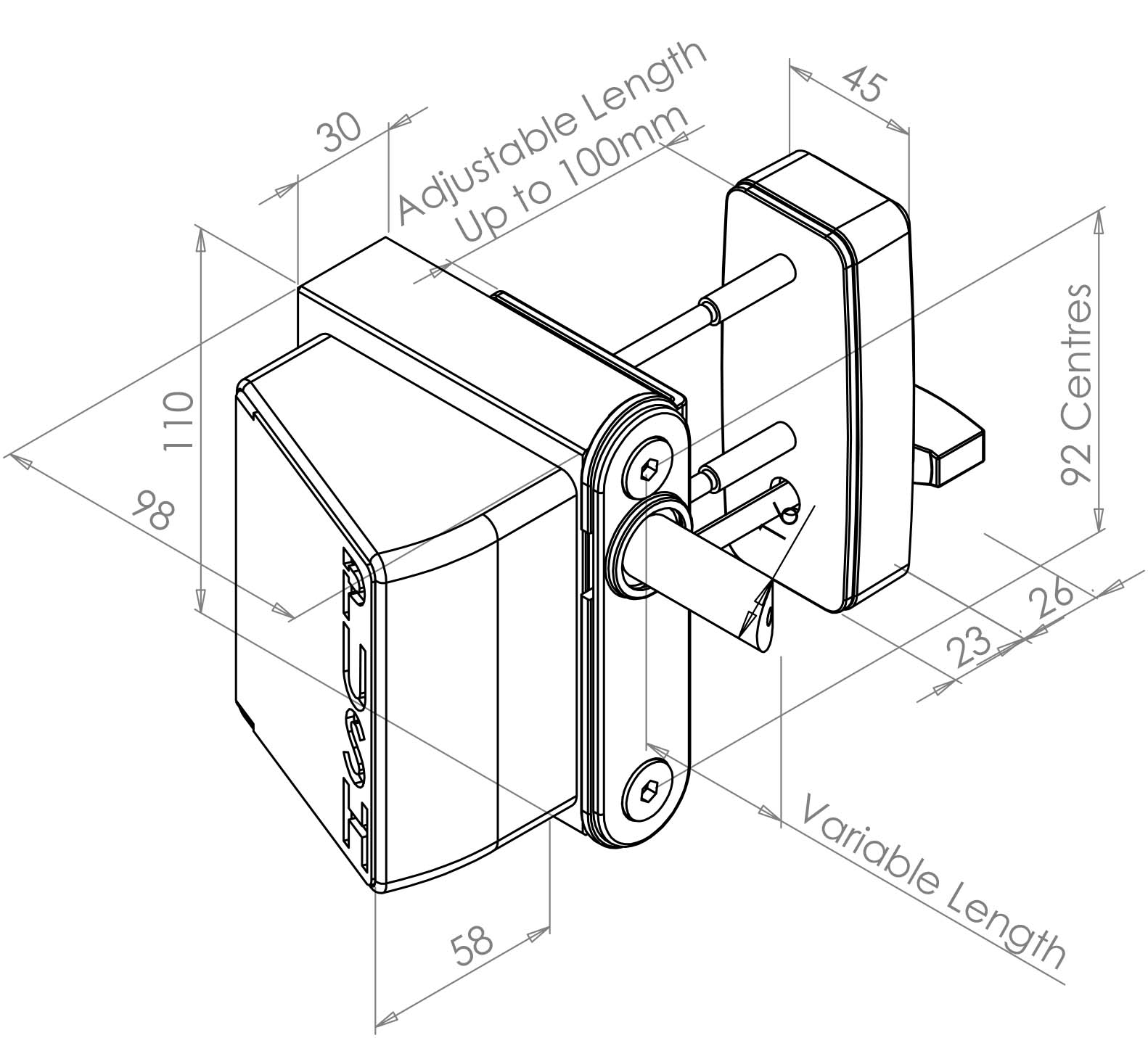

- Latch bolt is adjustable in length for precise fitting on site. The latch moves 7/8" and auto-latches when closed.
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Hand | Left |
What's in the box
- 3 hex keys
- M8 fixing bolts
- Face plate
- Latchbolt
- Keep with fixings
- Gate bracket with fixings
Article numbers
- SBQEDGLWLHand: Left$325.95Chosen
- SBQEDGLWRHand: RightPrice on request
Installation
- 1Position the angle bracket on the edge of the gate (it can overhang the edge of the gate by up to 9/16" if needed to allow for a gap between the gate and the gate post) and mark three holes for the outside keypad fixing screws and the spindle. Remove the angle bracket and drill three 3/8" diameter holes through the gate
- 2Cut the two M5 screws and the spindle to length to suit the gate thickness. The M5 screws should be cut to the gate thickness less 5/8". The spindle should be cut to the gate thickness plus 2"
- 3Fit the outside keypad and the angle bracket with the M5 screws and insert the spindle, making sure it does not catch on the gate.
- 4Fix the angle bracket securely with screws through the 2 remaining countersunk holes.
- 5Place the lock on the spindle and fix it to the angle bracket with 2 x M8 countersunk screws.
- 6Test the lock to check that it operates freely.
- 7Fix the strike plate to the gate post.
Maintenance
Every 3 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the code myself?
Yes, and you do not need a locksmith. Take the keypad off the lock, open it up and reposition the code pins for the digits you want; the printed instructions in the box walk through it step by step. Set a code you will remember, then test it a few times with the gate open before you close it.
Does this code lock need power or batteries?
No. The keypad is fully mechanical, so there is no wiring, no batteries and nothing to replace. That is what makes it suitable for gates at the far end of a site, allotments, bin stores and anywhere a cable run would be impractical - and it keeps working in a power cut.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
Will this work on a wooden gate?
Yes - this is a surface-mounted model designed for timber. It bolts through the face of the gate rather than into a metal frame, and the fixings allow for the swelling and shrinking that timber goes through between seasons. As standard the fixings suit gates up to 2-15/16" thick; above that you need the extension kit.
