Gatemaster | SelectPro Gate Latch | Bolt-On

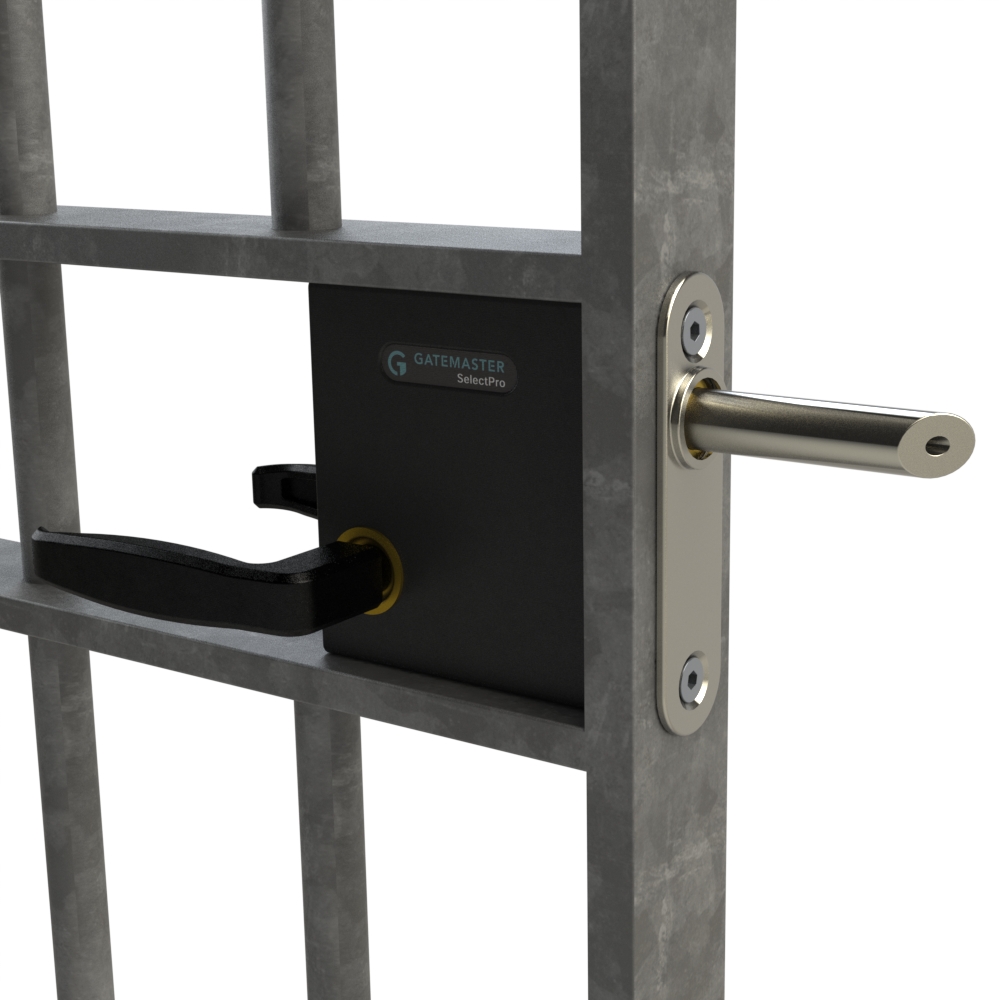

The Gatemaster SelectPro bolt-on gate latch holds a gate closed with a stainless steel latchbolt that springs 1/2" into the gate post. Supplied with handles, plain lever or traditional, it comes in two sizes for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" gate frames.
Key features
- Stainless steel latchbolt springs 1/2" into the post
- Latchbolt adjustable in length
- Rotates for left or right-handed gates
- Guide plate with brass bearing
- Supplied with plain lever or traditional handles
- Two sizes: 3/8" to 1-3/16" and 1-9/16" to 2-3/8" frames

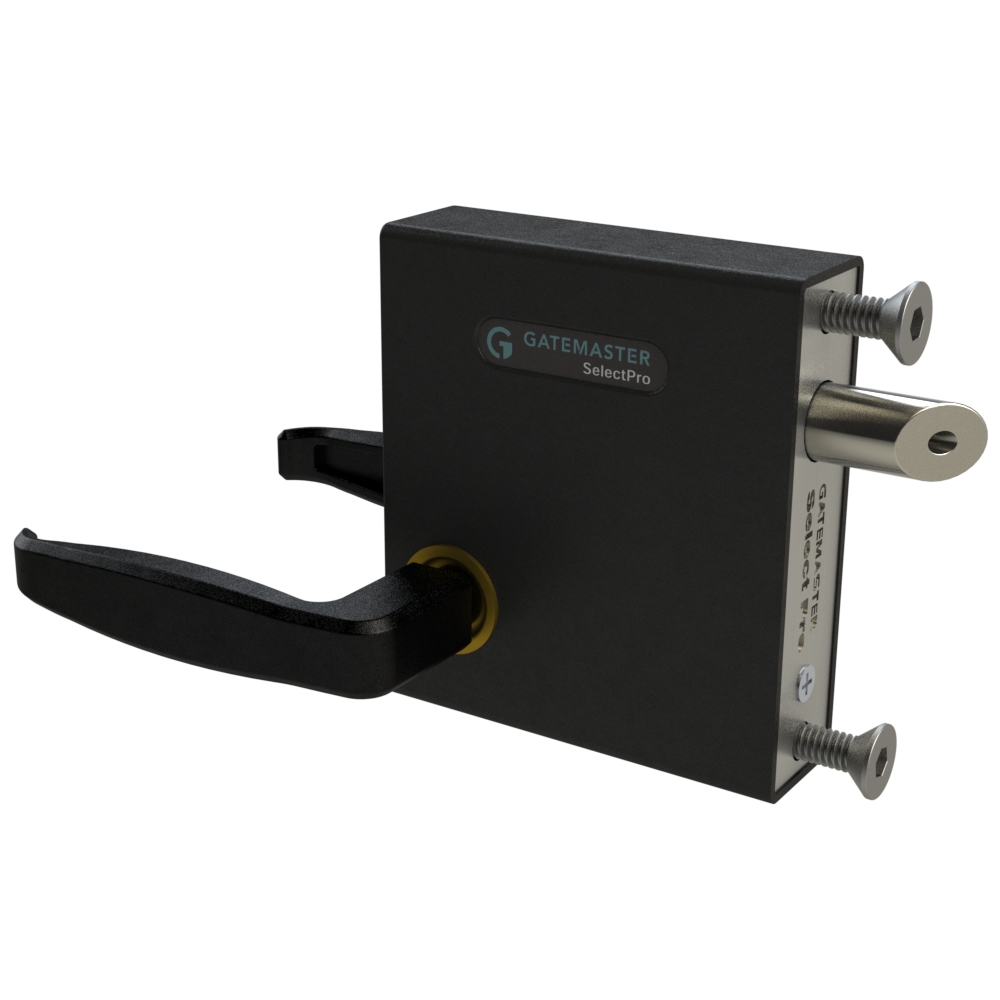

Gatemaster SelectPro bolt-on gate latch for a professional finish
The SelectPro bolt-on latch is a convenient way of holding a gate closed, and it gives any gate a professional finish. A stainless steel latchbolt springs 1/2" into the gate post each time the gate closes.
Sizes and handles
Two sizes are available: 01 for 3/8" to 1-3/16" flat bar or box section gate frames, and 02 for 1-9/16" to 2-3/8" gate frames. Each is supplied with a set of handles in one of two styles: a plain lever (AH) or a more traditional looking handle (TDH). Other handle options are available at an additional cost.
Durability and security
A guide plate with a brass bearing is supplied to help the lock last. The latch is compatible with the Superlock Gapless Keep for extra security and protection. Certain features of this product are protected under European Patent No. 3354825.
Installation

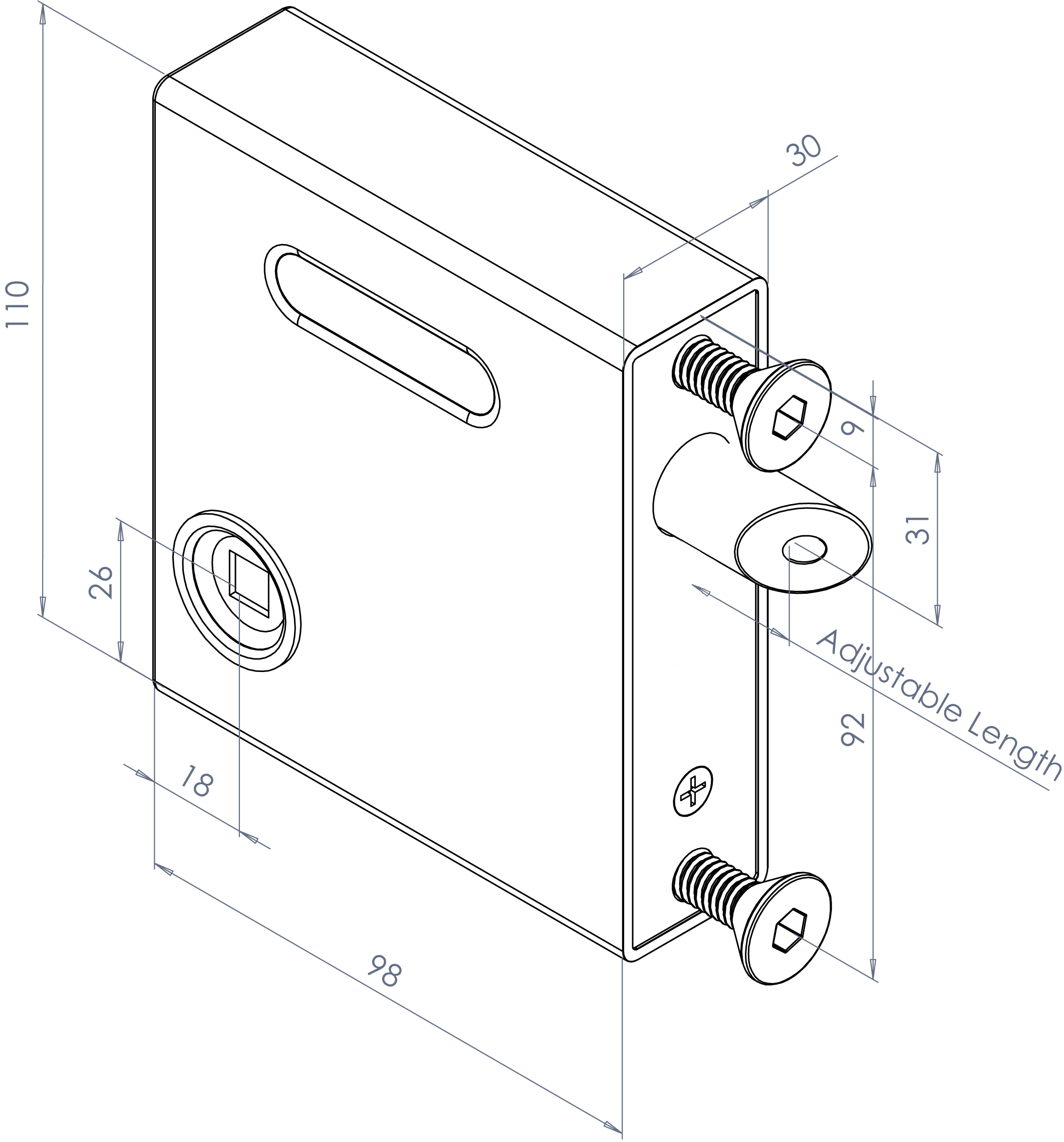

The latchbolt is adjustable in length and can be rotated for left or right-handed gates. The lock bolts on through two 3/8" holes at 3-5/8" centers, with an 11/16" clearance hole for the latchbolt.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Material | Stainless steel latchbolt; guide plate with brass bearing |
| Throw | 1/2" |
| Handle | Modern |
| Frame width | 3/8" to 1-3/16" |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- Set of handles (AH or TDH styles)
Article numbers
- SBL1601AHHandle: Modern / Frame width: 3/8" to 1-3/16"$130.95Chosen
- SBL1602AHHandle: Modern / Frame width: 1-9/16" to 2-3/8"$130.95
- SBL1602TDHHandle: Traditional / Frame width: 1-9/16" to 2-3/8"$130.95
- SBL1601TDHHandle: Traditional / Frame width: 3/8" to 1-3/16"$130.95
Installation
- 1Drill two 3/8" holes at 3-5/8" centers for the fixing bolts provided
- 2Drill a 3/4" clearance hole for the latchbolt, centered 7/8" below the top fixing hole
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the keep or outer frame for the latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate and bend it back so the latchbolt slides in smoothly.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
