Locinox | Ground fixation set for Interio gate closer
Optional Locinox set for fixing the Interio gate closer directly on the ground. It consists of a ground hinge and a wall plate with all fixings, and it is adjustable in depth and height. Compatible with the Interio gate closer only.
Key features
- Fixes the Interio gate closer directly on the ground
- Ground hinge and wall plate
- Wall plate hot-dip galvanized and powder-coated RAL 9005
- Aluminum bottom hinge block, anchor bolts included
- Adjustable in depth and height
Ground fixation set for the Locinox Interio gate closer

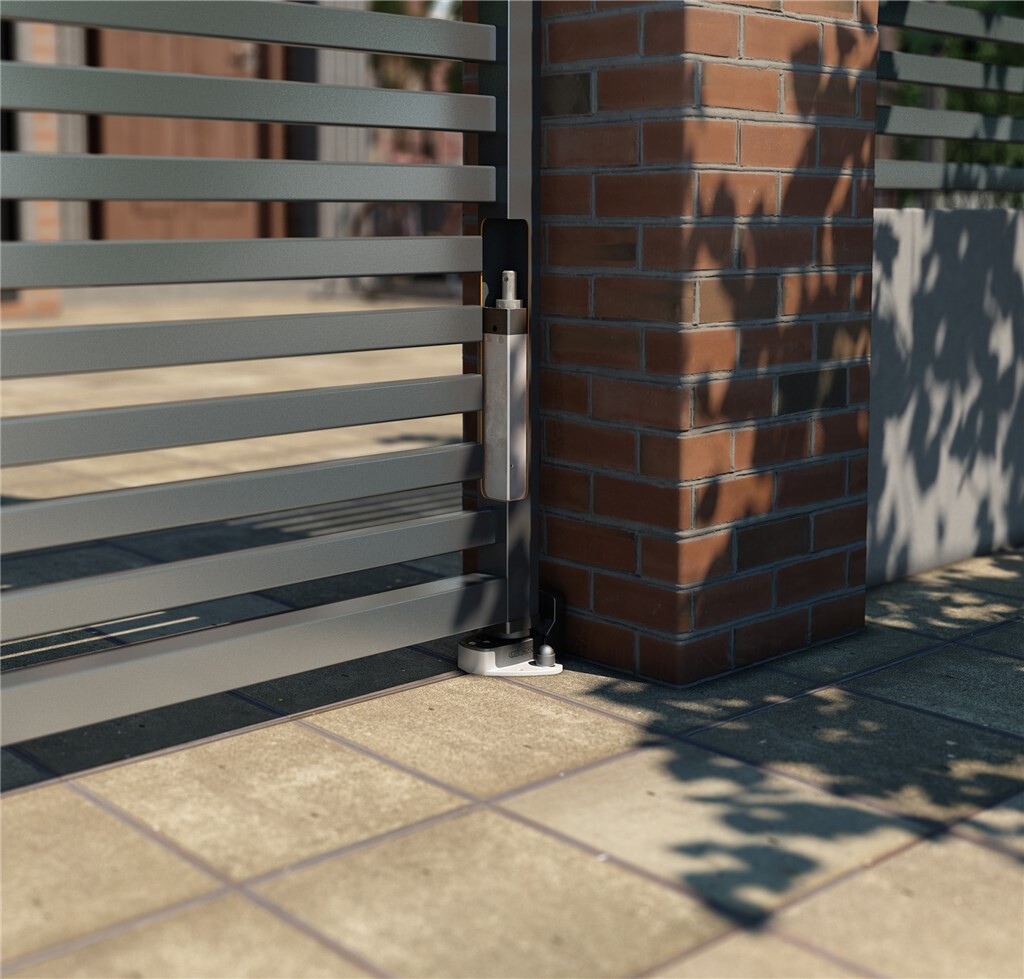

The Interio is a Locinox gate closer. With this optional set it can be fixed directly on the ground, next to a wall, instead of on a post. The set consists of a ground hinge and a wall plate, and all fixings come with it.
Materials and finish
The wall plate is hot-dip galvanized steel with a black RAL 9005 powder coating, so it is protected twice against corrosion. The bottom hinge fixation block is aluminum. Anchor bolts are included for fixing the set to the ground and the wall.
Sizes and fit
The set is adjustable in depth and in height, so the gate can be aligned after the set has been fixed. There is a minimum and a maximum distance between the gate and the wall, and a minimum opening under the gate; check these in the Locinox installation instructions before you start.
Compatibility
The set is only compatible with the Interio gate closer.
Specifications
| Brand | Locinox |
| Width | 3-7/8" |
| Height | 1-5/8" |
| Length | 3-7/8" |
| Weight | 3.0 lb |
| EAN | 5414768056660 |

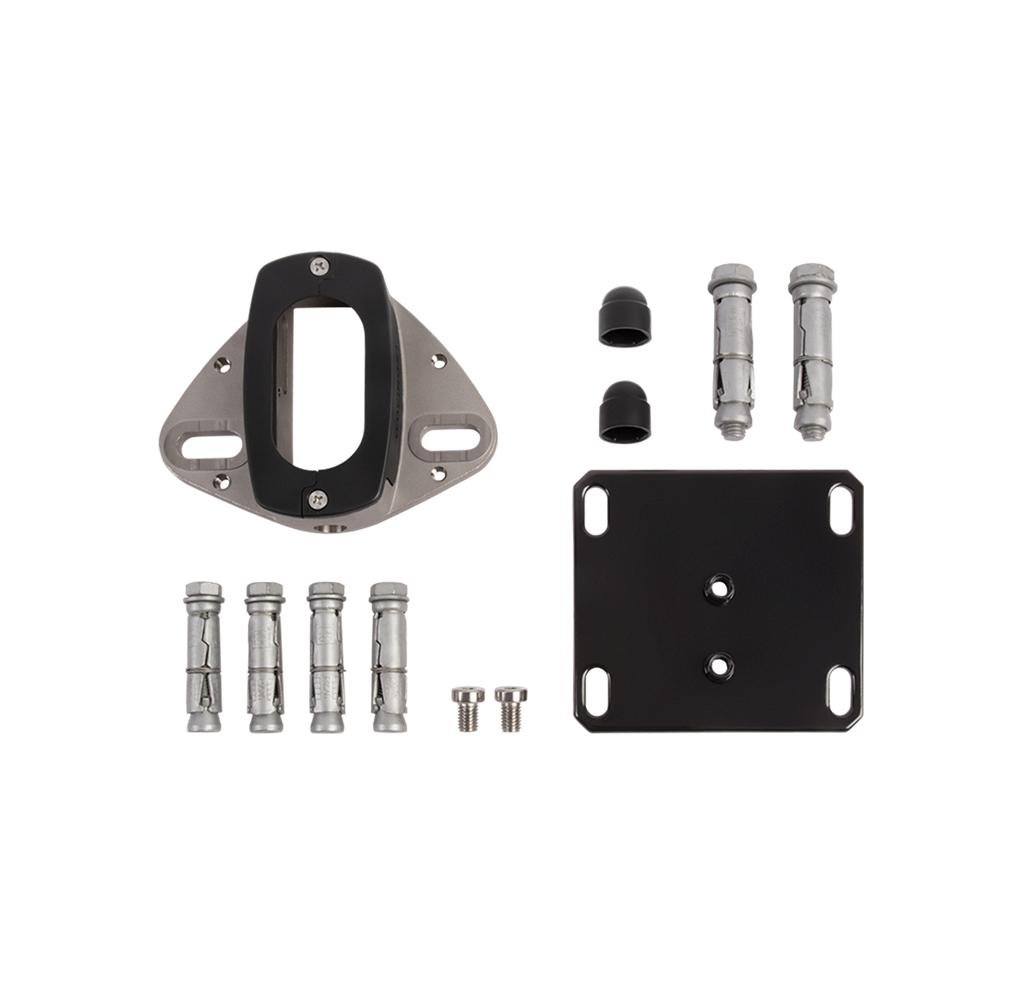

What's in the box
- Ground hinge
- Wall plate
- Anchor bolts and fixings
Frequently asked questions
Which gate closer is this set for?
Only the Locinox Interio gate closer.
Are the fixings included?
Yes. All fixings come with the set, anchor bolts included.
