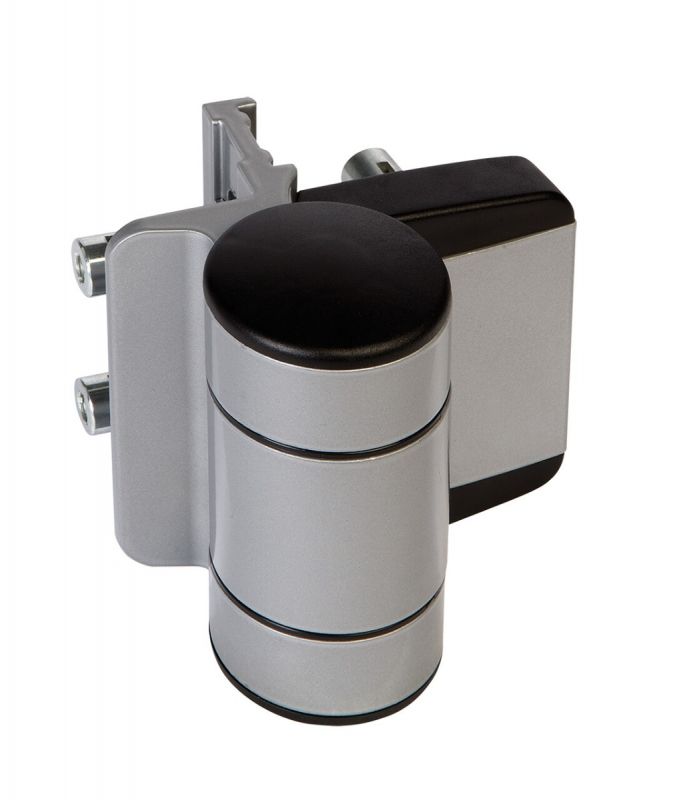

The Dino hinge is a double bearing hinge in an aluminum housing. The stainless steel bearings guarantee a smooth opening and closing of the gate. Easy to install with Quick-Fix.
- Opening angle: 180°
- Contains 2 stainless steel bearings
- Mounting Hardware: Anti-theft & vandal-proof
- Combination with Mammoth-180 is possible
- For gates up to 330 lbs. and 5 ft. wide
- For left and right handed gates
- Robust yet stylish design with high quality components
- Powder coated aluminum housing
- Fast and easy fixation with Quick-Fix bolts
- Packed per pair
SPECIFICATIONS
- The hinge shall be 100% mechanical (no electronic components).
- The hinge shall be available in either a black or silver color.
PERFORMANCE
- The hinge shall be specifically made for outdoor use (IP69).
- The hinge shall be maintenance free (no greasing nor oil refill).
- The manufacturer warranty shall be 3 years.
INSTALLATION
- The hinge shall have pre-mounted fasteners (no welding) with stainless steel bolts.
All brackets for fixation should come with the product. - The same hinge shall be able to be used for both left and right turning gates.
MATERIAL
- The mechanism shall be made out stainless steel and aluminum components.
- The housing of the mechanism shall be made from extruded, powder coated aluminum
(no wet painting or anodization). The powder coating shall be according to the Qualicoat standards. - The hinge shall have a corrosion resistance of 500h salt spray according to ISO9227.
- The hinge shall be fully weather- and dustproof.
- The hinge shall have a UV-resistance against discoloration of 500h.
