Locinox Magnus | Motorized hinge & gate closer in one for pedestrian gates
Locinox Magnus motorised gate closer and hinge in one, for automating pedestrian gates. A brushless, reversible motor with 100 Nm torque runs in low-energy mode and copes with unpredictable pedestrian behaviour. Settings are made in an app. Includes the lower hinge and a compact connection box.
Key features
- Motorised hinge and gate closer in one
- Brushless, reversible motor, 100 Nm torque
- Obstacle detection with reverse function
- Configuration via app
- IP56, tested up to 500,000 cycles
- EN 16005 and UL/cUL 325 compliant

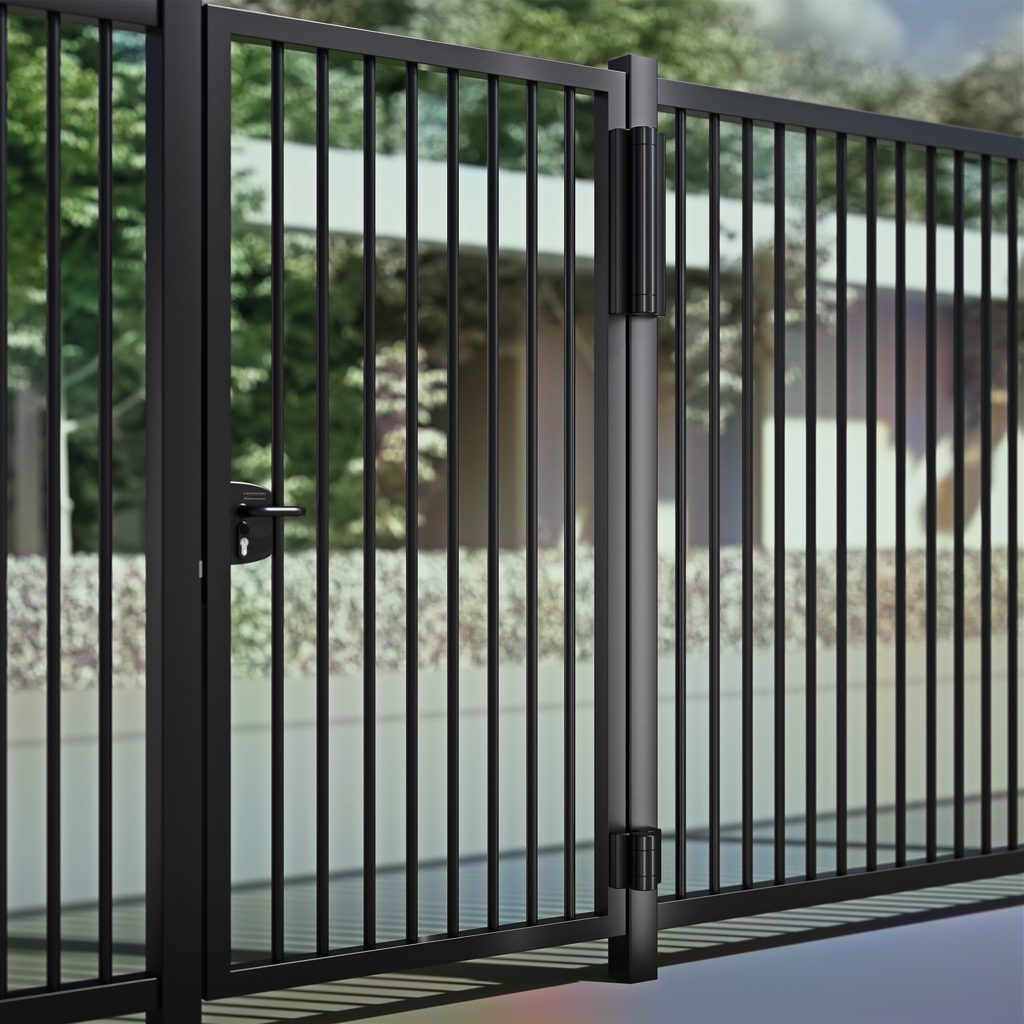

Locinox Magnus motorised hinge and gate closer for pedestrian gates
Magnus combines hinge, gate closer and motor in one unit, designed to automate pedestrian gates. Its brushless, reversible motor works in low-energy mode and is insensitive to unpredictable pedestrian behaviour. The motor is backdrivable for easy manual use and should be combined with a lock.
Operation
Settings and access control are configured in an intuitive app. Integrated electronics include automatic obstacle detection with a reverse function. The motor delivers 100 Nm of torque and has been tested up to 500,000 cycles.
Power and wiring
Mains input is 110 to 240 V AC, and the motor runs on 24 V DC. The external connection box has 3 inputs and 3 outputs (max. 48 W, 24 V DC) and is linked to the motor by a cable.
Materials and standards
A steel gear box sits under an anodized aluminum cover, rated IP56, in a compact, vandal-resistant design. Magnus fixes with Quick-Fix bolts and complies with EN 16005 and UL/cUL 325. Choose black RAL 9005 or silver.
Specifications
| Brand | Locinox |
| Width | 9-1/2" |
| Height | 6-3/4" |
| Length | 1'6" (18-1/2") |
| Weight | 22 lb |
| EAN | 5414768134184 |
| Color | RAL9005 |
What's in the box
- Magnus motorised hinge and gate closer
- Lower hinge
- Compact connection box
Article numbers
- P00042163-9005Color: RAL9005Price on requestChosen

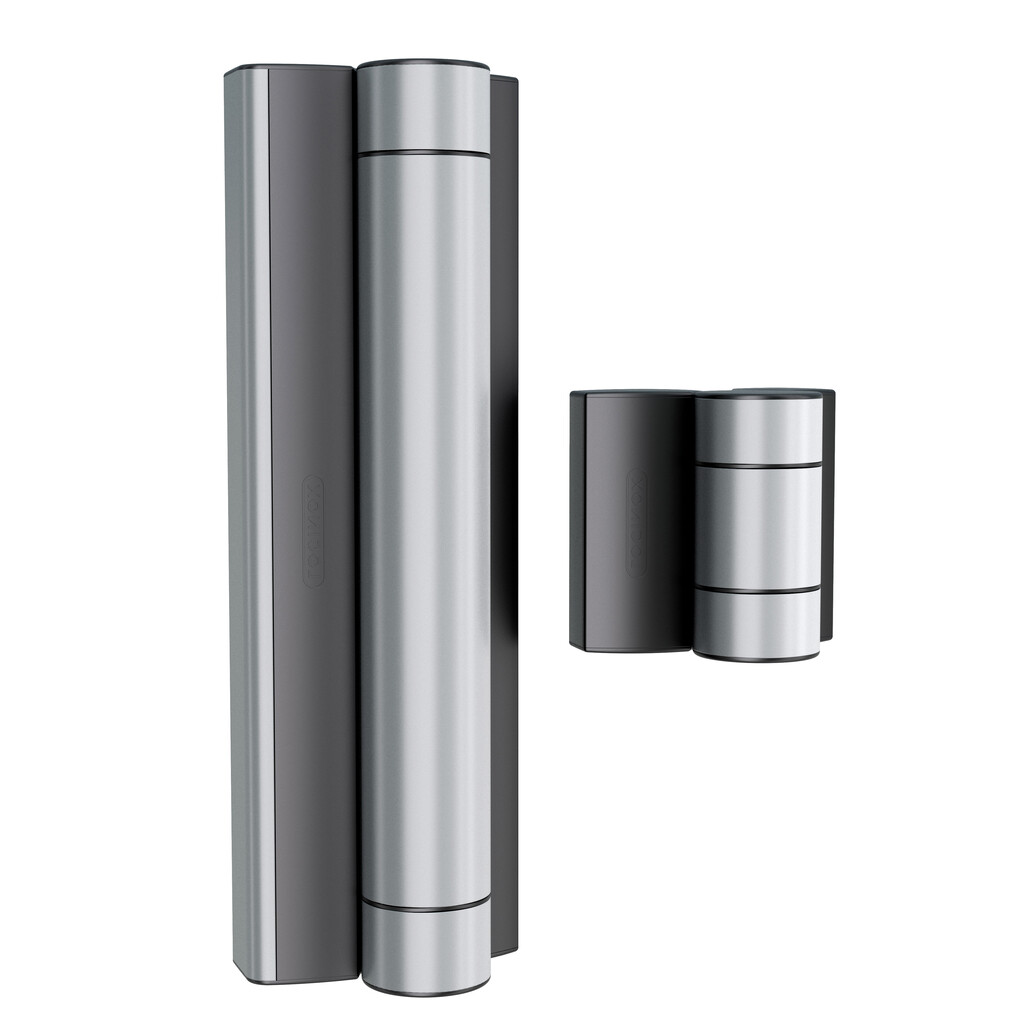

- P00042163-SILVColor: SilverPrice on request
Frequently asked questions
Can the gate still be opened by hand?
Yes. The reversible motor is backdrivable for easy manual use; combine it with a lock.
What power supply does it need?
Mains input of 110 to 240 V AC; the motor runs on 24 V DC.
How is it configured?
Settings and access control are configured in an app.
