Locinox powerbox | transformer housing
Locinox Powerbox, a powder-coated aluminum transformer housing with Quick-Fix for strong and easy fixing. Waterproof to IP66, it has a TH35 DIN rail mount, heat-dissipation fins at the back, and comes with 2 M20 gland nuts and 2 M16 stop plugs. Black or silver.
Key features
- Powder-coated aluminum transformer housing
- Waterproof, IP66
- TH35 DIN rail mount
- Quick-Fix fixing
- 2 M20 gland nuts and 2 M16 stop plugs supplied
- Black RAL 9005 or silver

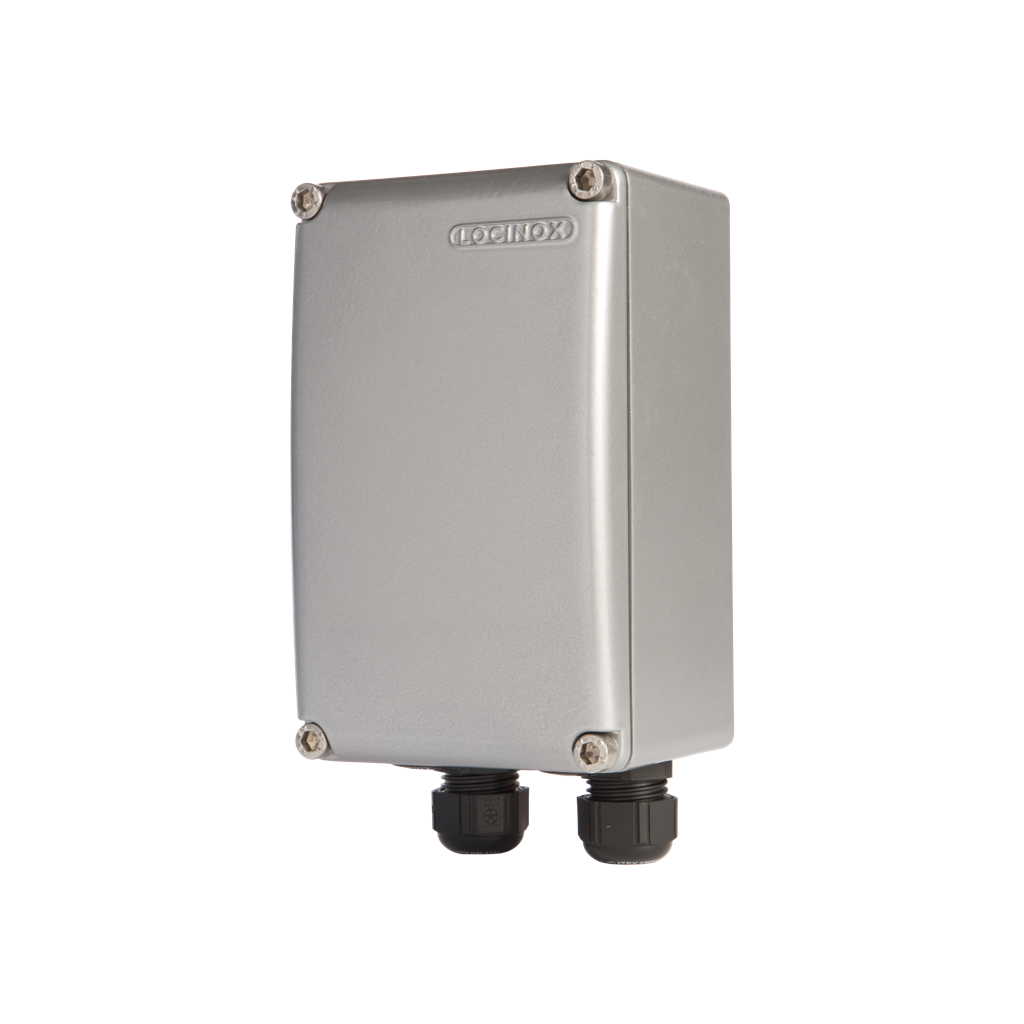

Locinox Powerbox transformer housing
Electric locks, magnet locks and motorised closers need a power supply close to the gate. The Powerbox is a weatherproof housing for that transformer.
Materials and protection
The housing is made of powder-coated aluminum and is waterproof to IP66. Heat-dissipation fins at the back help keep the transformer cool.
Installation
Quick-Fix provides a strong and easy fixing. Inside, a DIN rail of type TH35 takes standard rail-mounted components. The Powerbox is supplied with 2 gland nuts M20 and 2 stop plugs M16, so cables enter neatly and unused openings can be sealed.
Typical uses
Use the Powerbox wherever a transformer or power supply for gate hardware has to be mounted outdoors, near the gate it serves. Choose black RAL 9005 or silver to match the gate hardware, and keep the electronics protected from rain and dust.
Specifications
| Brand | Locinox |
| Width | 4-3/8" |
| Height | 3-1/2" |
| Length | 6-3/4" |
| Weight | 1.9 lb |
| EAN | 5414768013250 |
| Color | RAL9005 |
What's in the box
- Powerbox housing
- 2 gland nuts M20
- 2 stop plugs M16
Article numbers
- P00009301-SILVColor: Silver$66.82
- P00009301-9005Color: RAL9005$66.82Chosen
Frequently asked questions
Is the Powerbox waterproof?
Yes. It is rated IP66.
Is a transformer included?
The sources describe the housing only; the transformer is not listed as included.
How are cables brought in?
Through the 2 supplied M20 gland nuts; the 2 M16 stop plugs close unused openings.
