ShutIT BadAss Strap Hinge
The Shut It BadAss Strap Hinge from D&D Technologies is a heavy duty barrel hinge with a weld-on strap, for motorised, uphill or heavy gates. It swings 180 degrees with a fixed 1/2" gap, the leaf strap can be cut to length, and it carries gates up to 1,499 lb.
Key features
- Barrel hinge with weld-on leaf strap
- For motorised, uphill or heavy gates
- Swings 180 degrees, fixed 1/2" gap
- Leaf straps can be cut to length
- Zinc electroplated external components
- Load rating 1,360 kg per gate, maximum gate weight 680 kg
Shut It BadAss Strap Hinge: a barrel hinge with a strap for heavy gates
The BadAss Strap Hinge is a barrel hinge that comes with a leaf strap for convenient, flexible gate installations. It is one of Shut It's strongest gate hinges, and it is suitable for motorised, uphill and heavy gates.
Sizes and options

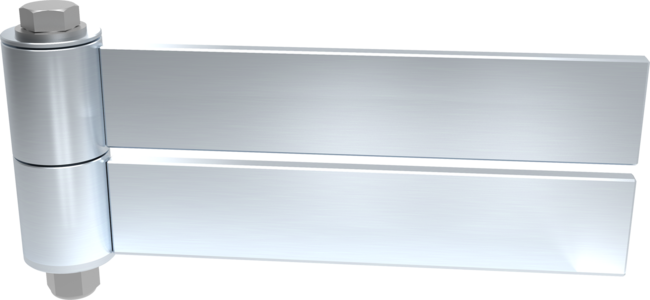

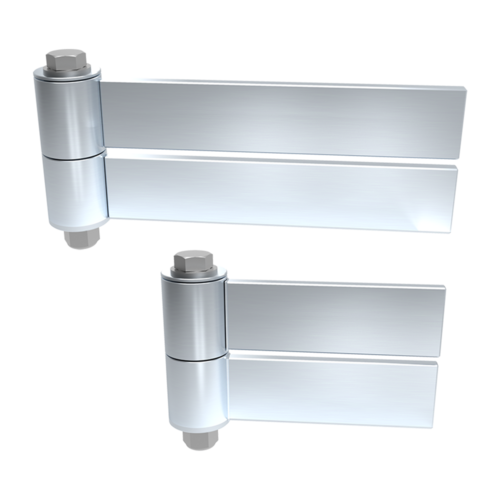

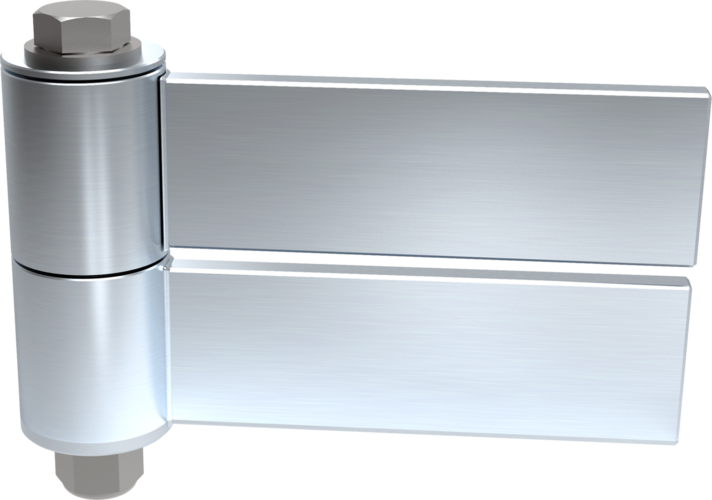

D&D makes the strap hinge with a 6" or a 10" strap, and as an uphill set. By combining different strap lengths at the top and bottom of the gate, you can open a gate on an uphill gradient. The leaf straps can be cut to length.
Operation
The hinge swings 180 degrees with a fixed gap of 1/2" between gate and post. High temperature sealed bearings need no greasing and no maintenance, and they are safe to powder coat with the hinges installed on the gate. The external components are zinc electroplated.
Installation
Available as: 6" (6"), 10" (10"), Uphill Set. Every option ships with the same D&D Technologies limited lifetime warranty.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Weight | 6.6 lb |
Frequently asked questions
Can I use it on a gate that opens uphill?
Yes. Combining different strap lengths at the top and bottom lets the gate open on an uphill gradient; D&D also makes an uphill set.
Can the strap be shortened?
Yes, the leaf straps can be cut to length.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 680 kg and a load rating of 1,360 kg per gate.
