TruClose® MULTI-ADJUST™ Heavy Duty Series 3 for Wood
TruClose MULTI-ADJUST Heavy Duty Series 3 for Wood is a three-way adjustable self-closing hinge from D&D Technologies for wood and composite gates up to 154 lb. Dials set the horizontal and vertical position, tension adjusts from both ends, and it takes gate gaps of 0.197" to 1-11/16".
Key features
- Three-way adjustment: horizontal, vertical and tension
- Self-closes wood and composite gates up to 154 lb
- Gate gap from 0.197" to 1-11/16", up to 15/16" vertical adjustment
- Tension adjustable from both ends
- Reversible for right or left handed gates
- Removable covers and fasteners included
TruClose MULTI-ADJUST Heavy Duty Series 3 for Wood: dial-adjustable self-closing for wood gates
The TruClose MULTI-ADJUST Heavy Duty Series 3 for Wood from D&D Technologies is a highly adjustable self-closing hinge for wood and composite gates of up to 154 lb. It is specified for front, side, pedestrian, pet, privacy, security and commercial gates.
Adjustment

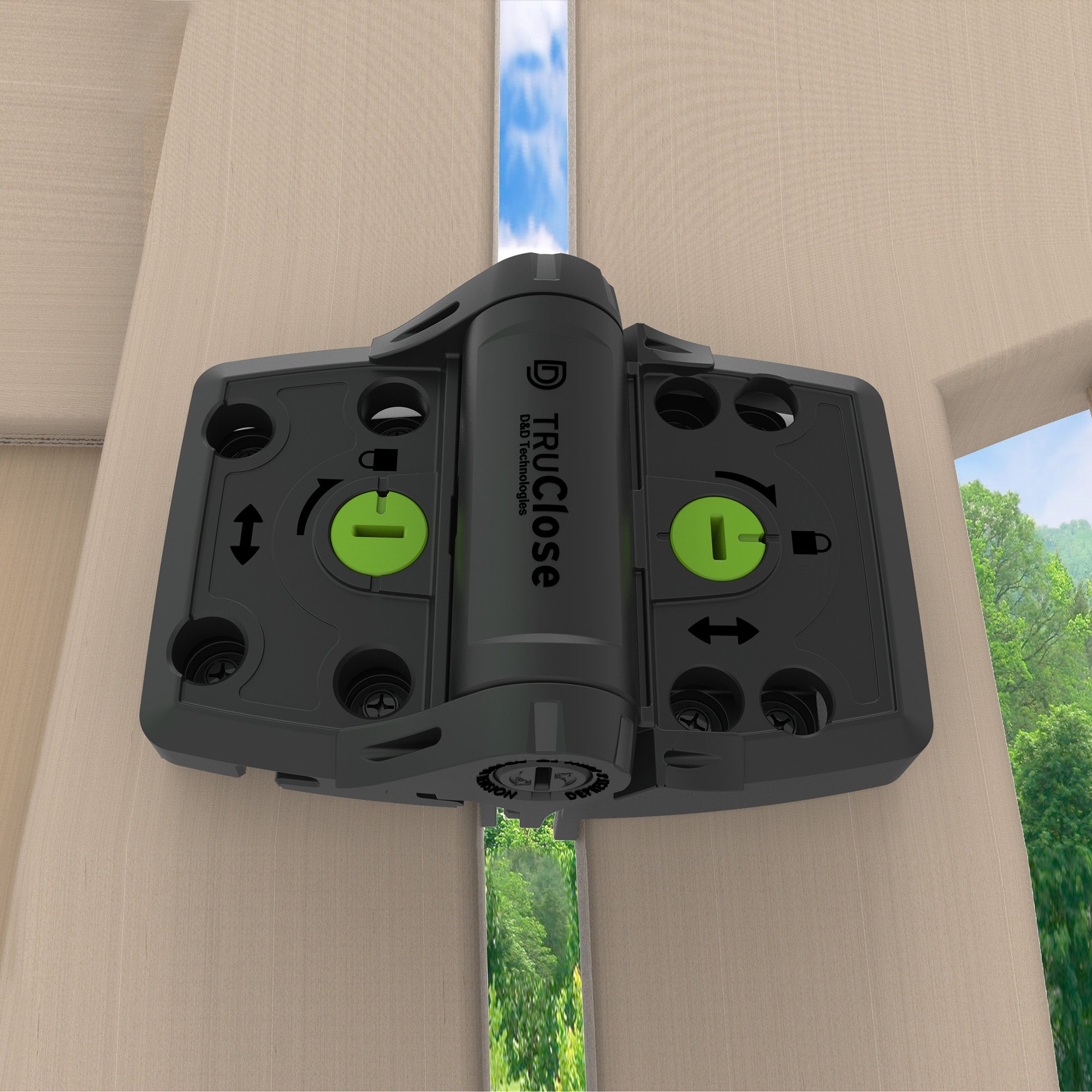

Three-way adjustment covers horizontal, vertical and tension. Quick dials set the horizontal and vertical position, with up to 15/16" of vertical adjustment, and the tension can be adjusted from both ends of the hinge. D&D says this solves gate sag for good.
Sizes and fit

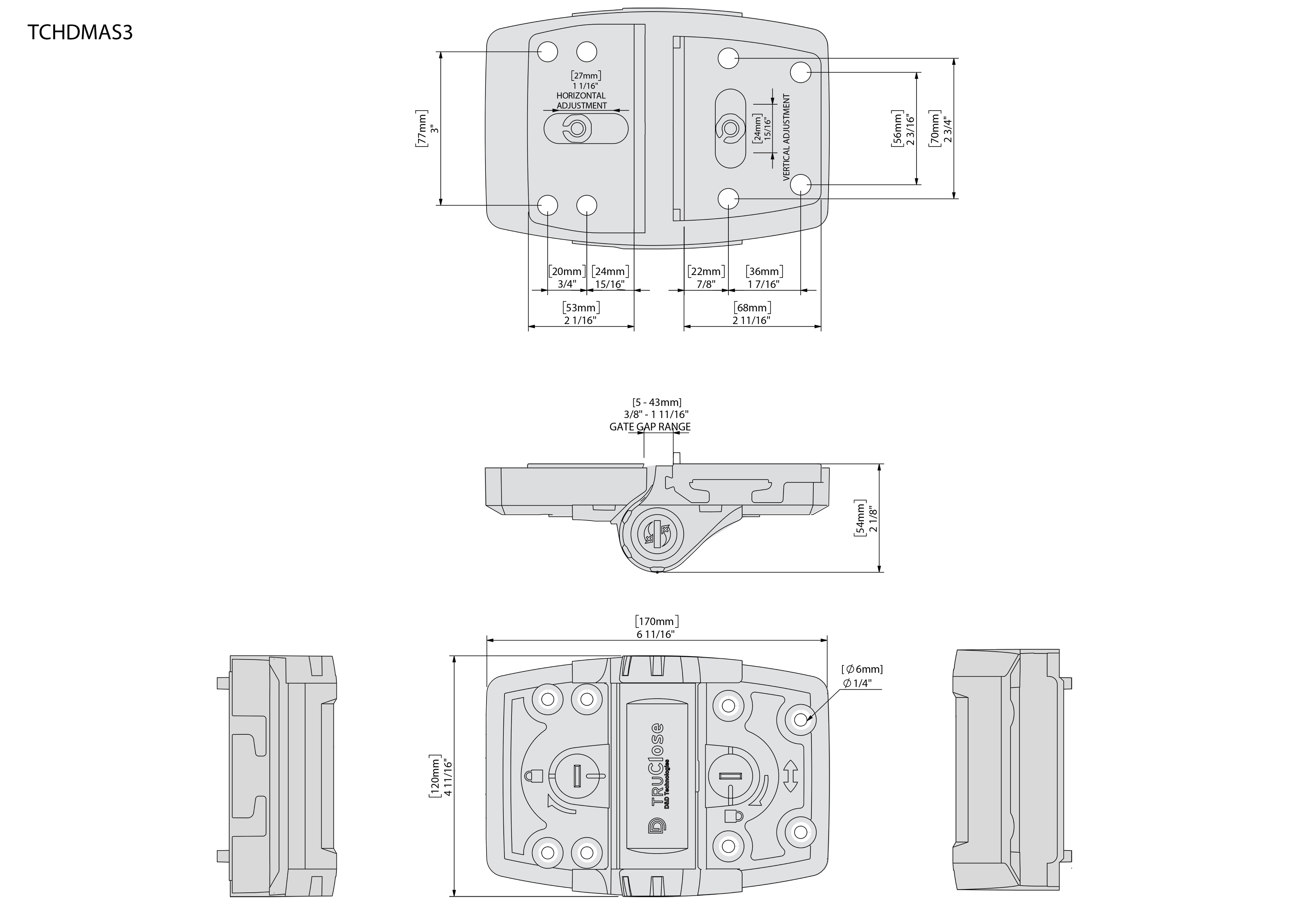

The hinge takes a gate gap from 0.197" to 1-11/16". Mounting is reversible for right or left handed gates.
Materials and fitting

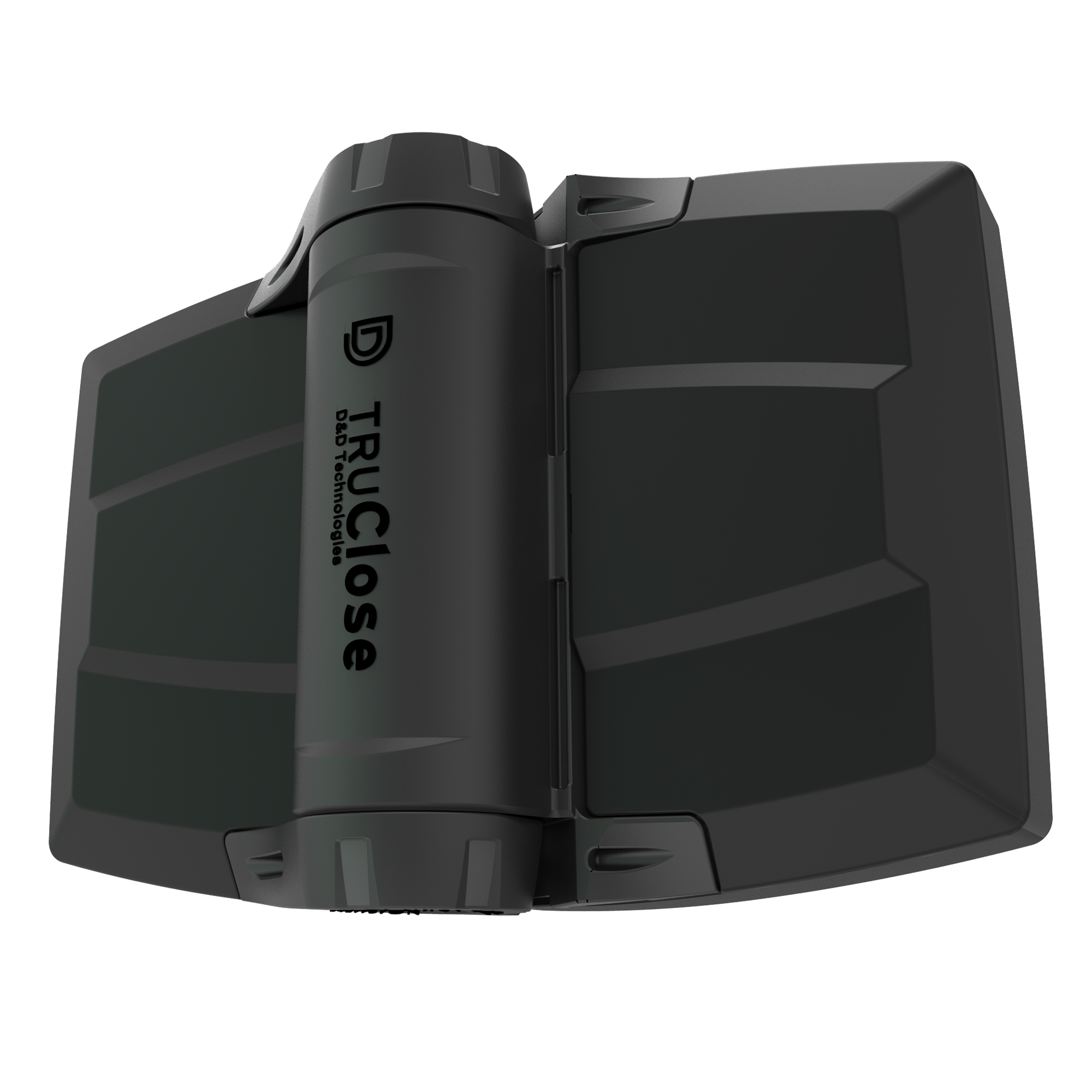

It is made from a UV-stabilised, strong engineered polymer with an internal stainless steel spring. Removable hinge covers and fasteners are included, and the hinges are sold as a pair.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On |
| Fixings included | Yes |
| Weight | 3.2 lb |
| Warranty | Limited lifetime |
| Product line | TruClose |
| Type | Hinge |
| Function | Self-Closing, Square-to-Square |
| Gate material | Vinyl/PVC, Wood |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Max self-closing gate weight | 154 lb (154 lb), 154 lb (154 lb) |
| Sold as | Pair |
| Packaging | Bagged |
| Master carton | 10 pcs |
Frequently asked questions
Can it fix a sagging gate?
Yes. The hinge adjusts vertically by up to 15/16", as well as horizontally and for tension, so the gate can be brought back into line.
What gate gap does it fit?
It takes a gate gap from 0.197" to 1-11/16".
How heavy a gate can it close?
It self-closes wood or composite gates of up to 154 lb.
