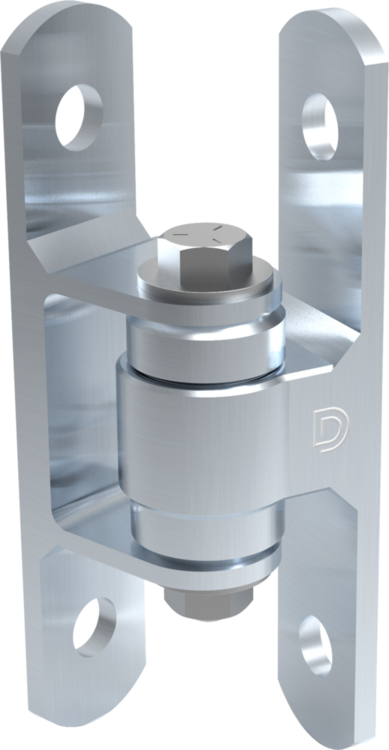

ShutIT Half Bolt-On BadAss | Aluminum
The Shut It Half Bolt-On BadAss with Aluminum Body from D&D Technologies bolts on to the end post, for gates where welding at the post is not an option. It has a steel yoke and an aluminum body, high temperature sealed bearings and a 1,984 lb load rating per gate.
Key features
- Bolts on to the end post, no field welding
- Steel yoke, aluminum body
- High temperature sealed bearings, safe to powder coat
- Horizontal adjustment for precise installation
- Load rating 900 kg per gate
- Gate gap 67 to 3-1/8"
Shut It Half Bolt-On BadAss, Aluminum Body: bolt to the post, no field welding
The Half Bolt-On BadAss was designed for gates where welding the hinges to the end post is not an option, for example when there is no field welder on site. This version combines a steel yoke with an aluminum body.
Materials and operation
Like all Shut It bolt-on hinges, it is CNC machined to tight tolerances and zinc plated. The high temperature sealed bearings need no greasing and no maintenance, and they are safe to powder coat with the hinges installed on the gate. Horizontal adjustment lets you set the gate precisely.
Sizes and fit
D&D rates the hinges at a load of 900 kg per gate. The gate gap is 67 to 80 mm, and the hinge suits square or round posts of 38 mm and up.
Installation
A flat bolt-on bracket allows through bolting to the end post. Bolts are ordered separately. The hinge is not self-closing.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Material | Aluminum |
Frequently asked questions
What is the hinge made of?
The yoke is steel and the body is aluminum, zinc plated.
Do I need a welder?
Not for the post: the flat bracket is made for through bolting to the end post.
Does it need greasing?
No. The sealed bearings need no greasing or maintenance.
