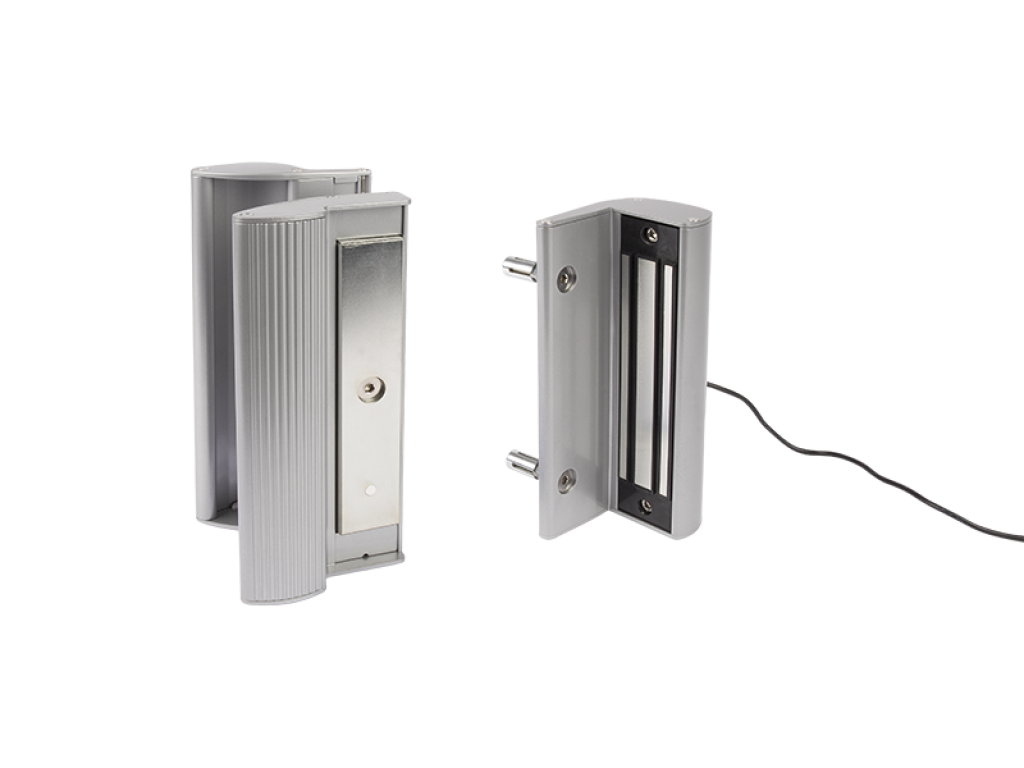

Locinox | Surface mounted electromagnetic lock with integrated pull/push handles
Locinox screw-on electromagnetic lock with integrated design handles, for access controlled gates. MAG3000 holds with 661 lb and MAG6000 with 1,323 lb pulling force. Powder coated aluminum housing, fixed by drilling 7 holes with Quick-Fix bolts, no welding box needed. Silver or black RAL 9005.
Key features
- Electromagnetic lock with integrated handles
- Pulling force 661 lb (MAG3000) or 1,323 lb (MAG6000)
- Screw-on with 7 holes, no welding box
- Quick-Fix fixing
- Two-layer protective coating for outdoor use
- Silver or black RAL 9005
Magnetic lock with integrated handles for access control
This Locinox electromagnetic lock is made for access controlled gates. The housing has integrated design handles, so the lock and the handle are one unit and the gate needs no separate handle set. While the lock is powered it holds the gate closed; the access control system releases it.
Security
Two versions are available: the MAG3000 with a pulling force of 661 lb and the MAG6000 with 1,323 lb. Choose the stronger version for heavier gates or where more resistance against forcing is needed.
Installation
The lock is screwed on instead of welded, which saves the time of fitting welding boxes. Drilling seven holes does the job, and the Locinox Quick-Fix bolts give a fast and strong fixing in hollow profiles.
Materials and finish

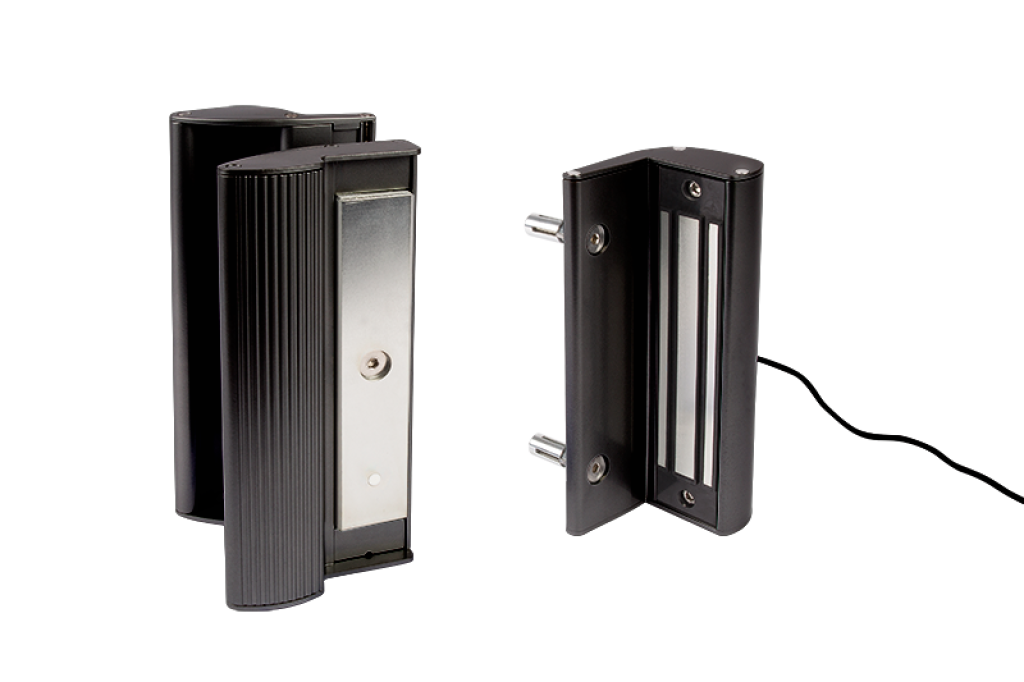

The housing is powder coated aluminum with a two-layer protective coating, made for years of worry-free use outdoors. It is available in silver and in black RAL 9005. The sources for this product do not state the supply voltage or the profile sizes it fits, so check these with Fenceweb before you plan the wiring.
Specifications
| Brand | Locinox |
| Width | 9-1/2" |
| Height | 4-3/8" |
| Length | 9-7/8" |
| Weight | 9.2 lb |
| EAN | 5414768062548 |
| Color | RAL9005 |
| Pulling force | 661 lbs |
Article numbers
- P00007681-SILVColor: Silver / Pulling force: 1323 lbs$394.95
- P00007627-9005Color: RAL9005 / Pulling force: 661 lbs$329.55Chosen
- P00007627-SILVColor: Silver / Pulling force: 661 lbs$329.55
- P00007681-9005Color: RAL9005 / Pulling force: 1323 lbs$443.56
Frequently asked questions
What is the difference between MAG3000 and MAG6000?
The MAG3000 has a pulling force of 661 lb, the MAG6000 1,323 lb.
Does it need welding?
No. It is screwed on with Quick-Fix bolts after drilling 7 holes.
Do I need a separate handle?
No, the handles are integrated in the housing.
