Multi-functional insert lock with 1-9/16" backset
Locinox SIXTYLOCK-A multi-functional insert lock for residential gates, with a 100% stainless steel mechanism, 1-9/16" backset and 3/8" adjustable bolt. A patented mechanism locks the latch bolt and/or the handles through the cylinder. For metal, aluminum, wood or PVC profiles from 2-3/8".
Key features
- Insert lock for residential gates
- 100% stainless steel mechanism
- 1-9/16" backset, 3/8" adjustable bolt
- Locks latch bolt and/or handles via the cylinder
- Setting for use with electric keeps
- Self-drilling screws, profiles from 2-3/8"

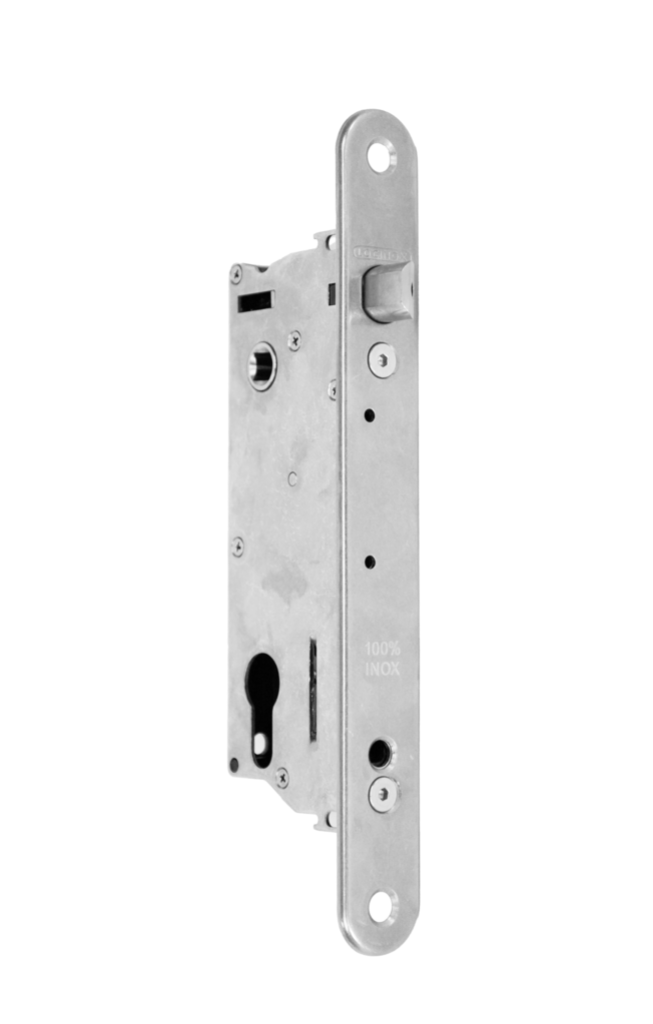

Locinox SIXTYLOCK-A multi-functional insert lock with 1-9/16" backset
This insert lock is recommended for residential applications. It is built into the gate profile and combines a 100% stainless steel mechanism with a patented internal mechanism that gives you two locking functions through the cylinder.
Operation
The cylinder can lock the latch bolt, the handles, or both. Combined with a mechanical keep, both the latch bolt and the handles can be locked. To make the lock compatible with electric keeps, there is a setting in which the latch bolt stays unlocked while the handles remain locked, so the electric keep can release the gate.
Sizes and fit
The lock has a 1-9/16" backset and a bolt that adjusts over 3/8", so it can be aligned with the keep after installation. It suits metal, aluminum, wood or PVC profiles starting from 2-3/8".
Installation
The lock is mounted easily with self-drilling screws in a rectangular recess in the profile, so no welding is needed.
Specifications
| Brand | Locinox |
| Width | 3-1/4" |
| Height | 1-1/4" |
| Length | 9-1/2" |
| Weight | 1.3 lb |
| EAN | 5414768134214 |
Frequently asked questions
Can I use this lock with an electric keep?
Yes. A setting keeps the latch bolt unlocked while the handles remain locked, for compatibility with electric keeps.
Which profiles does it fit?
Metal, aluminum, wood or PVC profiles starting from 2-3/8".
How is it mounted?
With self-drilling screws in a rectangular recess in the profile.
