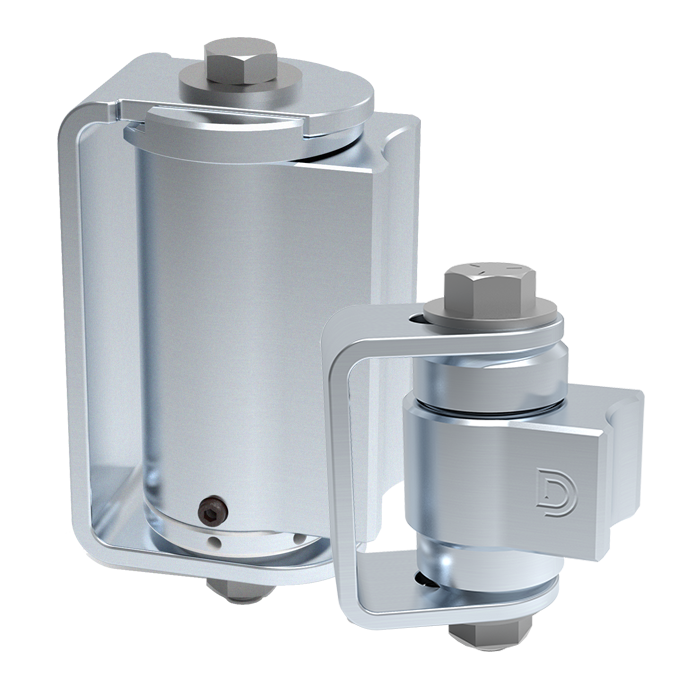

Shut It® Self-Closing BadAss™ Hinge-Closer Set
The Shut It Self-Closing BadAss Hinge-Closer Set from D&D Technologies pairs one self-closing hinge with an Original BadAss hinge. The closer is built into the hinge, with 5 tension settings, and closes gates up to 287 lb. A heavy duty weld-on set for pedestrian and commercial gates.
Key features
- One self-closing hinge and one Original BadAss hinge
- Closer built into the hinge
- 5 tension-adjustment settings
- Gate swing from minus 5 to 110 degrees
- Self-closing maximum gate weight 287 lb
- Weld-on, zinc finished steel
Shut It Self-Closing BadAss Hinge-Closer Set: a hinge and closer in one
This set contains one self-closing BadAss hinge and one Original BadAss hinge. With the closer built into the hinge, a self-closing gate no longer needs a separate closer, which makes for a cleaner and easier installation.
Operation
The closing force has 5 tension settings, including the bracket setting, so you can match it to the gate. The gate swings from minus 5 degrees to 110 degrees. Two sealed bearings need no greasing and no maintenance, and D&D lists the set as suitable for accessible ADA use.
Sizes and fit
As a self-closing set, the hinges close gates up to 287 lb. The gate gap is 61 to 2-15/16". The hinges are steel with a zinc finish and are specified for pedestrian, pet, privacy, security and commercial gates.
Installation

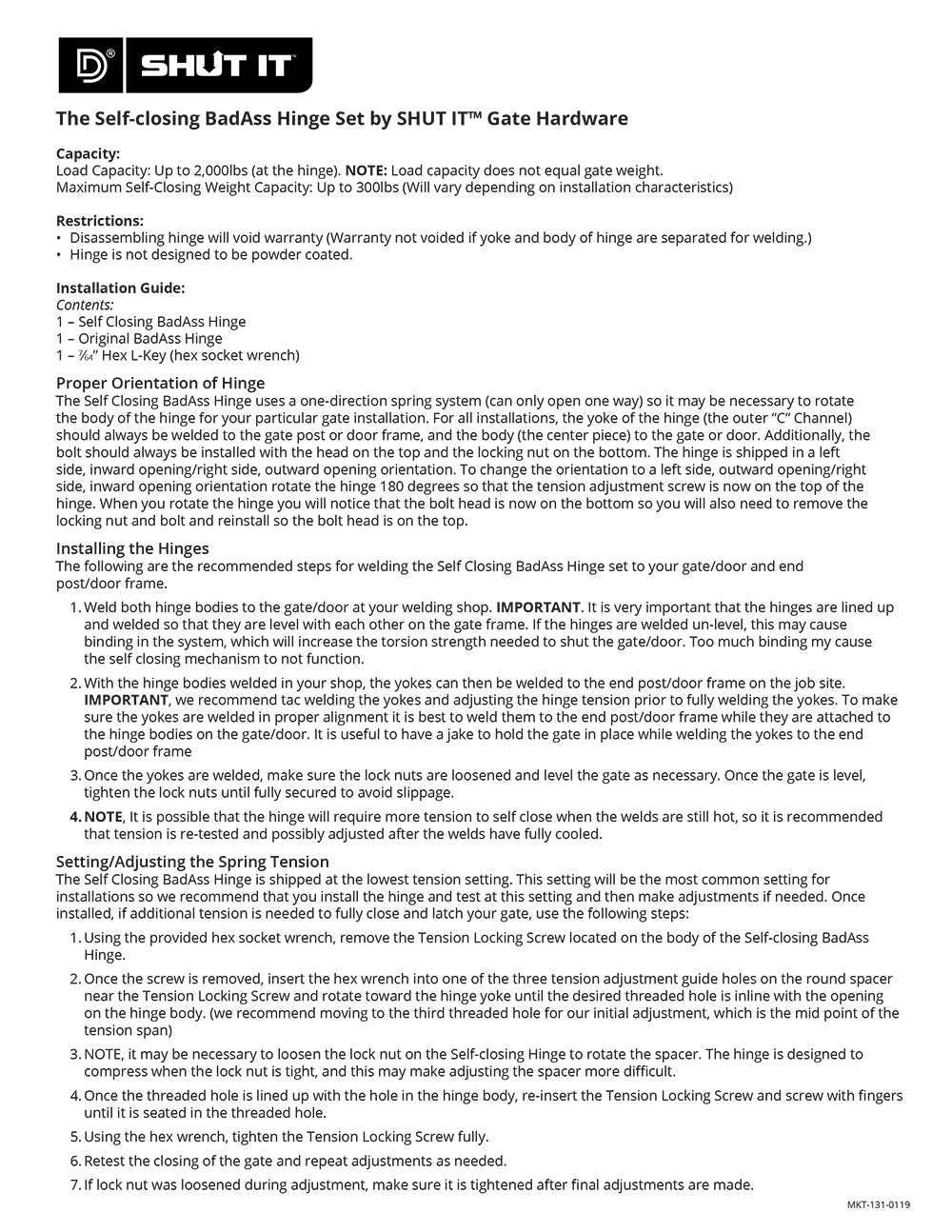

Both hinges are welded to the gate and post. Installation instructions are shown in the gallery.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Finish | Zinc |
| Fixing method | Weld-On |
| Weight | 5.5 lb |
| Warranty | Limited lifetime |
| Product line | Shut It BadAss |
| Type | Hinge-Closer |
| Function | Self-Closing, Square-to-Square |
| Suitable for | Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 1100 lb |
| Max self-closing gate weight | 300 lb (287 lb) |
| Sealed bearings | 2 |
| Gate gap variance | 2.4 - 2.9" |
| Max gate load | 2000 lb |
| Yoke material | Steel |
| Body material | Steel |
| Sold as | Each |
What's in the box
- 1 self-closing BadAss hinge
- 1 Original BadAss hinge
Frequently asked questions
Do I need a separate gate closer?
No. The closer is built into the self-closing hinge, with 5 tension settings.
How heavy a gate will it close?
As a set of one self-closing and one plain hinge, it closes gates up to 287 lb.
How far does the gate open?
The gate swings from minus 5 degrees to 110 degrees.
