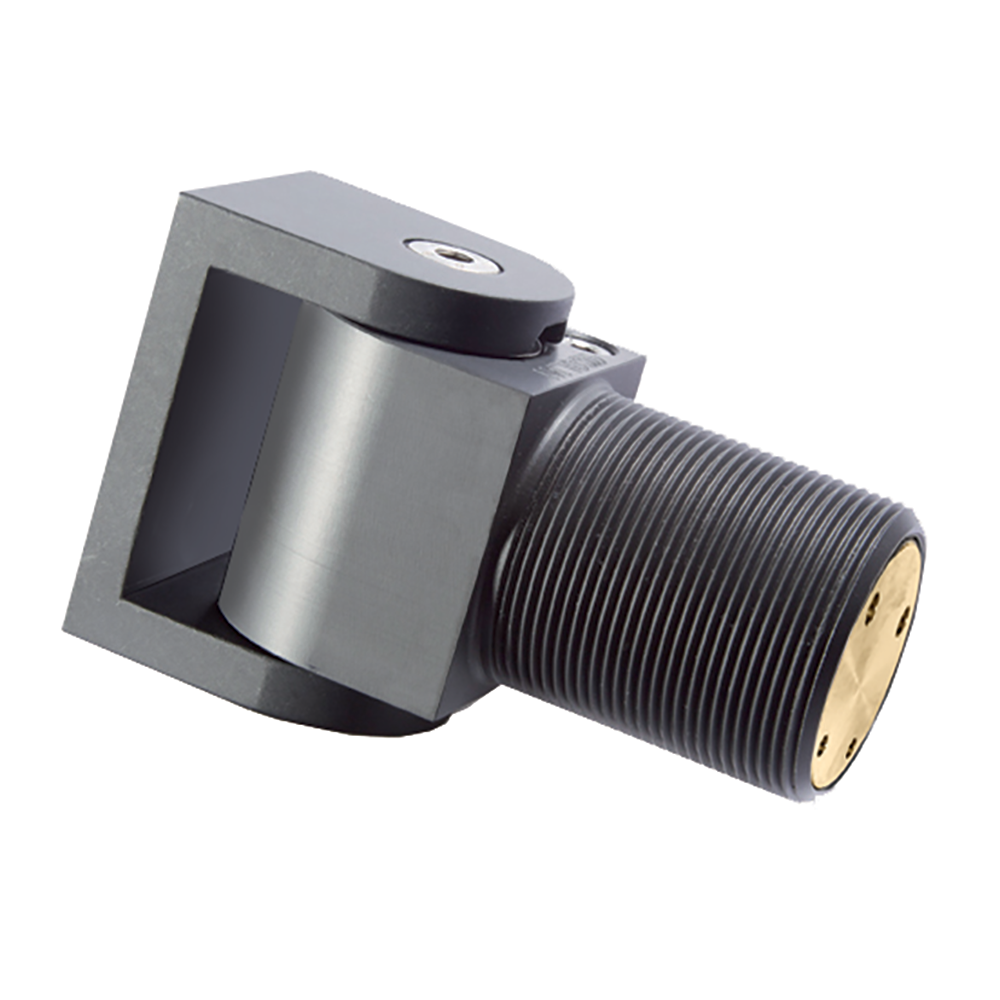

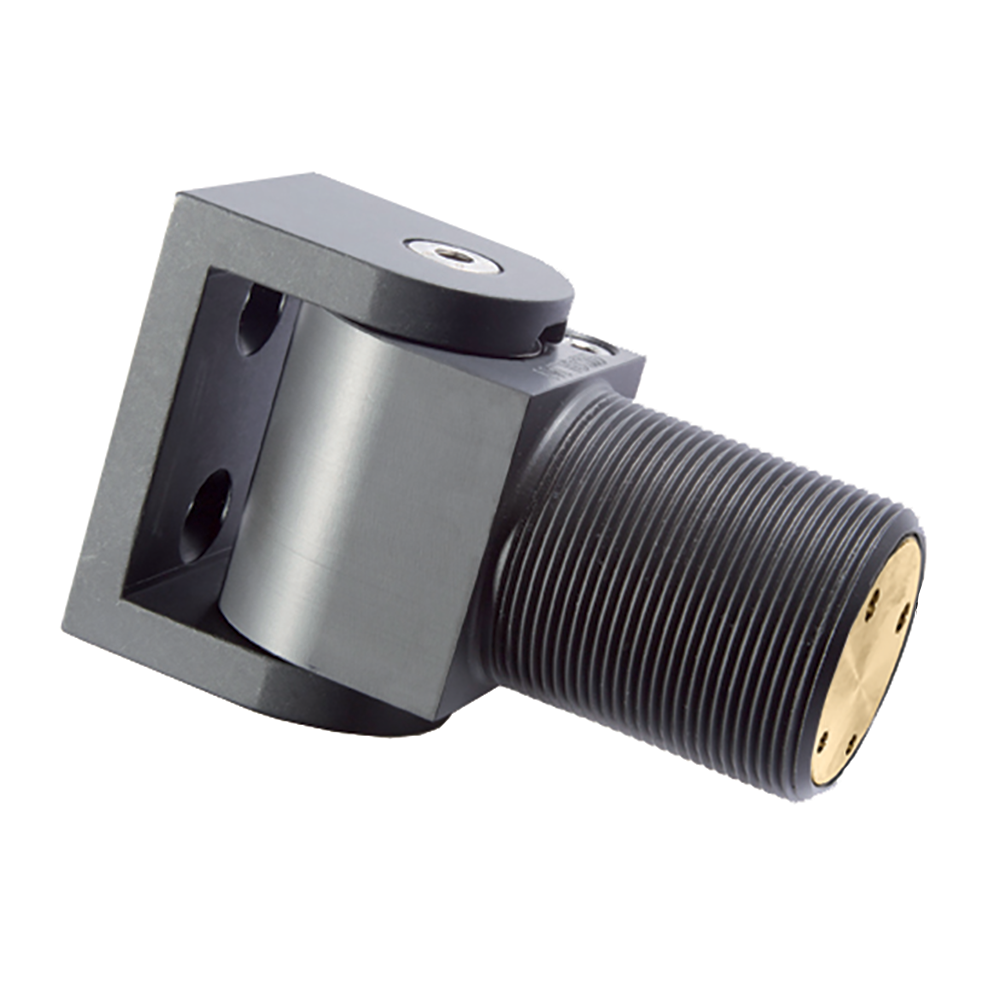

SureClose® Center Mount for Safety Gates
SureClose Center Mount for Safety Gates is a hydraulic hinge-closer from D&D Technologies for aluminum safety and pool gates. It self-closes from 90 degrees without holding open, is rated for gates up to 265 lb and comes in screw-on and weld-on models.
Key features
- Self-closes from 90 degrees, will not hold open
- Hydraulic closing prevents gate slam noise and damage
- Rated up to 265 lb, depending on configuration
- Screw-on, weld-on and Final Snap models
- 50 micron anodized aluminum components, maintenance free
- Post mounting brackets sold separately
SureClose Center Mount for Safety Gates: hydraulic self-closing that never holds the gate open
The SureClose Center Mount is an internally mounted, hydraulic gate hinge-closer from D&D Technologies. This safety version self-closes from 90 degrees and will not hold the gate open, which is why it is specified for pool gates as well as front, side, pedestrian, pet, privacy, security and commercial gates.
Operation
The hydraulics close the gate under control, which prevents gate slam noise and damage to the gate. The closer offers several adjustment options and is maintenance free. Final Snap models add a snap-close action at the end of the swing.
Sizes and fit
It is made for aluminum gates. D&D rates it for gates of up to 176 lb or up to 265 lb depending on the hinge configuration, as set out in its load chart. The specification lists posts from 2-1/2" or 3" upwards.
Materials and fitting
The aluminum components have a 50 micron anodized finish for high corrosion resistance. Screw-on and weld-on models are available, and the proprietary finish means weld-on parts need no grinding before welding. Post mounting brackets are sold separately.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On, Weld-On |
| Weight | 1.3 lb |
| Warranty | Limited lifetime |
| Product line | SureClose |
| Type | Hinge-Closer |
| Function | Self-Closing, Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Pool Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Hinge gap | 2-1/2" - 3" |
| Min post size | 2-1/2"+, 3"+ |
| Max self-closing gate weight | 260 lb (265 lb), Up to 180 lb (176 lb), Up to 260 lb (265 lb) |
| Self-closing from | 90° |
| Sold as | Each |
| Model | Hinge-Closer Screw-On |
Article numbers
- 75108124MModel: Hinge-Closer Final Snap Weld-On$336.00
- 75057123MModel: Hinge-Closer Screw-On$247.00Chosen
- 75057124MModel: Hinge-Closer Weld-On$247.00
- 75108123MModel: Hinge-Closer Final Snap Screw-On$336.00
Frequently asked questions
How heavy a gate can it close?
D&D rates the Center Mount for gates of up to 176 lb or up to 265 lb, depending on the hinge configuration in its load chart.
Can it be used on a pool gate?
Yes. This safety version self-closes from 90 degrees and will not hold the gate open, and it is specified for pool gates. Check the requirements of your local pool barrier rules before fitting.
Do I need anything else to install it?
Yes. Post mounting brackets are sold separately and are needed to complete the installation.
Which models are available?
Hinge-closer screw-on, hinge-closer weld-on, and Final Snap versions of both.
