Locinox | Surface mounted electromagnetic lock without integrated handles

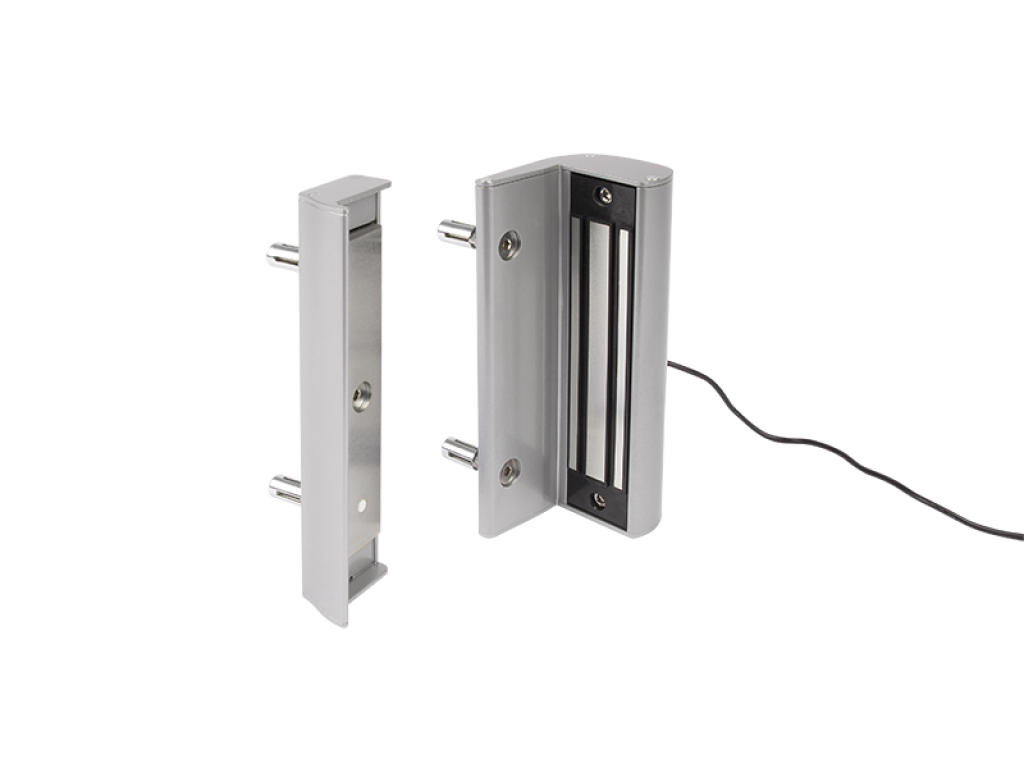

Locinox screw-on electromagnetic lock without handles, in two versions: MAGMAG3000 with 661 lb and MAGMAG6000 with 1,323 lb pulling force. Powder coated aluminum housing with Quick-Fix fixings, fitted by drilling 5 holes. 12 or 24 V DC, IP68, silver or black RAL 9005.
Key features
- Pulling force 661 lb (MAGMAG3000) or 1,323 lb (MAGMAG6000)
- Screw-on with 5 holes and Quick-Fix, no welding
- 12 or 24 V DC, fail open
- IP68, 500 hours salt spray (ISO 9227)
- Anti-crowbar raised edge
Screw-on magnetic lock for access controlled gates
This Locinox electromagnetic lock holds a gate closed while it is powered and releases it as soon as the power is cut, so it works fail open. It is screwed onto the gate and post, which removes the time-consuming welding that many magnetic locks need. Drilling five holes is enough.
Security
Two versions are available: the MAGMAG3000 with a pulling force of 661 lb and the MAGMAG6000 with 1,323 lb. The holding force is tested on every lock. A raised edge on the housing makes it impossible to put a crowbar between the magnet and the armature plate, and an anti-residual magnetism kick-off system releases the gate cleanly.
Power and wiring
The lock runs on 12 V or 24 V DC. The MAGMAG3000 draws 500 mA at 12 V or 250 mA at 24 V; the MAGMAG6000 draws 460 mA at 12 V or 230 mA at 24 V.
Materials and finish
The powder coated aluminum housing has a two-layer protective coating for years of outdoor use, resists 500 hours of salt spray (ISO 9227) and is rated IP68 against water and dust. It is available in silver or black RAL 9005.
Specifications
| Brand | Locinox |
| Width | 4-5/8" |
| Height | 3-3/4" |
| Length | 8-7/8" |
| Weight | 7.5 lb |
| EAN | 5414768062531 |
| Color | Silver |
| Pulling force | 661 lbs |
Article numbers
- P00009798-9005Color: RAL9005 / Pulling force: 1323 lbs$323.95
- P00009798-SILVColor: Silver / Pulling force: 1323 lbs$323.95
- P00009790-9005Color: RAL9005 / Pulling force: 661 lbs$292.62
- P00009790-SILVColor: Silver / Pulling force: 661 lbs$234.95Chosen
Frequently asked questions
What is the difference between MAGMAG3000 and MAGMAG6000?
The MAGMAG3000 has a pulling force of 661 lb, the MAGMAG6000 1,323 lb.
Does it need welding?
No. It is screwed on, and drilling 5 holes is enough to fix it.
What power supply does it need?
12 V or 24 V DC. The MAGMAG3000 draws 500 mA at 12 V, the MAGMAG6000 460 mA at 12 V.
Which profile sizes does it fit?
Not yet confirmed; ask Fenceweb before you order.
