Accessories

A Gardenode Equinox bay is more than posts and slats. A bottom rail sets the first slat, a top rail closes the bay 1-3/16" below the top of the post, and a cap finishes each post. The parts below are made for the Equinox profiles and come in the same anthracite gray, quartz gray, black and teak as the slats.

• Top rail and bottom rail: 70-7/8", one of each per bay; a separate louver bottom rail starts a run of louvers.
• Post caps: for the 2-3/4" x 2" and the 3-1/8" x 3-1/8" post, to keep water out and finish the top.
• Post clip: fills the empty groove of the first and last post of a run, under the cap; one comes with every post, in 73-7/8" and 82-5/8" lengths.

• Starter profile with cap: 82-5/8", fixes the fence to a wall or another structure instead of a post.
• Variable angle profile: a two-part profile that clips onto the post and sets any corner between 45 and 135 degrees; a 90 degree corner needs only the post.
• Adjusting block: steps the fence with sloping ground under the bottom rail.
• Fixing block: holds the bottom rail in the post groove and keeps the expansion gap composite slats need; a composite fence takes at least two per bay.

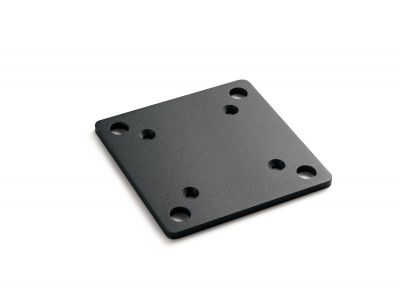

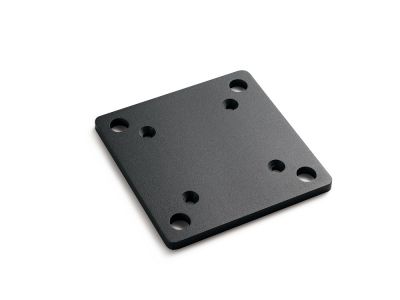

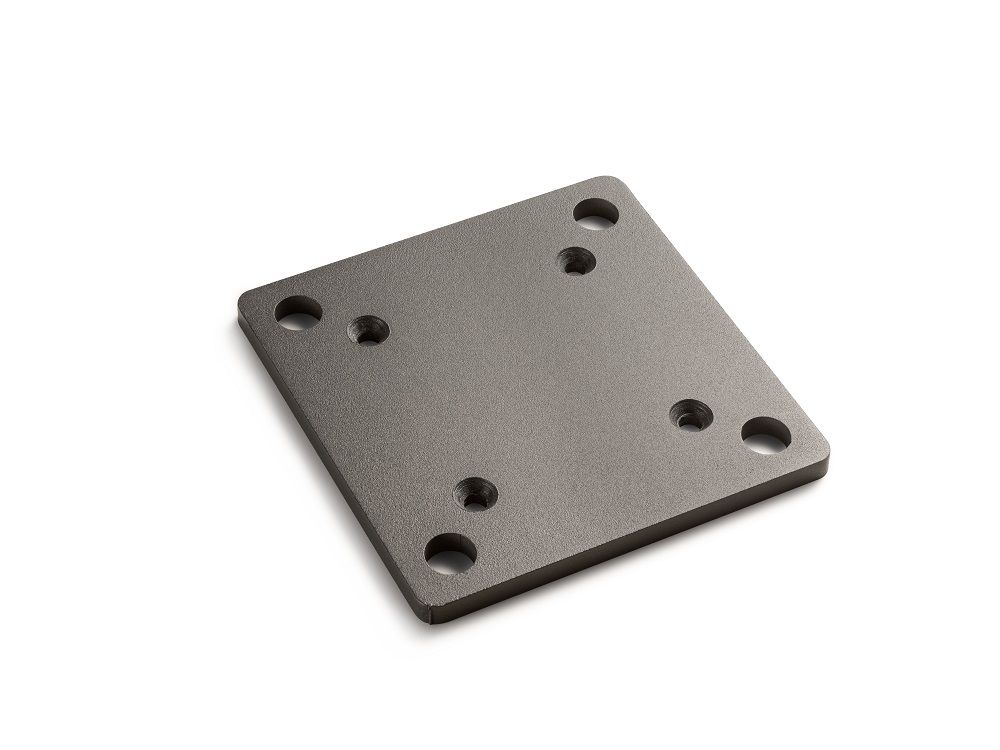

• Steel base plates: bolt a post to a slab or low wall, 5-1/8" x 5-1/8" for the 3-1/8" x 3-1/8" post and 4-3/4" x 3-7/8", or a plate with cover, for the 2-3/4" x 2" post. Keep a fence on base plates to 5'3".
• Spacers: hold openwork slats 5/8" apart, and louver spacers set the slope of the louvers: a bag of 10 starter spacers for the first slat and a bag of 24 intermediate spacers per bay up to 72-7/8".
• Fortress Athens Poly-Loc clips: fix Athens panels to their posts, in bags of six.

Per bay, order one top rail and one bottom rail; per post, one cap; per first and last post of a run, a clip for its empty groove. Add a starter profile where the fence meets a wall, a variable angle profile at each corner that is not square, and base plates wherever posts stand on concrete.
