Composite Fence Boards

Every Equinox board is 70-7/8" long, the width of one bay between two posts.

Solid slats

The solid slat is 70-7/8" x 5-7/8" x 13/16". Twelve slats close a bay about 70-7/8" tall. Three finishes are available:

• Brushed, in Anthracite Gray or Quartz Gray.
• Wood grain, in Anthracite Gray.
• Co-extruded, in Graphite, Teak or Anthracite Gray, with a protective outer skin against UV, scratches and stains.

Louver slats

Co-extruded louver slats are angled, so air passes through the fence while the view stays blocked. That helps on windy sites. They come in Graphite, Teak or Anthracite Gray and are built up with louver spacers on a louver bottom rail.

Openwork slats

Co-extruded openwork slats are 3-3/8" or 5-3/8" wide and are held 5/8" apart by aluminum spacers. The gaps give a lighter, more open screen.

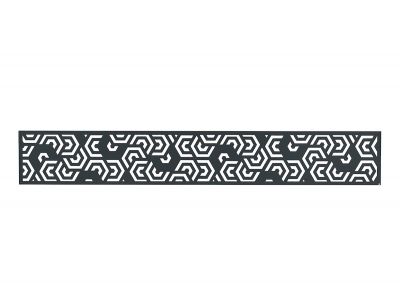

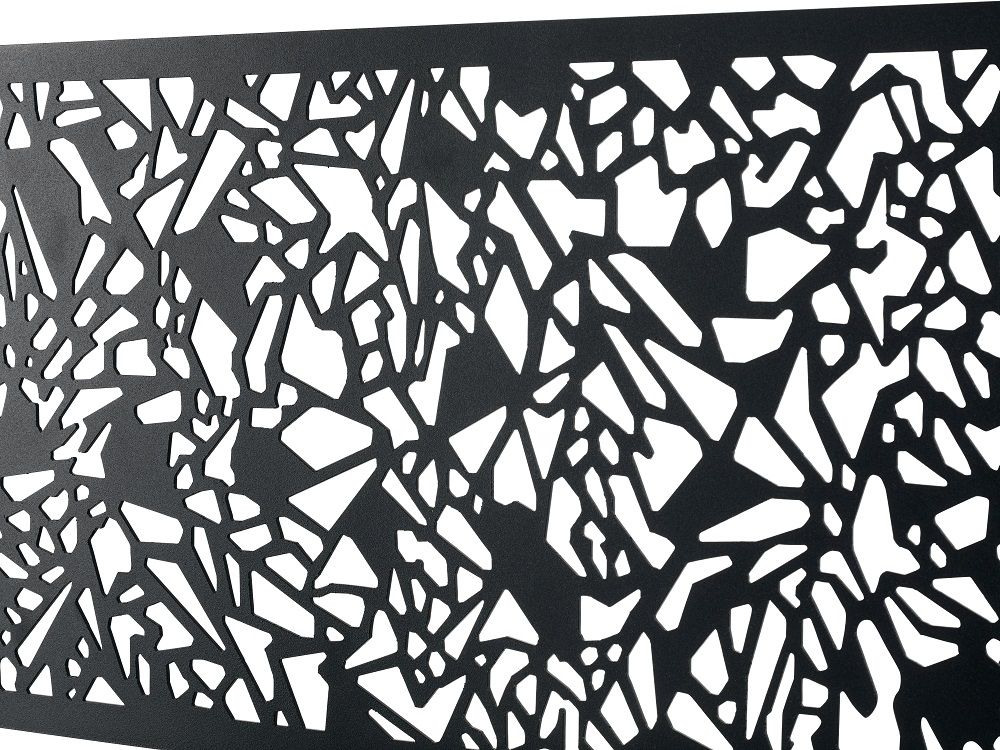

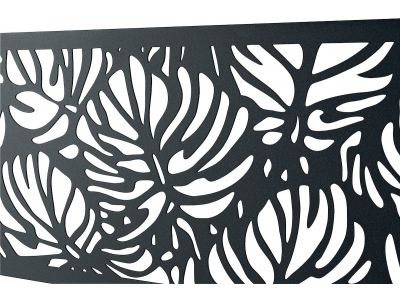

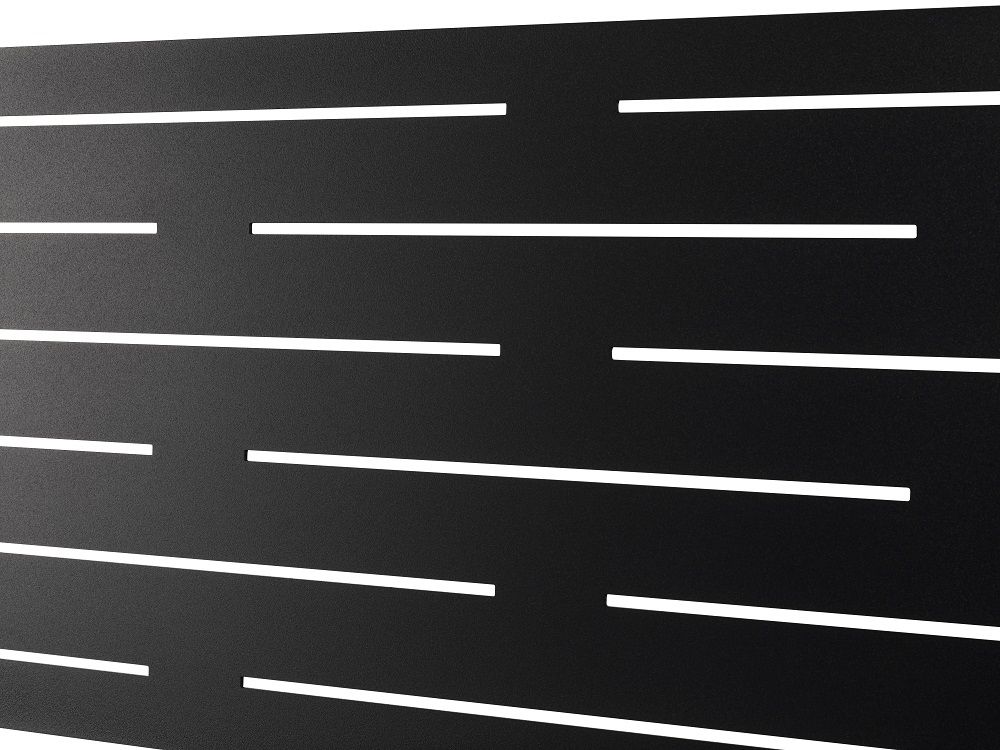

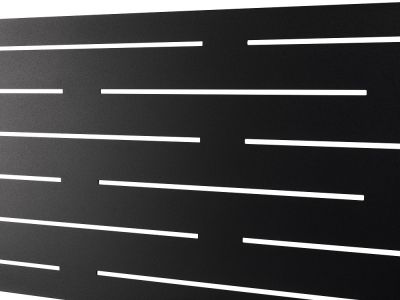

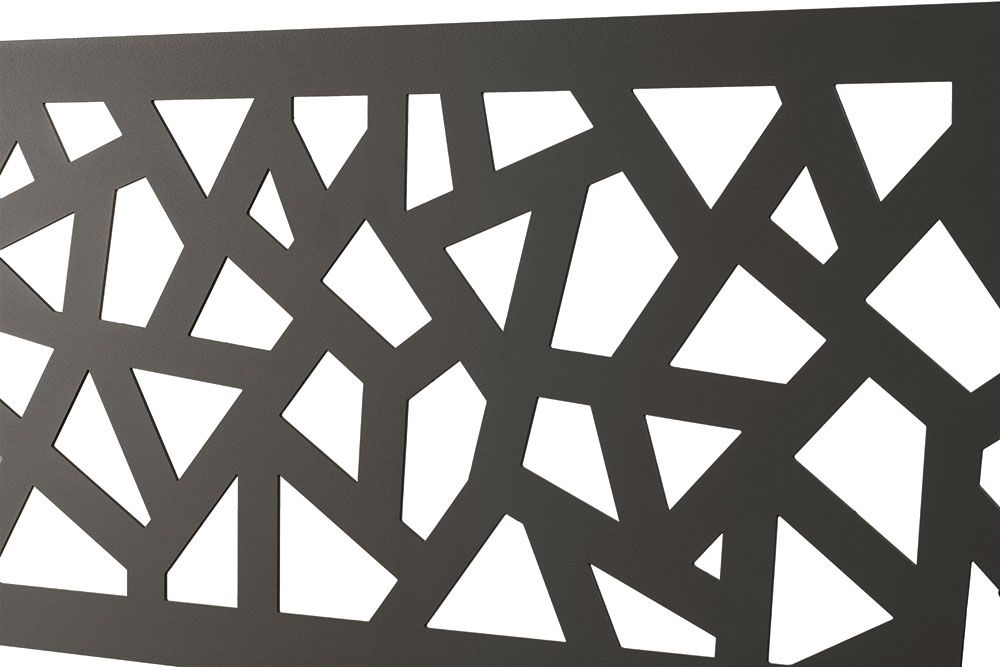

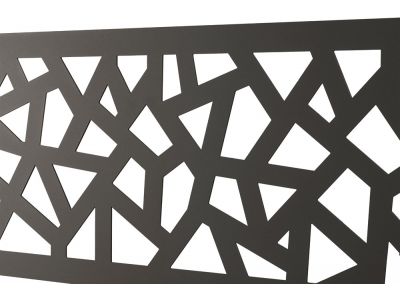

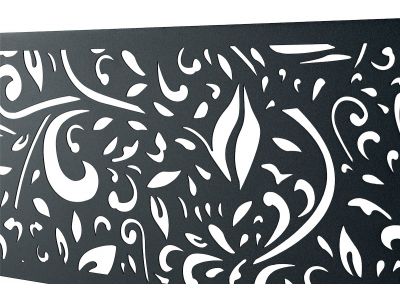

The laser-cut aluminum decorative panel measures 70-7/8" x 10-3/4" and replaces part of a bay with a pattern. Seven patterns are available: Azur, Brahmi, Crystal, Epure, Kadryl, Tropik and Verdi, powder coated in Anthracite Gray RAL 7016, Quartz Gray RAL 7039, Black RAL 9005 or Teak. Each panel needs a framing kit, sold separately, for horizontal or vertical fitting.

1. Fit the bottom rail in the post grooves; use the louver bottom rail for louver slats.
2. Hold the rail with at least two fixing blocks per bay, so the composite keeps its expansion gap.
3. Slide the slats in tongue up, groove down, aligned by the serial number on the top edge.
4. Close the bay with the top rail.

Composite moves with heat and is heavier than aluminum. A galvanized steel slat brace slides into the hollow core and stops the slat sagging over the bay. Fit one in every third solid composite slat, and one in every composite louver and openwork slat.

• Solid slats: twelve per bay of about 70-7/8" tall, plus four steel braces.
• Louver and openwork slats: count by the spacer pack for the bay, and one brace per slat.
• Decorative panel: one framing kit per panel.

Where a board variant shows no price, it is sold on request: ask for a quote. Clean the fence once a year with a sponge and clean water, without a pressure washer. Fenceweb delivers to every US state and to Canada.
