Gatemaster | Mortise Hook Lock

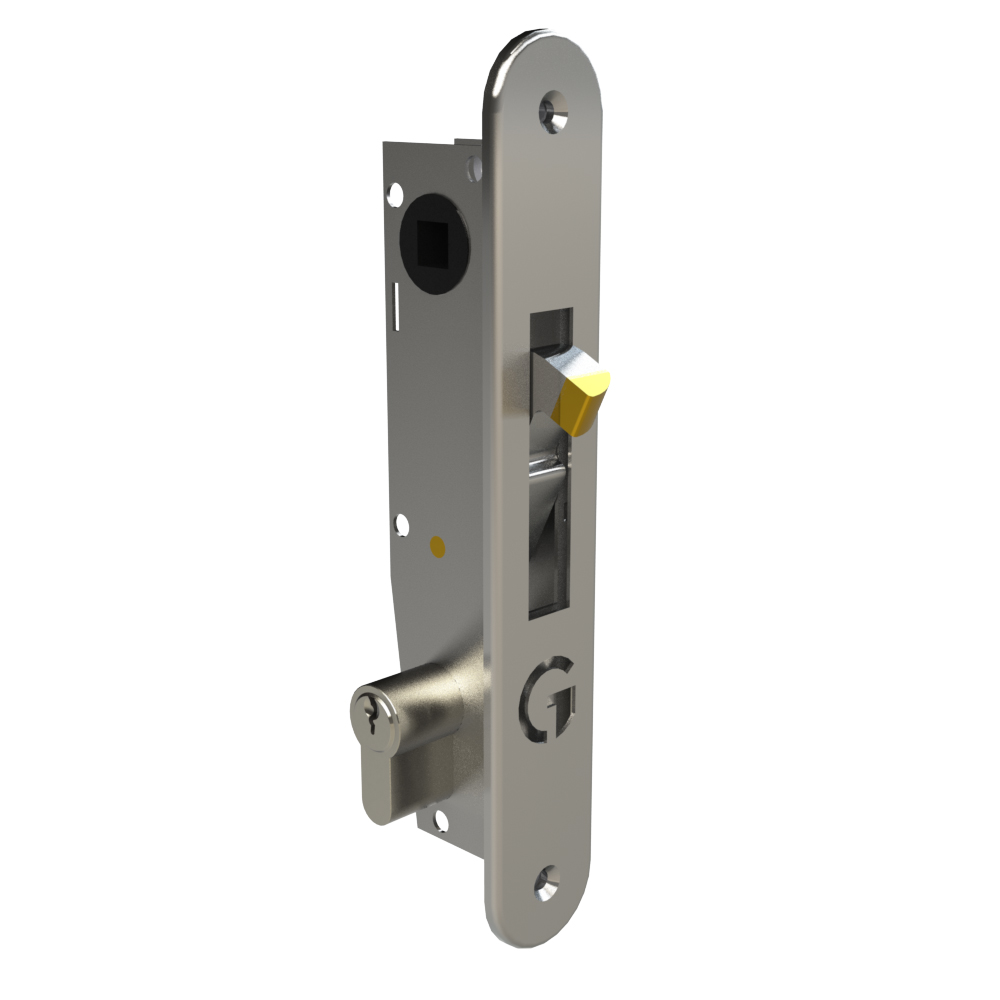

The Gatemaster mortise hook lock combines a latch and a hook bolt in one single-action lock for box section gates. Made entirely of stainless steel with a brass latch and tested to 1,000,000 openings, it fits 1-9/16" box section with a 13/16" backset.
Key features
- Fits 1-9/16" (40 mm) box section
- Backset 13/16" (20 mm)
- Tested to 1,000,000 openings
- Operated with key and handle
- Fits 1-9/16" box section, 13/16" backset
Gatemaster mortice hook lock: latch and hook in one

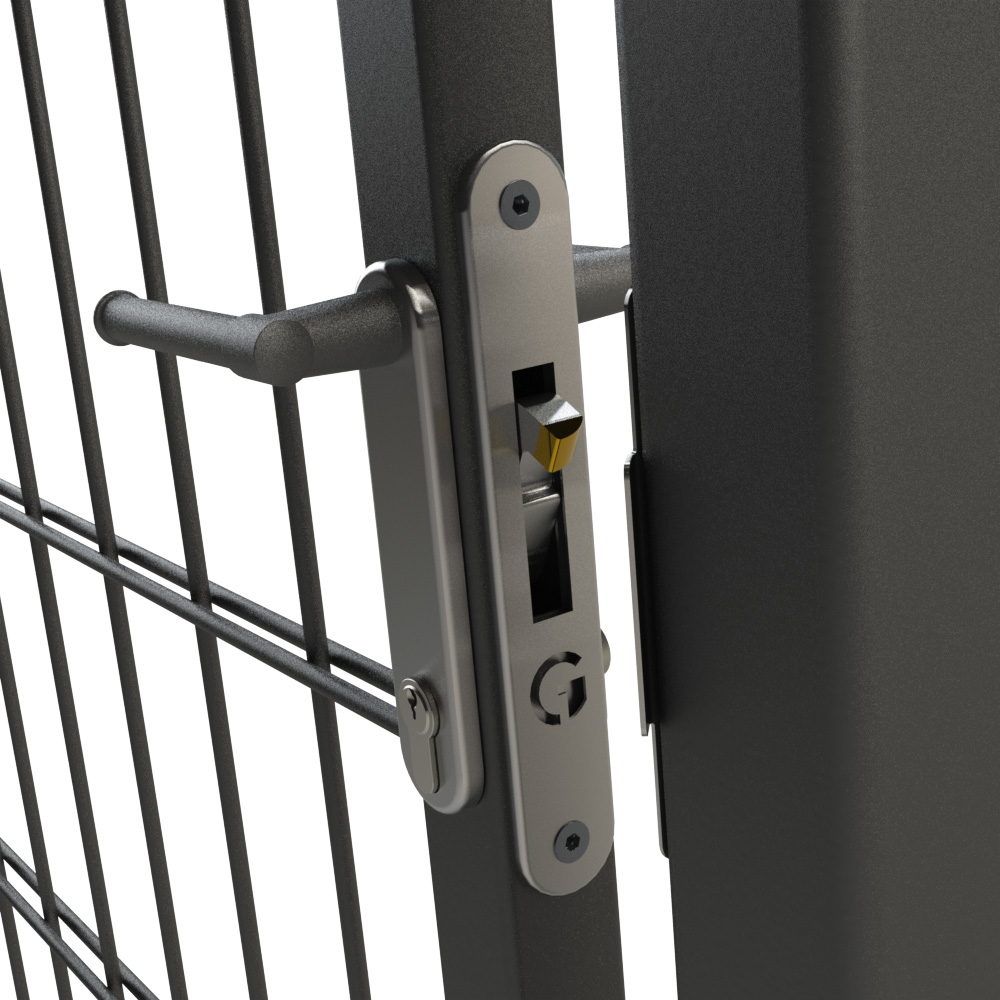

The mortice hook lock rethinks the mortice gate lock with one simple feature: a single-action latch and hook lock. It is ideally suited to box section gates and gives a high level of security and usability.
Materials and durability
The lock is made entirely of stainless steel with a brass latch and has been tested to 1,000,000 openings, which makes it one of the most robust mortice locks available.
Operation
The lock is operated with a key and a handle. It comes in two versions: ML4 DC with dual cover escutcheons and ML4 FC with a full cover escutcheon.

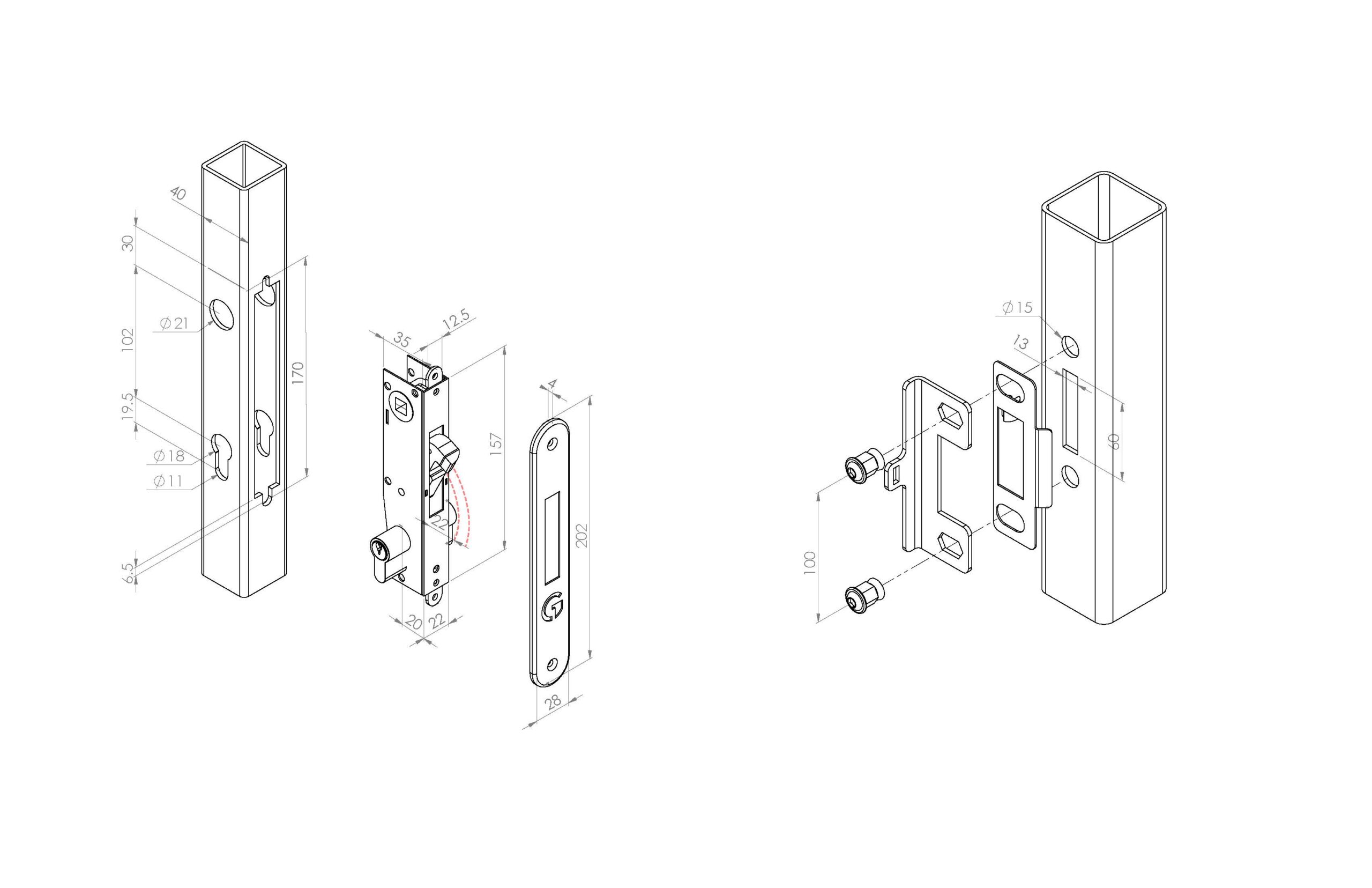

Sizes and fit

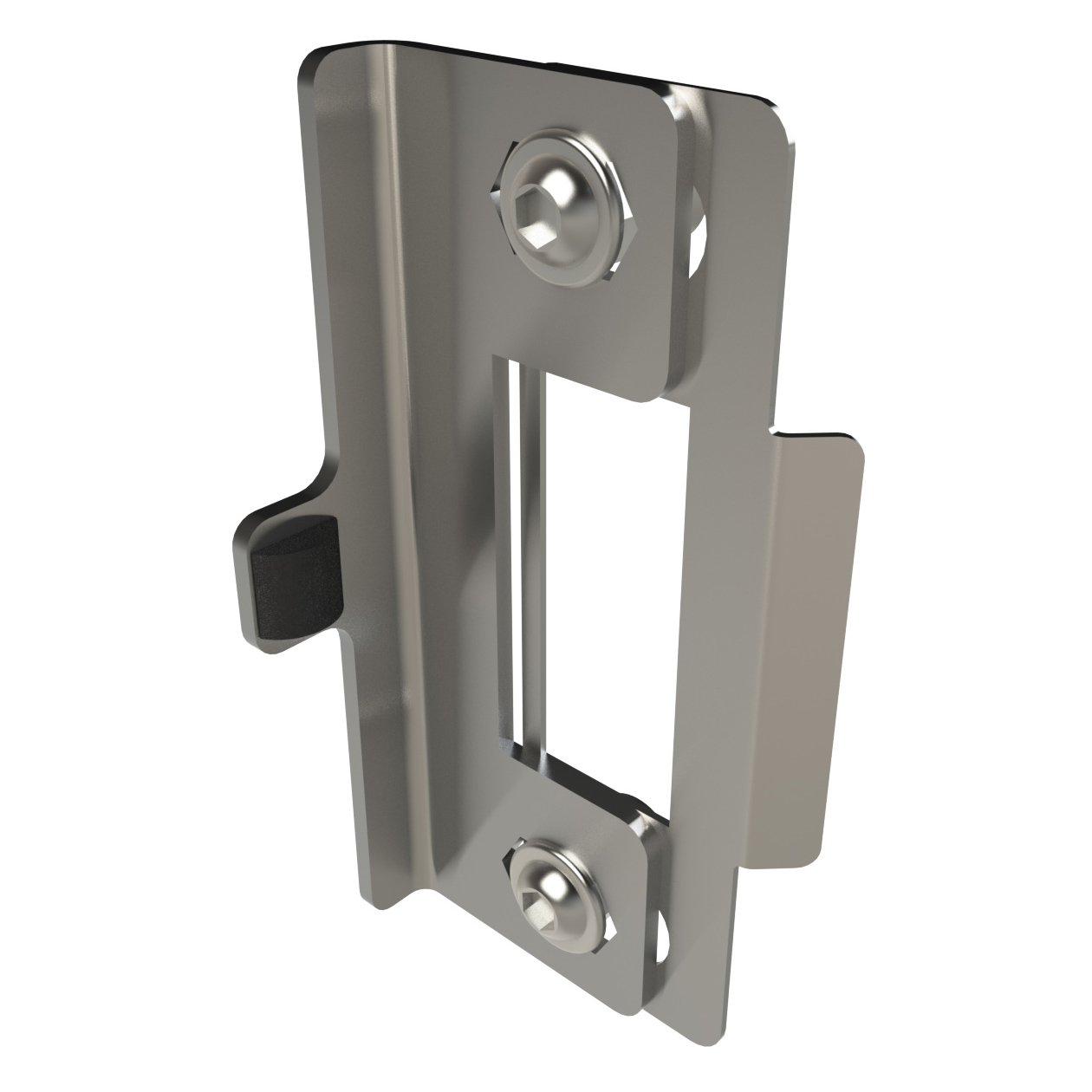

The lock fits 1-9/16" box section and has a 13/16" backset. A bolt-on keep plate, a eurocylinder, cover plates and handles are supplied, so the lock arrives ready to fit with a stainless steel keep for the hook bolt to close into.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
What's in the box
- Bolt-on keep plate
- Eurocylinder
- Cover plates
- Handles
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
