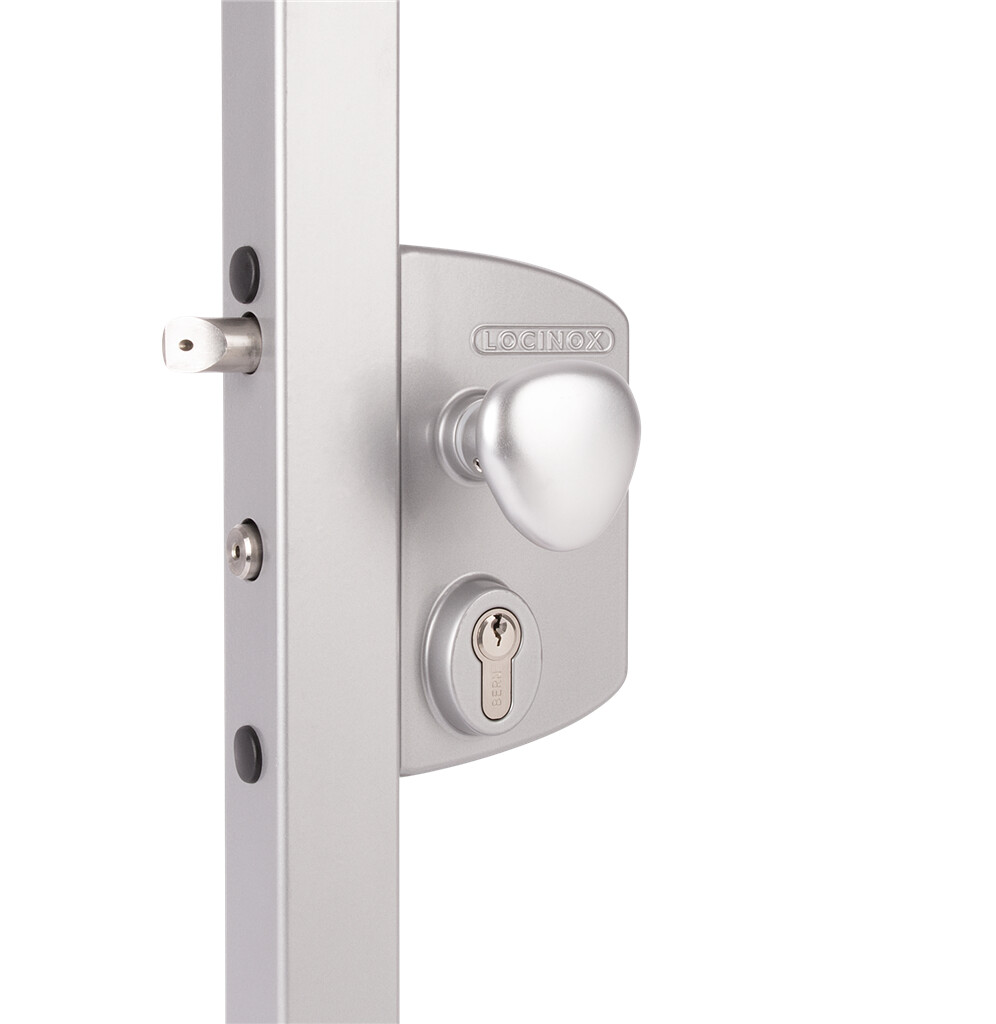

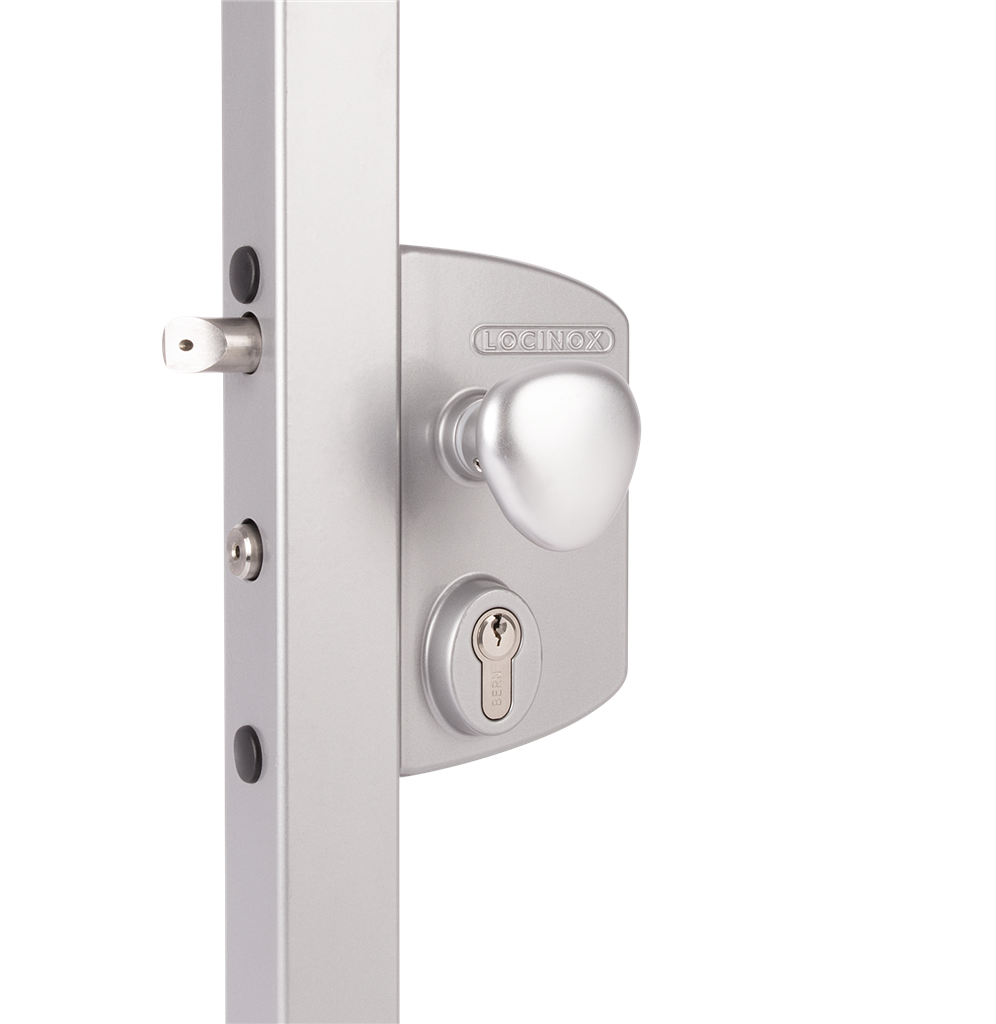

Surface mounted electric gate lock with Fail Open functionality
Locinox electric surface mounted gate lock with fail open function: the handles are blocked while the lock is powered. Aluminum housing, stainless steel mechanism, 13/16" bolt adjustment and a 7/8" deadbolt throw. For round and square profiles.
Only this value fits the rest of your configuration, so it is set for you.
Only this value fits the rest of your configuration, so it is set for you.
Key features
- Fail open: handles blocked while powered
- Aluminum housing, stainless steel mechanism
- Stainless steel deadbolt, 7/8" throw
- 13/16" continuous bolt adjustment
- For round and square profiles from 30 to 3-15/16"
- Six colors
Electric surface mounted gate lock with fail open function
This Locinox lock combines a mechanical surface mounted gate lock with electric control of the handles. While the lock is powered, the handles are blocked and the gate stays closed.
Security
A solid stainless steel deadbolt with a 7/8" throw locks the gate with the key. Latch and deadbolt adjust continuously over 13/16", so they line up with the keep for correct latching and locking.
Materials and finish
The housing is aluminum and the mechanism stainless steel. Colors are green RAL 6005, green RAL 6009, anthracite RAL 7016, black RAL 9005, white RAL 9010 and silver.
Sizes and fit
The lock is available for round and square profiles in the ranges 30 to 50, 40 to 60, 60 to 80 and 80 to 3-15/16". Handle options are the 3006KR aluminum handle blocking set, the 3006R aluminum round knob and the 3006RB black aluminum round knob, with keyed alike or keyed to differ cylinders. Locinox recommends the Drill-Fix drilling jig for fast and precise installation. The sources do not state the operating voltage, so check it with Fenceweb when planning the power supply.
Specifications
| Brand | Locinox |
| Width | 7-1/8" |
| Height | 2-3/8" |
| Length | 8-1/4" |
| Weight | 3.4 lb |
| EAN | 5414768025024 |
| Color | RAL9005 |
| Profile type | Square |
| Profile dimension | 1-3/16" to 1-15/16" |
| Handle | 3006R - Aluminium round knob |
| Keying | Keyed to differ |
Article numbers
- P00038426-9005Color: RAL9005 / Profile type: SquarePrice on request
- P00015029-7016Color: RAL7016 / Profile type: Square$380.48
- P00015029-9005Color: RAL9005 / Profile type: Square$380.48Chosen
- P00015029-9010Color: RAL9010 / Profile type: Square$380.48
- P00015029-SILVColor: Silver / Profile type: Square$380.48
Frequently asked questions
Which profiles does the lock fit?
Round and square profiles from 30 to 3-15/16", in four ranges.
What voltage does the lock need?
The sources do not state it. Contact Fenceweb before choosing a power supply.
