ZND Temporary Fence | Installer Max | 8' x 12' | Anti-climb

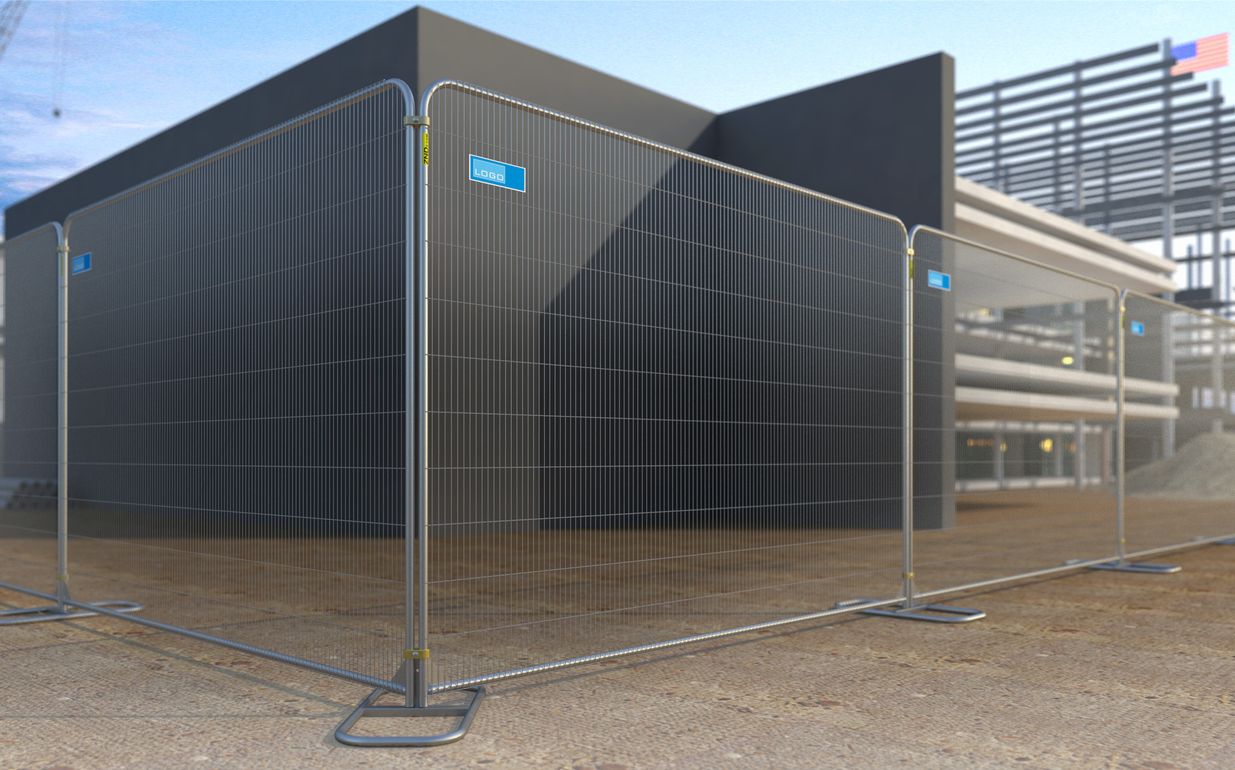

The RT812 is a 8 ft x 12 ft round-top panel from ZND's heaviest series, without an additional brace bar. Built for busy, public-facing and long-term sites where panels get handled again and again.
Key features
- 8 ft x 12 ft round-top panel, model RT812
- Round-top frame with curved corners and fewer stress points
- Anti-climb welded wire mesh with tight vertical wire spacing
- Frame without an additional brace bar
- ZND SmartWeld welded construction, repairable with a standard spot welder
- Fits ZND tube stands, couplers, anti-lift brackets, stabilizers and Z-Block weights
The ZND RT812 sits at the top of ZND's temporary fence lineup. It is a 8 ft x 12 ft Installer Max panel with a round-top frame, so the corners are curved rather than mitered, which leaves fewer points where stress builds up when panels are lifted, stacked and reset. Anti-climb welded wire mesh fills the frame, and every joint uses ZND SmartWeld construction.
Where the Installer Max series fits
Installer Max is the heaviest panel family ZND makes. Choose it for high-traffic perimeters, sites that face the public and projects that keep the fence standing for a long stretch, where a tougher frame pays back over many rental cycles. The plain version keeps the frame simple, with the anti-climb mesh welded straight into the perimeter tube and no extra brace bar.
What to order with it
Set each panel in a tube stand and clamp neighboring panels together with couplers. On exposed or long runs, add stabilizers, and use anti-lift brackets or Z-Block weights where the site calls for extra security or ballast. All of these ZND accessories fit the panel frame. If a weld is damaged in service, the panel can be repaired with a standard spot welder.
Specifications
| Brand | ZND Fence |
| Material | Pre-galvanized steel |
| Finish | Pre-galvanized |
| Mesh opening | 2.291 in vertical wire spacing |
| Wire diameter | 0.13 in vertical and horizontal wires |
| Product line | ZND Installer Max |
| Suitable for | High-traffic, public-facing and long-term sites |
| Sold as | Single panel |
| Details | |
|---|---|
| Panel | Round-top frame, anti-climb welded wire mesh, no extra brace |
| Frame | 1.315 in diameter steel tube, SmartWeld welded |
Frequently asked questions
How does the RT812 differ from the braced versions?
The RT812 has no extra brace bar in the frame. We also stock the RT812V with a vertical brace and the RT812H with a horizontal brace. Pick a braced version when you want more support in the mesh.
How many stands and couplers do I need for a run of RT812 panels?
For a straight run, a safe rule is one more tube stand than you have panels, since each joint and both ends sit in a stand. Couplers clamp each pair of neighboring panels together at the joints. Add stabilizers or Z-Block weights on long, exposed or wind-facing stretches.
Why choose a round-top Installer Max panel over a square-top one?
The curved corners of the round-top frame reduce the stress points found at square corners, which helps the panel hold up to frequent handling. Installer Max is ZND's heaviest series, so it is the pick for high-traffic, public-facing and long-term sites rather than quick, light installs.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
Does Fenceweb provide installation services or recommendations?
Fenceweb supplies products rather than installation, but our specialists are happy to recommend the right materials for your project and can connect you with experienced fencing contractors in our partner network.
Still have questions? Call us at 214 878 1900
