ZND Temporary Fence | Installer Plus | 6' x 12' | Anti-climb | Vertical Bar
The ST612V is a 6 ft x 12 ft square-top Installer Plus panel at 48.28 lbs, with a vertical brace bar. A two-person panel for active jobsites, repeat rentals and installs that stay up for months.
Key features
- 6 ft x 12 ft square-top panel, model ST612V
- 48.28 lbs, set by a two-person crew
- Anti-climb welded wire mesh with tight vertical wire spacing
- Frame with a vertical brace bar
- ZND SmartWeld welded construction, repairable with a standard spot welder
- Fits ZND tube stands, couplers, anti-lift brackets, stabilizers and Z-Block weights

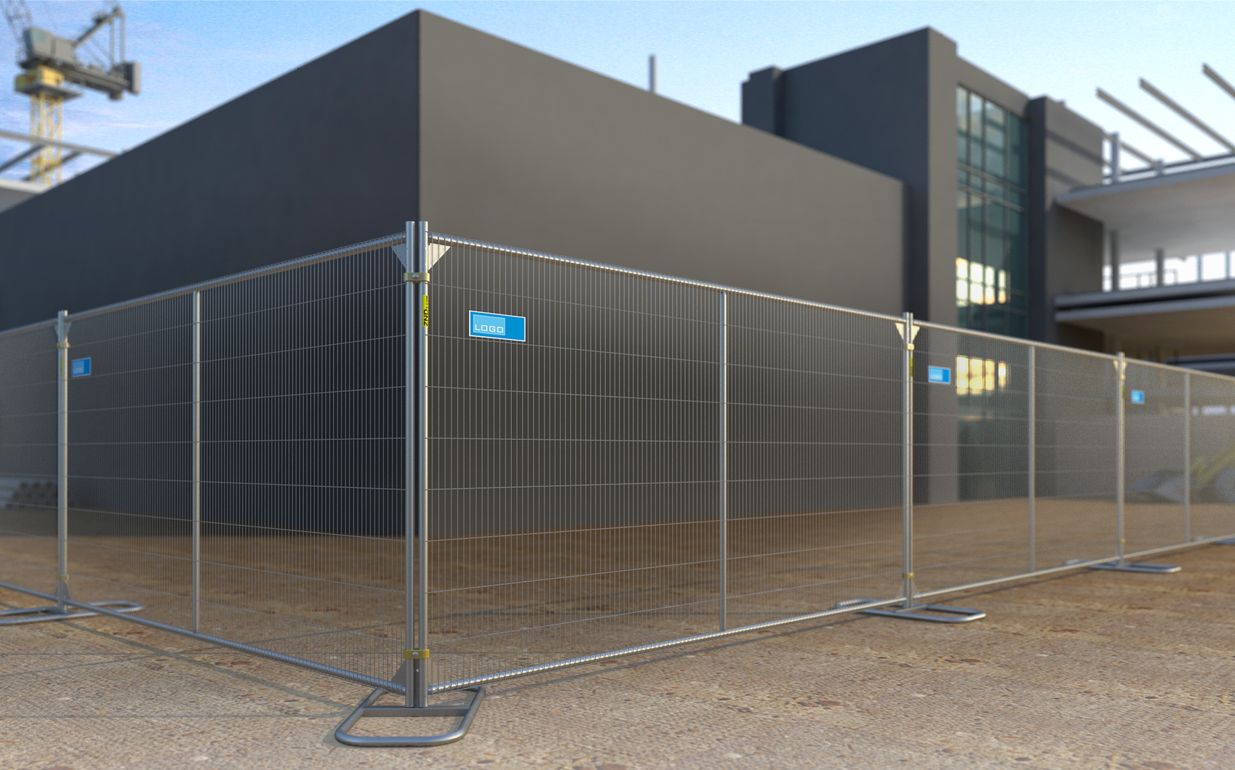

The ZND ST612V is a 6 ft x 12 ft square-top panel from the Installer Plus series. At 48.28 lbs it sits in the mid-weight band of ZND's range, heavier and more rugged than Installer Pro, and meant to be set by a two-person crew. The frame carries anti-climb welded wire mesh joined with ZND SmartWeld construction.
Built for active jobsites
Installer Plus panels are made for sites with steady traffic, fencing that gets reused job after job and installs that stay up for the long haul. The frame is designed to keep its shape without sagging between stands. A vertical brace bar is welded into the frame, giving the mesh an extra upright support between the end tubes.
What to order with it
Set each panel in a tube stand and clamp neighboring panels together with couplers. On exposed or long runs, add stabilizers, and use anti-lift brackets or Z-Block weights where the site calls for extra security or ballast. All of these ZND accessories fit the panel frame. If a weld is damaged in service, the panel can be repaired with a standard spot welder.
Specifications
| Brand | ZND Fence |
| Material | Pre-galvanized steel |
| Finish | Pre-galvanized |
| Mesh opening | 2.291 in vertical wire spacing |
| Wire diameter | 0.13 in vertical and horizontal wires |
| Weight | 48 lb |
| Product line | ZND Installer Plus |
| Suitable for | Active jobsites, repeat rental use and longer-term installs |
| Sold as | Single panel |
| Details | |
|---|---|
| Panel | Square-top frame, anti-climb welded wire mesh, vertical brace |
| Frame | 1.315 in diameter steel tube, SmartWeld welded |
Frequently asked questions
What does the V in ST612V mean?
V tells you the panel has a vertical brace bar welded into the frame. The other versions in this size are the ST612 (no extra brace), ST612H (horizontal brace) and ST612VH (vertical and horizontal braces).
How many stands and couplers do I need for a run of ST612V panels?
For a straight run, a safe rule is one more tube stand than you have panels, since each joint and both ends sit in a stand. Couplers clamp each pair of neighboring panels together at the joints. Add stabilizers or Z-Block weights on long, exposed or wind-facing stretches.
How many people does it take to install?
Plan on two people. At 48.28 lbs, the ST612V is in ZND's mid-weight class. If you need a panel one person can set, the Installer Pro lightweight range is the alternative.
