Shut It® 4" Hardcore™ V-Groove Wheel with Carriage
The Shut It Hardcore 4" V-Groove Wheel with Carriage from D&D Technologies is a ready-to-fit wheel and adjustable plate set for sliding gates with a bottom rail. Super-hard cold rolled steel, two sealed bearings and a 1,499 lb maximum gate weight, for 38 or 2" rails.
Key features
- 4" V-groove wheel with adjustable carriage plates
- Super-hard cold rolled steel, 30RC rating
- Two sealed, maintenance-free bearings
- Only 1-1/8" wide to reduce friction and debris
- Load rating 1,360 kg per gate, maximum gate weight 680 kg
- Models for 1-1/2" and 2" bottom rails

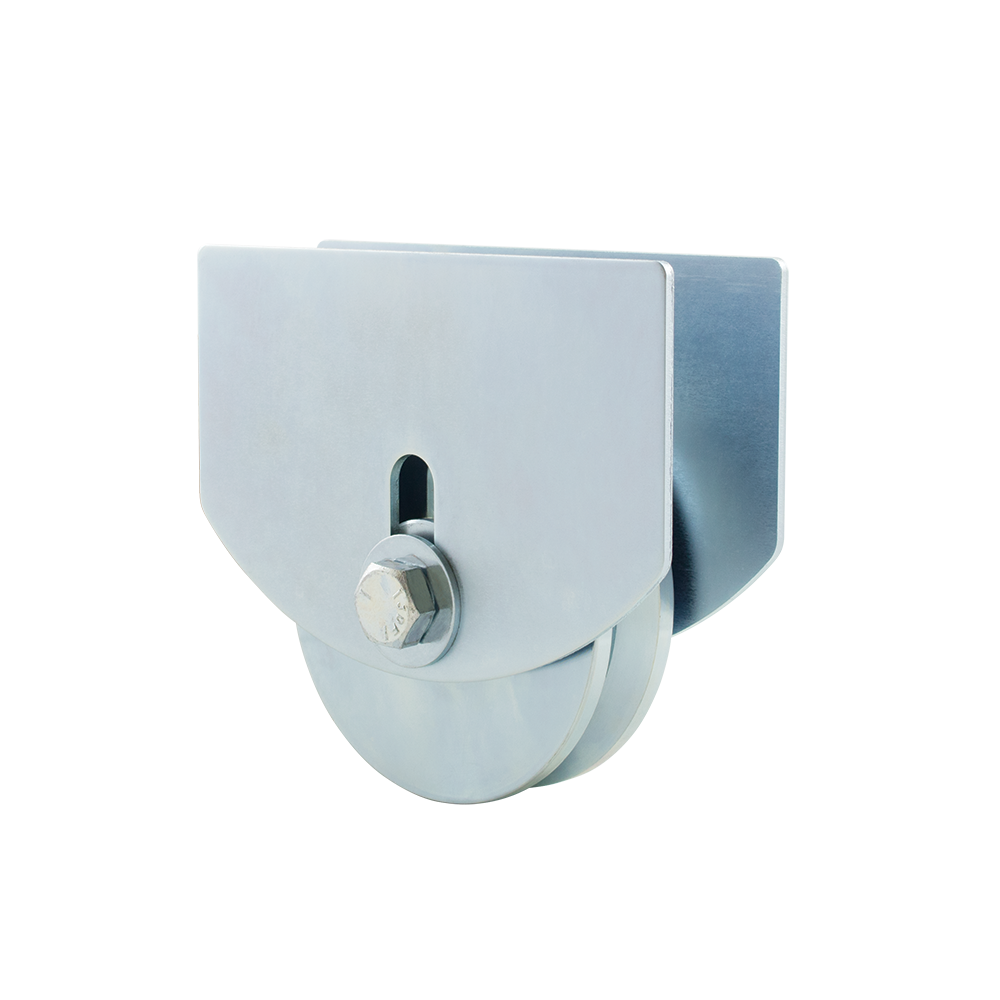

Shut It 4" Hardcore V-Groove Wheel with Carriage: wheel and plates in one
This assembly combines the Shut It Hardcore 4" V-groove wheel with adjustable steel carriage plates. It is designed for sliding gates with a bottom rail running on a V-track, and mounts the wheel inside the rail without a wheel box.
Materials and operation
The wheel is made from super-hard cold rolled steel with a 30RC rating. Two sealed bearings need no greasing and no maintenance. At only 1-1/8" wide, it reduces friction and problems with debris on the track.
Sizes and fit
Choose the model for your bottom rail width: 38 mm or 51 mm. D&D rates the assembly at a load of 1,360 kg per gate and a maximum gate weight of 680 kg, for privacy, security and commercial gates.
Installation
The carriage plates are welded in place and are adjustable, so you can set the gate precisely during installation.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Weld-On |
| Weight | 6.0 lb |
| Warranty | Limited lifetime |
| Product line | Shut It HardCore |
| Type | Gate wheels |
| Function | Square-to-Square |
| Suitable for | Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 1500 lb |
| Sealed bearings | 2 |
| Max gate load | 3000 lb |
| Wheel material | Steel |
| Carriage plate material | Steel |
| Sold as | Each |
| Gate frame | 1-1/2" |
Article numbers
- CI2515Gate frame: 1-1/2"$62.00Chosen
- CI2520Gate frame: 2"$62.00
Frequently asked questions
What is the difference with the wheel on its own?
This assembly includes the adjustable carriage plates. The wheel on its own is sold without plates.
Which model do I need?
Choose by the width of your gate's bottom rail: 1-1/2" or 2".
How heavy a gate can it carry?
D&D gives a maximum gate weight of 680 kg and a load rating of 1,360 kg per gate.
