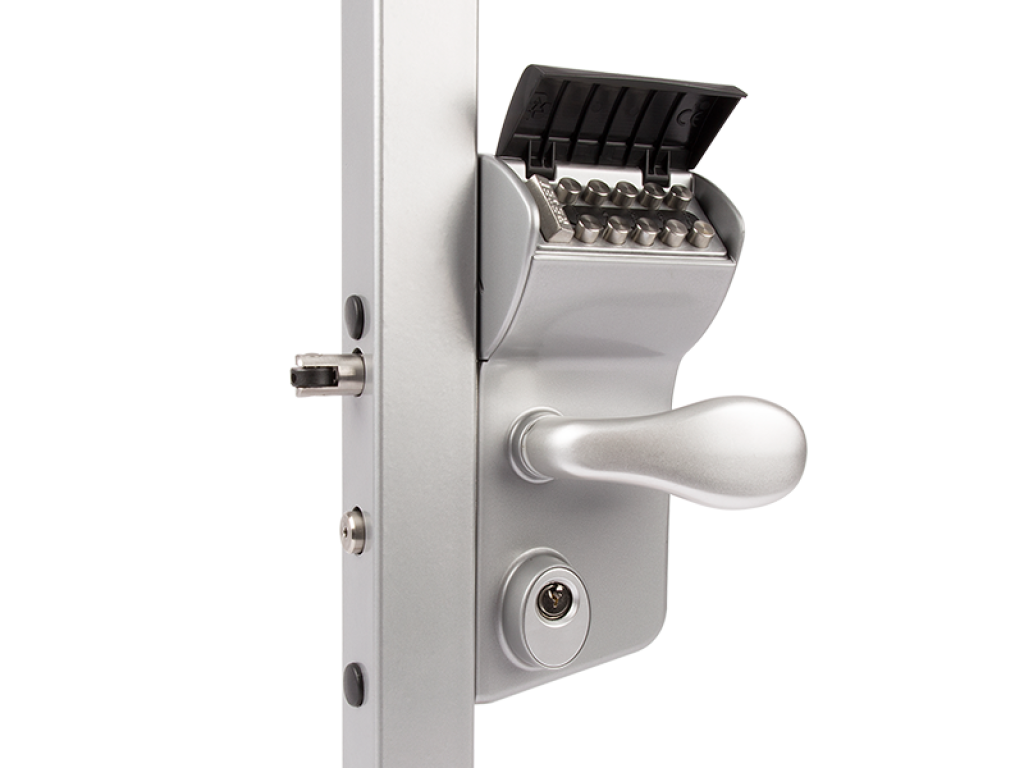

Locinox Vinci | Surface mounted mechanical code lock
Locinox Vinci mechanical code lock for swing gates, surface mounted, with an aluminum housing and stainless steel mechanism. It needs no batteries or electricity. Code panel on both sides, independent entrance and exit codes, 13/16" bolt adjustment and a 7/8" deadbolt throw.
Only this value fits the rest of your configuration, so it is set for you.
Only this value fits the rest of your configuration, so it is set for you.
Only this value fits the rest of your configuration, so it is set for you.
Key features
- Mechanical code lock, no batteries or power
- Code panel on both sides
- Independent entrance and exit codes
- Automatic code reset after opening
- Stainless steel deadbolt, 7/8" throw
- Interchangeable with Locinox surface mounted locks
Vinci code lock that works without power
The Vinci is a fully mechanical code lock from Locinox. Because it needs no batteries and no electricity, it is easy to add access control to any gate, including gates far from a power supply.
Operation
The code panel works from both sides, with independent entrance and exit codes, and codes are set up or changed quickly. After the gate is opened with the handle, the code resets automatically. An integrated security press plate prevents code detection, and a polyamide cover keeps rain and dust off the panel.
Security
A stainless steel deadbolt with a 7/8" throw overrides the code panel and secures the gate with the key. Latch and deadbolt adjust continuously over 13/16", and an adjustable rollerbolt makes the gate close easily. The KTL coated lock box withstands 1000 hours of salt spray to ISO 9227.
Sizes and fit
The Vinci is interchangeable with all Locinox surface mounted locks. It comes for flat 3/8" profiles and round and square profiles from 30 to 4-3/4", in green RAL 6005, anthracite RAL 7016, black RAL 9005 or silver, with an aluminum or black handle pair. Locinox recommends the Drill-Fix drilling jig.
Specifications
| Brand | Locinox |
| Width | 6-7/8" |
| Height | 6-3/4" |
| Length | 10-5/8" |
| Weight | 6.1 lb |
| EAN | 5414768023013 |
| Color | RAL9005 |
| Profile type | Square |
| Profile dimension | 1-3/16" to 1-15/16" |

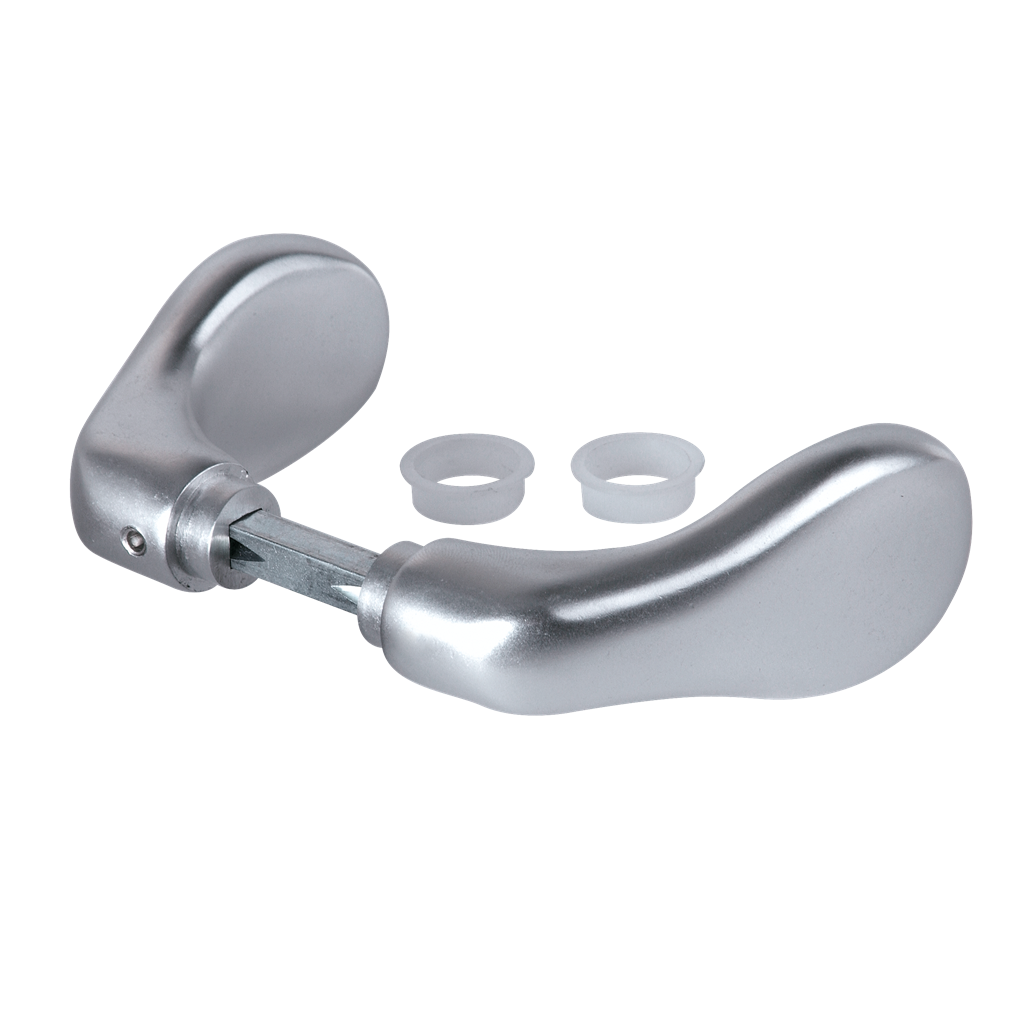

| Handle | 3006C - Aluminium handle pair |
| Keying | Keyed to differ |
Article numbers
- P00013424-9005Color: RAL9005 / Profile type: Square$866.59Chosen
- P00013424-SILVColor: Silver / Profile type: Square$866.59
- P00013434-7016Color: RAL7016 / Profile type: Square$867.48
- P00013456-7016Color: RAL7016 / Profile type: Square$870.91
- P00013456-9005Color: RAL9005 / Profile type: Square$870.91
Frequently asked questions
Does the Vinci need batteries?
No. It is fully mechanical and needs no batteries or electricity.
Can entrance and exit have different codes?
Yes, the entrance and exit codes are independent.
Can I replace an existing Locinox lock with it?
Yes, it is interchangeable with all Locinox surface mounted locks.
