ShutIT Half Bolt-on BadAss | 4" or 5" | Aluminum

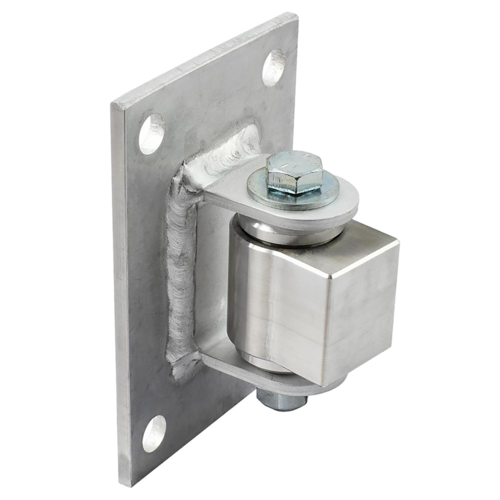

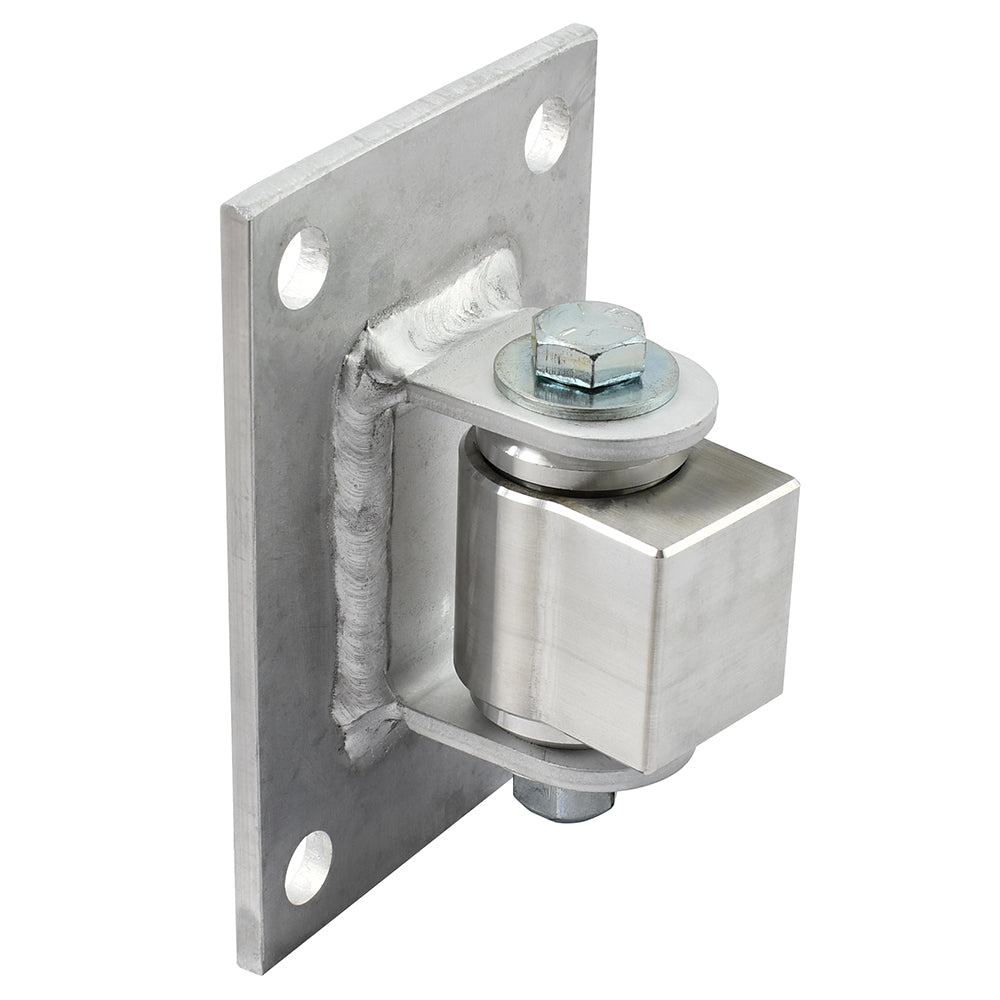

The Shut It Aluminum Half Bolt-On BadAss for 100 to 4-15/16" posts (CI3740A) from D&D Technologies bolts or welds to the fence post. Wide brackets put four anchor points at the sides of the post to reduce flexing and fatigue, and it carries gates up to 595 lb.
Key features
- Bolts or welds to 100 to 4-15/16" fence posts
- Four anchor points at the sides of the post
- Aluminum body, CNC machined
- Precision bushing and sealed bearings
- Load rating 450 kg per gate, maximum gate weight 270 kg
- Limited lifetime warranty
Shut It Aluminum Half Bolt-On BadAss for 100 to 4-15/16" posts: a stronger post connection
This half bolt-on hinge is made to bolt or weld to fence posts of 100 to 4-15/16". Its wide mounting brackets have four anchor points that sit at the sides of the post rather than at the center, which reduces post flexing, prevents fatigue in the fence post and gives a solid, stronger connection.
Materials and operation
The hinge has an aluminum body and is CNC machined for near frictionless movement. A precision bushing distributes the gate load for optimal performance and a longer life, and the high temperature sealed bearings need no greasing and are safe to powder coat with the hinges installed on the gate.
Sizes and fit
D&D rates the hinges at a load of 450 kg per gate and a maximum gate weight of 270 kg.
Warranty
D&D Technologies gives a limited lifetime warranty. For posts of 6" and larger, choose the 6" version of this hinge.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Material | Aluminum |
| Weight | 3.3 lb |
Frequently asked questions
Which post sizes does it fit?
Fence posts of 100 to 4-15/16". For posts of 6" and larger there is a separate version.
Why are the brackets so wide?
The wide brackets place four anchor points at the sides of the post instead of the center, which reduces flexing and prevents fatigue in the post.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 270 kg and a load rating of 450 kg per gate.
