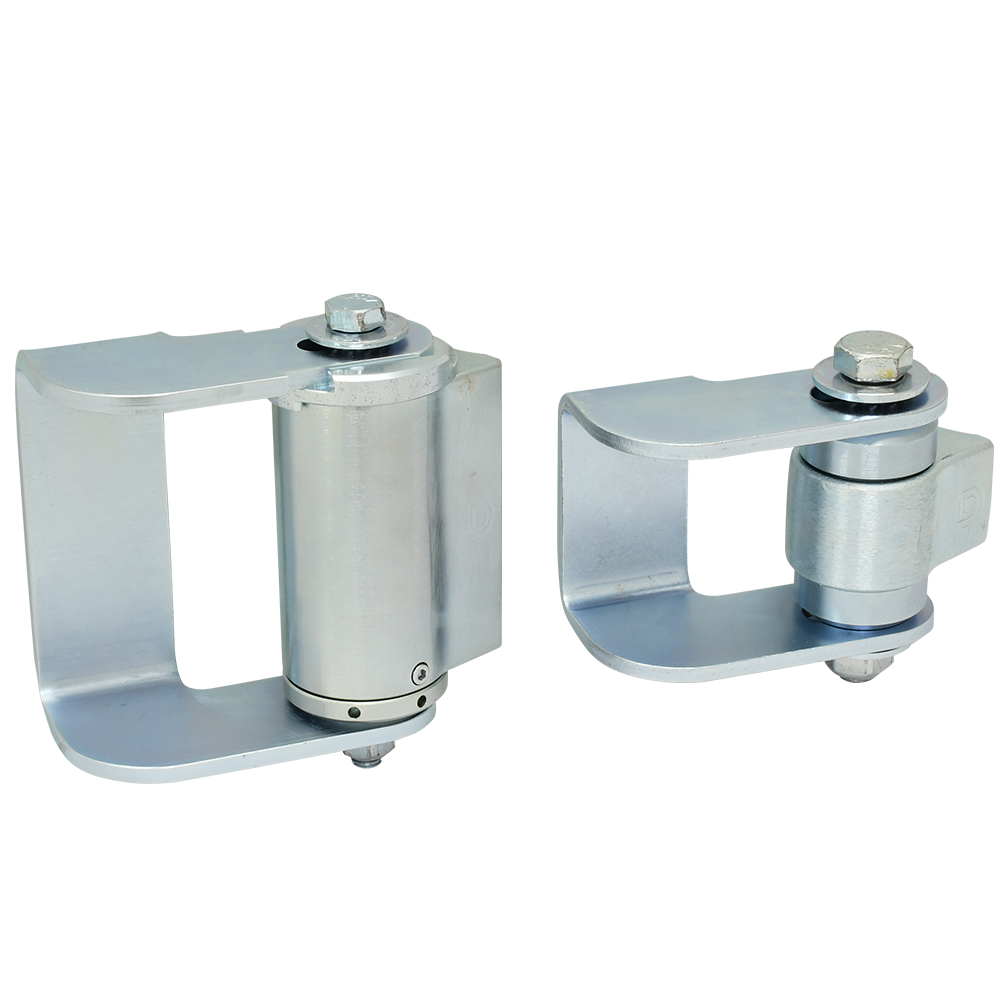

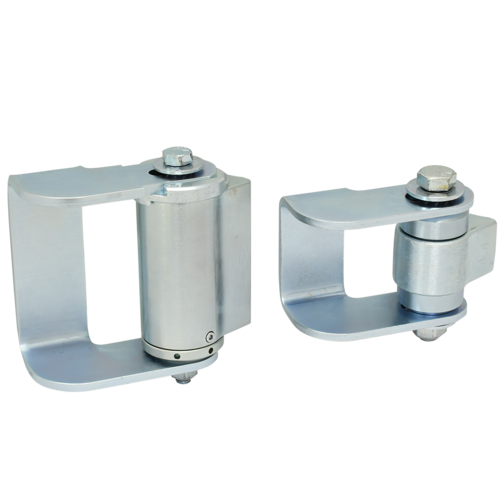

ShutIT Weld-on Face Mount Self-Closing Hinge Set
The Shut It Weld-On Face Mount Self-Closing Hinge Set from D&D Technologies gives a self-closing gate a full 180 degree opening. The closer is built into the hinge with 5 tension settings, gate gaps can be as small as 1/2", and a set closes gates up to 287 lb.
Key features
- Face mount hinges opening to 180 degrees
- Closer built into the hinge, 5 tension settings
- Gate gaps as small as 1/2"
- Horizontally adjustable from 13 to 1"
- Ideal for panic bar installations
- Set closes gates up to 287 lb
Shut It Weld-On Face Mount Self-Closing Hinge Set: 180 degrees and self-closing
This face mount, self-closing hinge set offers a full 180 degree gate opening for an unobstructed passage. With the closer built into the hinge, a self-closing gate needs no separate closer. D&D Technologies makes the face mount self-closing hinge as weld-on and bolt-on models.
Operation
The closing force has 5 tension-adjustment settings. The sealed bearings need no greasing and no maintenance. Horizontal adjustment from 13 to 1" gives a precise installation, a symmetrical balance with small gap latches and extra security, and makes the set ideal for panic bar installations. D&D lists it as suitable for accessible ADA use.
Sizes and fit
A set of one self-closing and one plain hinge (CI3850FM) closes gates up to 287 lb; with two closers (CI3825FM) the limit is 441 lb. Gate gaps can be as small as 1/2", on posts of 1-1/2" and up.
Installation
This set is welded to the gate and post and has a zinc finish.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Warranty | Limited Lifetime |
What's in the box
- 1 self-closing face mount hinge
- 1 plain face mount hinge
Frequently asked questions
Do I need a separate gate closer?
No. The closer is built into the self-closing hinge, with 5 tension settings.
How heavy a gate will this set close?
The set of one self-closing and one plain hinge (CI3850FM) closes gates up to 287 lb. Two self-closing hinges (CI3825FM) handle up to 441 lb.
Is it suitable for panic bar hardware?
Yes. D&D describes the horizontal adjustment as ideal for panic bar installations.
