ShutIT Half Bolt-on BadAss | Steel / Aluminum
The Shut It Combo Steel and Aluminum Half Bolt-On BadAss (CI3740) from D&D Technologies bolts or welds to 100 to 4-15/16" fence posts. Wide brackets put four anchor points at the sides of the post to reduce flexing and fatigue, and it carries gates up to 595 lb.
Key features
- Bolts or welds to 100 to 4-15/16" fence posts
- Four anchor points at the sides of the post
- Steel and aluminum combination body
- Precision bushing and sealed bearings
- Load rating 450 kg per gate, maximum gate weight 270 kg
- Limited lifetime warranty

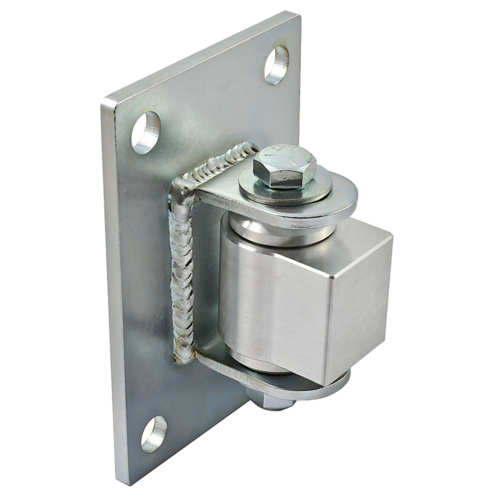

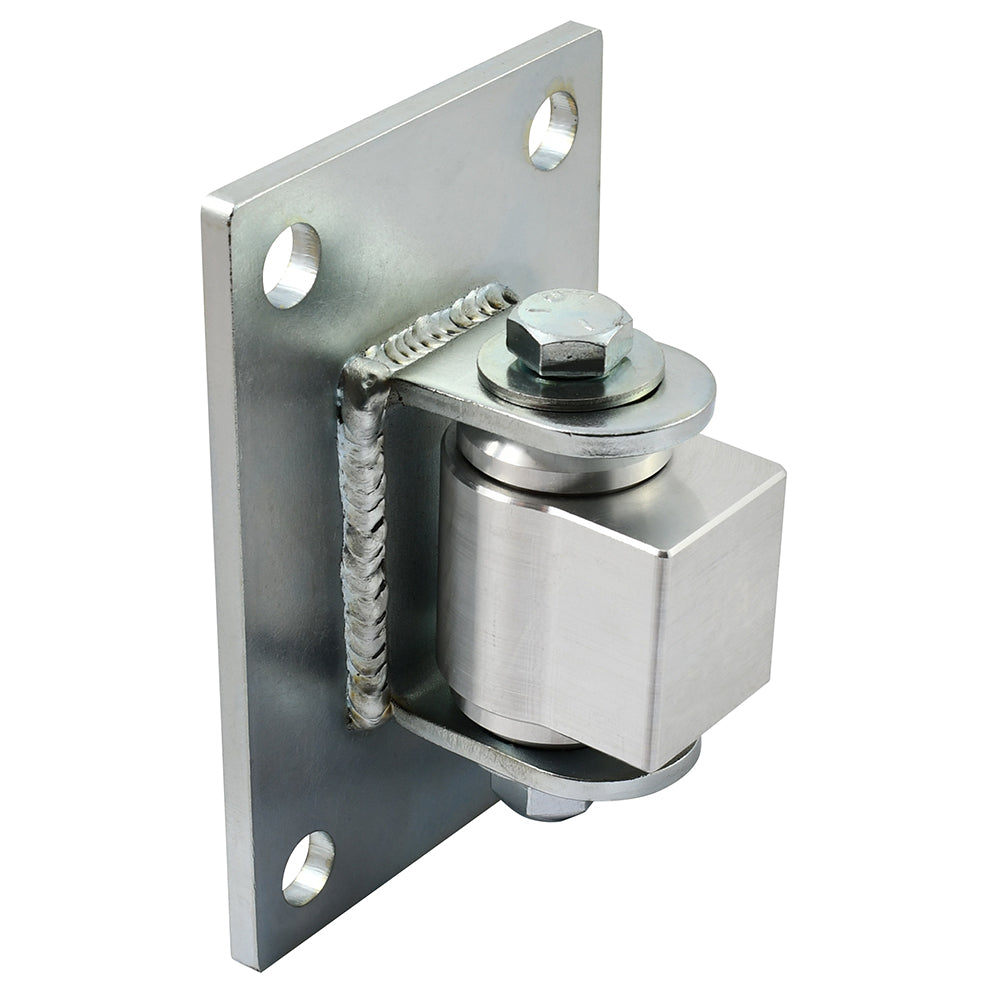

Shut It Combo Half Bolt-On BadAss for 100 to 4-15/16" posts: steel and aluminum
This half bolt-on hinge is made to bolt or weld to fence posts of 100 to 4-15/16". Its wide mounting brackets have four anchor points that sit at the sides of the post rather than at the center, which reduces post flexing, prevents fatigue in the fence post and gives a solid, stronger connection.
Materials and operation
The hinge combines steel and aluminum and is CNC machined for near frictionless movement. A precision bushing distributes the gate load for optimal performance and a longer life. The high temperature sealed bearings need no greasing and are safe to powder coat with the hinges installed on the gate. Shut It hinges are assembled in the USA.
Sizes and fit
D&D rates the hinges at a load of 450 kg per gate and a maximum gate weight of 270 kg. They fit square or round posts, and the finish is zinc.
Warranty
D&D Technologies gives a limited lifetime warranty.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Weight | 3.3 lb |
Frequently asked questions
Which post sizes does it fit?
Fence posts of 100 to 4-15/16".
Why are the brackets so wide?
The wide brackets place four anchor points at the sides of the post instead of the center, which reduces flexing and prevents fatigue in the post.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 270 kg and a load rating of 450 kg per gate.
