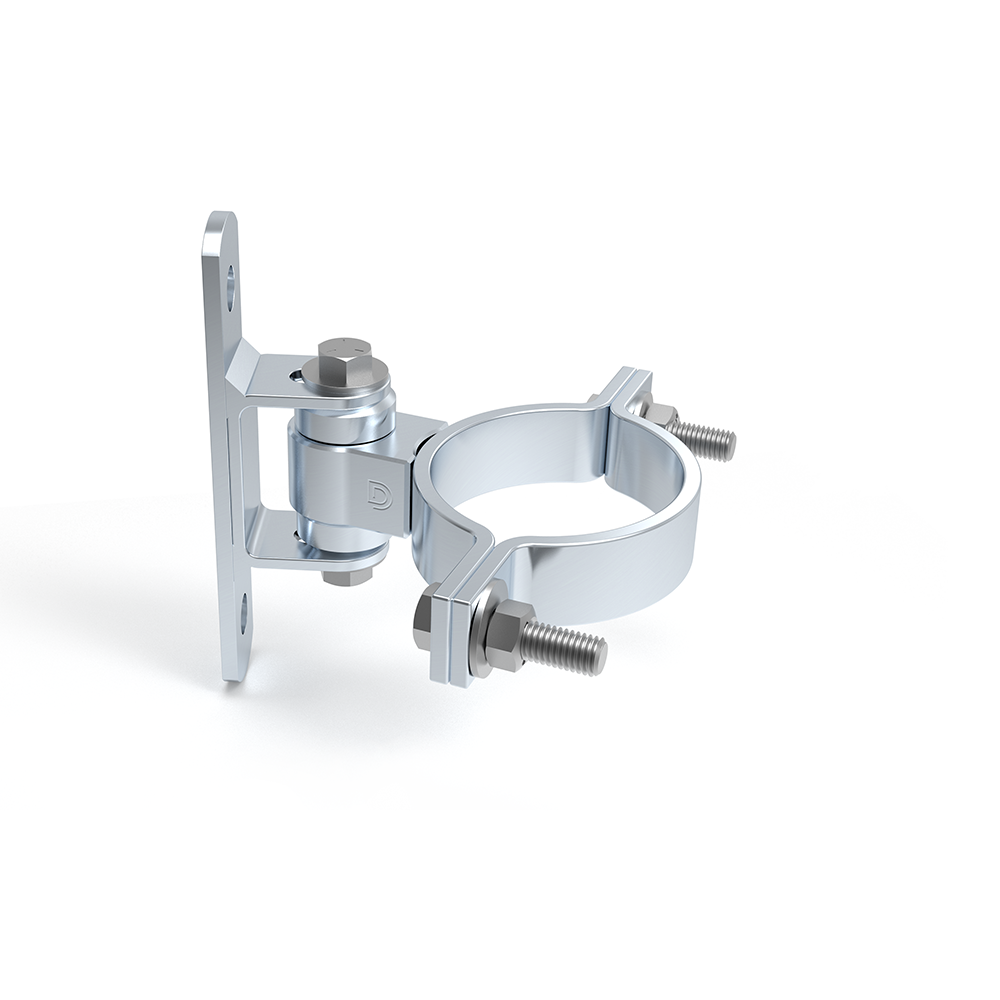

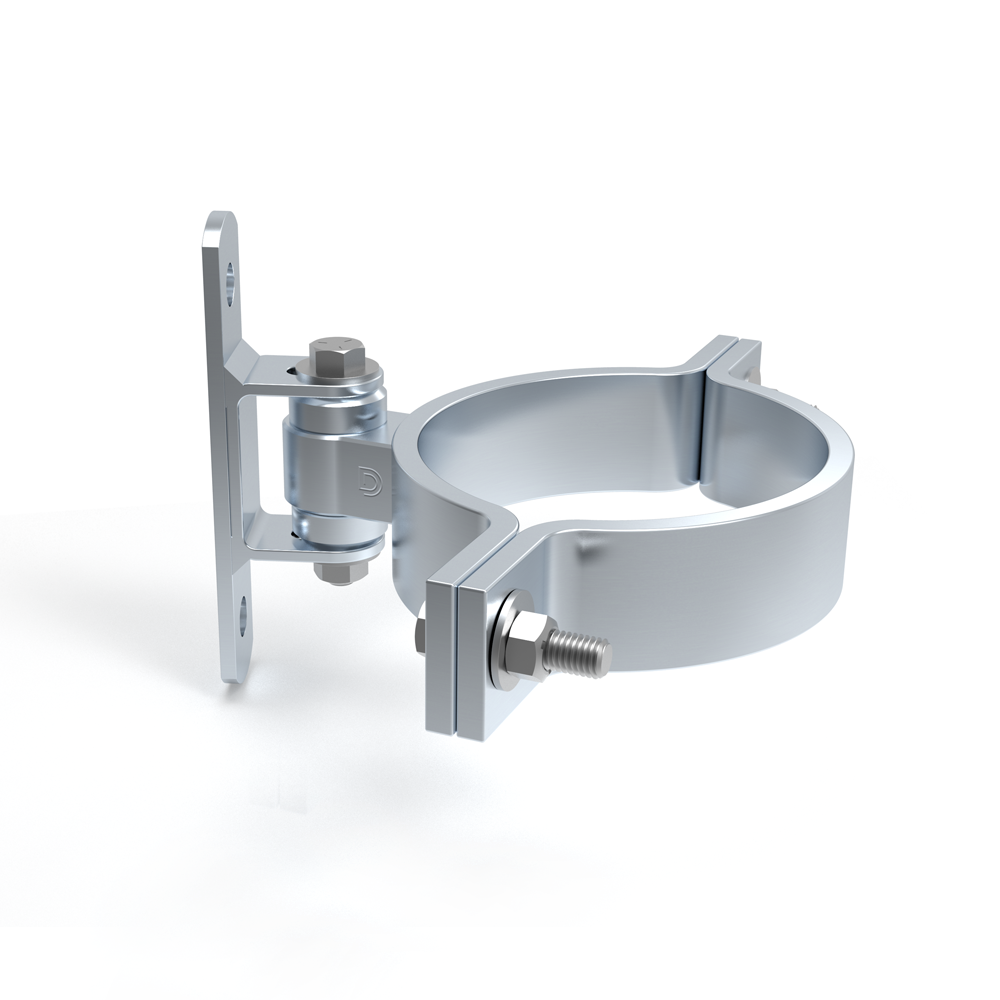

Shut It® Round Bolt-On BadAss™
The Shut It Round Bolt-On BadAss from D&D Technologies is a heavy duty bolt-on gate hinge for hanging a square gate frame on a round post. Sealed maintenance-free bearings, an adjustable barrel and a 992 lb maximum gate weight, for round posts of 102, 152 or 8".
Key features
- Bolt-on hinge for a square gate on a round post
- Models for round posts of 4", 6" and 8"
- High temperature sealed bearings, safe to powder coat
- Adjustable barrel for precise installation
- Zinc plated steel
- Load rating 900 kg per gate, maximum gate weight 450 kg
Shut It Round Bolt-On BadAss: heavy duty hinges for round posts
The Round Bolt-On BadAss is designed for gates where the post is round and welding is not an option. Its flat bolt-on brackets allow through bolting, and the hinge links a square gate frame to a round post.
Materials and operation
The yoke and body are steel and the hinge is zinc plated. High temperature sealed bearings need no greasing and no maintenance, and they are safe to powder coat with the hinges installed on the gate. The barrel is adjustable and the hinge adjusts horizontally, so the gate can be set precisely.
Sizes and fit

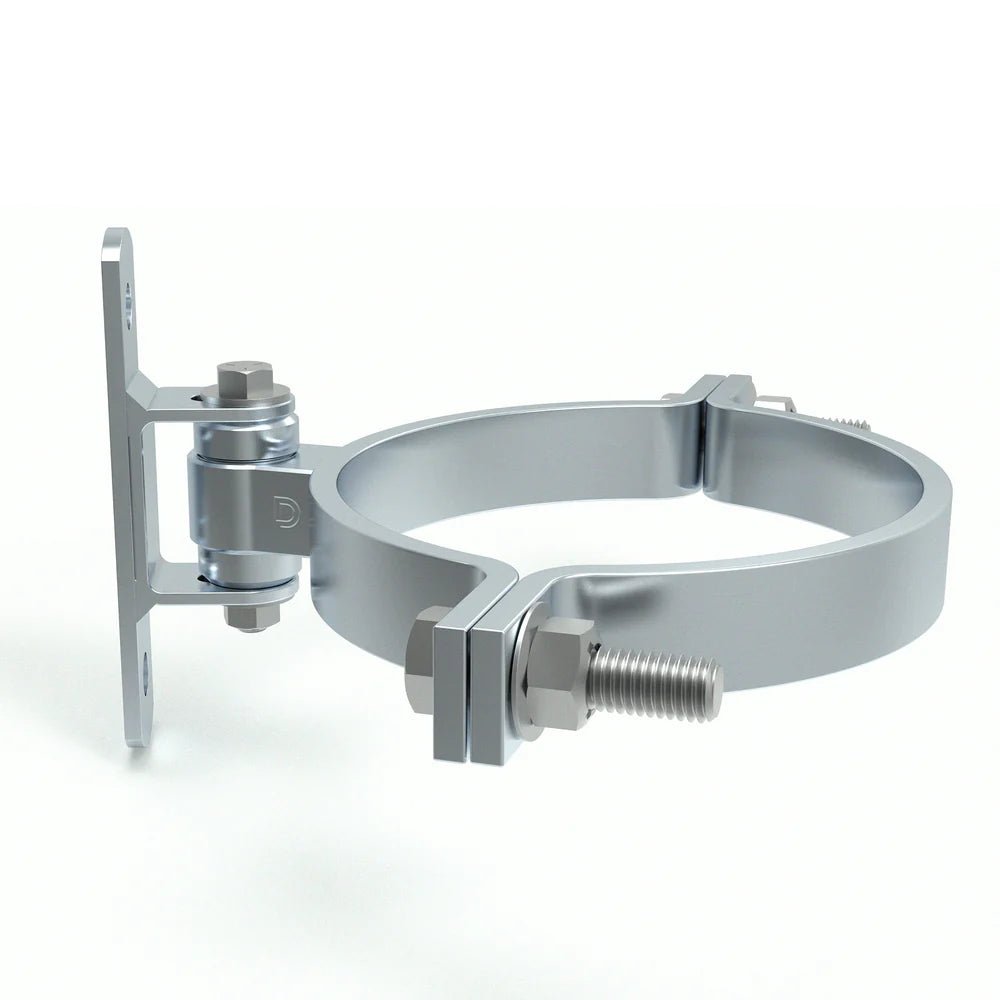

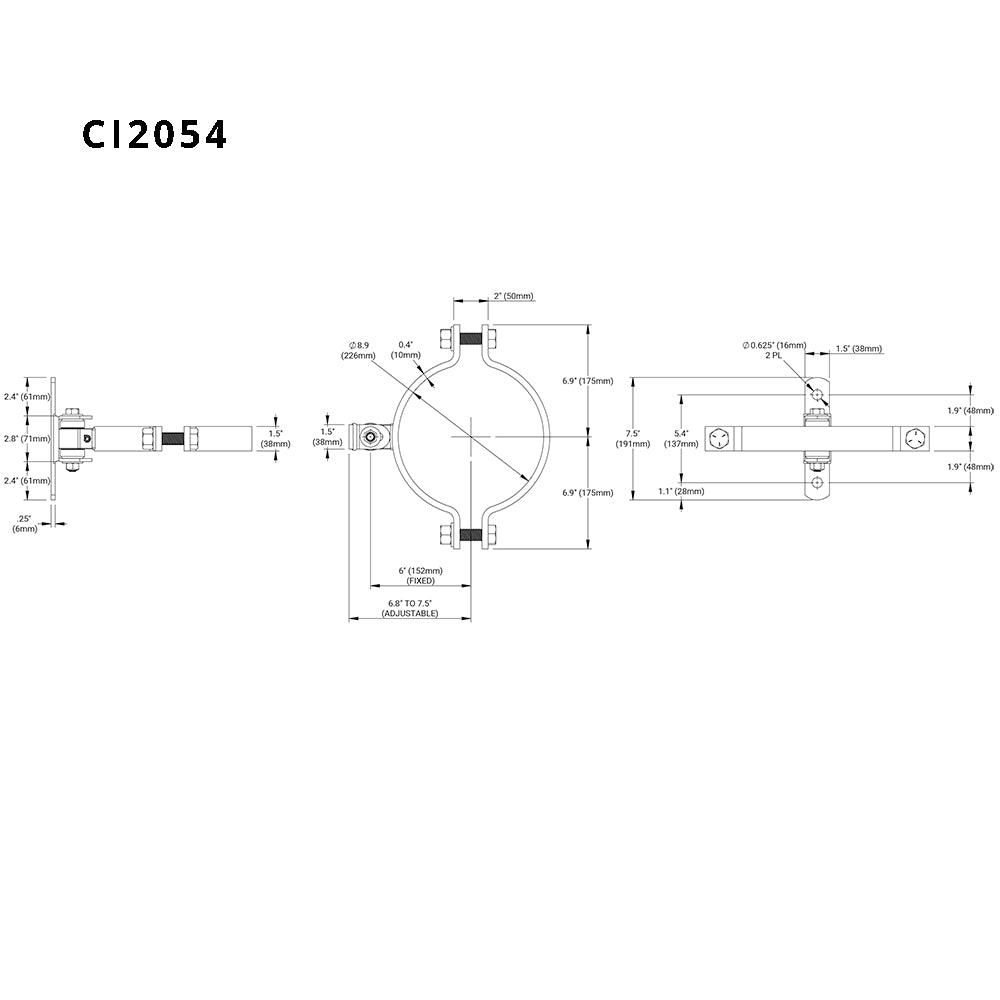

Choose the model for your round post: 102 mm, 152 mm or 203 mm. D&D rates the hinges at a load of 900 kg per gate and a maximum gate weight of 450 kg. The gate gap is 69 to 81 mm.
Typical uses

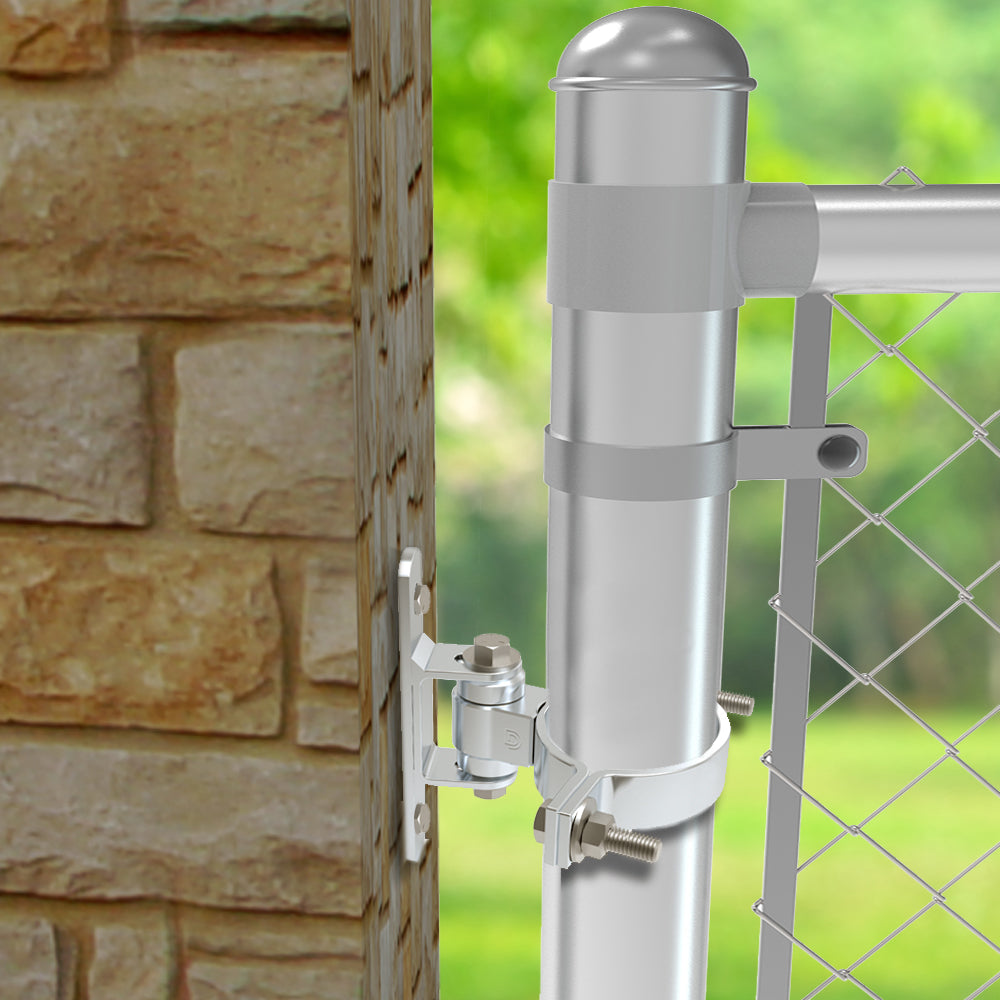

The hinge is specified for pedestrian, pet, privacy, security and commercial gates, including chain link gates on round posts. It is not self-closing. Bolts are ordered separately to suit your gate and post.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Bolt-On |
| Weight | 4.5 lb |
| Warranty | Limited lifetime |
| Product line | Shut It BadAss |
| Type | Hinge |
| Function | Non Self-Closing |
| Suitable for | Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 1000 lb |
| Sealed bearings | 2 |
| Gate gap variance | 2.7 - 3.2" |
| Max gate load | 2000 lb |
| Yoke material | Steel |
| Body material | Steel |
| Sold as | Each |
| Post size | 4" |
Article numbers
- CI2051Post size: 4"$140.00Chosen
- CI2054Post size: 8"$153.00
- CI2053Post size: 6"$147.00
Frequently asked questions
Which post sizes does it fit?
There are models for round posts of 4", 6" and 8".
Can I powder coat the gate with the hinges fitted?
Yes. The high temperature sealed bearings are safe to powder coat with the hinges installed on the gate.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 450 kg and a load rating of 900 kg per gate.
