KwikFit™ ALUMINUM
KwikFit Aluminum self-closing gate hinges from D&D Technologies: traditionally styled, powder-coated aluminum hinges with an internal stainless steel spring and one-handed tension adjustment, closing gates up to 44 lb. Post-to-gate and wall or post mount models in gloss black, satin bronze or gloss white.
Key features
- Self-closes gates up to 44 lb
- Powder-coated aluminum with internal stainless steel spring
- One-handed tension adjustment from either end
- Reversible for left or right-handed installation
- Post-to-gate and wall or post mount models
- Gloss black, satin bronze or gloss white
KwikFit Aluminum: traditionally styled self-closing hinges
KwikFit Aluminum from D&D Technologies is a self-closing gate hinge in a traditional style. The body is aluminum with a powder-coated finish, an internal stainless steel spring closes the gate, and a low-friction polymer washer keeps the movement smooth. It self-closes gates up to 44 lb.
Tension and mounting

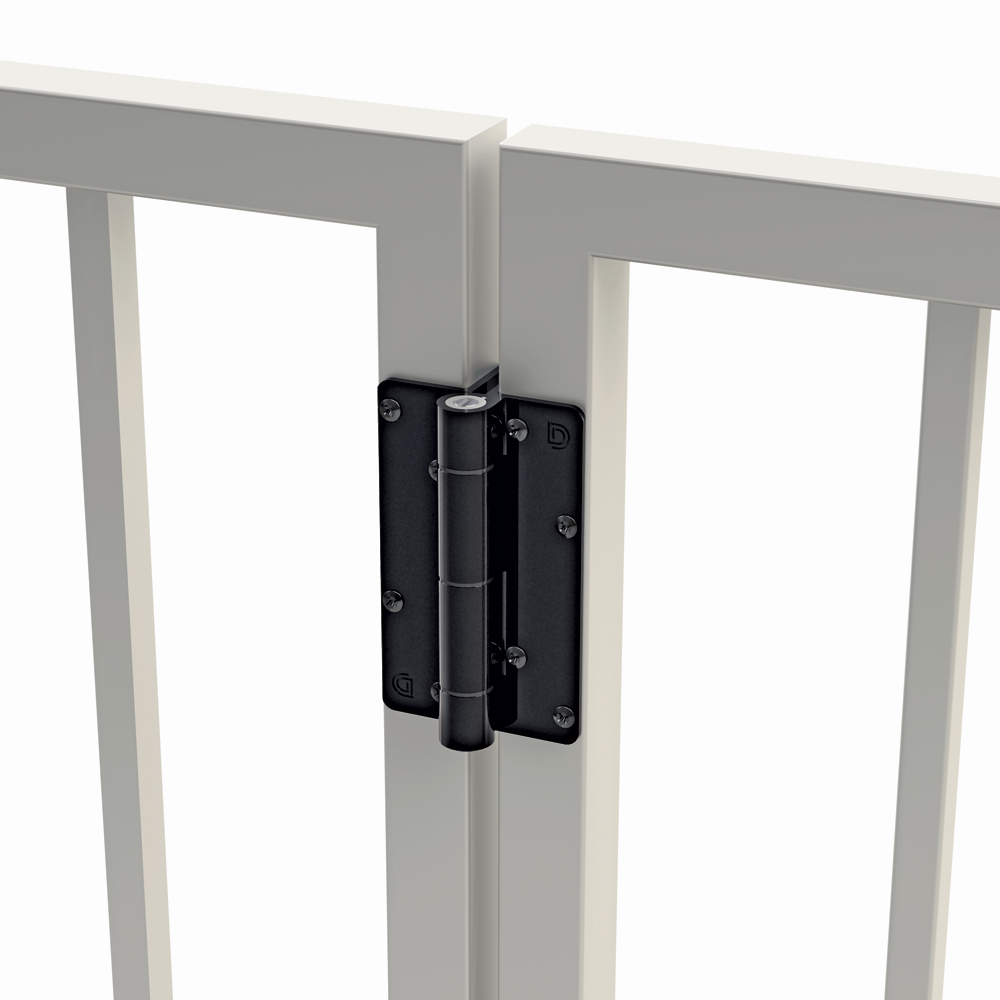

The closing tension uses the D&D-patented adjustment and can be set one-handed from either end of the hinge. Mounting is reversible, for right or left-handed installation, and the hinges screw on to gate and post.
Models and finishes

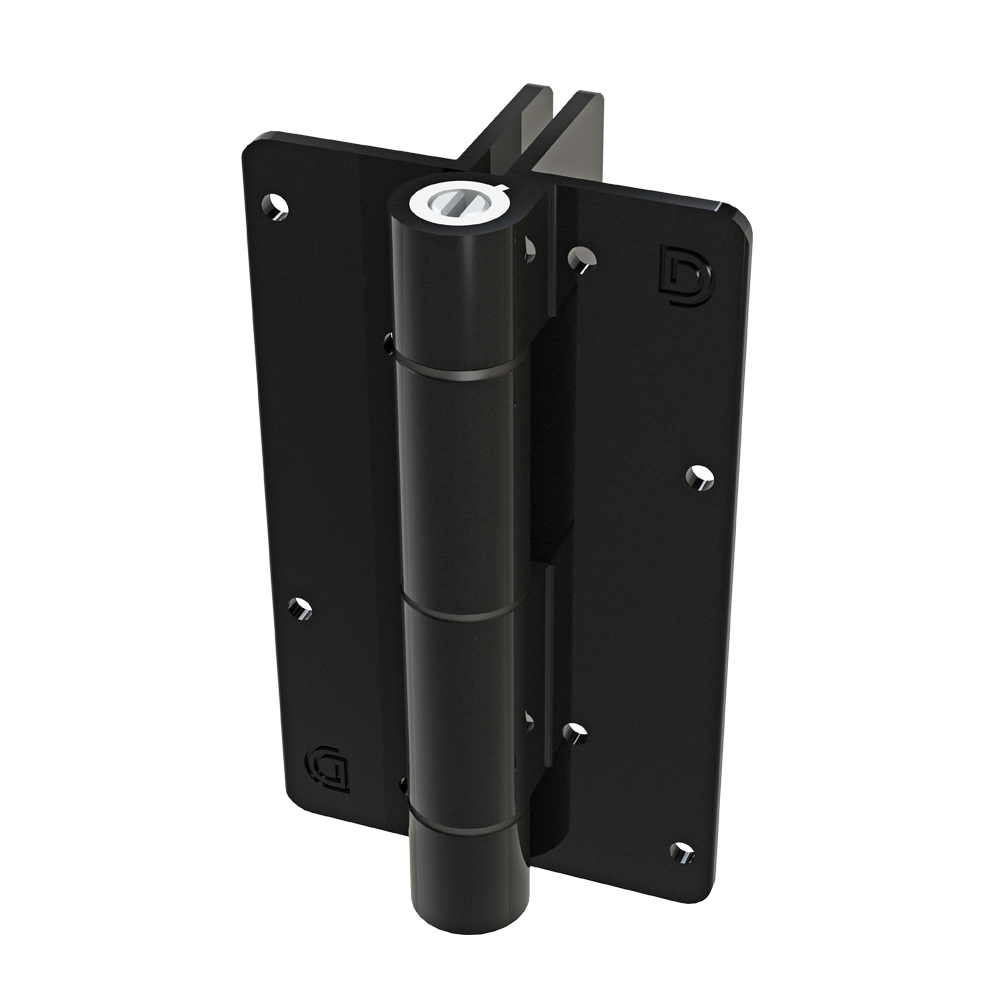

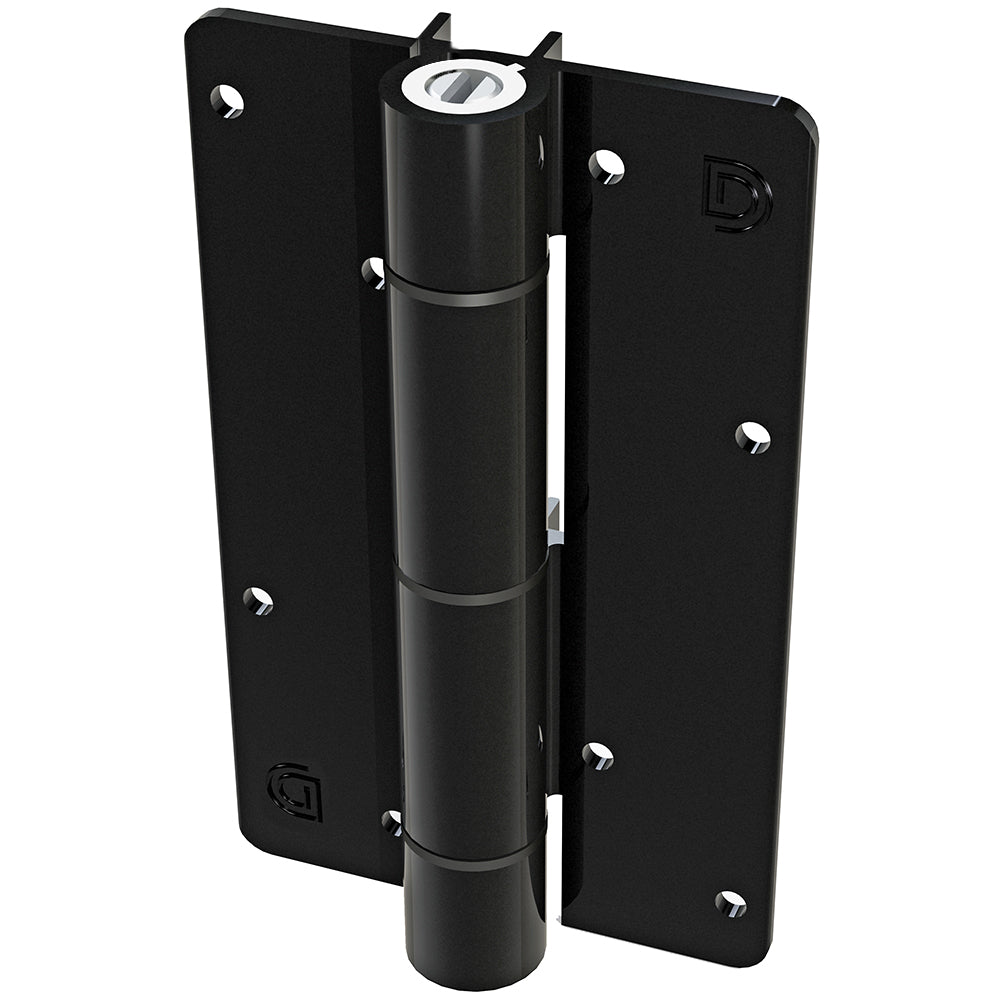

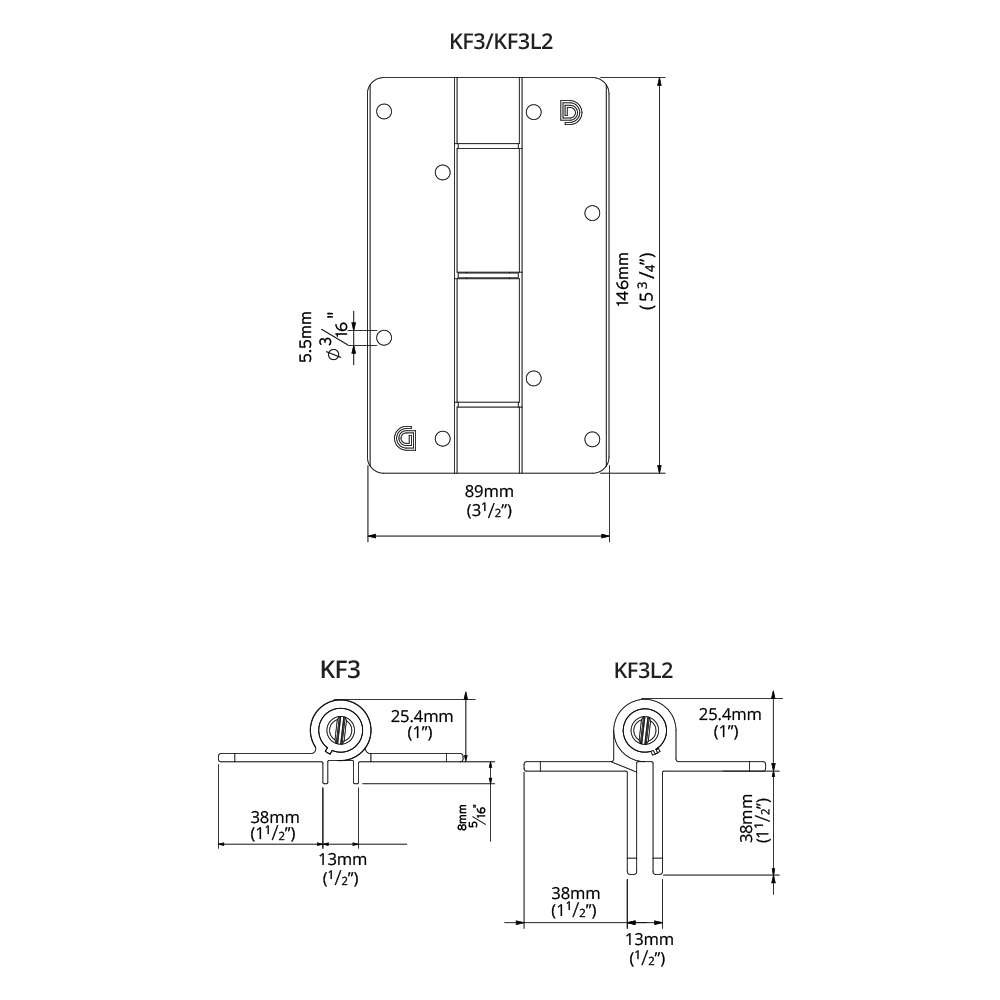

- KF3 - post to gate, with alignment ridges

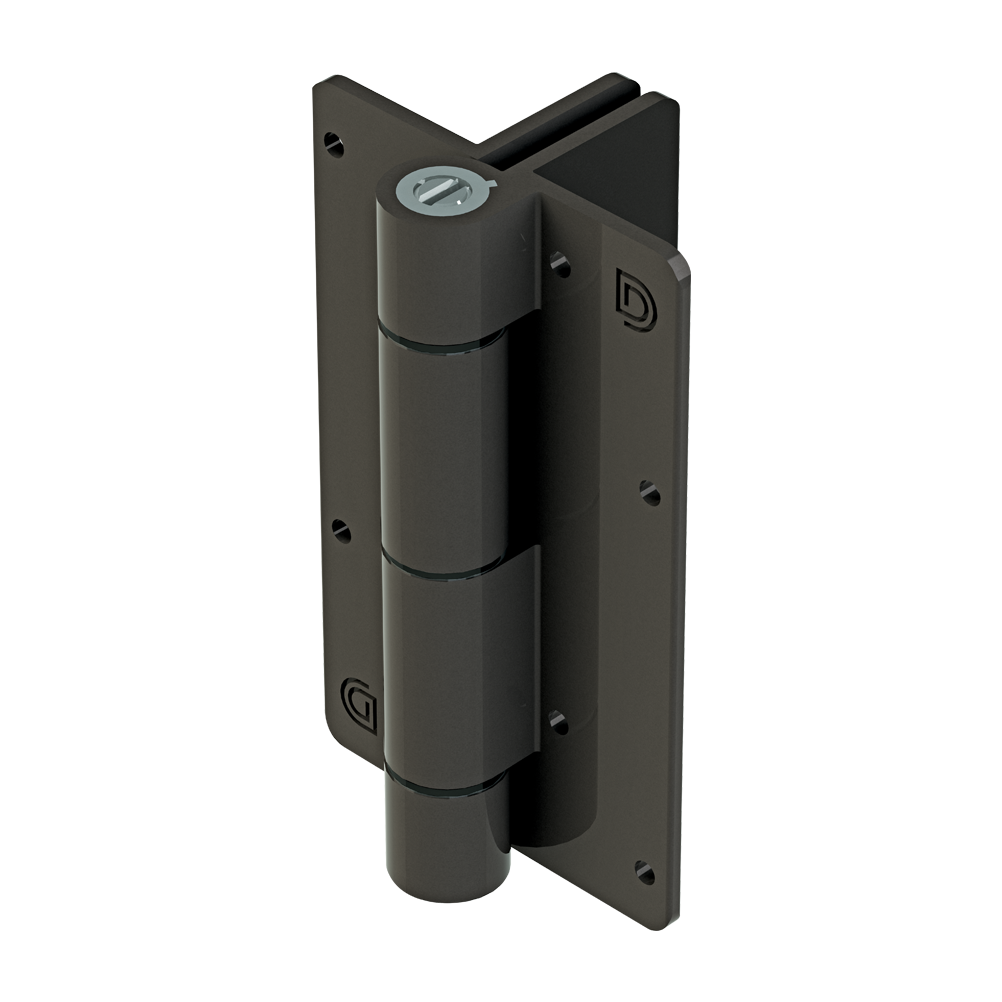

- KF3L2 - post to gate, with side fixing legs

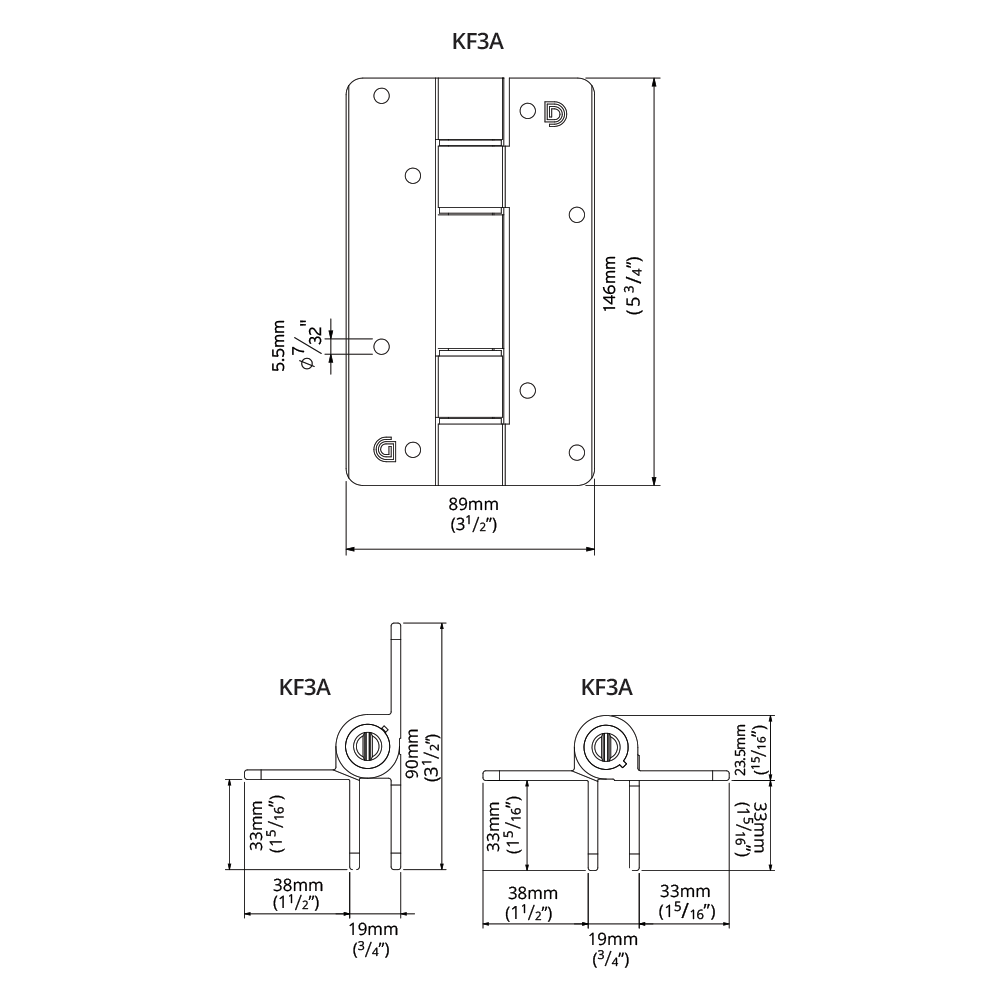

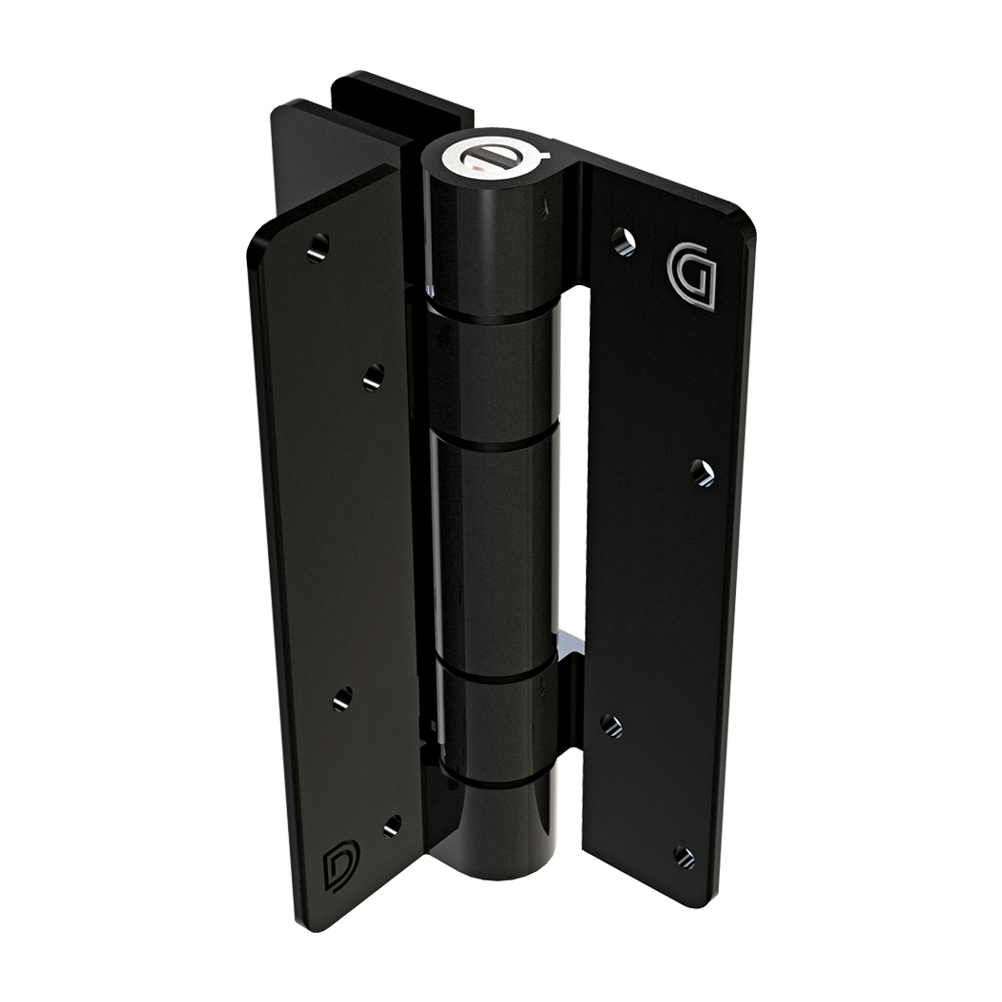

- KF3A - wall or post mounted

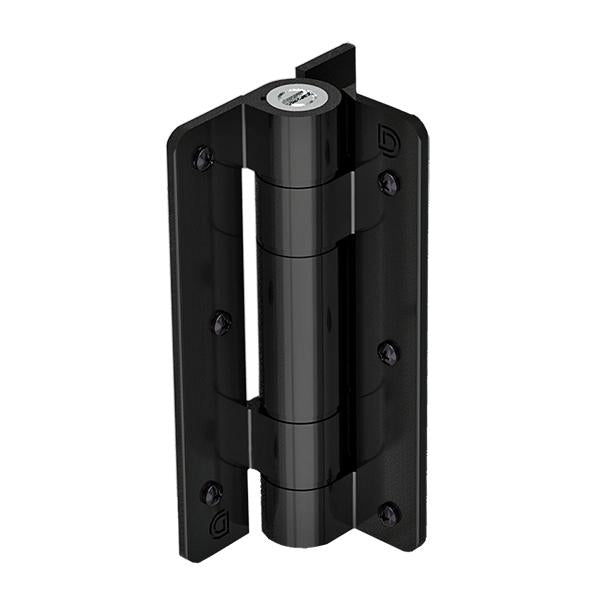

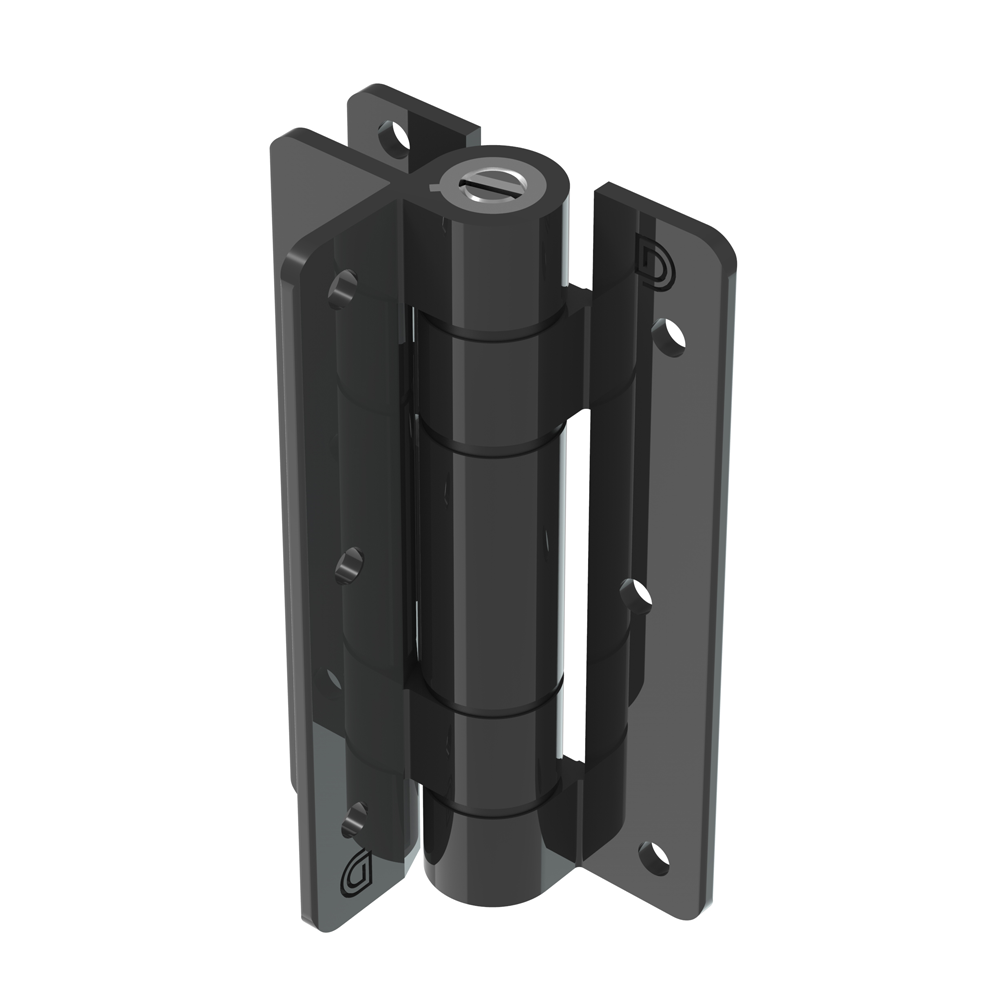

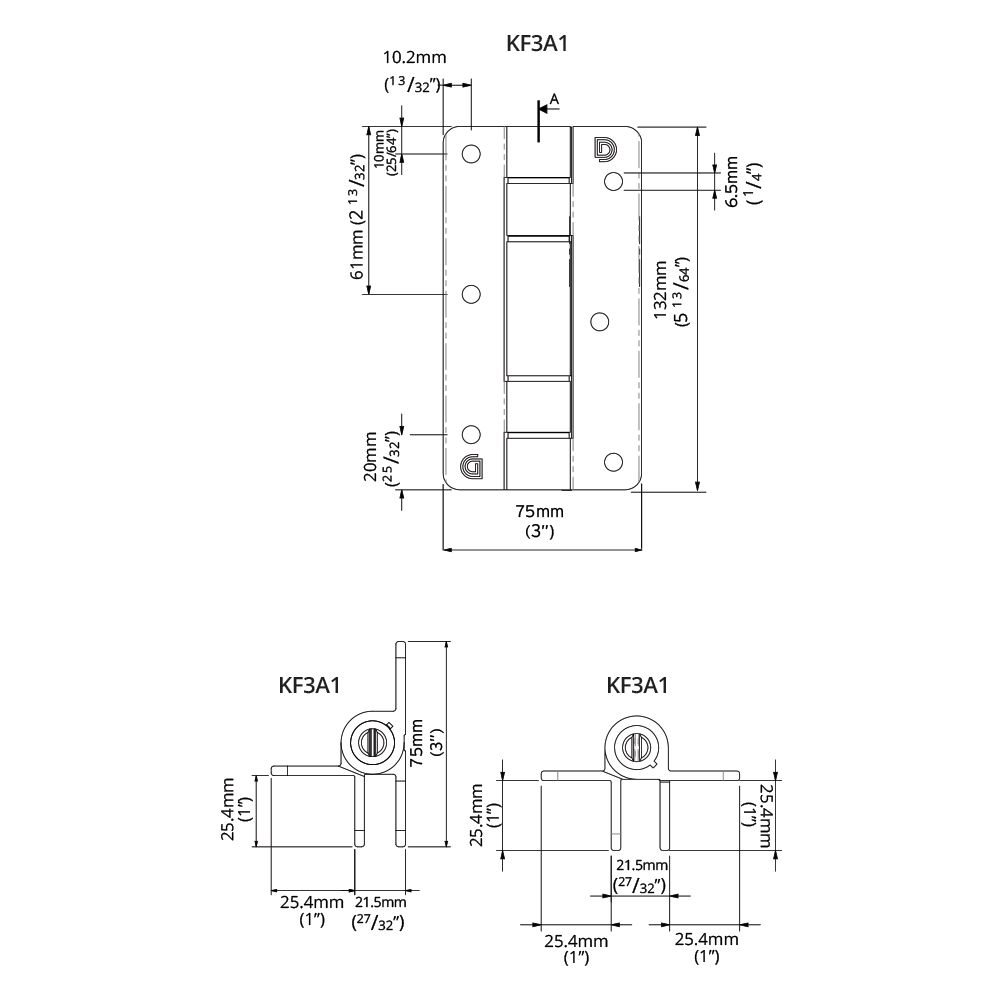

- KF3A1 - wall or post mounted, 1" version, black only
Each model comes in gloss black, satin bronze or gloss white, except the KF3A1.
Fit and fasteners
KwikFit Aluminum suits aluminum, vinyl and wood gates and is specified for front, side, pedestrian, privacy, pet and security gates. Fasteners are sold separately so you can match the screw to your gate material. The hinges are sold as a pair with the D&D limited lifetime warranty.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Screw-On |
| Fixings included | No |
| Weight | 0.6 lb |
| Warranty | Limited lifetime |
| Product line | KwikFit |
| Type | Hinge |
| Function | Self-Closing, Square-to-Square |
| Gate material | Aluminum, Vinyl/PVC, Wood |
| Suitable for | Front Gate, Pedestrian Gate, Pet Gate, Privacy Gate, Security Gate, Side Gate |
| Max self-closing gate weight | 44 lb (44 lb), 44 lbs (20kgs) |
| Sold as | Pair |
| Finish | Black (Gloss) |
| Mount type | Post to gate alignment ridges |
Article numbers

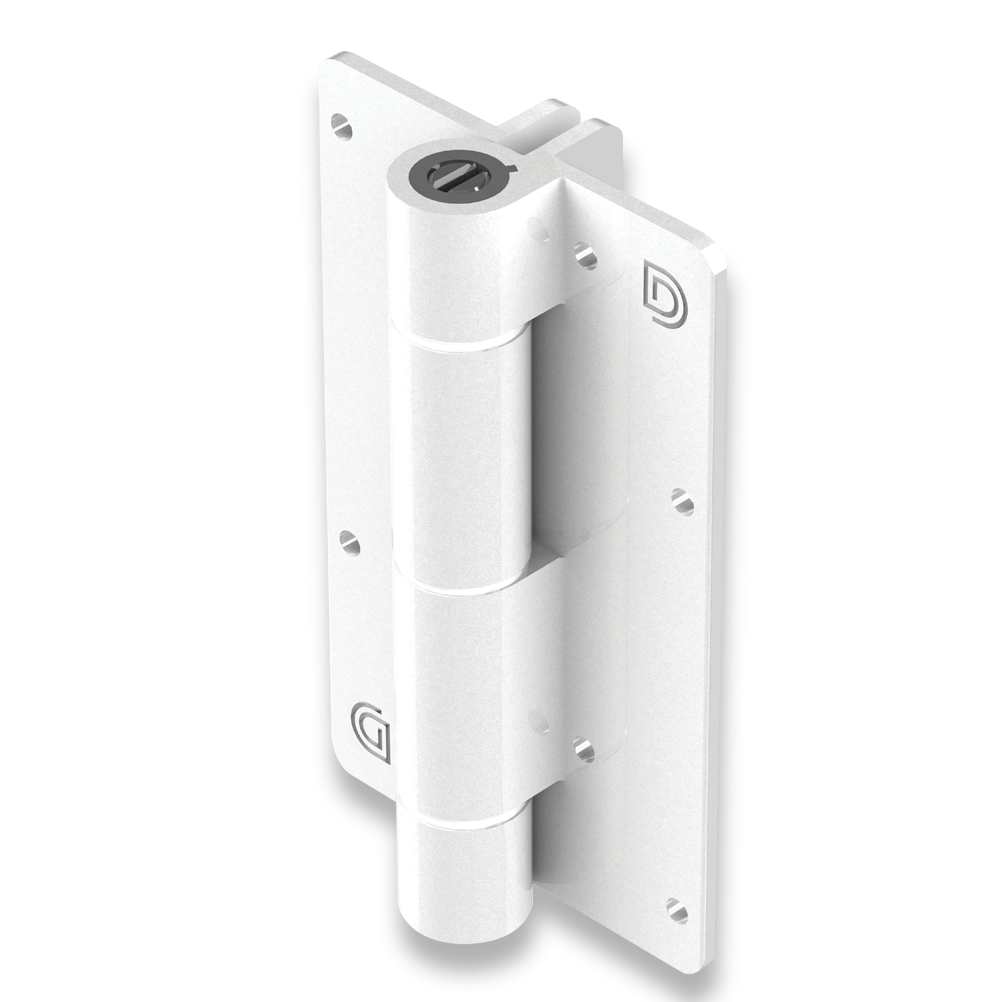

- KF3WTFinish: White (Gloss) / Mount type: Post to gate alignment ridges$22.00
- KF3BRFinish: Bronze (Satin) / Mount type: Post to gate alignment ridges$22.00
- KF3BLFinish: Black (Gloss) / Mount type: Post to gate alignment ridges$20.00Chosen
- KF3AWTFinish: White (Gloss) / Mount type: Wall or post mounted$27.00
- KF3ABRFinish: Bronze (Satin) / Mount type: Wall or post mounted$27.00
Frequently asked questions
How heavy a gate can the KwikFit Aluminum close?
It self-closes gates up to 44 lb. Staying inside that rating is what keeps the closing action reliable over the life of the gate.
Which gate materials does the KwikFit Aluminum suit?
It is made for aluminum, vinyl and wood gates. Match the fastener to the material - D&D publishes a screw pack for each gate type.
Which KwikFit Aluminum part number do I need?
KF3 and KF3L2 are post-to-gate models, with alignment ridges or side fixing legs; KF3A and KF3A1 are wall or post mounted. The last letters give the finish: BL black, BR bronze, WT white. Quote the number when you order and we ship exactly that item.
What warranty comes with the KwikFit Aluminum?
D&D Technologies backs it with a limited lifetime warranty. Warranty terms vary with the application and usage, so keep your proof of purchase and register the product with D&D.
