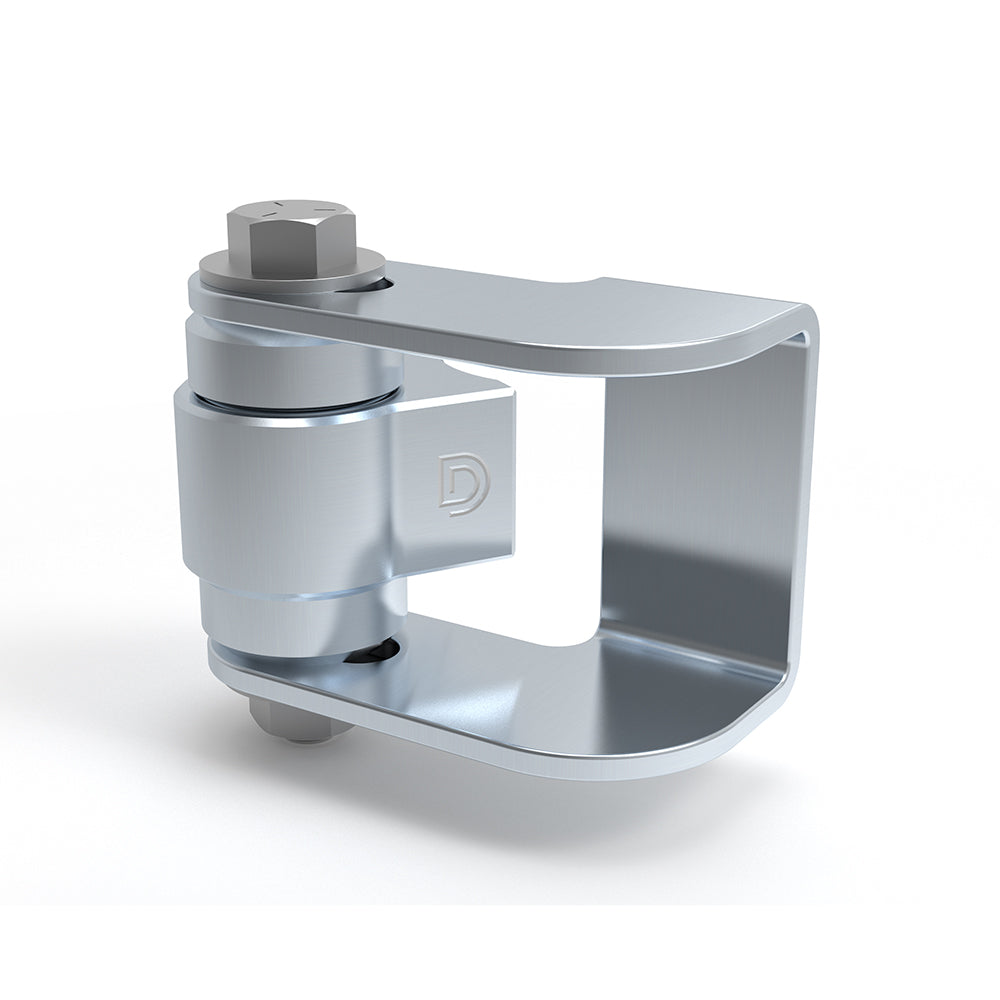

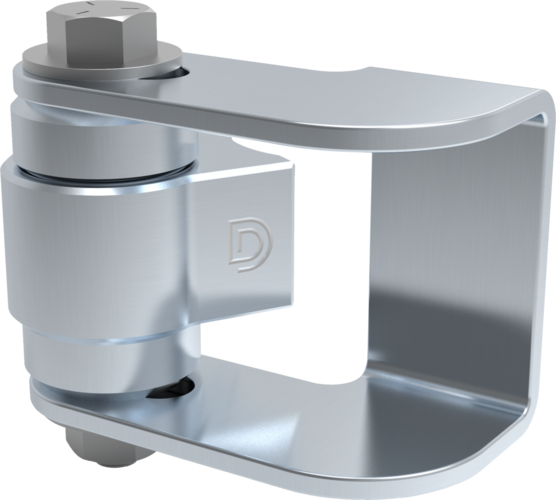

ShutIT Face Mount Weld-On BadAss
The Shut It Face Mount Weld-On BadAss from D&D Technologies is a zinc electroplated face mount gate hinge that opens a full 180 degrees. Gate gaps can be as small as 1/2", the sealed bearings are safe to powder coat, and D&D has tested it to over 1 million cycles.
Key features
- Opens to a full 180 degrees
- Gate gaps as small as 1/2"
- Horizontally adjustable by 1/2"
- High temperature sealed bearings, safe to powder coat
- Zinc electroplated, tested to over 1 million cycles
- Load rating 900 kg per gate
Shut It Face Mount Weld-On BadAss: a full 180 degree opening
Face mount hinges sit on the face of the gate and post, which lets the gate open to a full 180 degrees for the best opening angle. D&D Technologies makes the face mount BadAss as this weld-on model and as a bolt-on model.
Materials and operation
The hinge uses maintenance-free, high temperature sealed bearings that are safe to powder coat with the hinges installed on the gate. Zinc electroplating gives long-lasting protection against rust and corrosion. D&D has tested Shut It hinges to over 1 million open and close cycles and gives a limited lifetime warranty.
Sizes and fit
The hinge is horizontally adjustable by 13 mm for a precise installation and to allow proper gate movement, and that adjustment makes gate gaps as small as 13 mm possible. D&D rates it at a load of 900 kg per gate. It suits square posts of 38 mm and up.
Installation
The hinge is welded to the gate and post. It is specified for pedestrian, pet, privacy, security and commercial gates and is not self-closing.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
Frequently asked questions
How far does the gate open?
The face mount hinge opens to a full 180 degrees.
Can I powder coat the gate with the hinges fitted?
Yes. The sealed bearings are rated for high temperatures and are safe to powder coat with the hinges installed.
Is there a bolt-on version?
Yes, D&D also makes the face mount BadAss as a bolt-on model.
